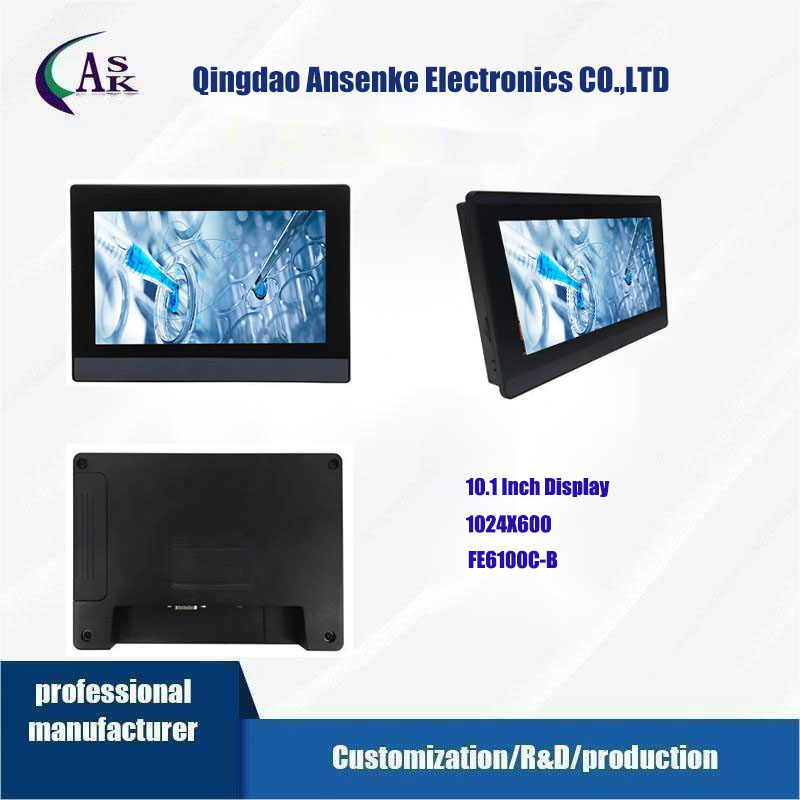

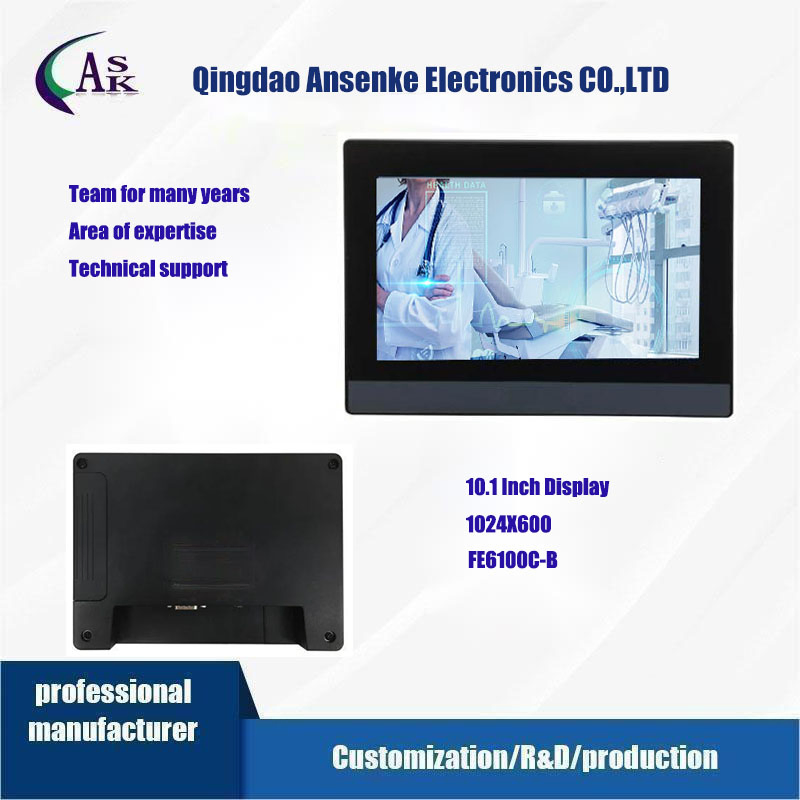

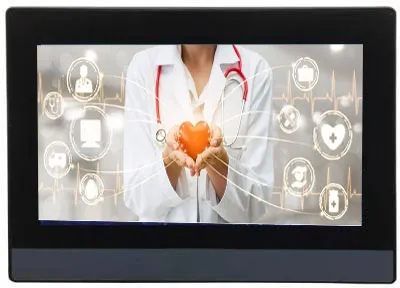

10.1 Inch Medical-Grade Touch Screen Digital Signage Video Monitor Accessory, 1024X600 Point Touch Display for Diagnostic Equipment & Digital Signage

1 / 5

10.1 Inch Medical-Grade Touch Screen Digital Signage Video Monitor Accessory, 1024X600 Point Touch Display for Diagnostic Equipment & Digital Signage

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Info.

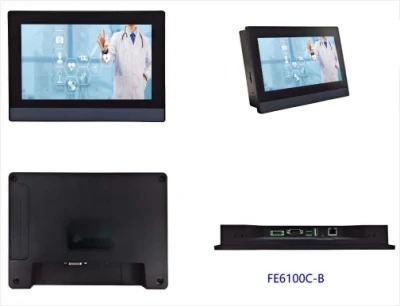

Model NO.

ASK-FE6100C-B

Aspect Ratio

16:9

Feature

Touch Display, LED Backlight

Optimum Resolution

1024*600

Type

TFT

Response Time

20ms

Interface Type

USB/SD

Brightness

400 CD/M²

Backlight

LED

LCD Life

50000 Hours

🔍 Product Overview

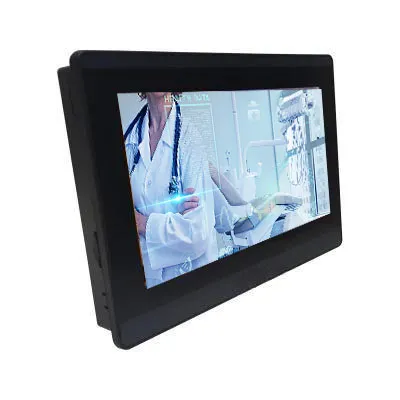

The ASK-FE6000 series represents a new generation of IIoT human-machine interface. This high-quality and cost-effective touch screen features an industrial ABS plastic shell, ensuring low cost and high reliability. The main board is treated with a special coating (three anti-paint) to adapt to harsh industrial environments.

💡 Key Advantage: By selecting the FLink IIoT module, you can upgrade the IIoT human-machine interface immediately and access complete and convenient industrial IIoT cloud platform services.

⚙️ Product Specification

Hardware Parameters

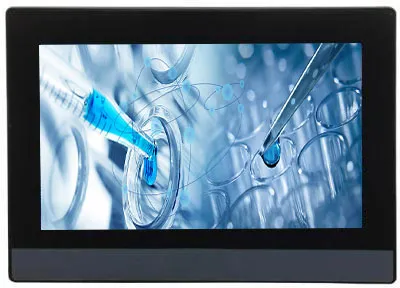

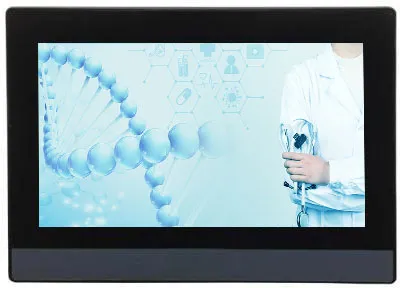

Display	10.1" 16:9 TFT LCD (1024×600)
Colors & Brightness	24-bit Colors, 400 cd/m²
Touch Panel	4 wires resistive touch screen (Surface hardness 4H)
CPU	600MHz ARM Cortex-A8 / 1.2GHz ARM Cortex-A7
Memory	128M Flash + 128M DDR3 / 256MB DDR3 + 4GB EMMC
COM Ports	COM1: RS232/RS485/RS422; COM3: RS232
Electrical Specifications
Input Power	DC24V (Range DC 9V~28V)
Power Consumption	< 10W
Protection	Thunderstrike and surging protection; IP65 Front Panel
Environmental & Mechanical
Operating Temperature	0~50ºC

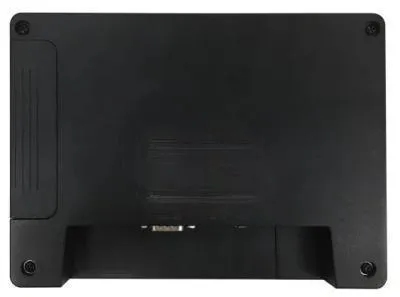

Dimension	273mm * 213mm * 36mm
Panel Cutout	260mm * 202mm

❓ Frequently Asked Questions

Q1. What are your terms of payment?

A: We accept Paypal, Western Union, and T/T. Standard terms are T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packages before you pay the balance.

Q2. What is the typical delivery time?

A: Generally, it takes 3-5 days for samples or small orders. For bulk orders (300-500pcs), the delivery time is approximately 25-30 days after receiving payment.

Q3. Can you produce items based on samples or technical drawings?

A: Yes, we can produce according to your specific samples or technical drawings. We also have the capability to build the necessary molds and fixtures.

Q4. What is your sample policy?

A: We can supply samples if we have parts in stock, but customers are responsible for the sample cost and the courier/delivery charges.

Q5. Do you test goods before delivery?

A: Yes, we conduct a 100% comprehensive test on all goods before they are dispatched for delivery.

Q6. What kind of warranty do you provide?

A: We offer a two-year warranty. We are responsible for replacing or repairing units if there are any manufacturing faults (excluding human damage). Technical service is also provided for minor issues.
