Basic Specifications
Model NO.988S50 / Adult
SterilizationWithout Ethylene Oxide
Quality GuaranteeTwo Years
Target GroupAdult
Logo PrintingAvailable
CustomizationSupported (OEM/ODM)
Size50*45mm
HS Code9018110000
Production Capacity550,000 PCS/Day
Product Overview

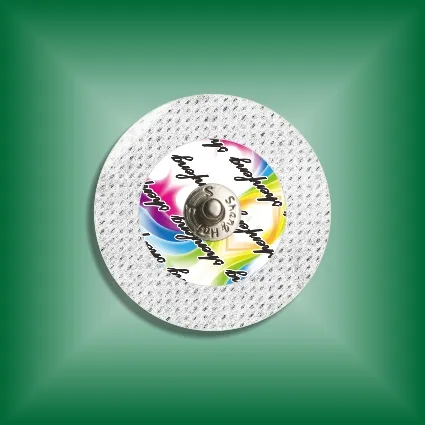

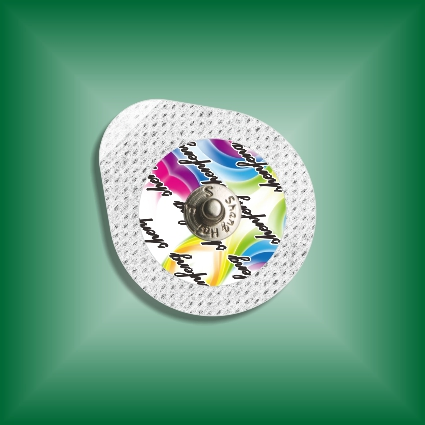

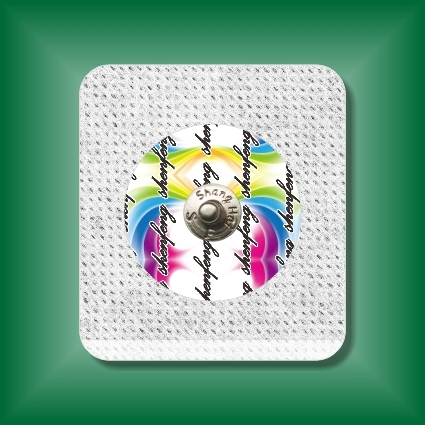

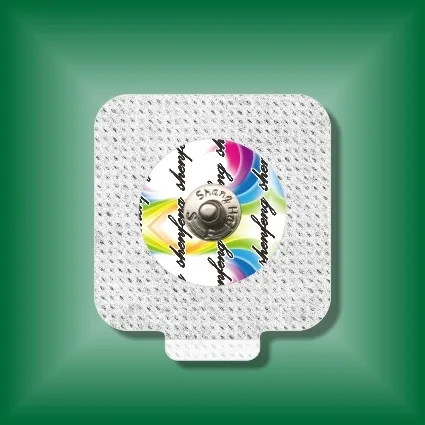

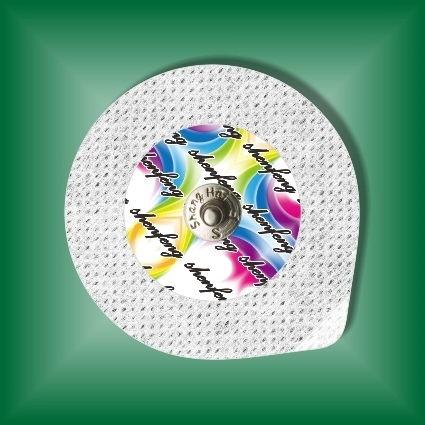

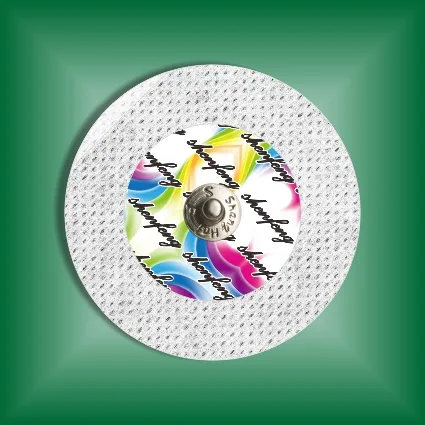

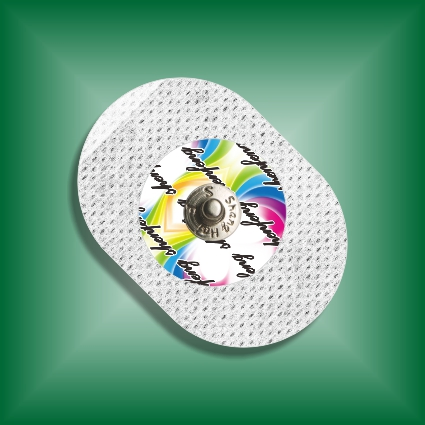

The 988S50 Adult ECG monitoring electrode (Dia. 50mm, Spunlace) is designed to match with various ECG devices. It is widely applied in Operation Rooms, ICU, and for general ECG Monitoring.
Key Technical Features
Backing: Spunlace
Shape: Square
Conductive Gel: Solid Gel
Sensor: Ag/AgCl
Non-irritating
Non-sensitizing
Non-cytotoxic
Premium Components
Our electrodes are constructed with high-quality metal snaps, Ag/AgCl sensors, and low-impedance solid medical conductive gel. The white or original color PE foam or cloth tape features medical hypoallergenic adhesive and PET anti-sticking film.
Performance Characteristics
A. Superior Adhesion: Air-permeable backing with medical pressure-sensitive gel. Even with perspiration, the electrode remains firmly attached without causing sensitivity during long-term use.
B. Signal Clarity: The Ag/AgCl sensor works in harmony with the conductive gel to provide clearer cardiogram waveforms.
C. Stability: The solid conductive gel maintains its adhesive properties and does not dry out easily during storage. It leaves no residue upon removal.
Frequently Asked Questions
What clinical environments are these electrodes suitable for?
The 988S50 electrodes are ideal for high-intensity environments including Operating Rooms (OR), Intensive Care Units (ICU), and general long-term ECG monitoring.
Is the conductive gel safe for patients with sensitive skin?
Yes, our solid conductive gel is non-irritating, non-sensitizing, and non-cytotoxic to the skin, ensuring patient comfort even during extended wear.
Will the electrode stay attached if the patient is sweating?
Yes, the air-permeable Spunlace backing and high-quality medical pressure-sensitive adhesive are designed to maintain a firm attachment even on sweaty skin.
What is the shelf life of the 988S50 ECG electrodes?
The electrodes have a quality guarantee period of two years from the date of manufacture, provided they are stored in recommended conditions.
Do you offer different sizes for pediatric or children use?
Yes, while this specific model is for adults, we manufacture a wide range of shapes (Round/Oval/Square) and sizes (30mm-55mm) to meet both adult and pediatric needs.
Are these electrodes compatible with my existing ECG machine?
These electrodes use a standard metal snap connector, making them compatible with almost all major ECG monitoring devices and lead wires.
