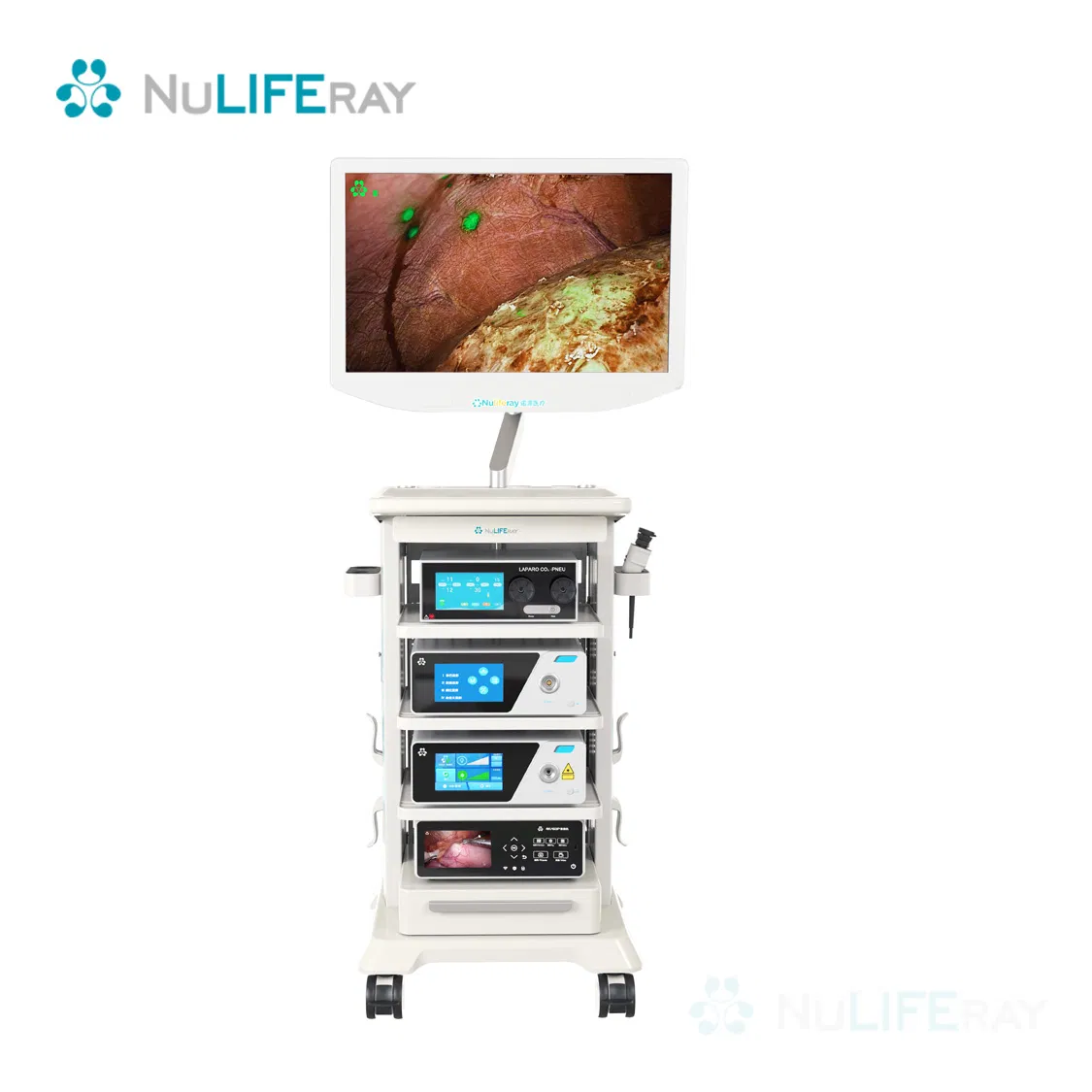

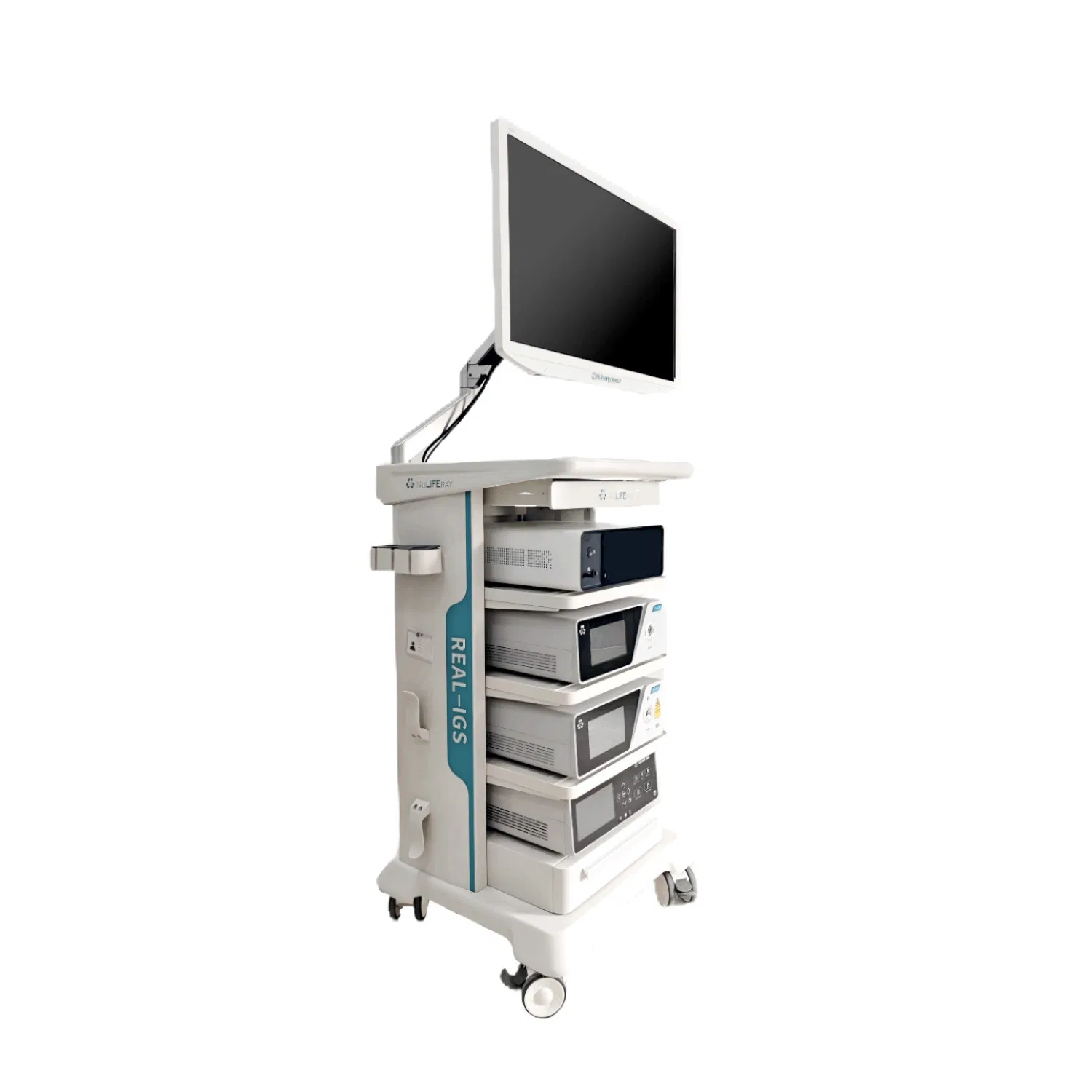

Advanced Digital Endoscopic Fluorescent Imaging System with Dual Light Source Accessories

1 / 5

Advanced Digital Endoscopic Fluorescent Imaging System with Dual Light Source Accessories

Customization:	Available
Classification:	Endoscopic Fluorescence Imaging System
Type:	Digital Imaging System

Send Inquiry

Product Description

Overview

Model NO.

FL1-20B, FL1-20C, FL1-20D, FL1-20E

Certification

CE, FDA, ISO13485

Group

All People

Port of Shipment

Shanghai Ningbo

Customized

Yes

Delivery Time

a Month

OEM Service

Yes

Quality

100% Inspection

Origin

China

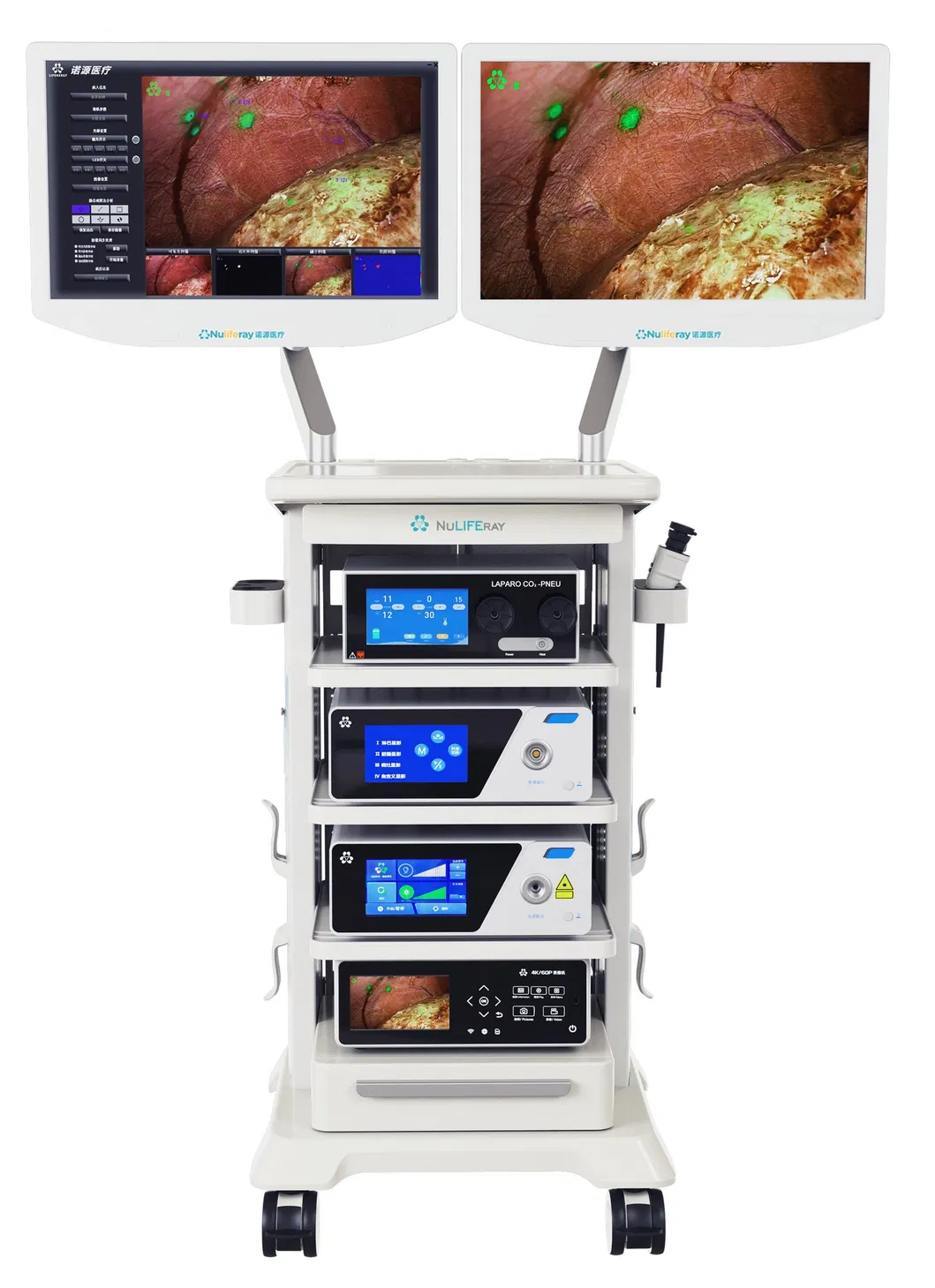

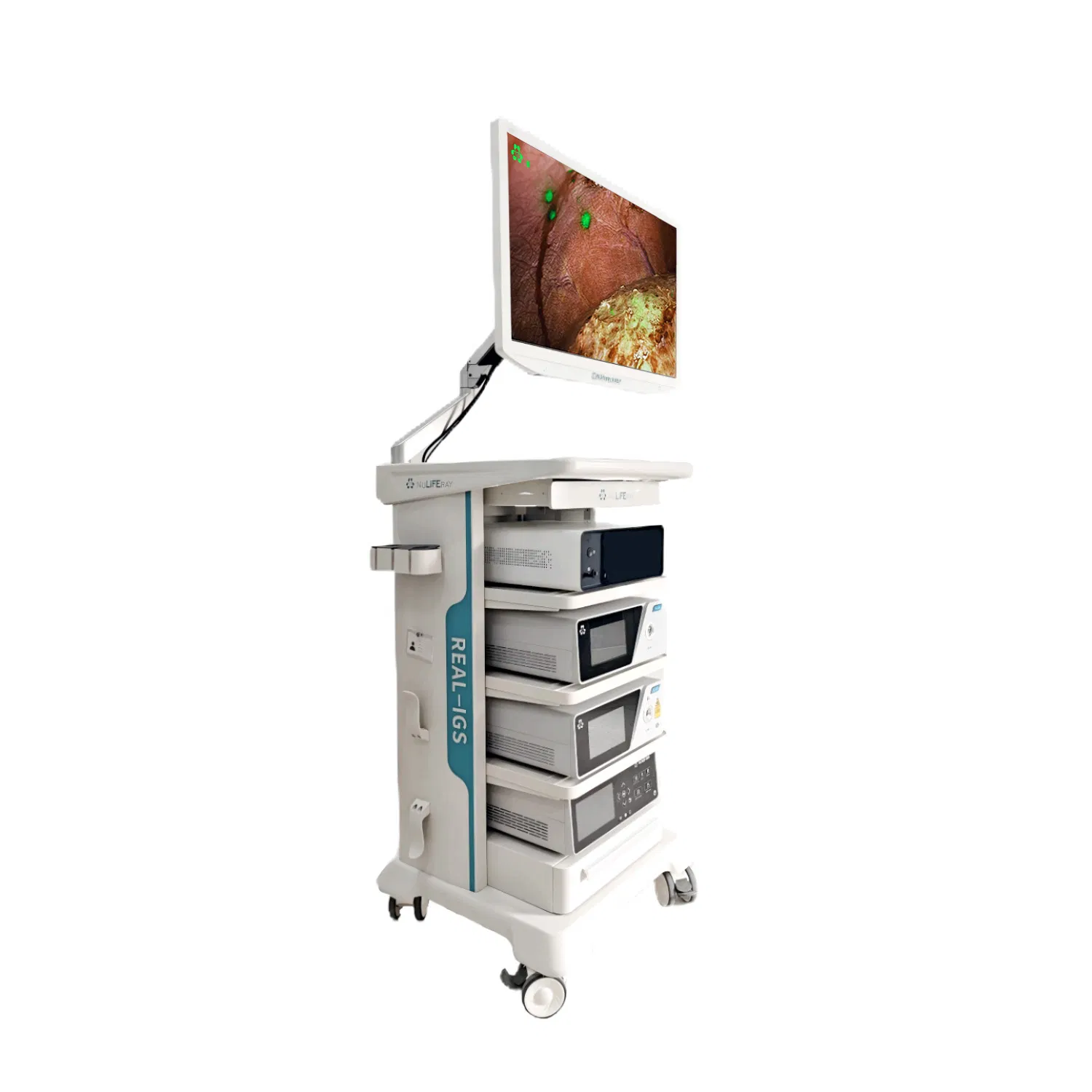

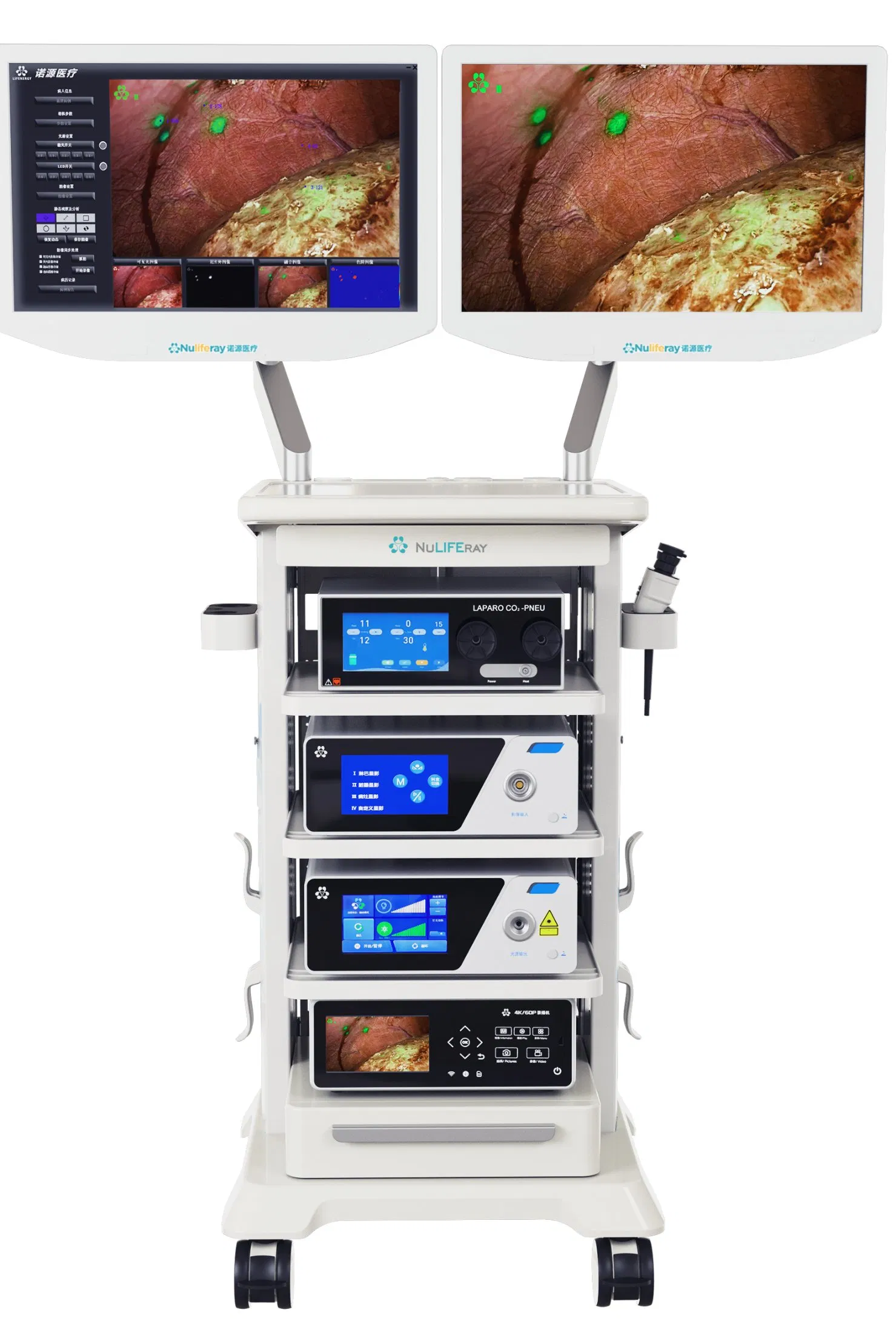

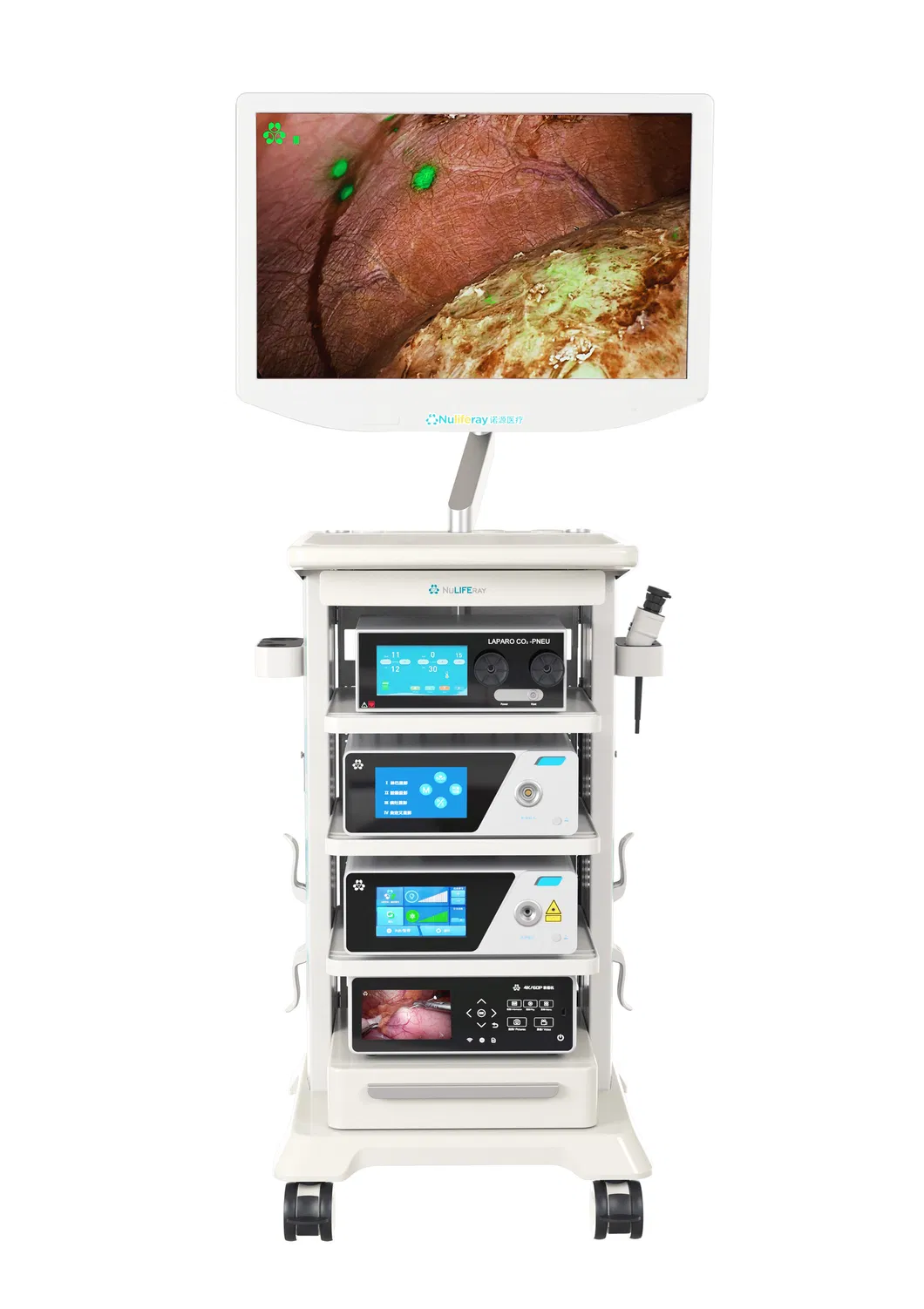

4K Endoscopic Fluorescent Imaging System

Technical Theory

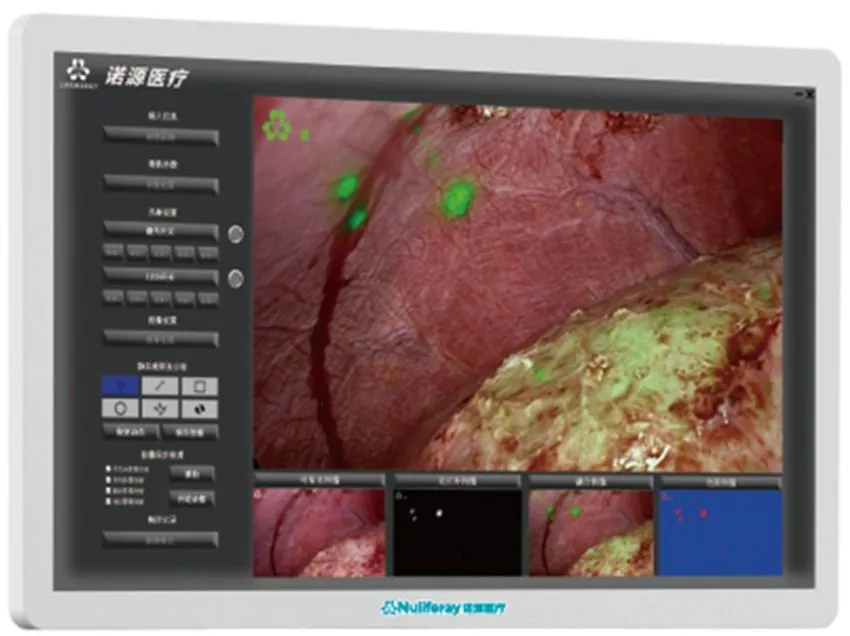

The 4K endoscopic fluorescence imaging system can not only be used as a 4K white light endoscope system to meet the clinical needs of various departments for ultra-high-definition endoscopes, but also can be used in combination with the ICG fluorescent tracer. It provides one-click selection of color images, black and white fluorescent images, color fluorescent images, and multiple images in minimally invasive endoscopic surgery.

It can also switch lymphatic imaging mode, organ imaging mode, and lesion imaging mode with one click, and reserve custom modes according to the needs of the operator. The 4K endoscopic fluorescence imaging system can also be equipped with a data workstation to achieve quantitative analysis of color gamut images and fluorescence intensity. It is suitable for dynamic observation of lesions, anatomical structures, and blood flow and lymphatic flow in minimally invasive laparoscopic surgery.

Partial Parameters

Parameter	Specification
Laser source pulse width	N/A (continuous laser emission)
Chip structure	4CMOS

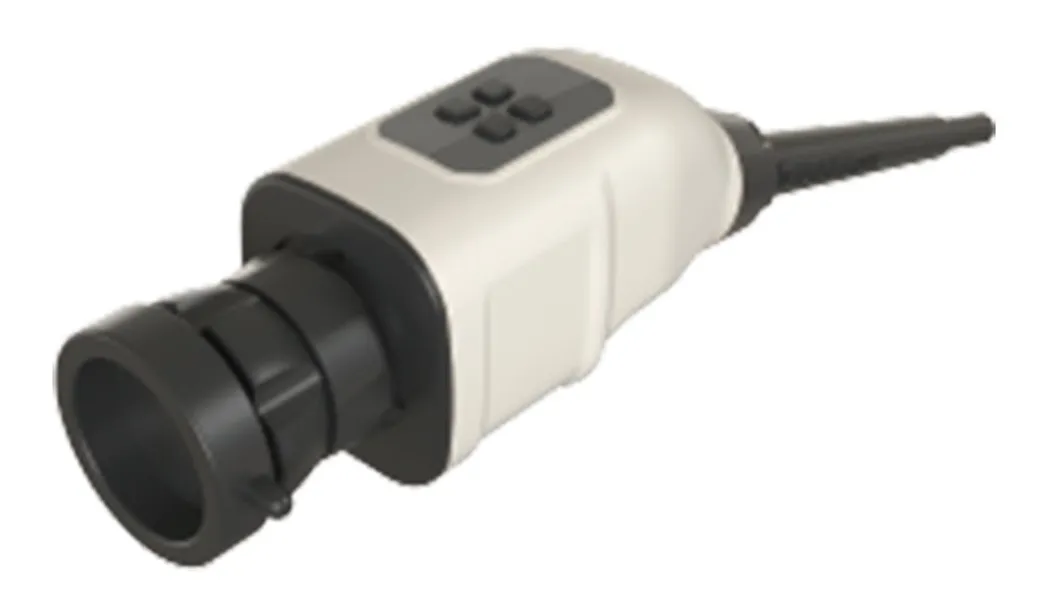

Handle function keys	4 remote control buttons

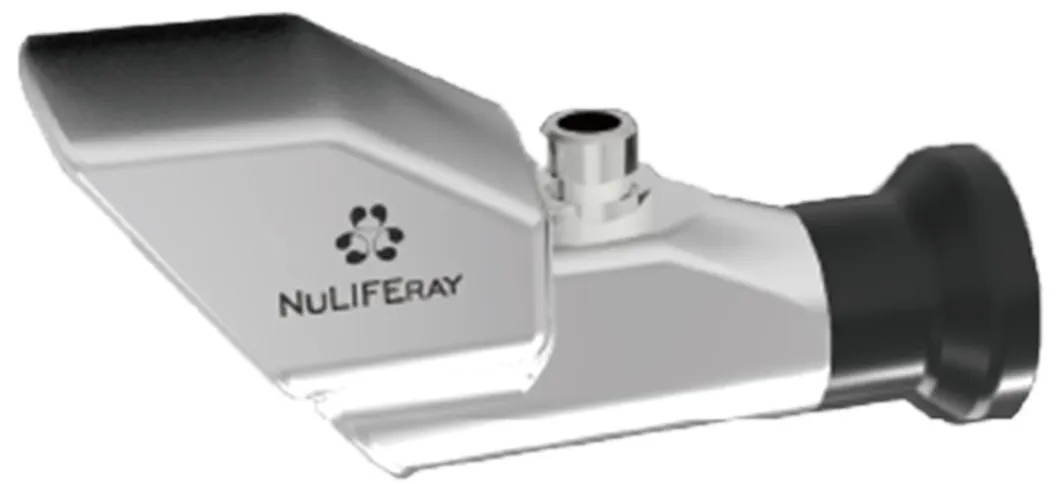

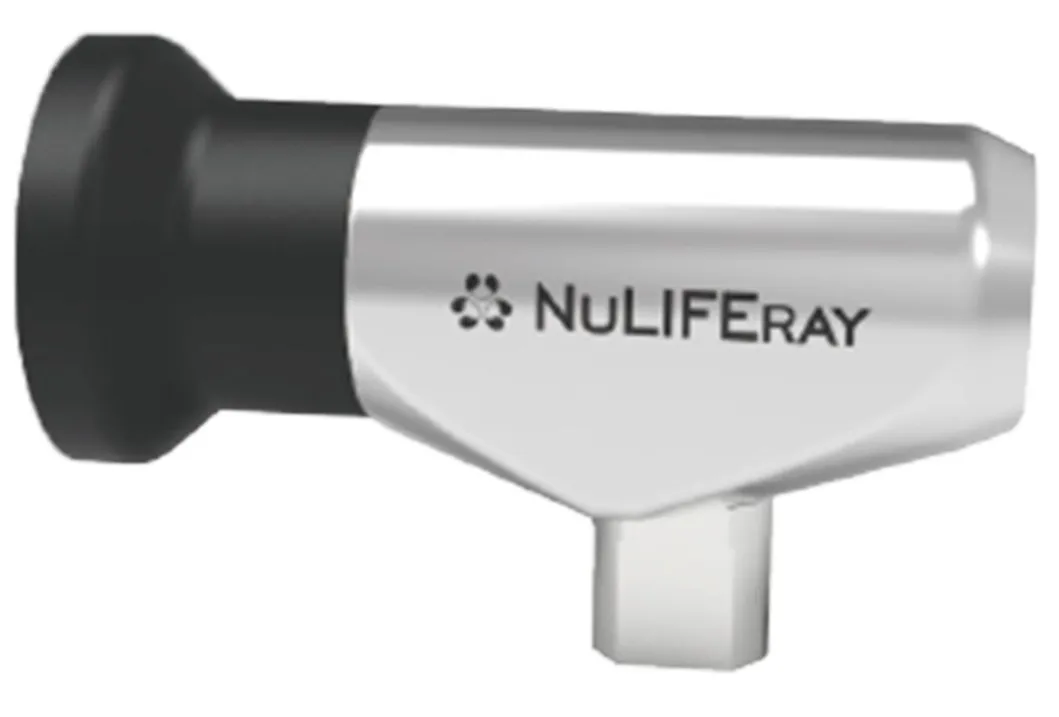

Optical adapter	Fixed focus/zoom
Monitor size	32 inches and above
Monitor resolution	≥3840×2160P/4096×2160P
Pixels and frame rate	≥8.29 million pixels, 60 FPS

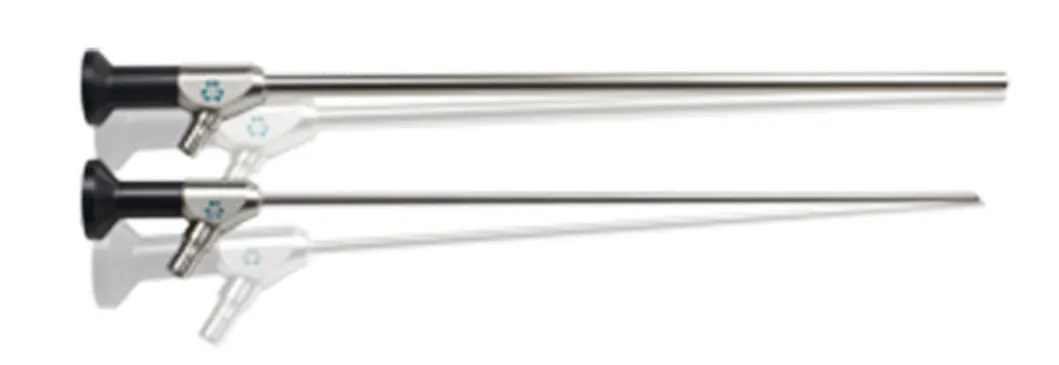

Endoscope	0° or 30° field of view, 5mm or 10mm

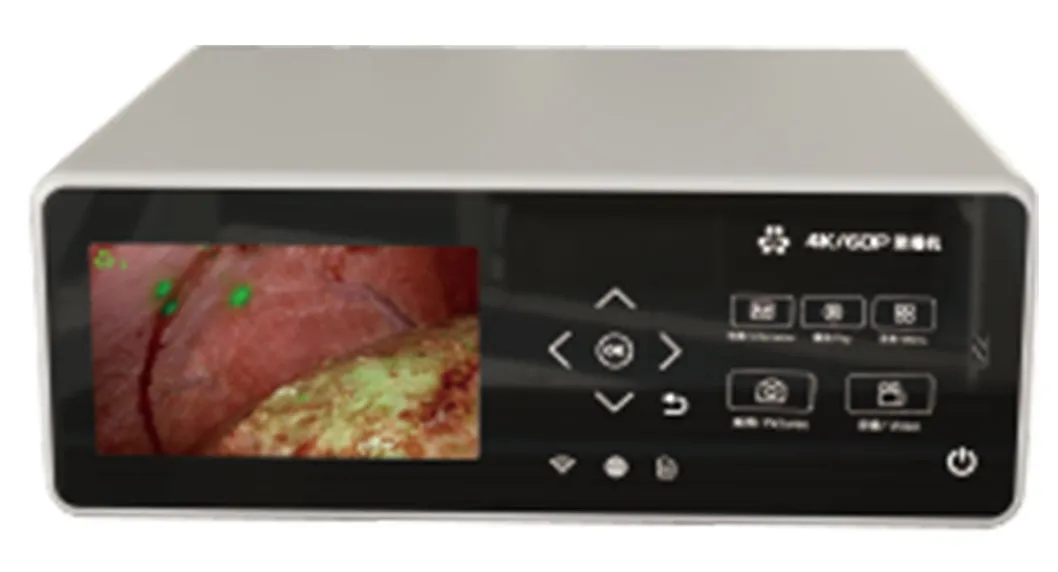

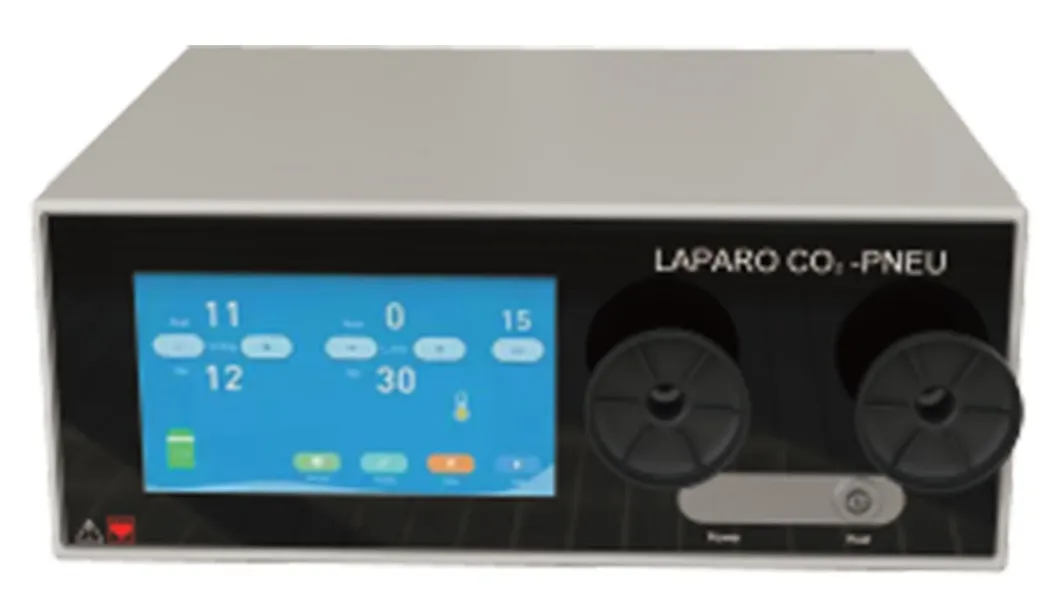

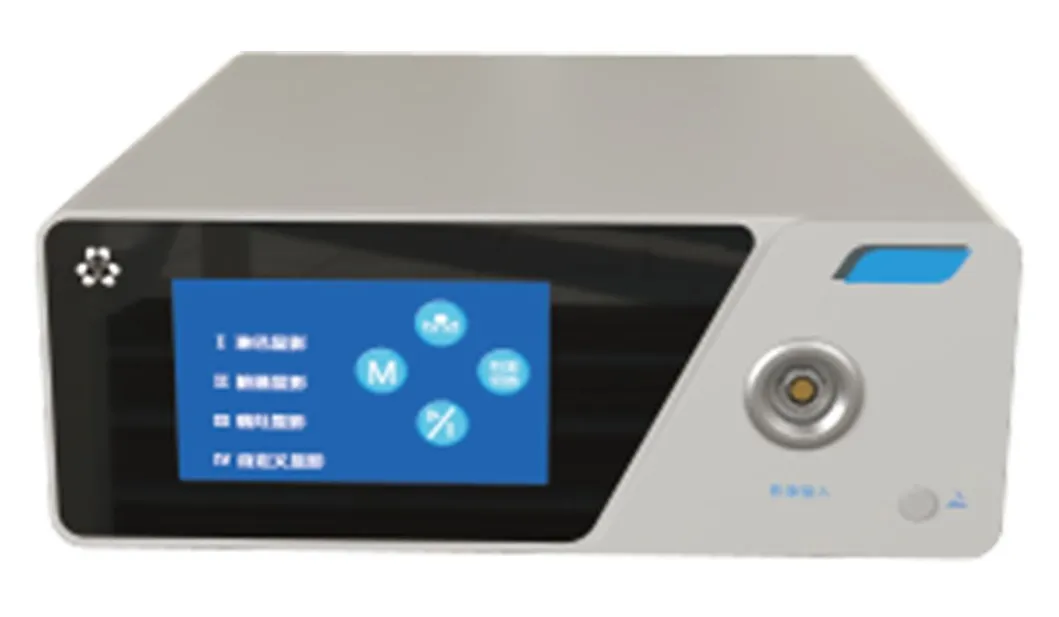

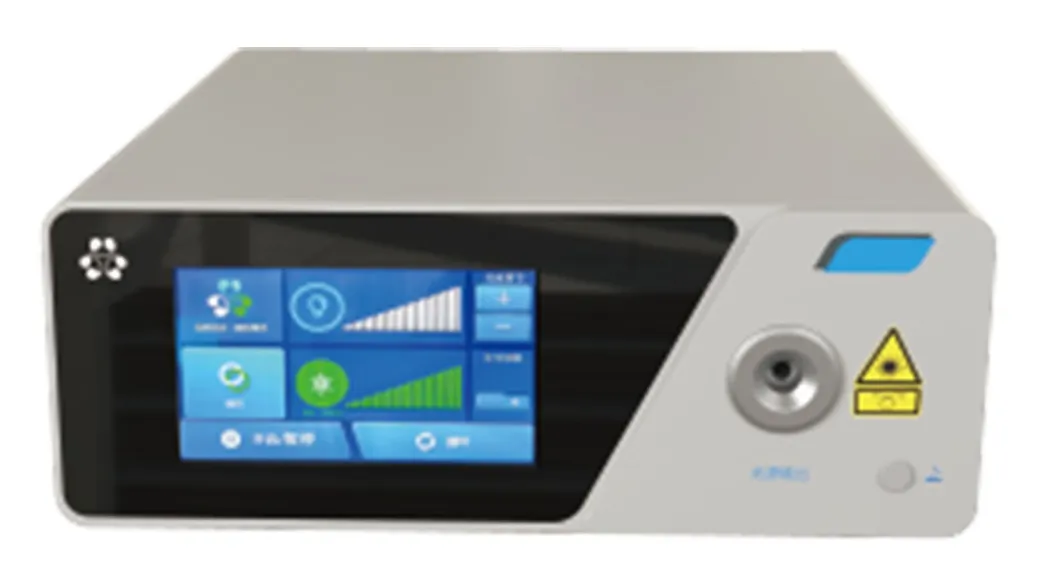

Product Accessories

Scope of Application

Used in conjunction with medical endoscopes and the fluorescence dye indocyanine green(lCG) to provide illumination and real-time visible light imaging and near-infrared fluorescence imaging in minimally invasive endoscopic surgery.

Key Advantages

Full-link 4k imaging: Acquisition to output coverage.
Ultra sensitive molecular fluorescence: Detection of tiny tumors (down to 0.288 mm).
High-intelligence application: Multi-channel image one-button switching.

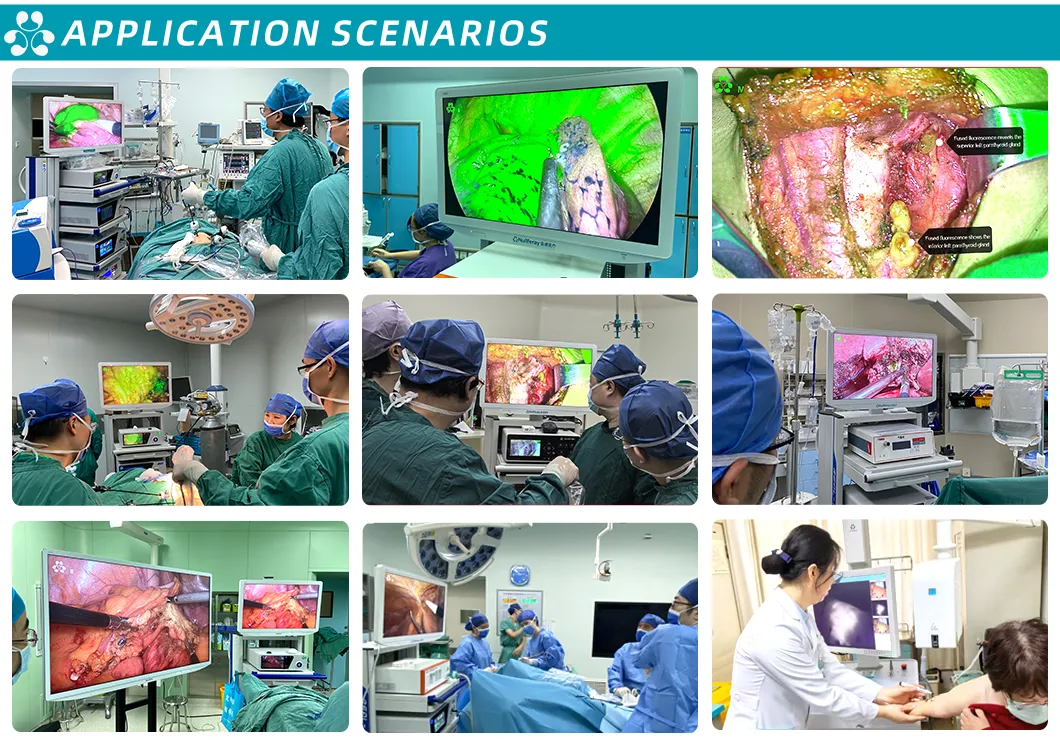

Specific Clinical Applications

Hepatobiliary Surgery

Real-time imaging diagnosis for liver cancer
Liver segment imaging marking
Identification of complex biliary tract

Gastrointestinal Surgery

Intraoperative localization of tumors
Labeling of sentinel lymph nodes
Evaluation of anastomotic blood supply

Thoracic Surgery

Trace lymph nodes and thoracic ducts
Mark inter-segmental borders
Locate pulmonary nodules

Gynecology/Urology

Pelvic tumor sentinel lymph node tracing
Identification of ureter and urethra
Exploration of abdominal metastases

Patent Certificates & Global Presence

The Company holds 131 core invention patents and 7 US invention patents. As a specialized "little giant" enterprise, we focus on molecular fluorescence, Raman spectroscopy, and AI-assisted medical solutions.

Global Partnerships & Supply

Our products are used in more than 500 large hospitals in China and established cooperative businesses with more than 10 overseas countries, partnering with international leading companies.

Frequently Asked Questions

Q1: How do I purchase your medical imaging products? You can order directly via the platform or contact our sales staff. We will confirm configuration details and shipping options to guide you through the purchase process.

Q2: What are the accepted payment terms? We accept T/T bank transfers, Western Union, MoneyGram, PayPal, LC, and other secure payment methods.

Q3: What is the estimated delivery time and shipping method? Standard delivery is usually 3-7 days if in stock. For larger orders, it may take up to a month. We provide express, air, and sea delivery through global freight partners.

Q4: What after-sales support do you provide? We provide a two-year warranty. During this period, replacements or maintenance are free of charge. We also offer lifelong technical support and service through our trained engineers.

Q5: How is the transaction security guaranteed? As a professional medical company with multiple government certifications, we ensure 100% transaction safety and provide high-quality medical products to customers worldwide.

Q6: Are the products certified for international use? Yes, our systems carry CE, FDA, and ISO13485 certifications, meeting the stringent quality and safety requirements for global medical markets.
