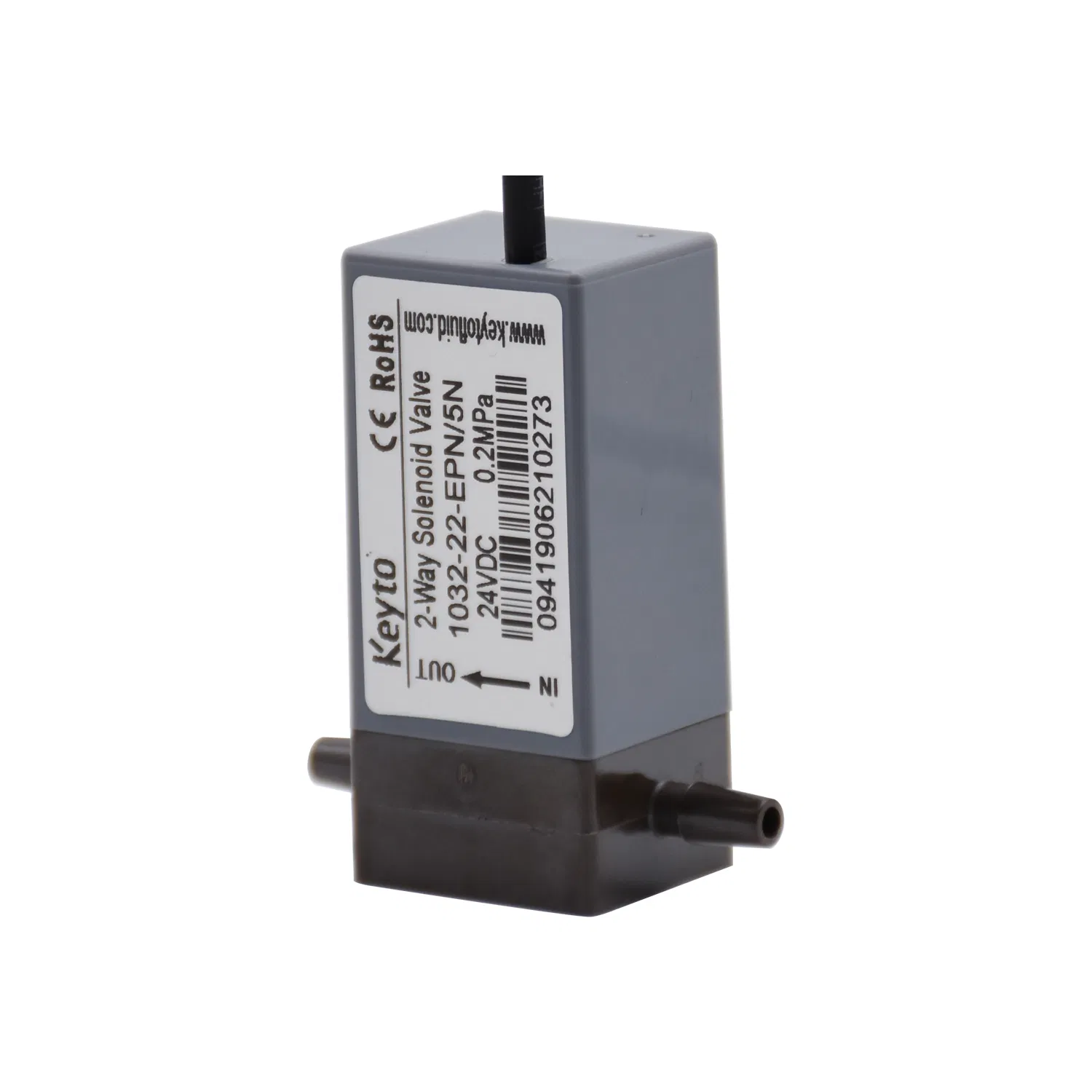

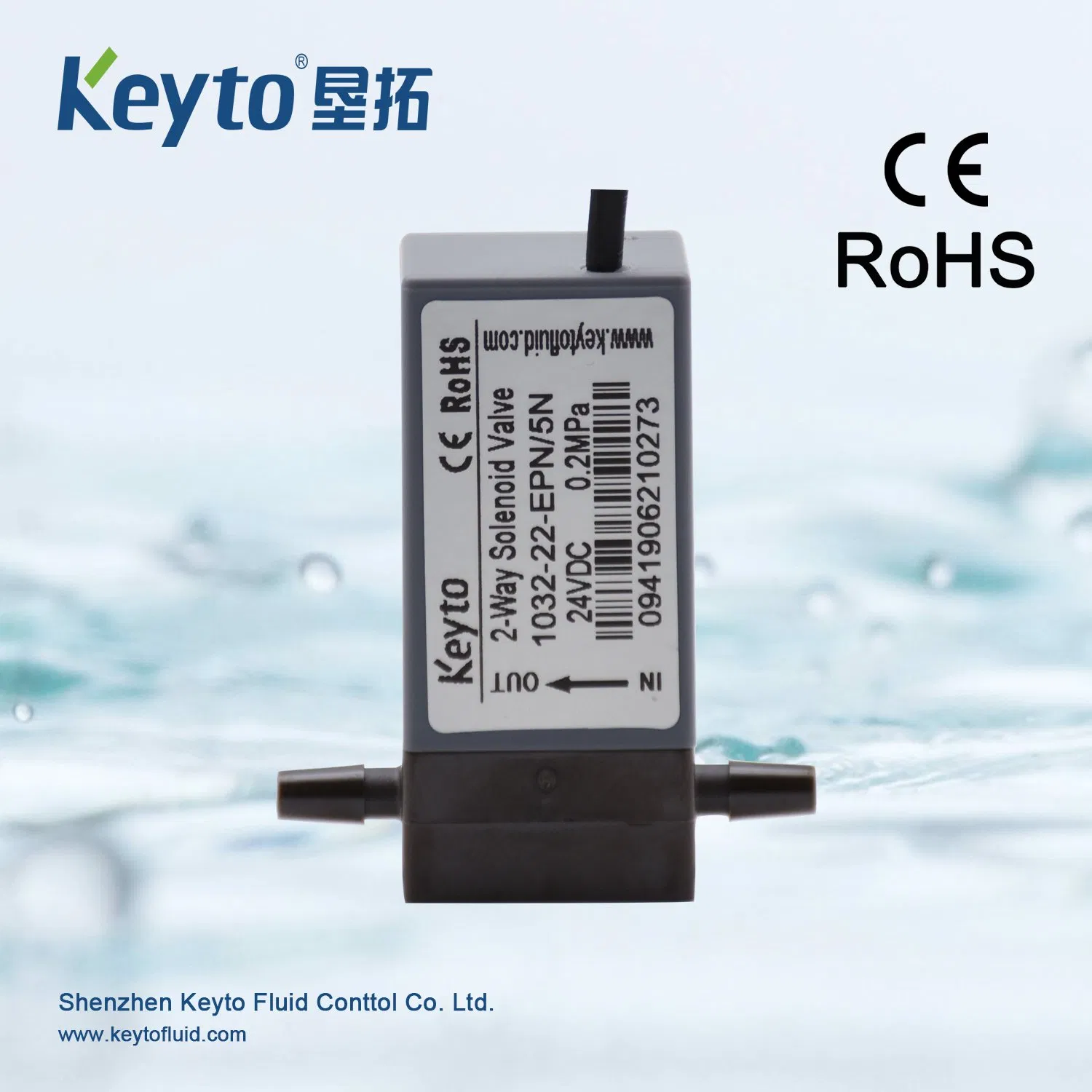

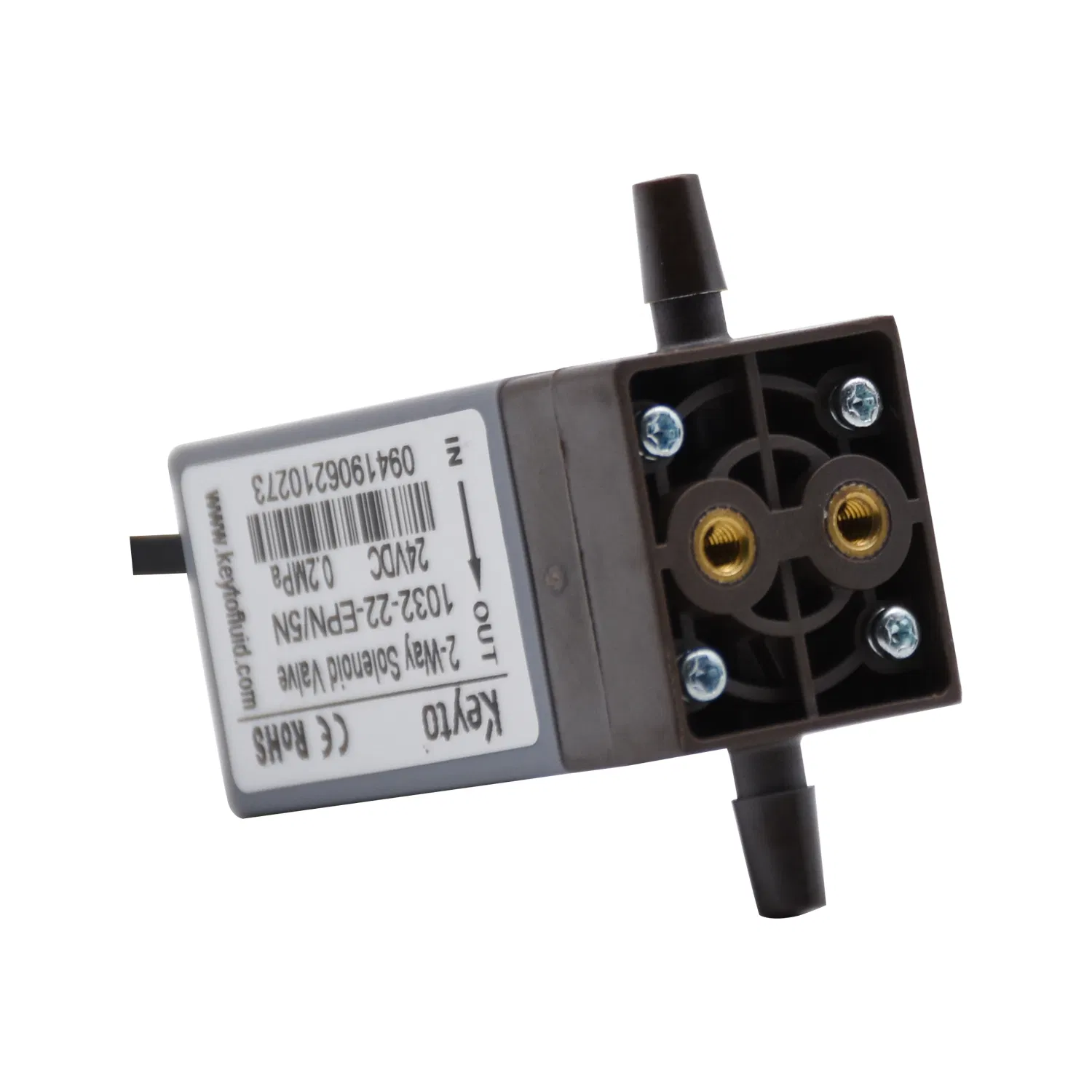

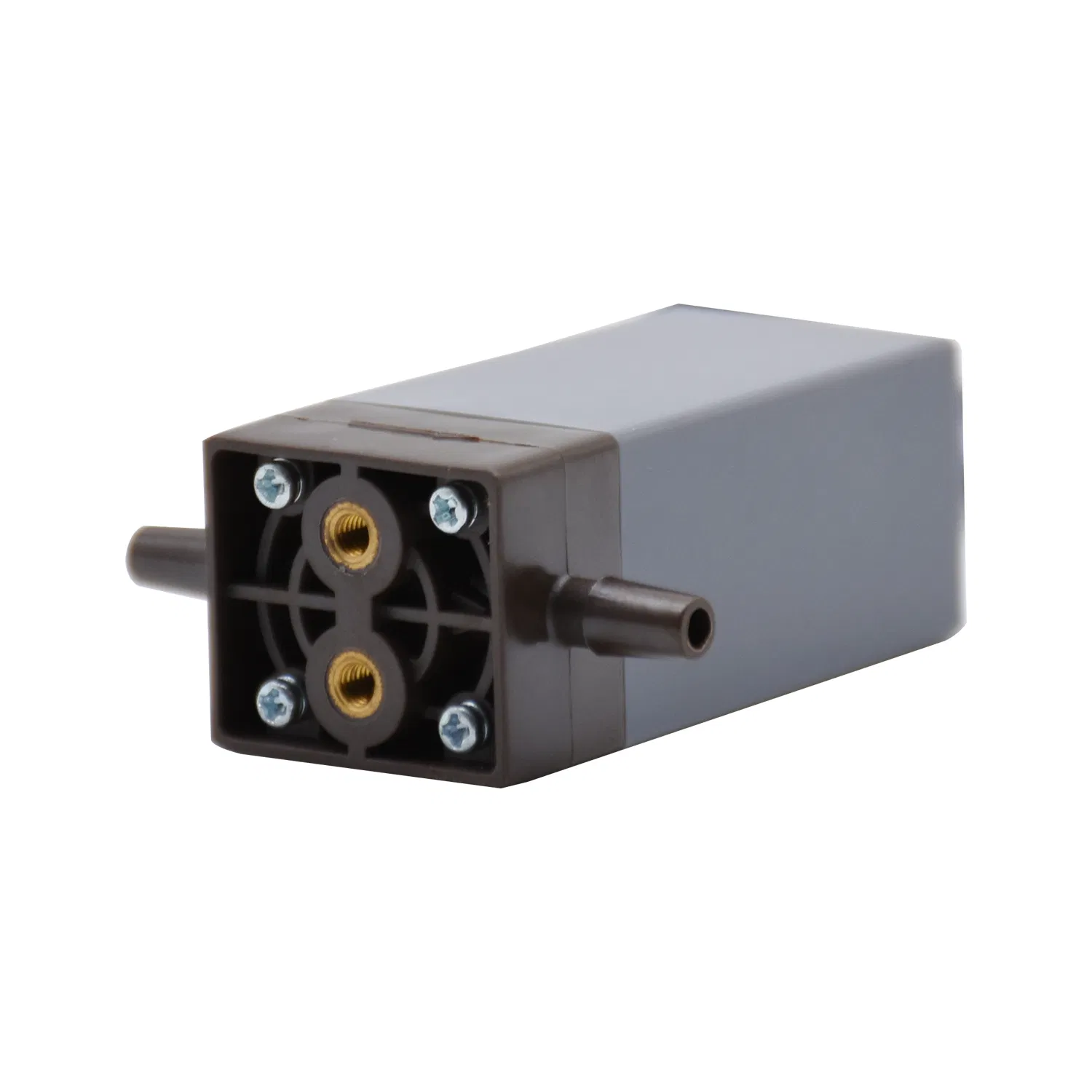

2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
1 / 5
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer

2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer

Customization: Available
Size: 58*Φ25mm
Transport Package: Bulk Package
Send Inquiry

Product Description

Basic Information

Model NO.
1032-22-EPN/5N
Specification
CE, RoHS
Origin
China
HS Code
8481804090
Capacity
200, 000 PCS/Year

Key Features

🛡️ High Pressure

Designed to withstand demanding pressure environments.

🌊 Large Flow Rate

High efficiency flow capacity for various liquids and gases.

⏳ Long Life Span

Durable construction for extended operational cycles.

⚗️ Compatibility

Suitable for water, air, organic solvents, acids, and bases.

Technical Specifications

Model 1032 2-way Body Parted Solenoid Valve
Body Material PPS (Polyphenylene Sulfide)
Seal Material EPDM, FFKM
Outline Dimension 20.5 * 23.5 * 51.2 mm
Structure Direct-acting diaphragm
Number of Ports 2
Orifice Diameter 2.5 mm
Flow Rate 8.5 g/s (water, 25ºC, 50 kPa)
Voltage 24V
Power Consumption 3.5 W
Operating Pressure -70 kPa ~ 0.2 mPa

Installation & Dimensions

Solenoid Valve Dimensions 1
Solenoid Valve Dimensions 2
Solenoid Valve Dimensions 3
Solenoid Valve Dimensions 4
Solenoid Valve Dimensions 5

Frequently Asked Questions

What materials are used for the valve body and seals?
The valve body is constructed from PPS (Polyphenylene Sulfide). The sealing components are available in EPDM or FFKM to ensure chemical compatibility.
Is this valve suitable for corrosive chemical mediums?
Yes, the 1032 series is designed to handle water, air, various organic solvents, as well as acid and base corrosive mediums.
What is the operating pressure range for this solenoid valve?
The valve operates effectively within a pressure range of -70 kPa to 0.2 mPa, making it suitable for both vacuum and positive pressure applications.
What are the power requirements for operation?
The valve operates on a 24V DC voltage with a power consumption of approximately 3.5 Watts.
What is the flow capacity of the 1032 model?
At 25ºC and 50 kPa, the valve provides a flow rate of approximately 8.5 g/s for water through a 2.5 mm orifice.
Does the product comply with international safety standards?
Yes, this solenoid valve meets CE and RoHS specifications, ensuring compliance with European safety and environmental regulations.
