Disposable ECG Electrode for Child Cardiac Monitoring

Customization:	Available
Type:	Surgical Supplies Materials
Material:	Spunlace

i

Basic Information

Model NO.

932S40

Application

Adult / Child / Pediatric

Sterilization

Without Ethylene Oxide

Guarantee Period

Two Years

Customized

Available

Size

40*35mm

HS Code

9018110000

Daily Capacity

550,000 PCS/Day

P

Product Description

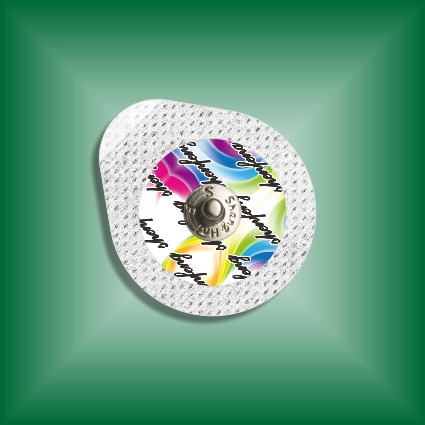

The 932S40 disposable ECG electrode is designed for pediatric/child use, featuring a 40×35mm teardrop shape. Constructed with high-quality Spunlace backing, it is fully compatible with various ECG devices and is widely utilized in Operating Rooms, ICUs, and for general ECG Monitoring.

Safety Standard: All electrodes are non-irritating, non-sensitizing, and non-cytotoxic to the skin.

Disposable ECG Electrode for Child Cardiac Monitoring

F

Technical Features

Shape & Size: Teardrop design, Dia. 40×35mm.
Backing Material: Spunlace (also available in Non-woven and Foam backing).
Conductive Medium: High-quality solid medical conductive gel.
Sensor Type: Ag/AgCl (Silver/Silver Chloride) sensor for clear signal.
Components: Metal snap, low impedance gel, medical hypoallergenic adhesive, and PET anti-sticking film.

C

Key Characteristics

Breathable Design: Air permeable backing with pressure-sensitive gel ensures firm attachment even when perspiring.
Clear Waveforms: The Ag/AgCl sensor works in harmony with the conductive gel for superior cardiogram clarity.
No Residue: Solid gel maintains adhesiveness during long shelf-life and leaves no remnant after removal.
Skin Friendly: Certified non-irritating and non-cytotoxic for sensitive pediatric skin.

S

Packaging & Logistics

Packing Options:	25 PCS / Pouch	1000 PCS / CTN
	50 PCS / Pouch	2000 PCS / CTN
Carton Dimensions:	46cm x 37cm x 22cm	G.W: 3.6 kgs / N.W: 3.0 kgs

G

Product Gallery

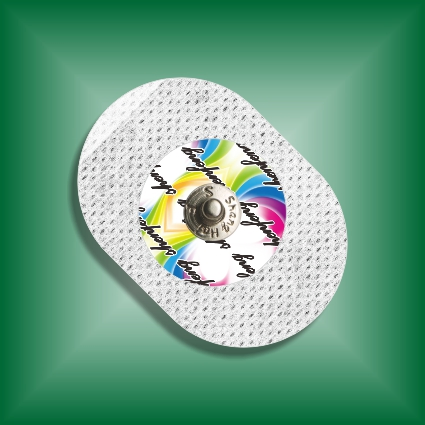

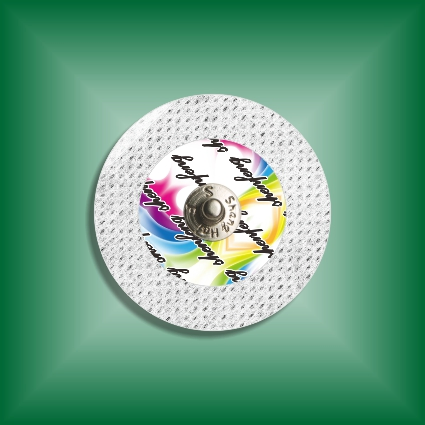

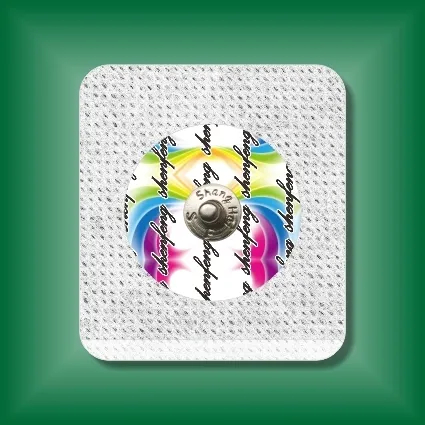

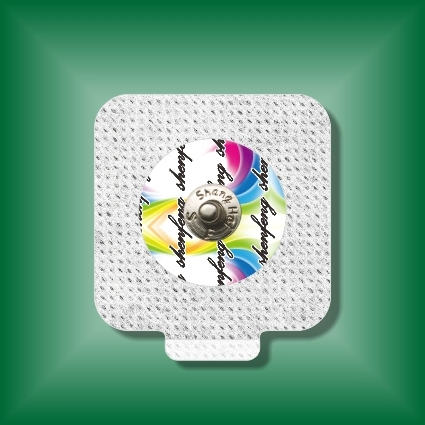

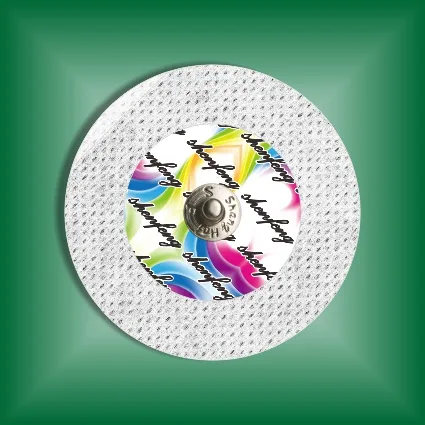

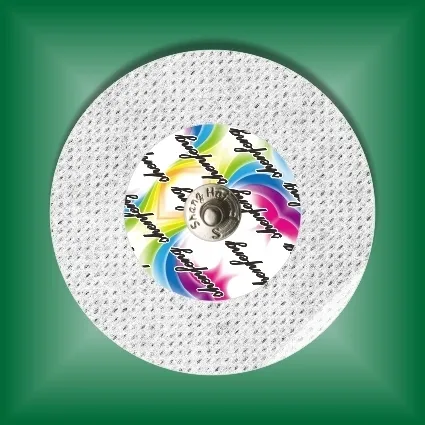

Note: We offer over 60 types of high-quality ECG electrodes in various shapes (Round/Oval/Square) and materials (PE Foam/Non-woven) to meet diverse clinical needs. OEM and ODM projects are welcome.

?

Frequently Asked Questions

What clinical settings are these electrodes suitable for?

These electrodes are widely used in Operating Rooms (OR), Intensive Care Units (ICU), and for standard ECG monitoring in hospitals and clinics.

Are these electrodes safe for children with sensitive skin?

Yes, the 932S40 model is specifically designed for pediatric use. All materials are non-irritating, non-sensitizing, and non-cytotoxic.

What is the advantage of using an Ag/AgCl sensor?

The Silver/Silver Chloride (Ag/AgCl) sensor provides superior conductivity and stability, resulting in much clearer cardiogram waveforms for accurate diagnosis.

Can the electrode remain attached during heavy perspiration?

Yes, the air-permeable backing combined with high-quality medical pressure-sensitive gel ensures the electrode remains firmly attached even in sweaty conditions.

What is the shelf life of the 932S40 ECG electrodes?

The product has a quality guarantee period of two years when stored under recommended conditions.

Are there different backing materials available?

While the standard 932S40 uses Spunlace, we also offer PE Foam and other Non-woven backing materials to meet specific customer requirements.
