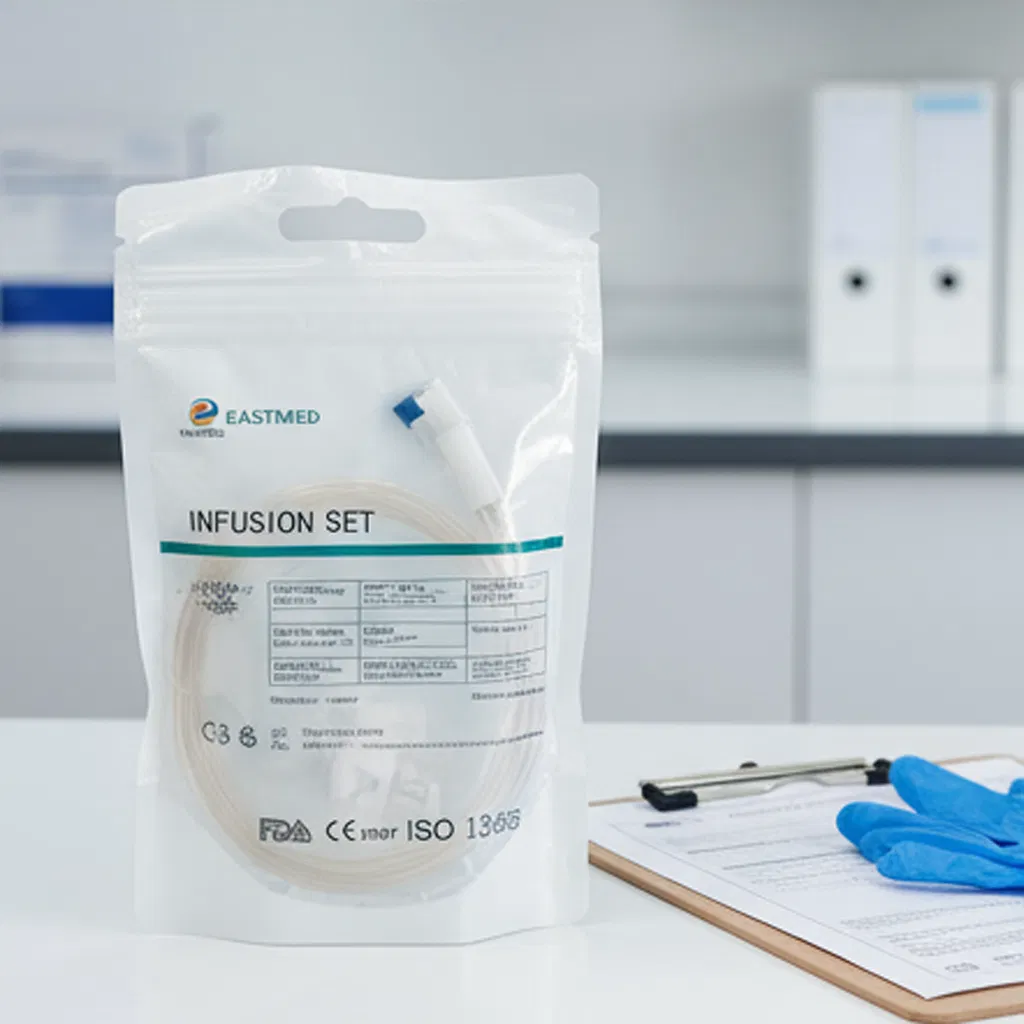

Disposable Infusion Set Luer Lock with Needle

1 / 5

Disposable Infusion Set Luer Lock with Needle

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

infusion set

Sterilization

Ethylene Oxide (EO Gas)

Guarantee Period

5 Years

Target Group

Adult

Logo Printing

Available

Free Sample

Available

Tube Length

150/180/200 Cm or Customized

Connector

Luer Lock or Luer Slip

Classification

Class II

Certificate

CE, ISO

Origin

China

Capacity

250,000,000 pieces/Year

📝

Product Description

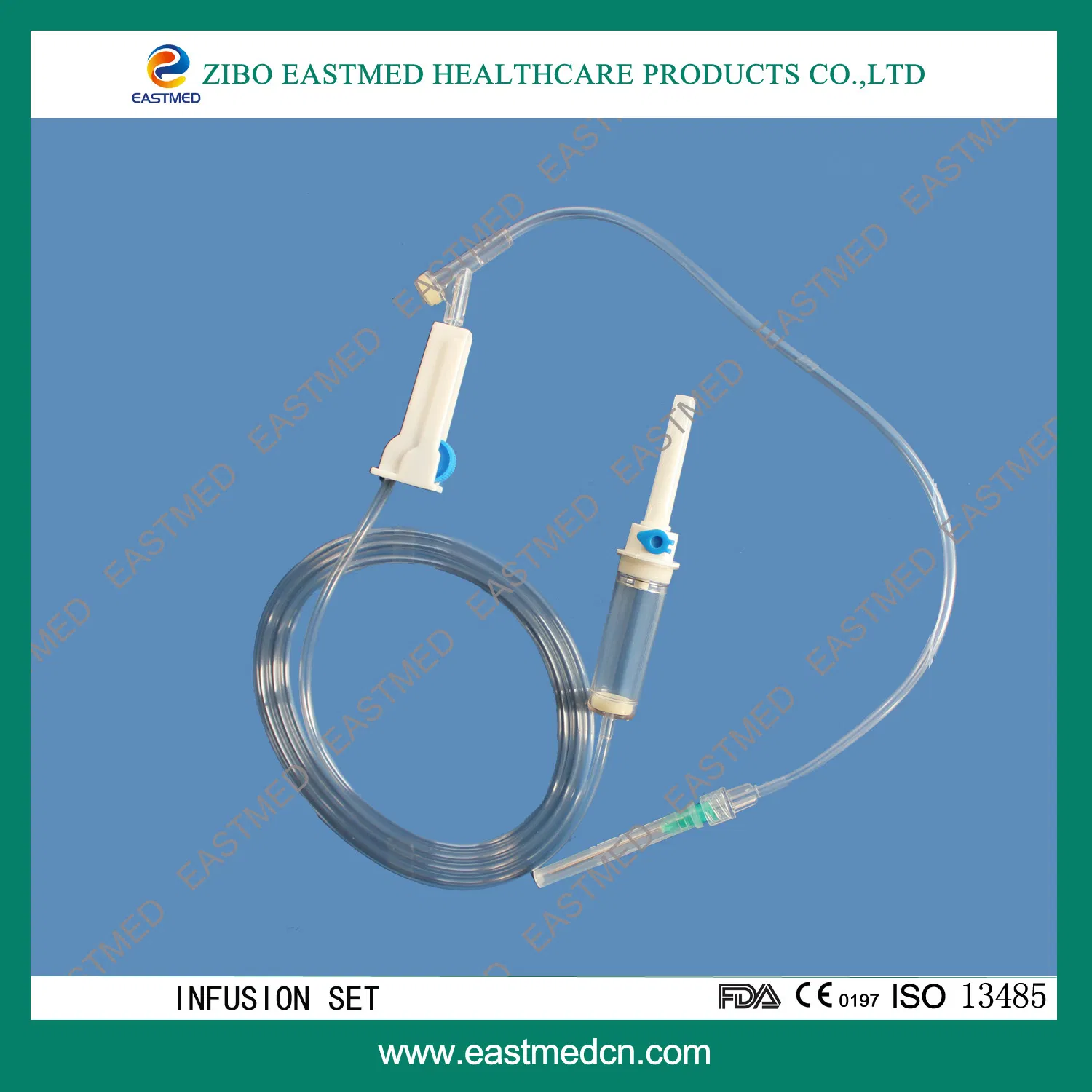

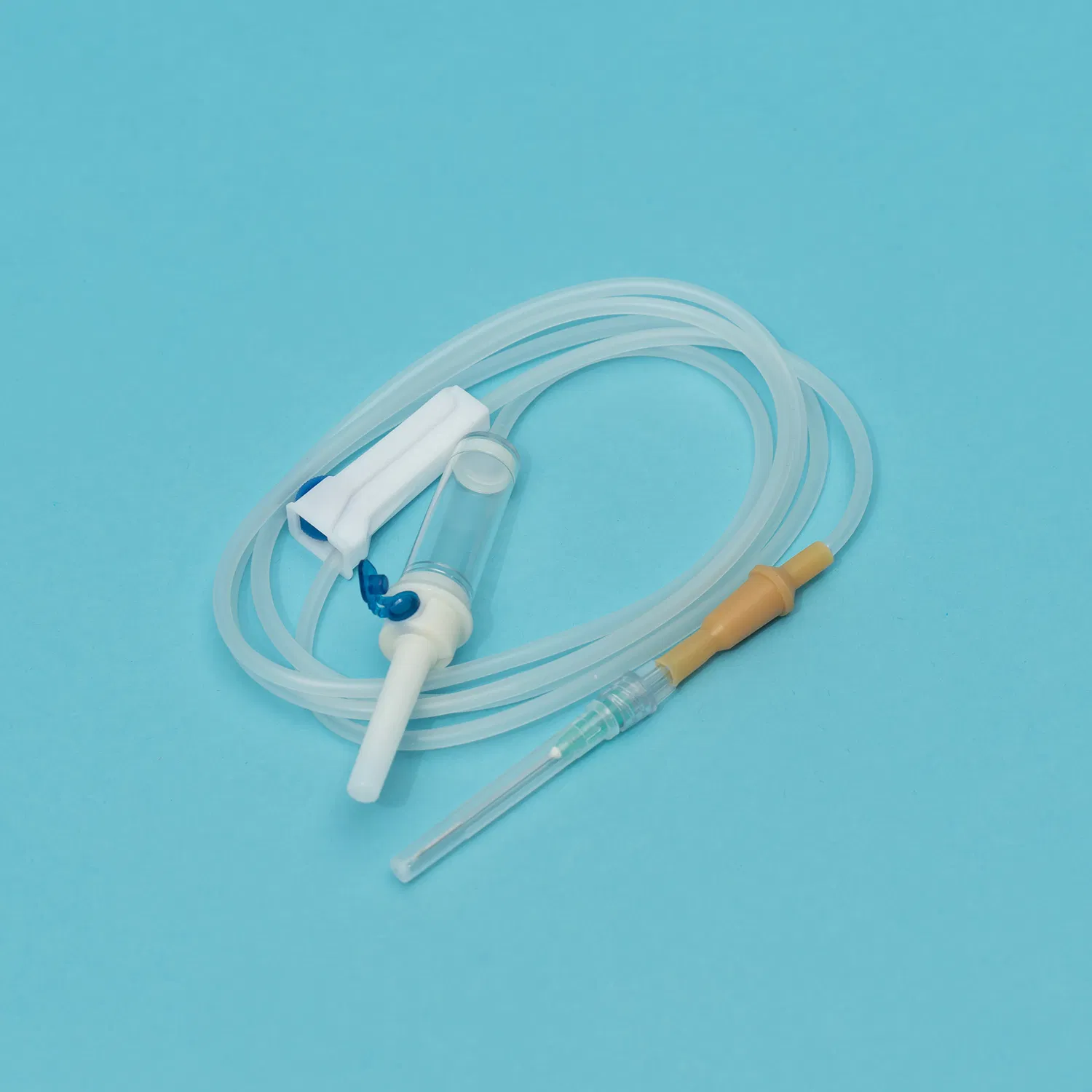

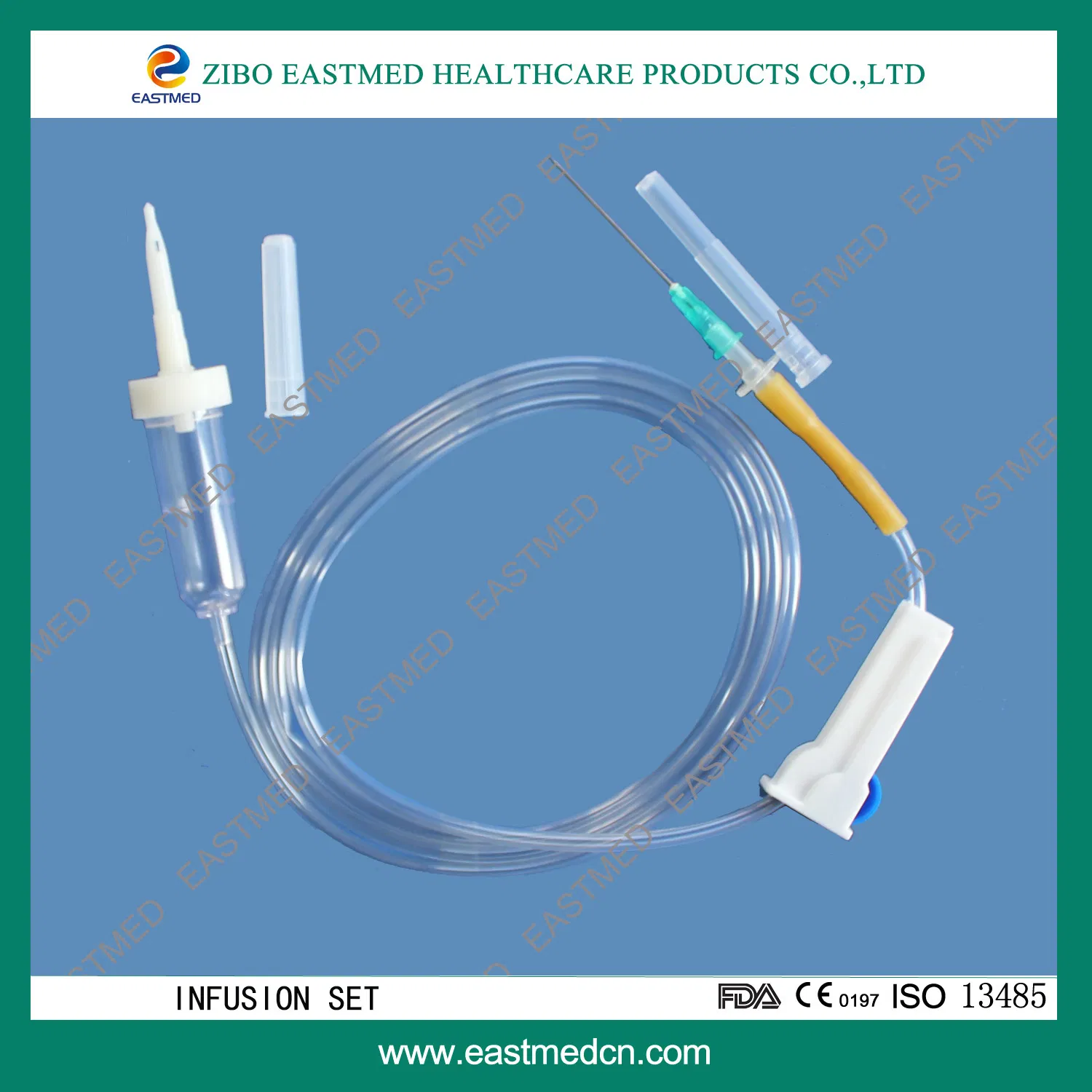

Infusion Set - Product Detail Description

Components and Specifications

Component	Material	Specification
Piercing Device	Medical grade white ABS	With/without air inlet, ISO 8536-4 standard
Protective Cap	PP or PE	-
Drip Chamber	Soft PVC	ISO 8536-4 standards, 4.5cm-7cm length
Fluid Filter	ABS or PE, nylon net	Mesh size: 15 micron
Air Inlet	Red, white, or blue PP	-
Water-repellent Filter	PP support, hydrophobic filter paper	Acrylic resin and nylon
Flow Regulator	PP or ABS	Normal or horned shape
Injection Site	Latex/Rubber/Synthetic cone	Y site option available
Soft Tubing	Medical grade PVC	3x4 mm diameter, 150/180 cm length
Terminal Connector	PE, PVC	Luer lock or luer slip

General Specifications

Suitable for hard containers and soft bags (without air inlet type)
Sterile, non-toxic, pyrogen-free
Sterilized by Ethylene Oxide Gas (EOG)

Packing Details

Individual Package: 1 PC/package
Mid Box: 25 PCS/box
Carton: 20 bags/carton
Carton Size: Adjusted according to the specific volume of products

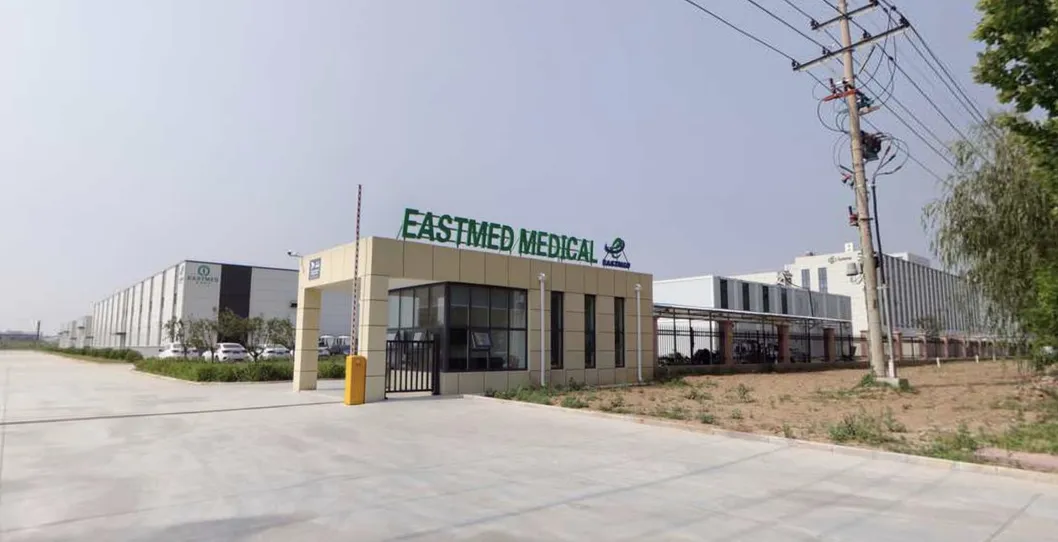

OEM Capacity

Large-scale production capacity available for professional OEM requests.

❓

Frequently Asked Questions

Q1: What is the sterilization method used for the infusion set? A: All infusion sets are sterilized by Ethylene Oxide (EO) Gas, ensuring they are non-toxic and pyrogen-free.

Q2: Can I request a customized tube length? A: Yes, while standard lengths are 150cm, 180cm, and 200cm, we can customize the length according to your specific requirements.

Q3: Are the infusion sets compatible with both hard and soft containers? A: Yes, our products are designed to be suitable for both hard containers and soft bags.

Q4: What types of connectors are available? A: We offer both Luer Lock and Luer Slip terminal connectors to meet different clinical needs.

Q5: Do you provide free samples? A: Yes, free samples are available for quality evaluation and testing purposes.

Q6: What is the quality guarantee period? A: Our disposable infusion sets come with a 5-year quality guarantee period from the date of manufacture.
