| Product |

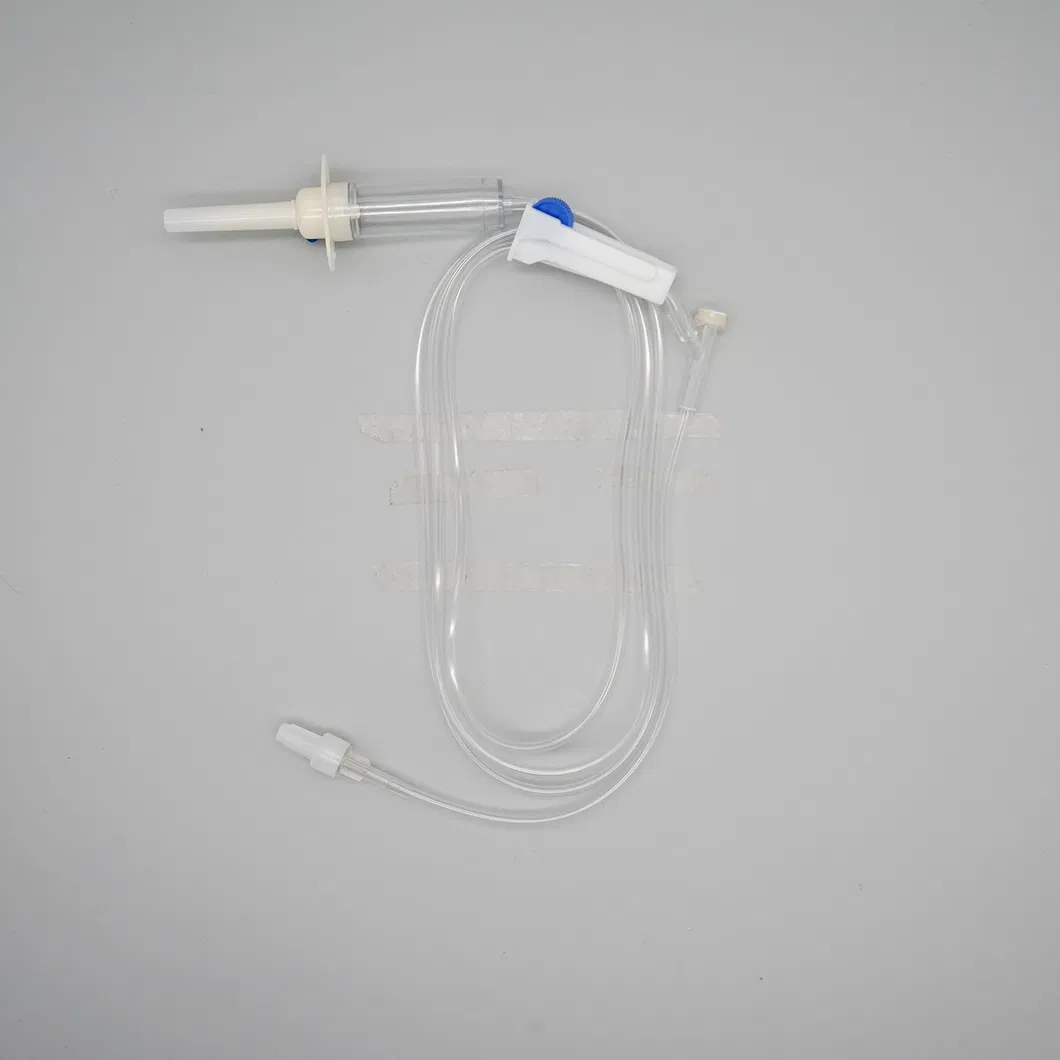

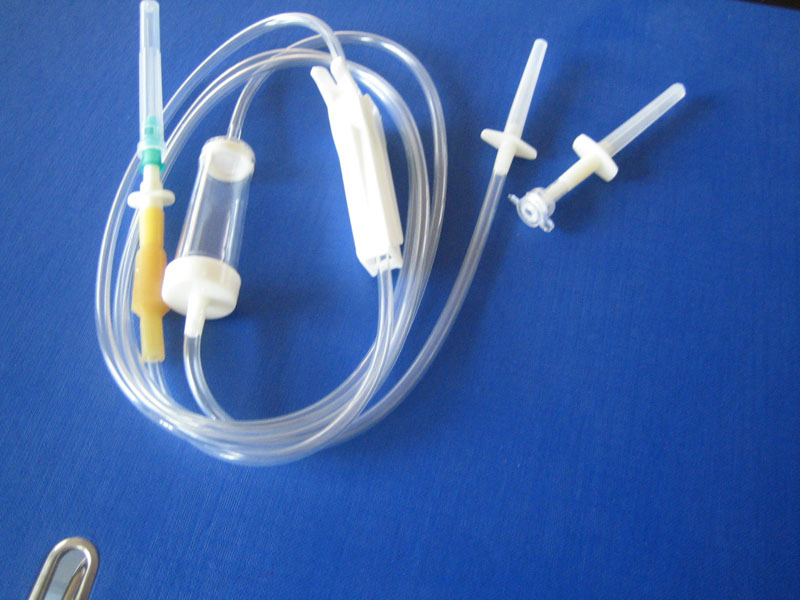

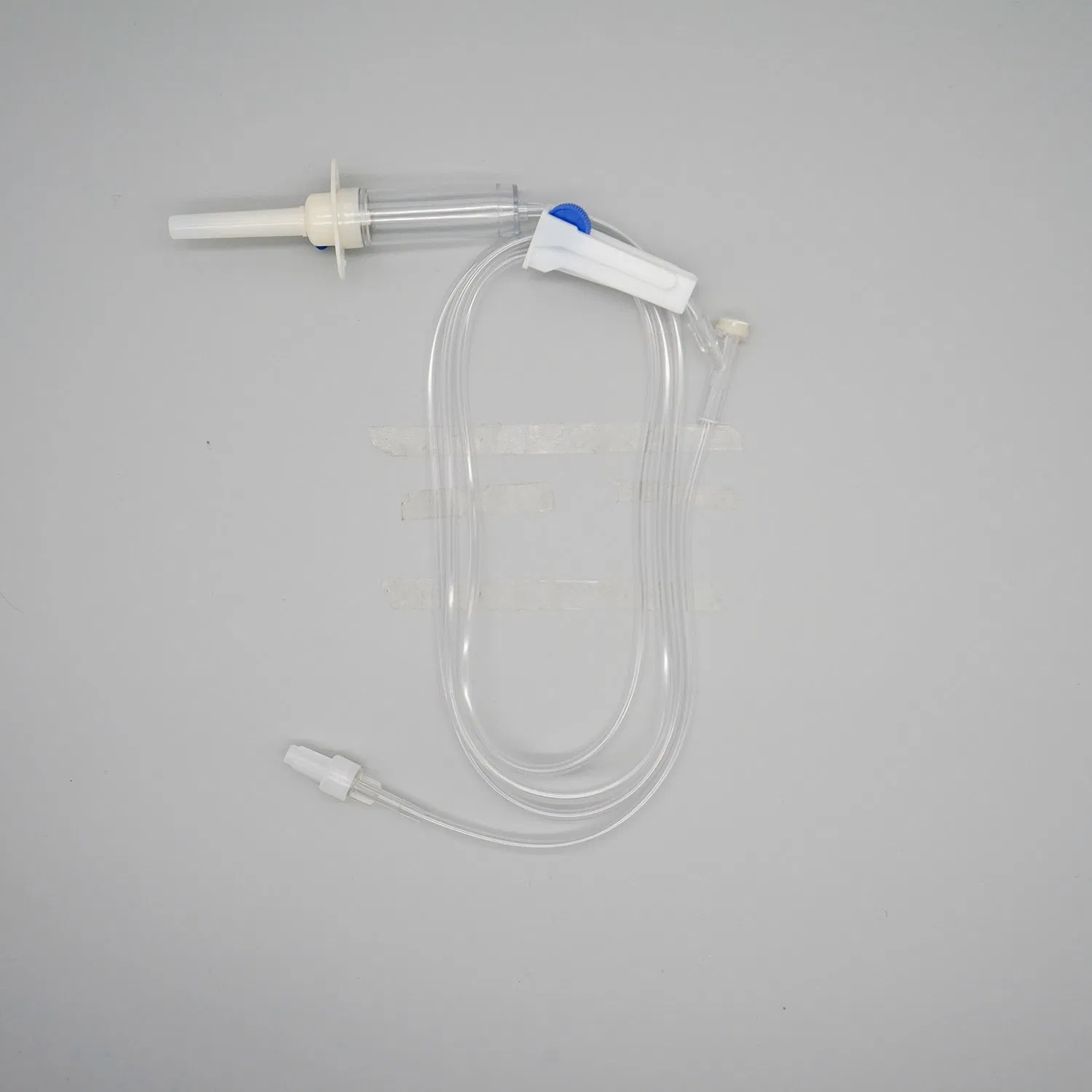

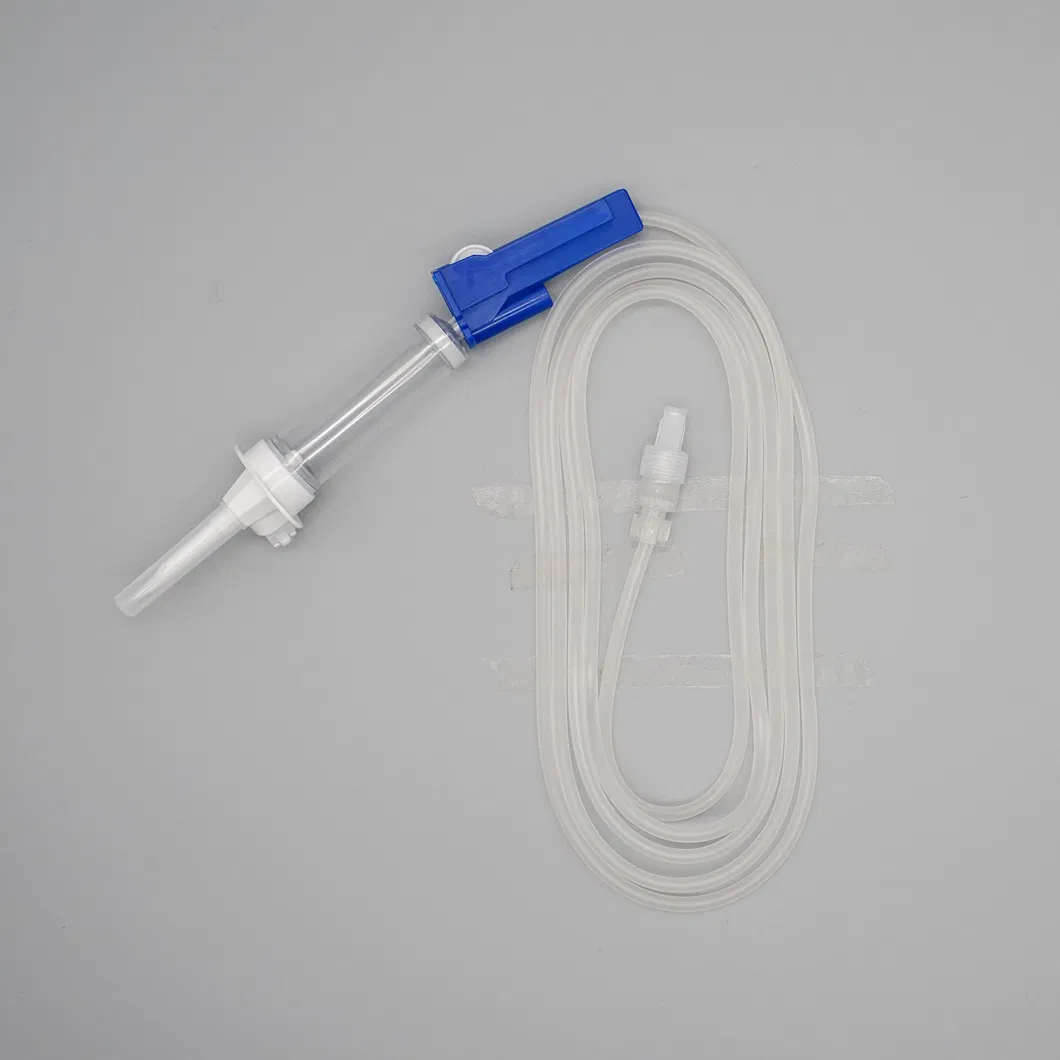

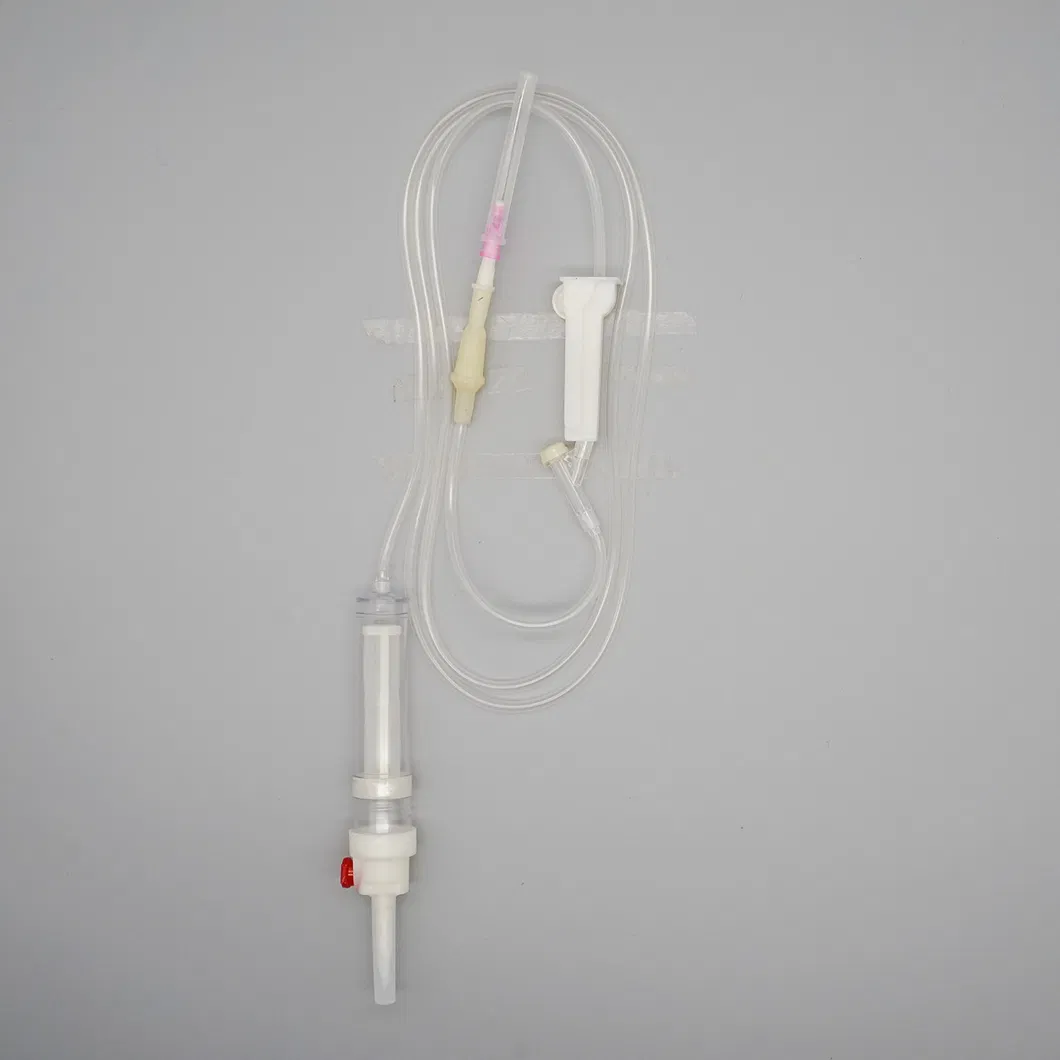

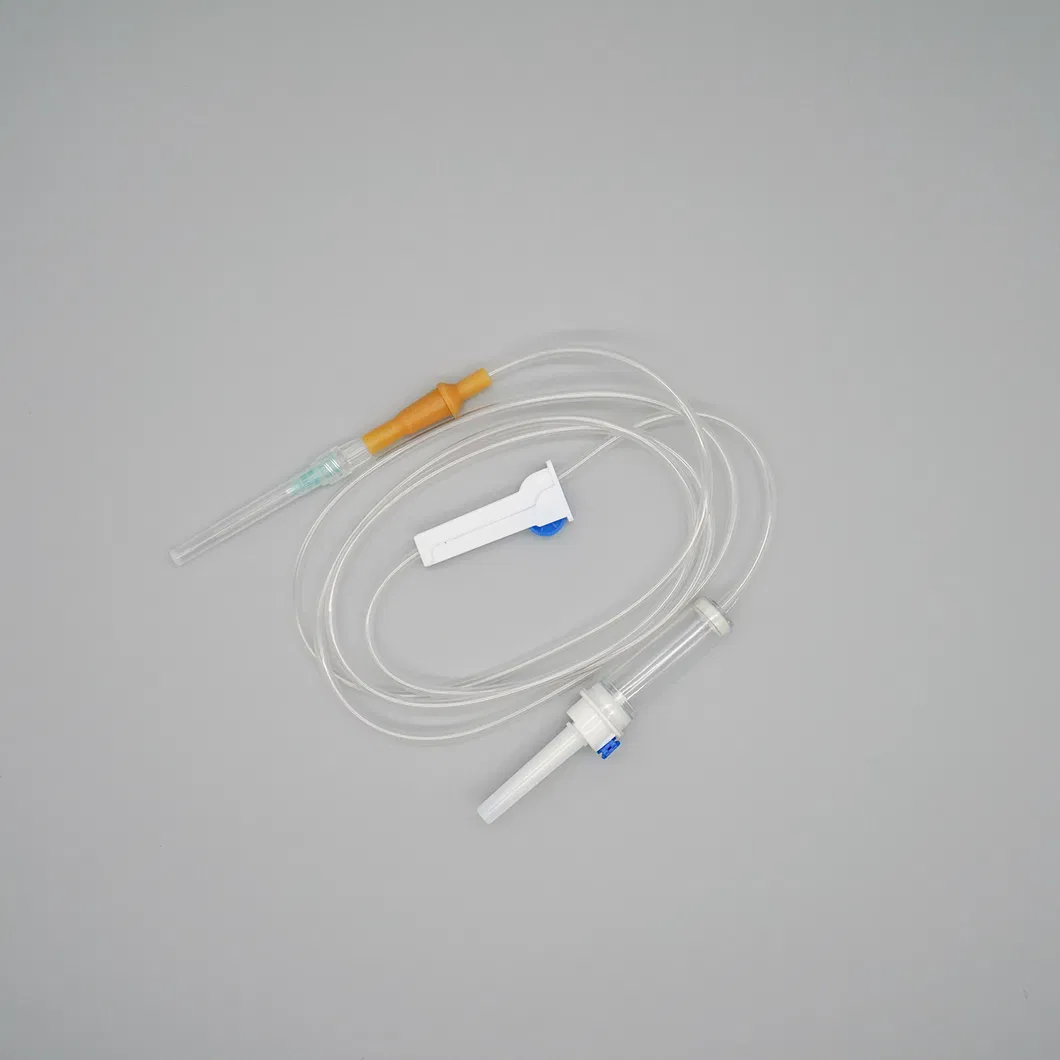

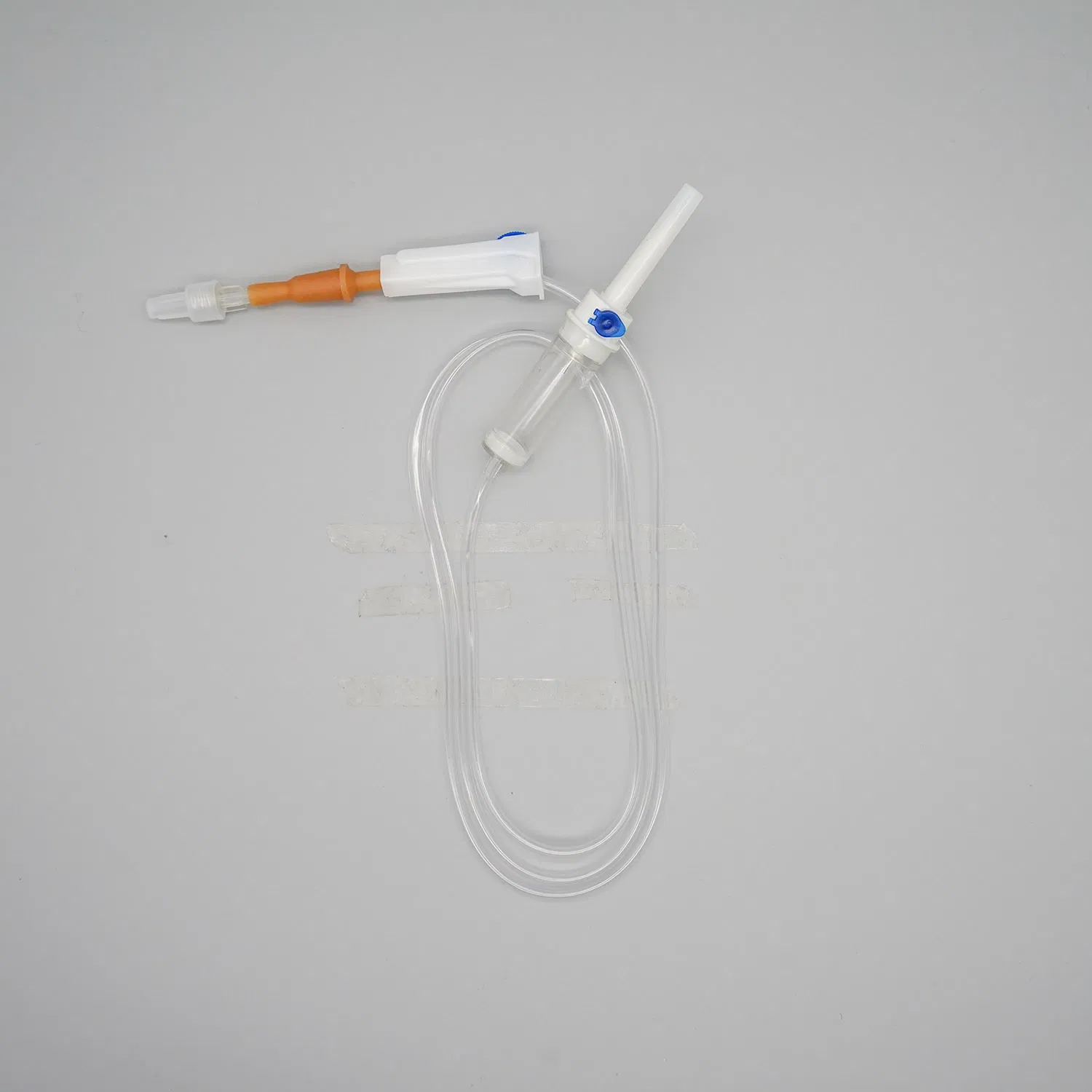

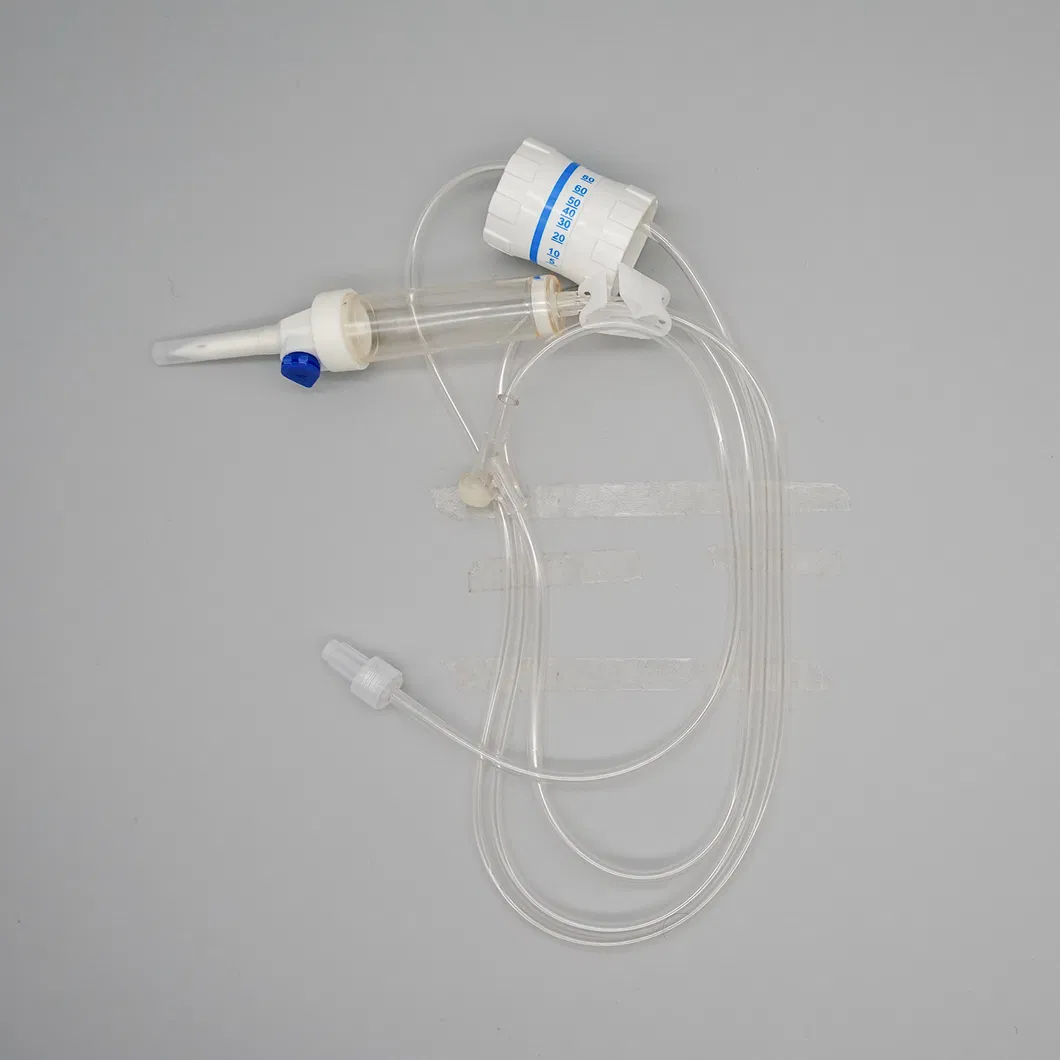

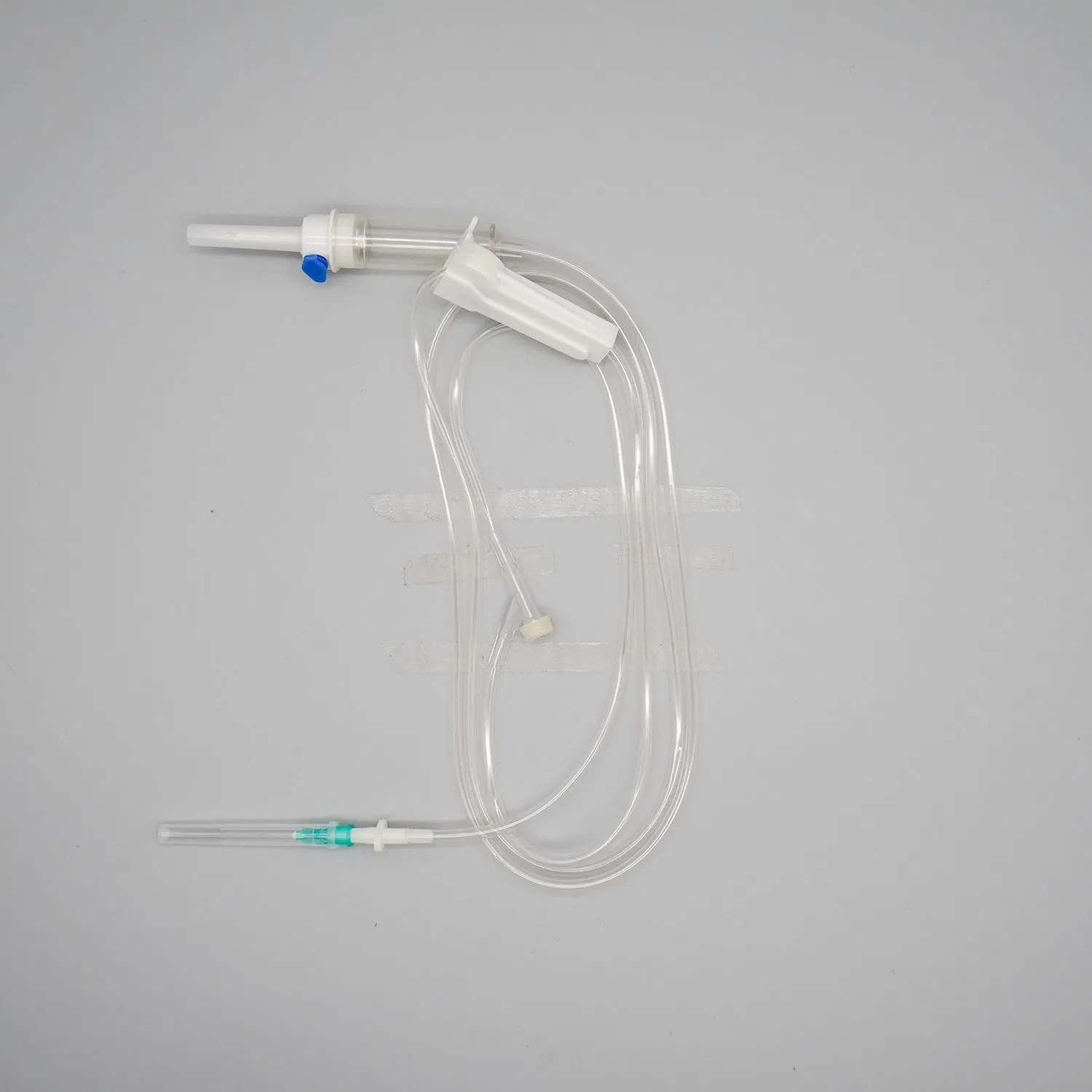

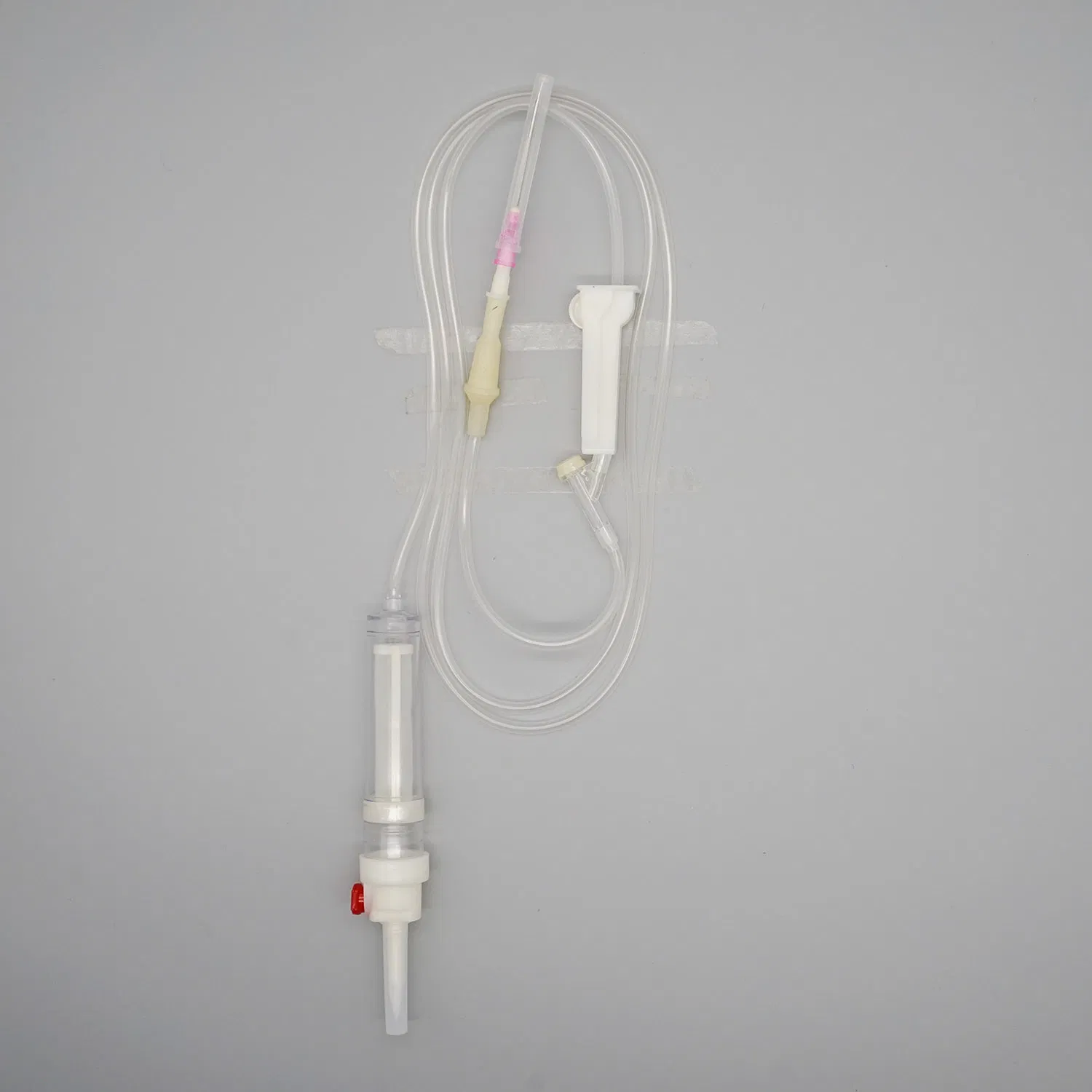

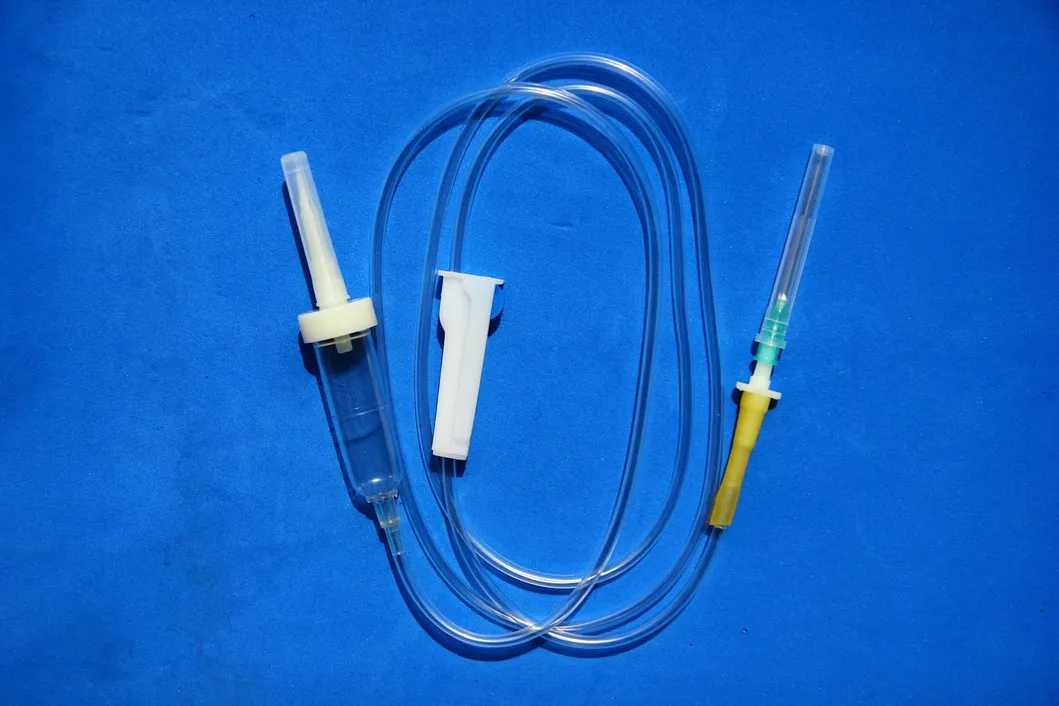

Infusion set IVDM004 |
| Remark |
Customizable |
💎 Product Components
- Piercing device: Made of medical grade white ABS, with or without air Inlet, 3 or 4 holes size according to ISO8536-4 standard.
- Protective cap: Made of PP or PE.
- Drip chamber: Made of soft PVC, size according to ISO8536-4 Standards, 4.5cm--7cm in length.
- Fluid filter: Support is made of ABS or PE, nylon net, mesh size: 15 micron.
- Air inlet: Cap is made of red, white, or blue PP.
- Water-repellent filter: PP support, hydrophobic filtering paper, made of Acrylic resin and nylon.
- Flow regulator: Made of PP or ABS, available in normal, small, horned, or large shapes.
- Injection site: Latex cone, rubber cone, synthetic rubber cone, or Y site made of hard transparent PVC.
- Soft tubing: Made of soft medical grade PVC, diameter 3X4mm, 150cm in length (adjustable).
- Terminal connector: Made of PE, PVC, luer lock or luer slip.
- Assembly: Components assembled by gluing with solvent cyclohexanone.
📋 Specifications & Features
• Suited to hard containers and soft bags (without air inlet type).
• Sterile, non-toxic, pyrogen free.
• Sterilized by EOG (Ethylene Oxide Gas).
📦 Packing Details
- Option A: 1PC/blister package, 20PCS/MID PE bag, 20 bags/CTN.
- Option B: 1PC/polybag (HDPE, LDPE, compound film), 20PCS/MID PE bag, 20bags/CTN.
- Note: Carton size adjusts based on specific product volume (chamber size, tube length, etc).
