Hospital Use High Quality and Safety Nicu Department Use Neonatal CPAP System

1 / 5

Hospital Use High Quality and Safety Nicu Department Use Neonatal CPAP System

Customized:	Non-Customized
Scale:	Medium
Type:	Breathing Apparatus

Send Inquiry

Product Description

Basic Specifications

Model NO.	YH-200C
Safety Standard	None
Instrument Classification	Class II
Warranty	1 Year
Power Source	Pneumatic
Quality Certification	CE
Material	Metal, Plastic, Steel
Transport Package	Wooden Case
Origin	China

Product Description

The CPAP System provides excellent performance in Neonatal Intensive Care Units (NICU) and other departments. Based on over 23 years of expertise, this system offers high security, accuracy, and stability for neonatal ventilation.

Key Features:

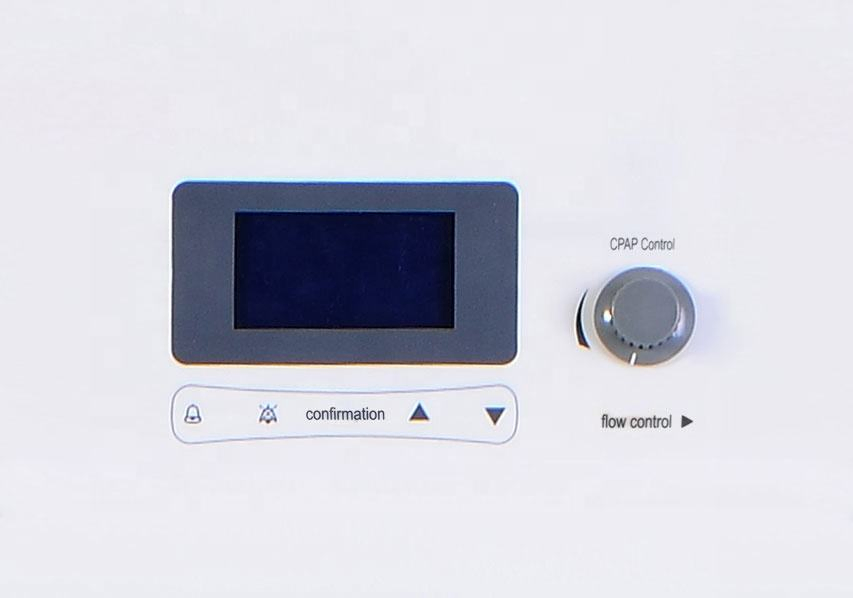

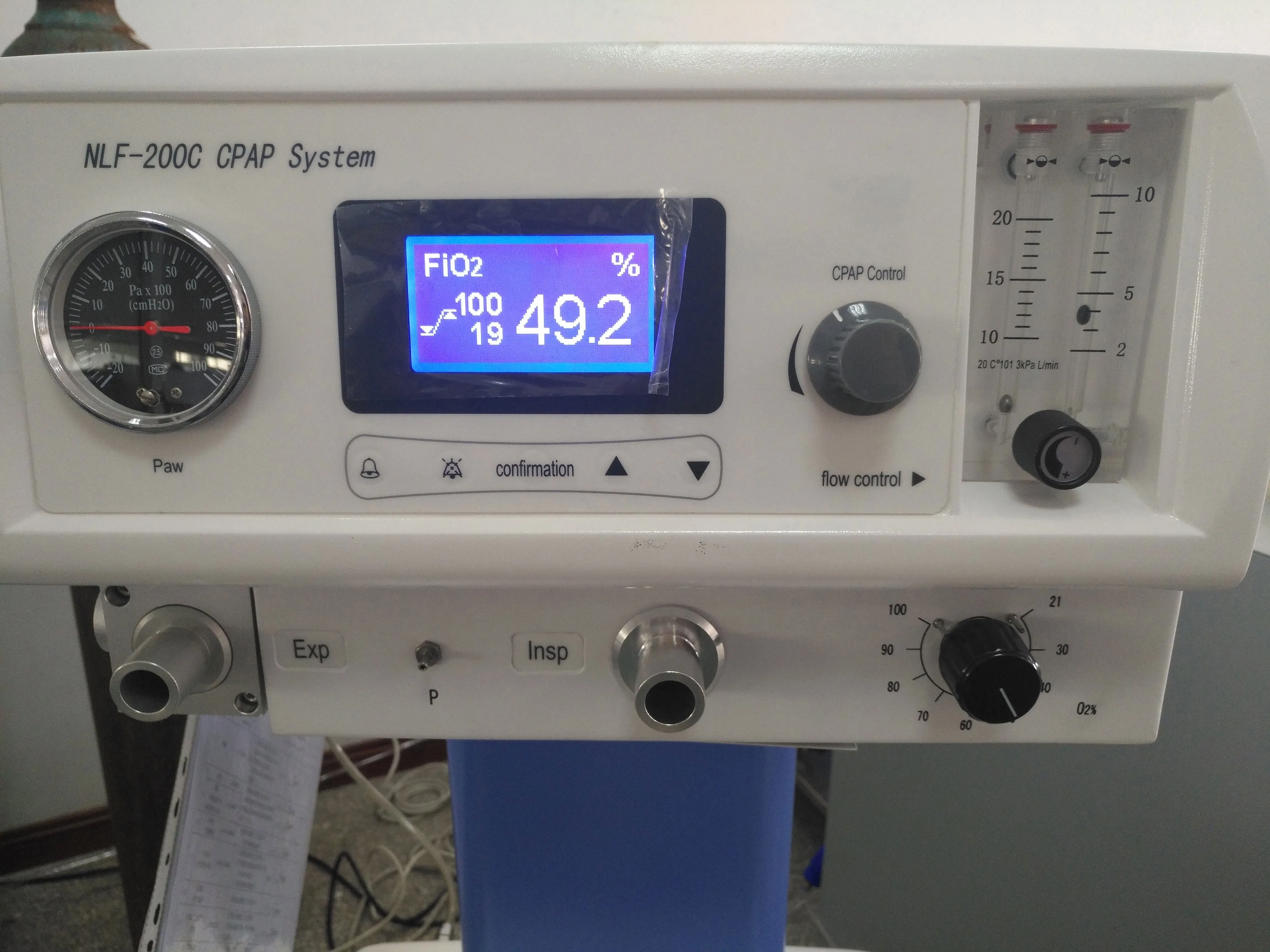

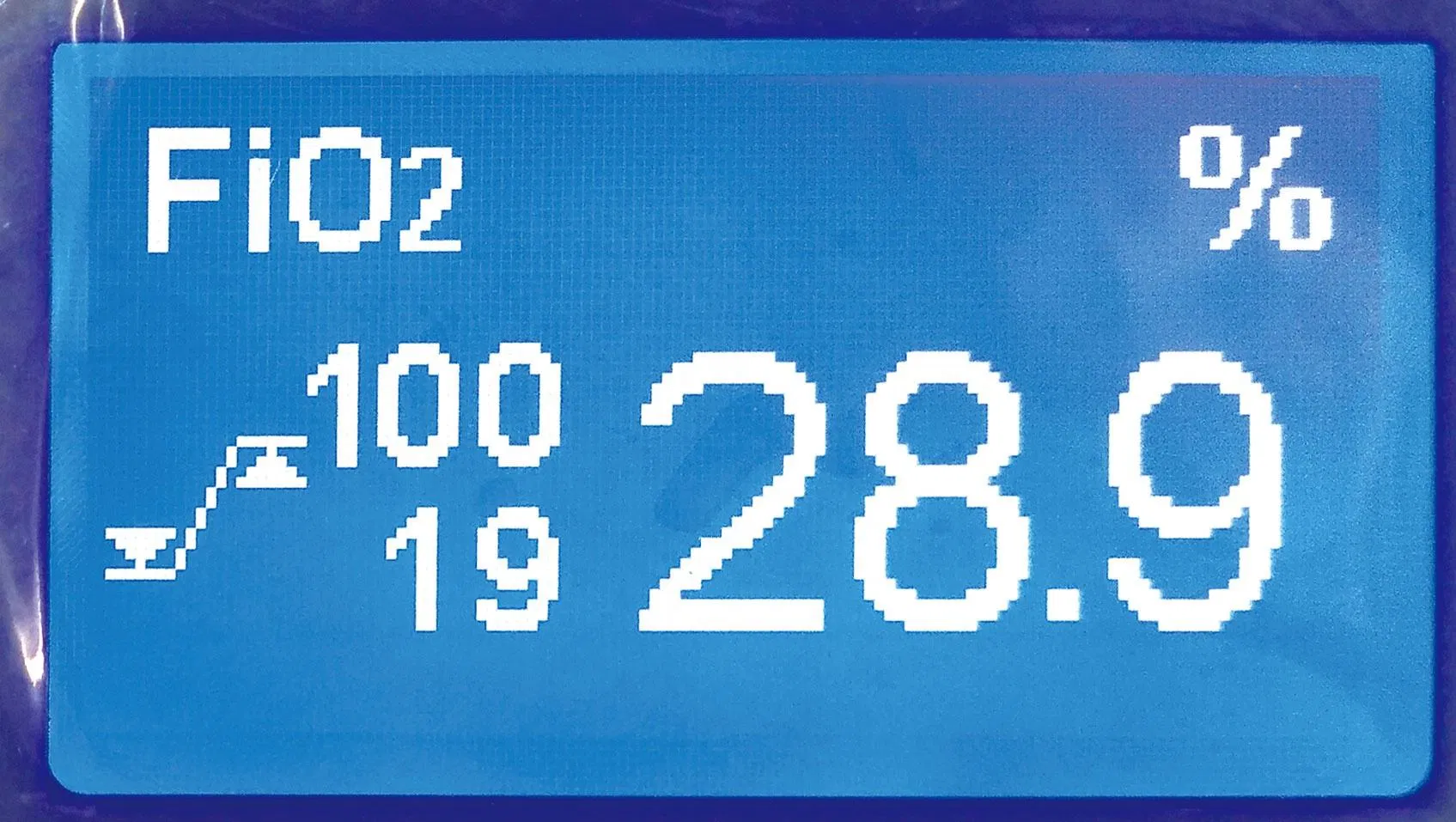

3.5" TFT LCD screen displays Ventilation parameters, Alarming information, and Waveforms.
Integrated breathing circuit design ensures easy operation and keeps the workspace tidy.
High precision O2 concentration detection function included.
Built-in air and oxygen blender ensures stable oxygen concentration.
Stable and low noise air compressor creates a quiet work environment.

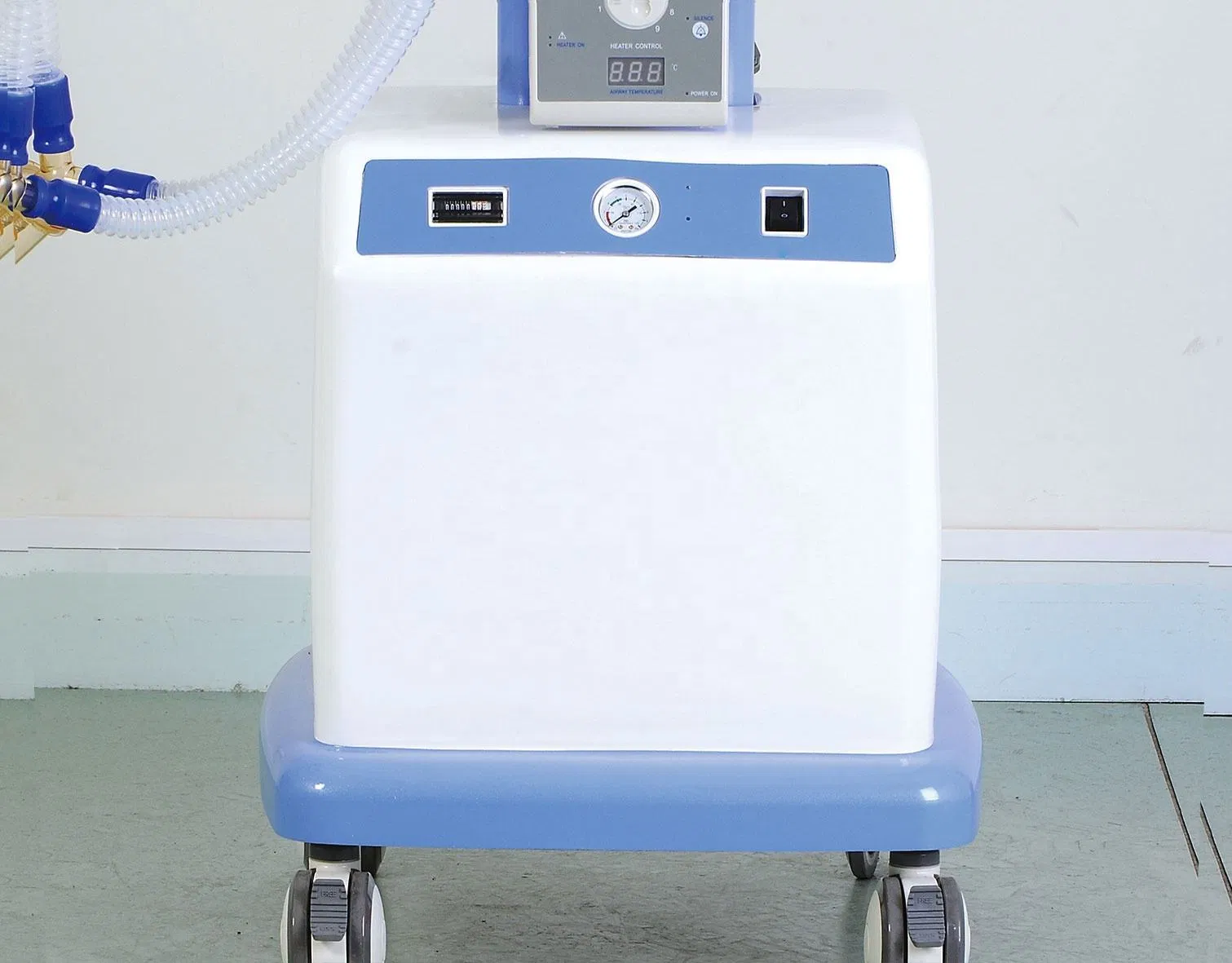

Simple to use and easy to move with four high-quality wheels.

Safety & Monitoring

Three-level alarming system with visual and sound information.
Advanced power management control technology.
Comprehensive protection functions for neonatal patients.
Multiple parameters monitoring interface for real-time patient assessment.

Technical Specifications

Parameter	Range
Oxygen Concentration	Adjusting: 21%-100% \| Monitoring: 15%-100%
CPAP	Adjusting: 0cmH2O-15cmH2O \| Monitoring: 0cmH2O-60cmH2O
Continuous Flow	2L/min-20L/min (Adjusting & Monitoring)
Air Compressor	Continuous flow: ≥25L/min \| Peak flow: ≥120L/min
Alarms	High/Low O2, Gas source lack, Excess temperature
Physical Dimensions	Wooden Case: 6707001410mm \| GW: 90KG \| NW: 57.2KG

Packaging & Services

Shipping: Standard Wooden Case, suitable for delivery by Sea or Air.

Service Commitment:

Cost-effective medical solutions for worldwide healthcare.
One-stop medical equipment procurement service.
Online technical support and 1-year warranty coverage.

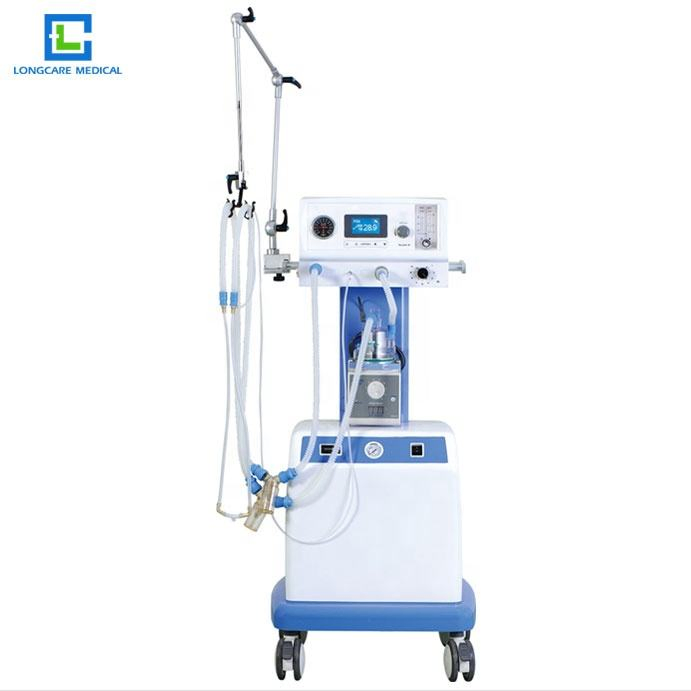

Equipment Overview

Frequently Asked Questions (FAQ)

Q1: What is the main application of the YH-200C CPAP System? A: It is primarily designed for use in Neonatal Intensive Care Units (NICU) to provide respiratory support for newborns and infants.

Q2: How does the system ensure accurate oxygen levels? A: The system features a built-in air and oxygen blender along with a high-precision O2 concentration detection function.

Q3: Is the equipment easy to transport within a hospital? A: Yes, the system is designed with a compact frame and four integrated wheels for easy movement between departments.

Q4: What kind of monitoring display does it offer? A: It features a 3.5" TFT LCD screen that displays real-time ventilation parameters, waveforms, and alarm information.

Q5: What are the safety alarm protocols? A: The system includes a three-level visual and audible alarm system for oxygen concentration deviations, gas source failure, and pump over-temperature.

Q6: What power source is required for the CPAP System? A: It is pneumatically powered and compatible with standard electrical voltages of 100-240V at 50Hz.
