Product Description

Basic Information
Model NO.
2440mm*50mm
Feature
Environmental, Fireproof, Light Weight, Metal Panel
Fire Rating
1
Customized
Customized
Specification
2440mm*50mm
Origin
Shandong
HS Code
6810999000
Production Capacity
100,000 pieces/Year
Why choose our composite wall panels?

Integrating lightweight, energy-efficient composite wall panels from the initial architectural design phase optimizes the beam-column structural system, enhances spatial flexibility, and reduces construction and foundation costs, achieving significant savings. This approach also expedites construction, shortens timelines, and minimizes labor and material expenses.

Product Description & Applications
Ideal Applications:
  • Ideal for various new and existing non-load-bearing interior and exterior partition walls.
  • Perfect for industrial building fire walls and non-load-bearing walls.
  • Suitable for interior and exterior walls of steel structure buildings.
  • Ideal for building renovations with specific wall load-bearing requirements.
  • Perfect for environments demanding high fire resistance, sound insulation, and moisture protection.
Application View

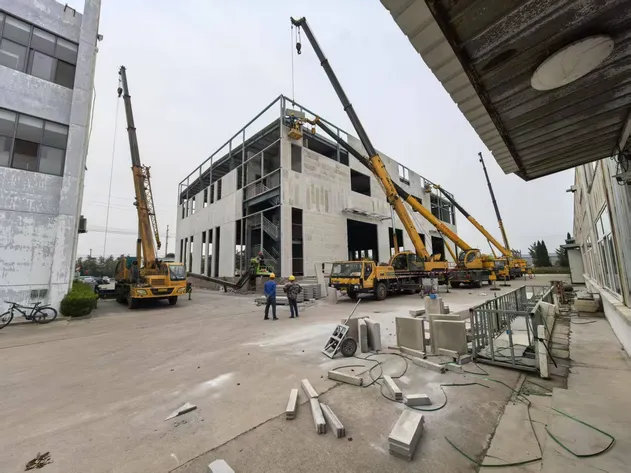

Building External Wall
Building External Wall

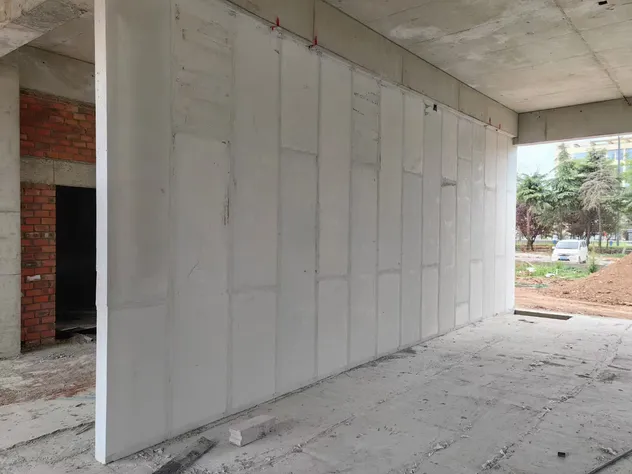

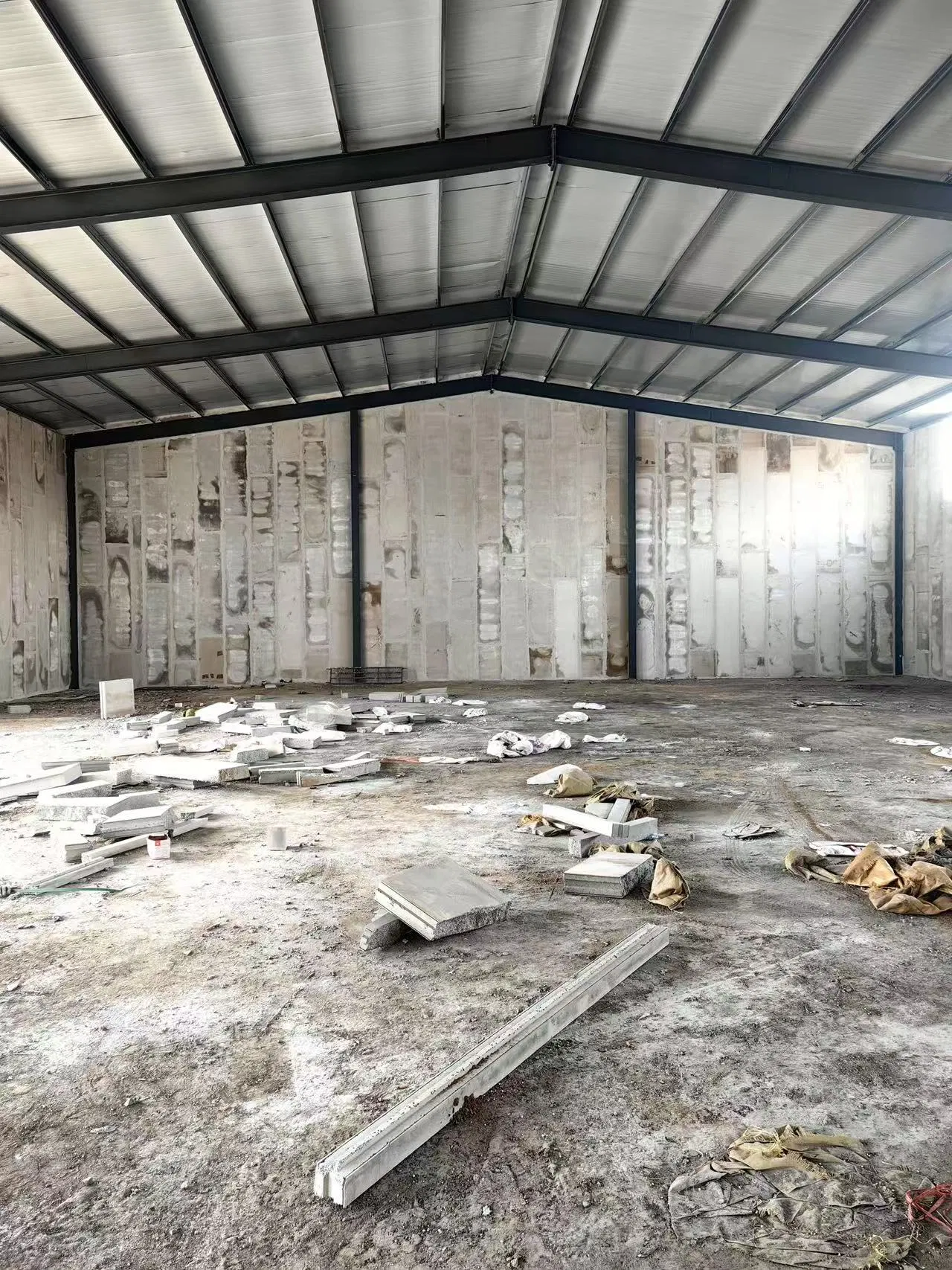

Interior Partition Wall
Interior Partition Wall

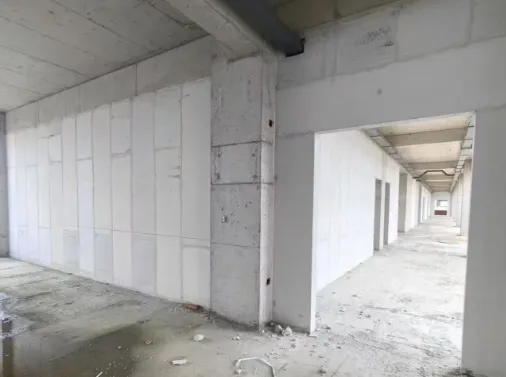

Rapid Construction
Rapid Construction Progress

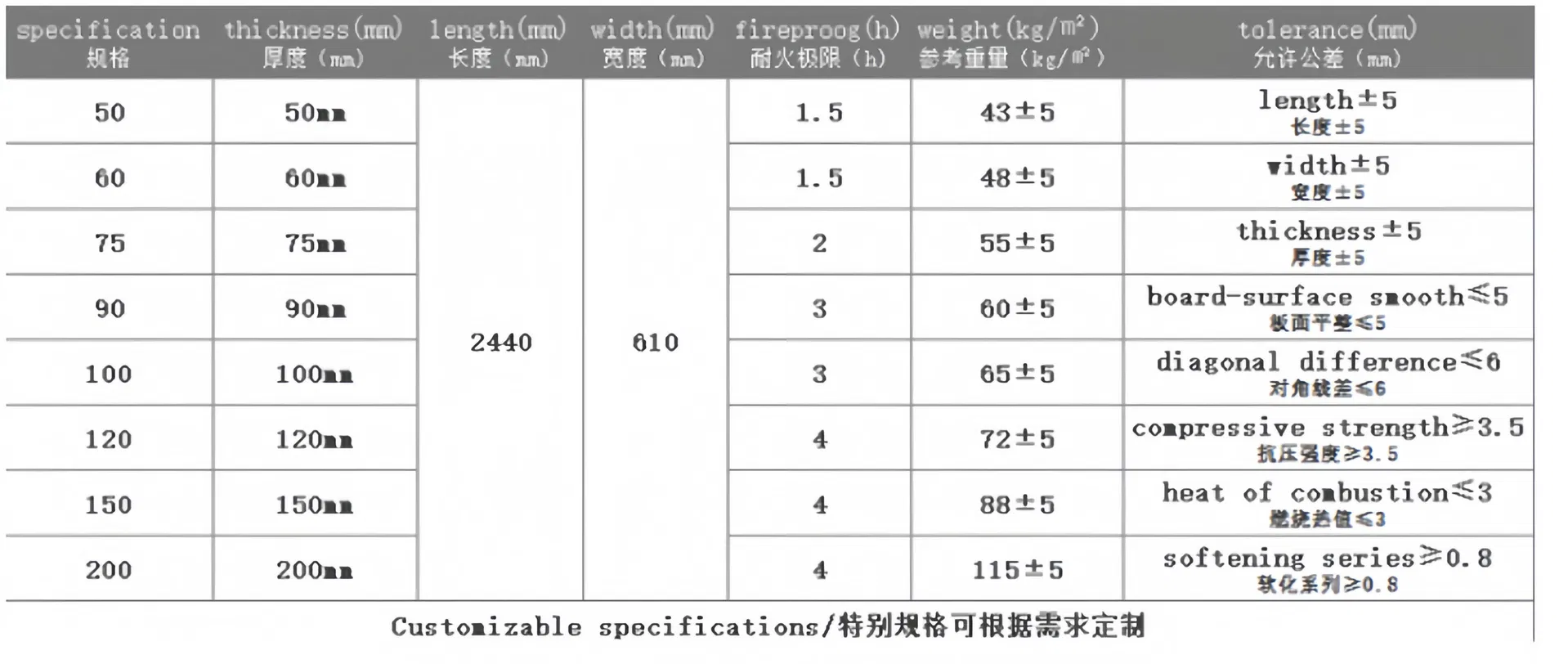

Technical Specifications
Product Performance & Service

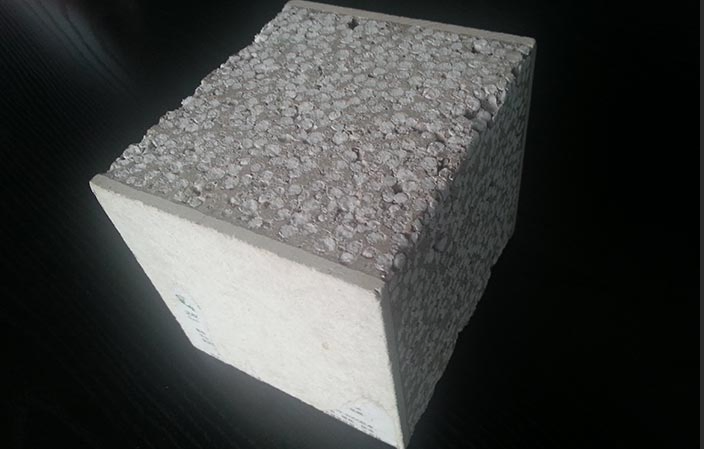

EPS cement sandwich panels are lightweight composite boards with thin fiber cement or calcium silicate boards as facings and lightweight core materials. These products boast unmatched advantages over other materials, including solid structure, lightweight, thin profile, high strength, impact resistance, superior load-bearing, thermal insulation, soundproofing, fire resistance, waterproofing, easy cutting, and minimal self-weight. Primarily used for partition walls, interior and exterior walls, and fire-rated partitions in buildings.

Production Capacity

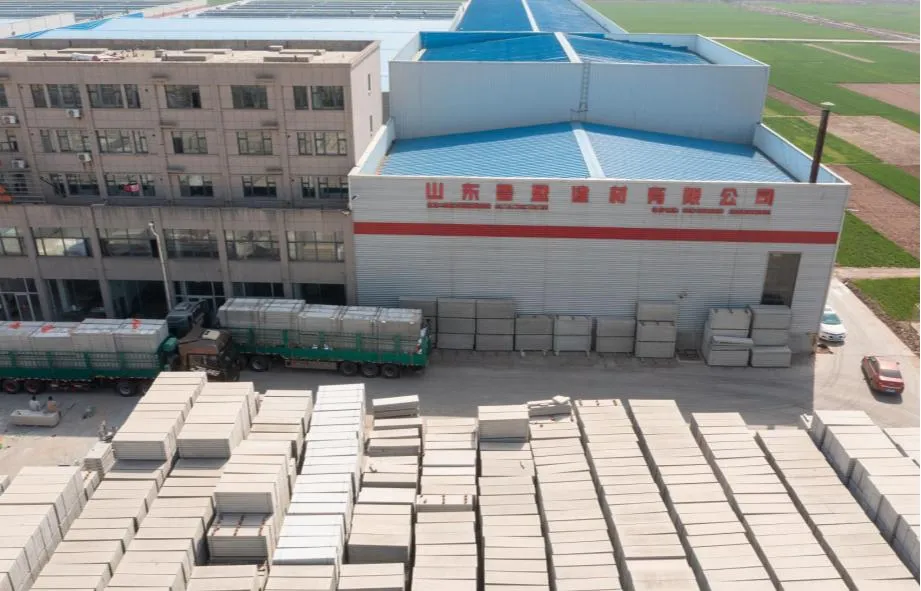

Facility View

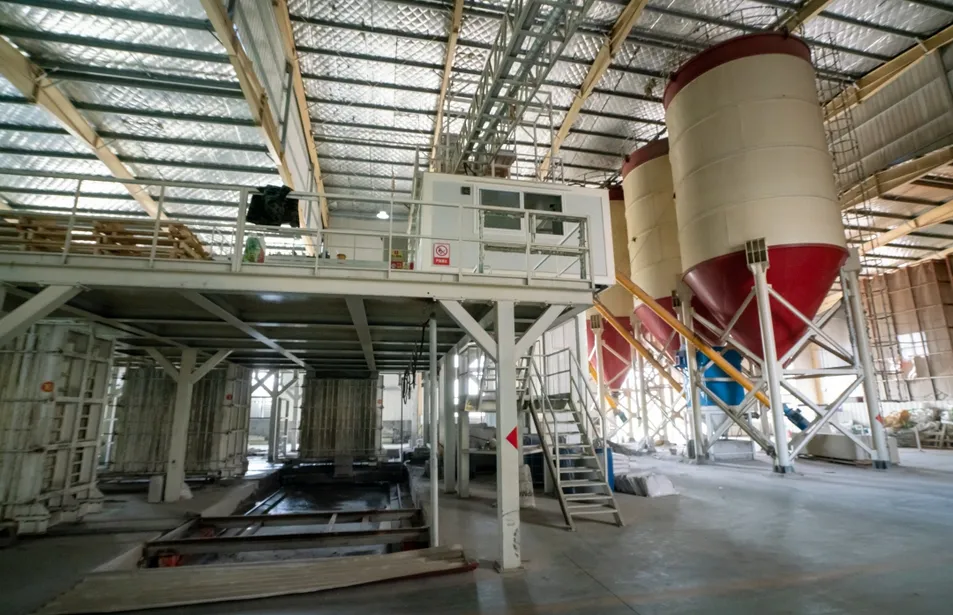

Production Line

The facility spans 100,000 square meters and employs over 1,000 staff. Its 6,200-square-meter facilities support an annual output of over 1 million square meters. High Quality at Competitive Prices: Our self-sufficient production and sales model ensures full-chain cost control, minimizing intermediary expenses.

Frequently Asked Questions

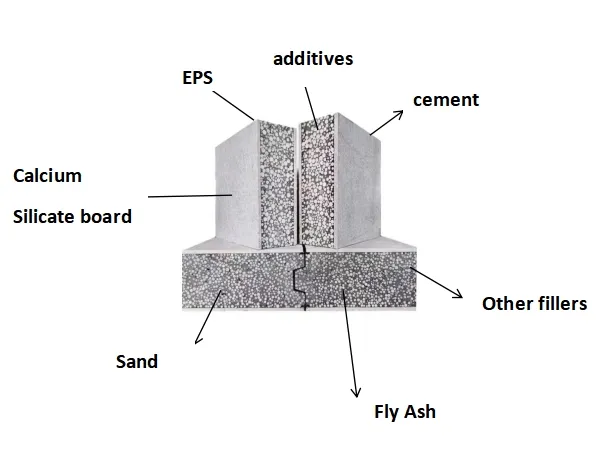

What is an EPS Cement Sandwich Panel?
It is a composite panel with two layers of fiber cement or calcium silicate boards sandwiching an EPS core. It is lightweight, thermal and acoustic insulating, fire-resistant, and corrosion-resistant, widely used in walls, roofs, and partitions.
What are the main advantages?
Key benefits include being lightweight (1/10 of traditional brick), high suspension capacity (>1500N), superior thermal and acoustic insulation, Class A fire rating, and rapid modular installation which saves labor and time.
Are these panels environmentally friendly?
Yes. The materials are recyclable; cement panels can be crushed and reused, and EPS can be recycled into pellets. The production process releases no toxic substances and has lower carbon emissions than traditional materials.
What is the expected service life?
Under normal conditions and with proper installation, these panels have a service life exceeding 30 years, barring extreme environmental damage.
Where can these panels be applied?
They are ideal for factories, warehouses, logistics centers, site offices, exhibition halls, greenhouses, and noise barriers. Note: They are generally not suitable for primary load-bearing walls or submerged environments.
How does it help in cost reduction?
By reducing the overall structural load of the building, it allows for lighter beams and foundations. The rapid installation process also significantly decreases labor costs and construction timelines.
