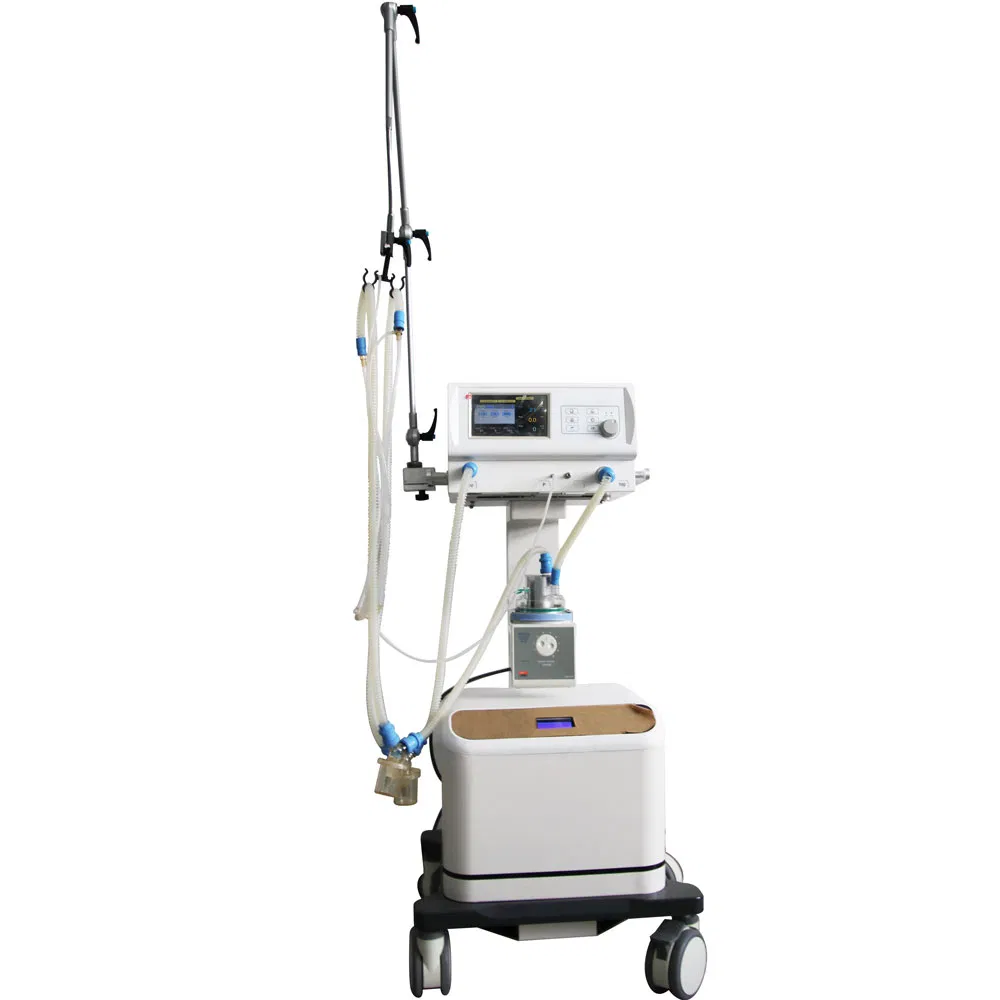

Hospital Nicu Department Use Neonatal CPAP System for Infant Oxygen Therapy

1 / 5

Hospital Nicu Department Use Neonatal CPAP System for Infant Oxygen Therapy

Customized:	Customized
Certification:	CE, ISO13485
Scale:	Medium

Send Inquiry

Product Description

Basic Information

Model NO.

YHH-200A

Type

Breathing Apparatus

Instrument Class

Class II

Warranty

1 Year

Power Source

Pneumatic

Certification

Material

Metal, Plastic, Steel

Origin

China

Product Description

🚀 Application

The CPAP System delivers exceptional performance in Neonatal Intensive Care Units (NICU) and other clinical departments. It provides essential choices in ventilation, monitoring, and technique, built upon a 23-year history of developing medical solutions. The system is characterized by high security, high accuracy, and high stability for precise infant monitoring.

⭐ Key Trust Points

Simplicity: User-friendly interface and easy mobility with 4 integrated wheels.
Versatility: Adapt the equipment freely to specific patient needs and procedures.
Expertise: Manufactured with over 23 years of specialized experience in the field.
Global Standards: Advanced technology suitable for neonatal patients worldwide.

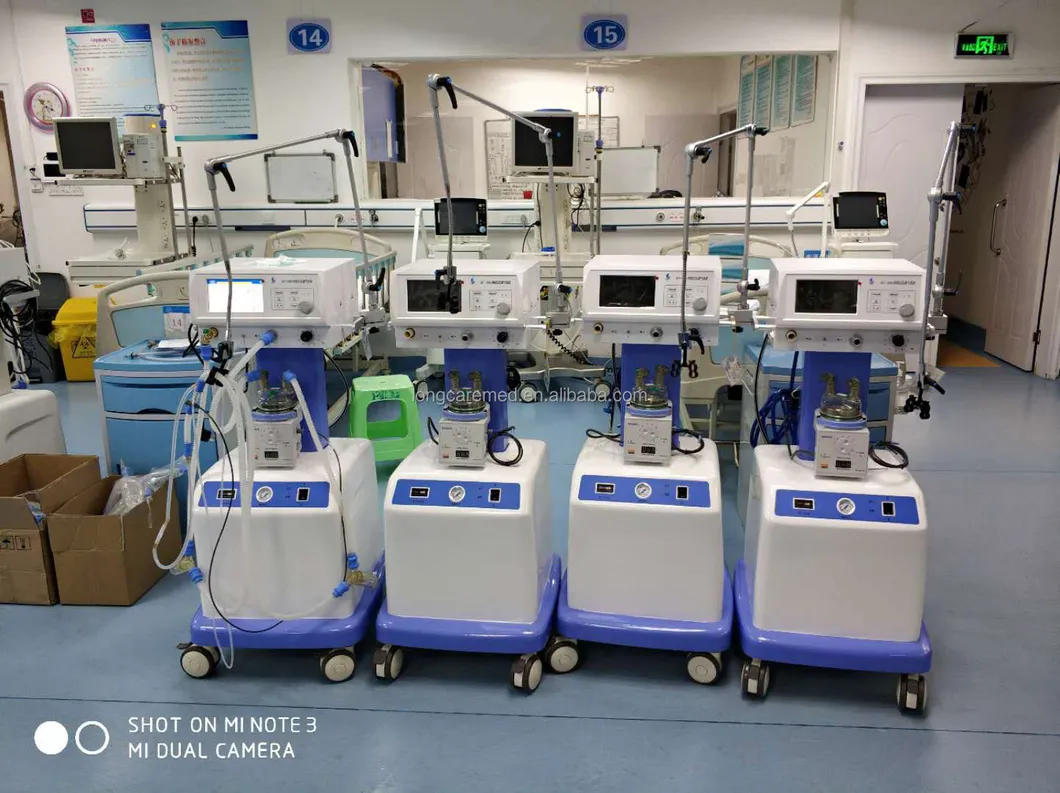

Proven Reliability: Over 2,000 units installed and operational globally.

🛠️ Technical Features

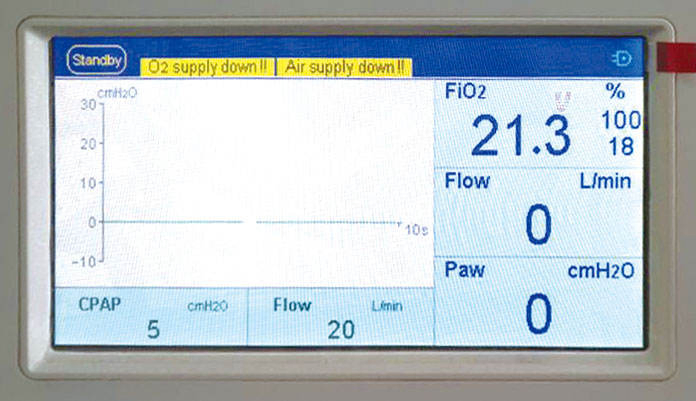

7" TFT LCD screen displaying ventilation parameters, alarms, and waveforms.
Integrated breathing circuit design for easy operation and organized workspace.
Real-time pressure-time graphics and high-precision O2 concentration detection.
Built-in air and oxygen blender ensuring consistent concentration stability.

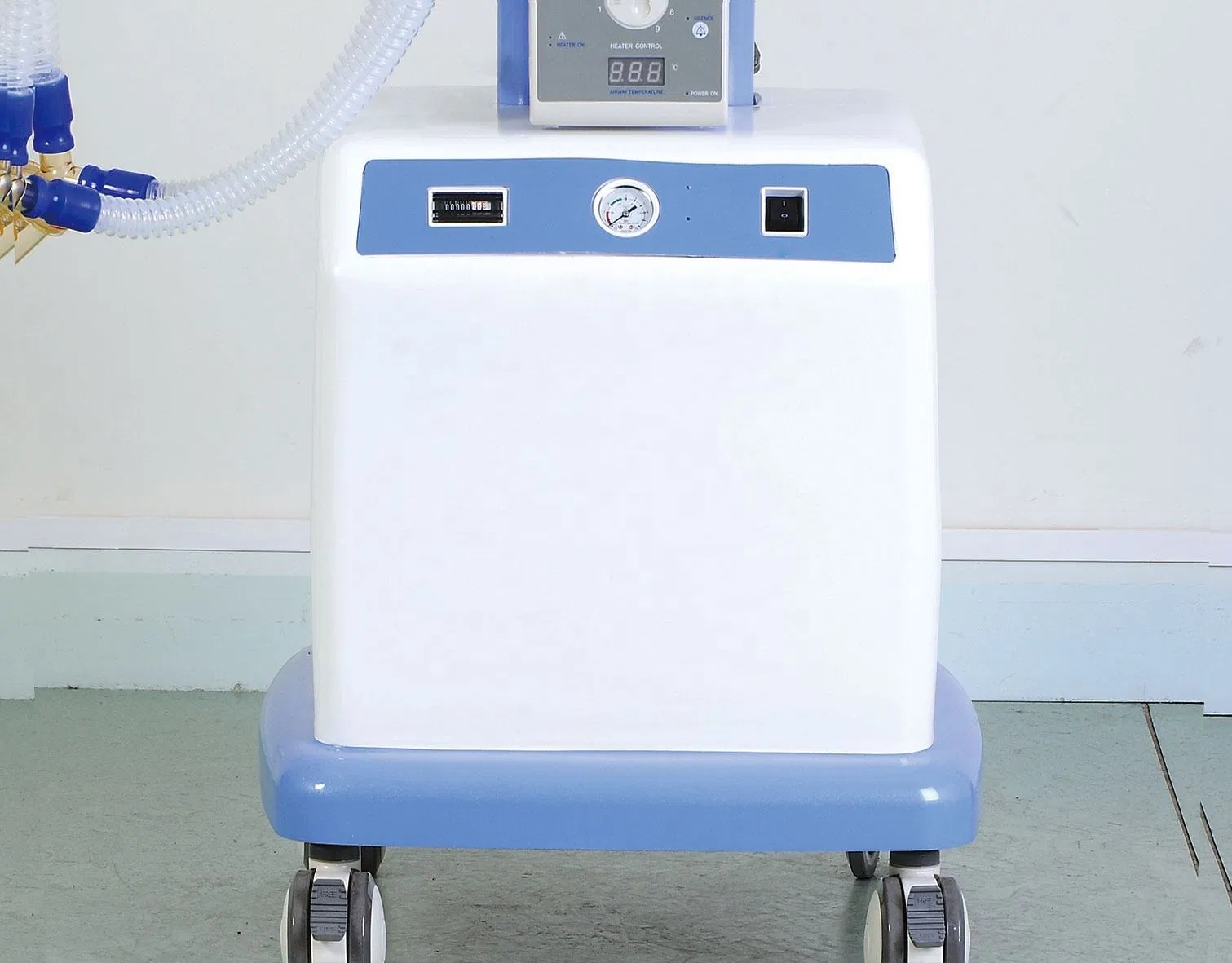

Low-noise air compressor creating a quiet environment, capable of supporting 2-3 systems.

🛡️ Safety & Protection

Three-level alarming system with both visual and audible alerts.
Advanced power management with a built-in backup power source for outages.
Comprehensive monitoring of airway pressure and gas input levels.

Technical Specifications

Oxygen Concentration	Adjusting: 21%-100% \| Monitoring: 15%-100%
CPAP Range	Adjusting: 0cmH2O-15cmH2O \| Monitoring: 0cmH2O-60cmH2O
Continuous Flow	2L/min - 20L/min (Adjusting & Monitoring)
Manual Ventilation	Output flow: 20L/min ± 5L/min
Air Compressor	Peak output flow: ≥ 120L/min
Screen	7" TFT LCD (Pressure-Time Graphics)
Dimensions	Wooden case: 6707001410mm (GW: 90KG)
Gas Source	Medical O2 and AIR (280kPa - 600kPa)
Input Power	Main engine: ≤ 25W \| Compressor: ≤ 675W

Packaging & Services

Shipping: Securely packed in wooden cases for international transport via sea or air.

Provision of cost-effective medical solutions worldwide.
One-stop medical equipment procurement service.
Online technical support for after-sales maintenance.

Frequently Asked Questions (FAQ)

What environments is this CPAP system designed for?

The system is primarily designed for Neonatal Intensive Care Units (NICU) and other departments requiring specialized infant oxygen therapy.

How does the system handle power failures?

It features an advanced power management system with a built-in backup power source that automatically activates if the external power supply is disconnected.

Is the oxygen concentration adjustable?

Yes, the oxygen concentration can be adjusted from 21% up to 100%, with integrated monitoring for high accuracy.

Is the air compressor loud?

No, the system uses a stable, low-noise air compressor designed to maintain a quiet work environment for medical professionals and a peaceful setting for infants.

What kind of monitoring interface does it provide?

The unit features a 7" TFT LCD screen that displays real-time ventilation parameters, alarming information, and pressure-time waveforms.

What are the alarm safety features?

The system includes a three-level alarm system for AC power failure, low battery voltage, oxygen concentration deviations, and airway pressure fluctuations.
