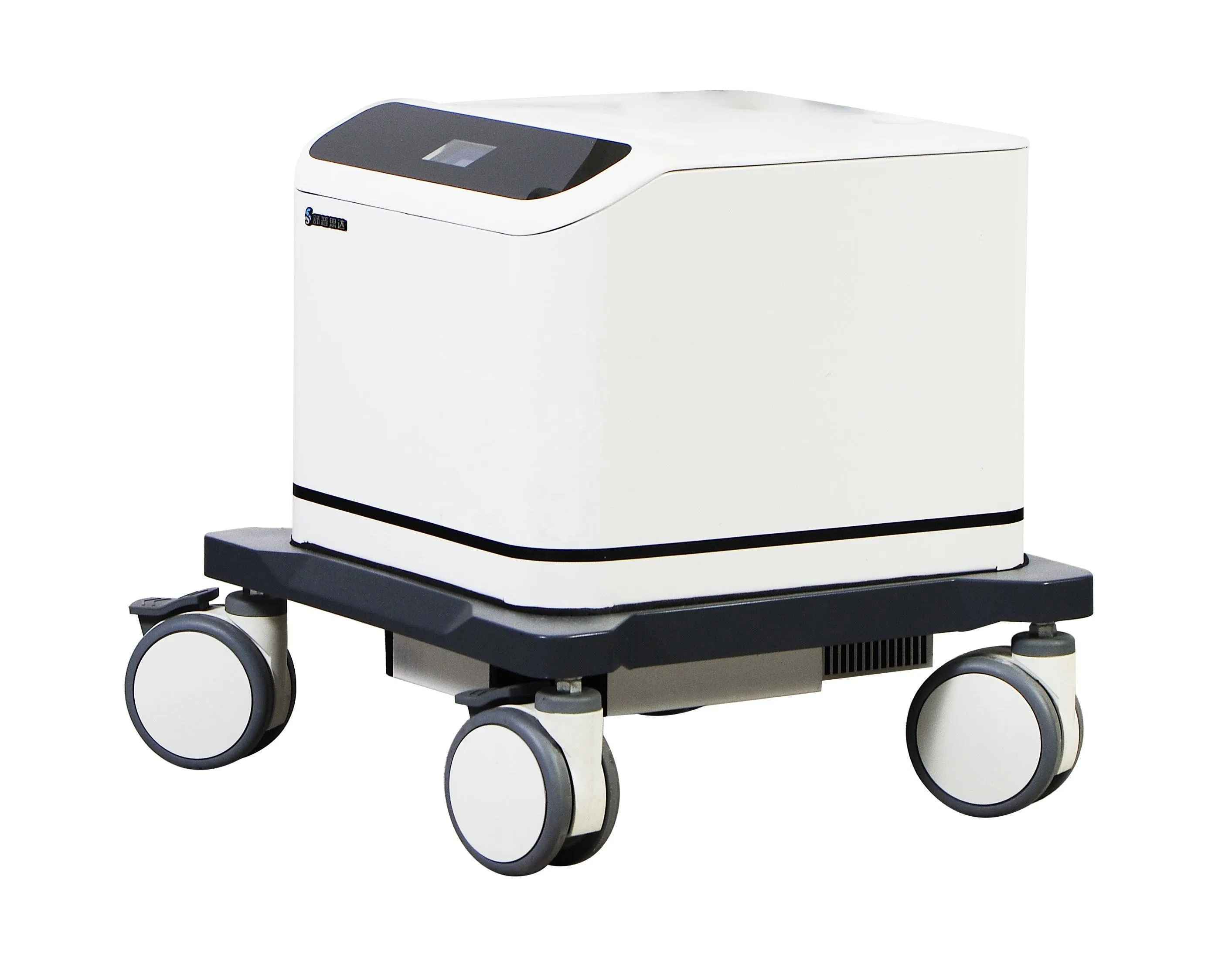

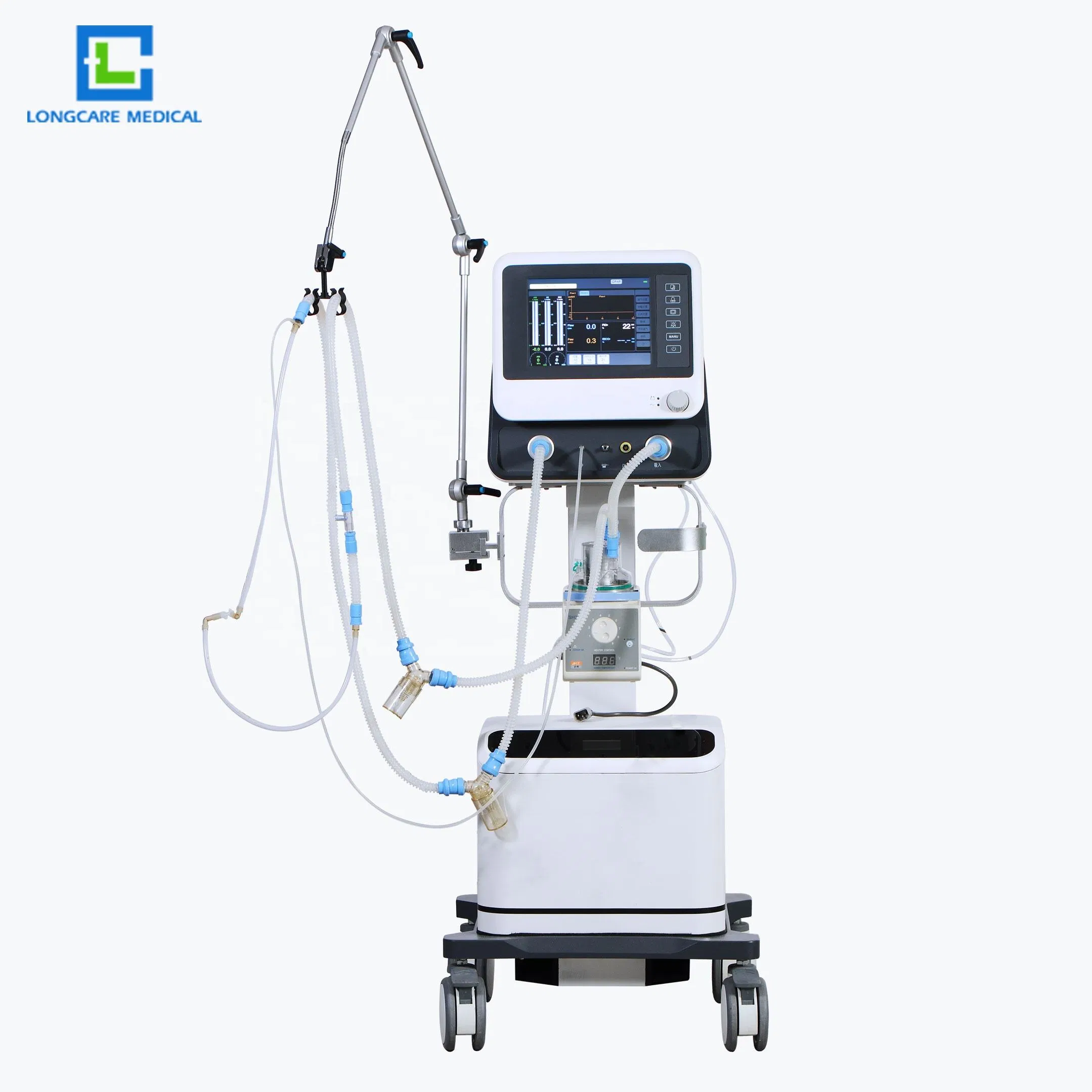

Nicu Use Neonatal CPAP System Used for Oxygen Therapy

Customized: Customized
Certification: CE, ISO13485
Scale: Medium

Product Description

📋

Basic Specifications

Model NO.
YHH-200B
Type
Breathing Apparatus
Safety Standard
None
Instrument Classification
Class II
Warranty
1 Year
Power Source
Pneumatic
Quality Certification
CE
Material
Metal, Plastic, Steel
Shelf Life
1 Year
After-Sale Service
Online Technical Support
Transport Package
Wooden Case
Origin
China
🔬

Product Description

Application

The CPAP System makes a good performance in Neonatal Intensive Care Units (NICU) and other departments. CPAP System offer you the choices you need in ventilation, monitoring and technique. Expertise in ventilation is based on rich 23-year history of developing CPAP solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

  • Simplicity: easy to use, easy to move with 4 wheels.
  • Choice: adapt the equipment to your patients and procedures freely.
  • Designed and manufactured with over 23 years experience in this area.
  • Flexible configurations to suit your needs.
  • International standard and advanced technology suitable for all baby patient around the world.
  • Compact interface and big screen give you better operating experience.
  • Over 2,000 units installed in the world.

Key Features

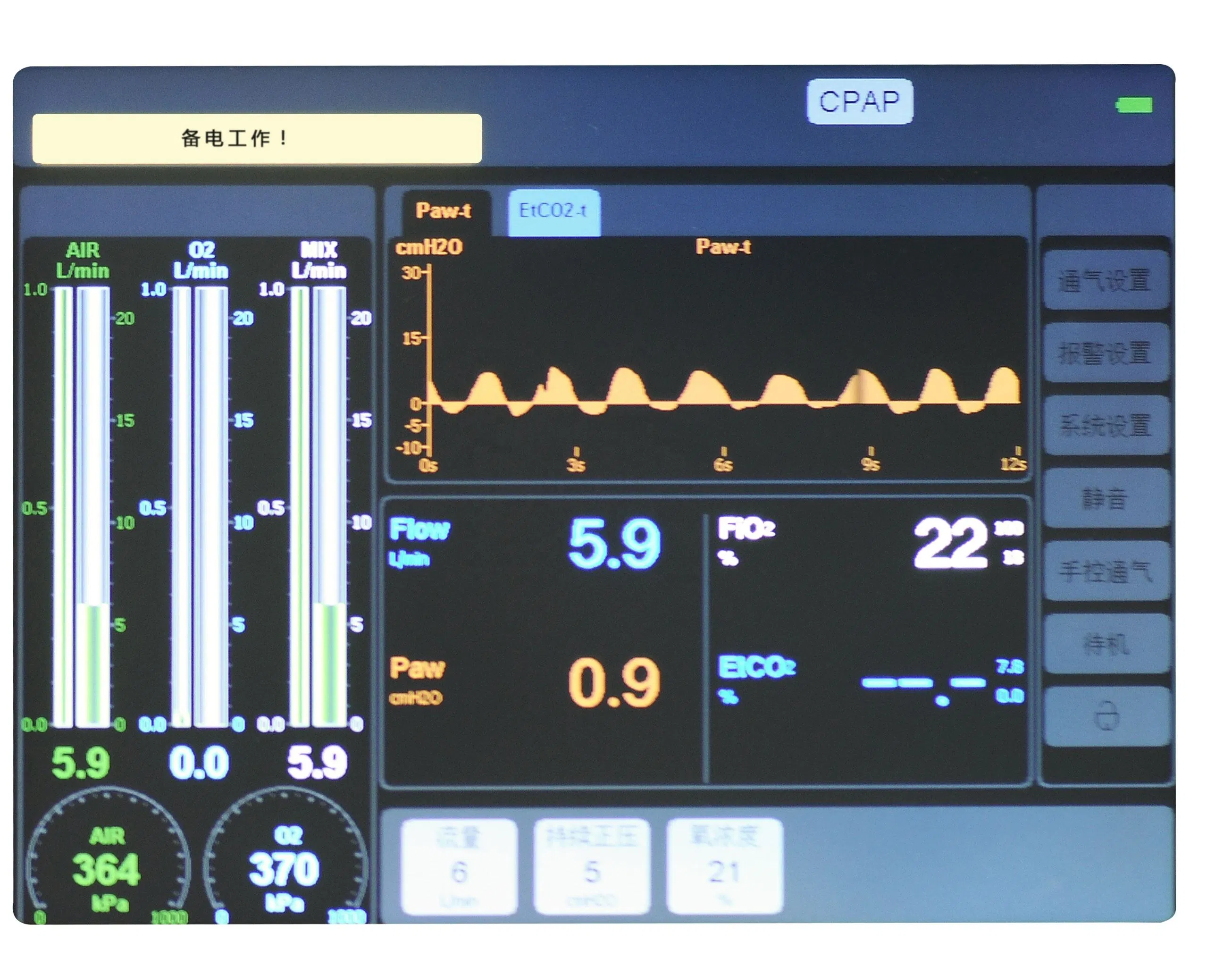

  • 10.4" TFT Touch LCD screen displays the Ventilation parameters, Alarming information and Waveform.
  • Integration breathing circuit design, ensure easy operating and keep tidy.
  • Multiple parameters monitoring interface, make every parameter clear.
  • Real time pressure-time graphics and high precision O2 concentration detection function included.
  • Built-in air and oxygen blender, ensure stable oxygen concentration.
  • Stable and low noise air compressor create quiet work environment, can be used for 2-3 CPAP Systems together.

Safety Systems

  • Three level alarming system, visual and sound alarm information.
  • With lots of alarming, reminding and protection functions.
  • Advanced power management control technology.
  • Built-in backup power source starts to work when outside power goes off.
📊

Technical Specifications

Parameter Range / Detail
ModesCPAP, NIPPV, HFNC, MANUAL, BIPAP
Oxygen concentrationAdjusting: 21%-100% | Monitoring: 15%-100%
CPAP RangeAdjusting: 0cmH2O-15cmH2O | Monitoring: 0cmH2O-60cmH2O
Continuous flowAdjusting: 2L/min-20L/min | Monitoring: 0L/min-20L/min
Pressure monitoring0cmH2O-60cmH2O
Inhalation pressure3cmH2O-15cmH2O
Exhalation pressure1cmH2O-13cmH2O
Breath FrequencyAdjusting: 1bpm-100bpm | Monitoring: 0-100bpm
Inhalation timeAdjusting: 0.1s-15s | Monitoring: 0s-15s
Air compressorContinuous output: ≥25L/min | Peak output: ≥120L/min
Graphical displayP-T (pressure-time), Airway pressure graphics
AC power failure alarmPower failure or no connection
Gas sourceO2, AIR (280kPa-600kPa)
📦

Packaging & Shipping

Package: Professional Wooden Case

Shipping Methods: By Sea or By Air

🛠️

Our Services

• Provide the most cost-effective medical solutions to worldwide.

• Provide one-stop solution medical equipment procurement service.

🖼️

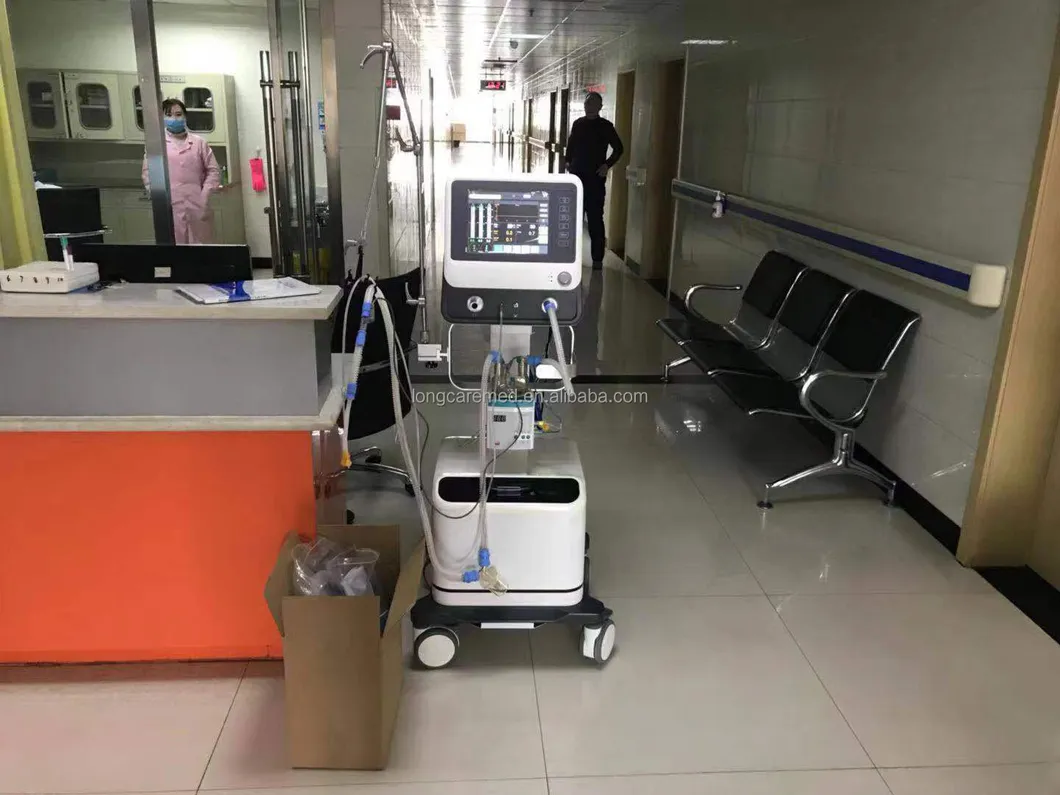

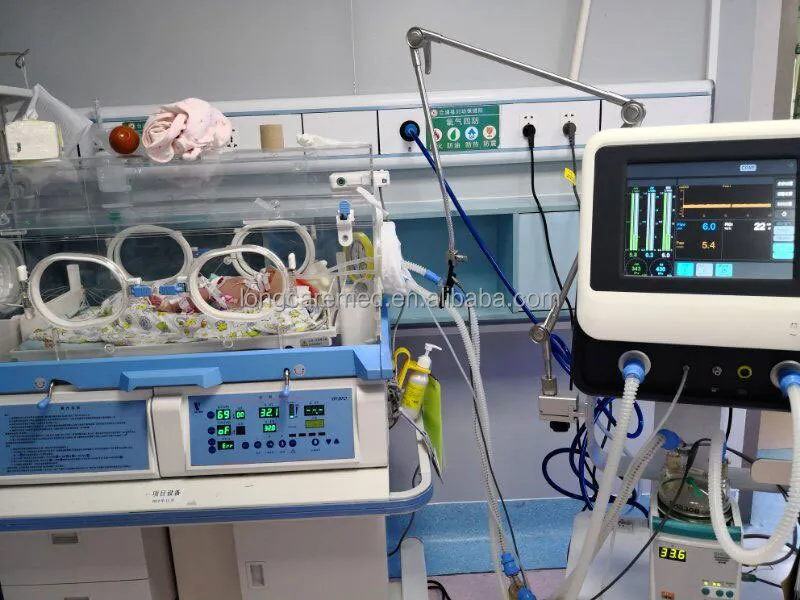

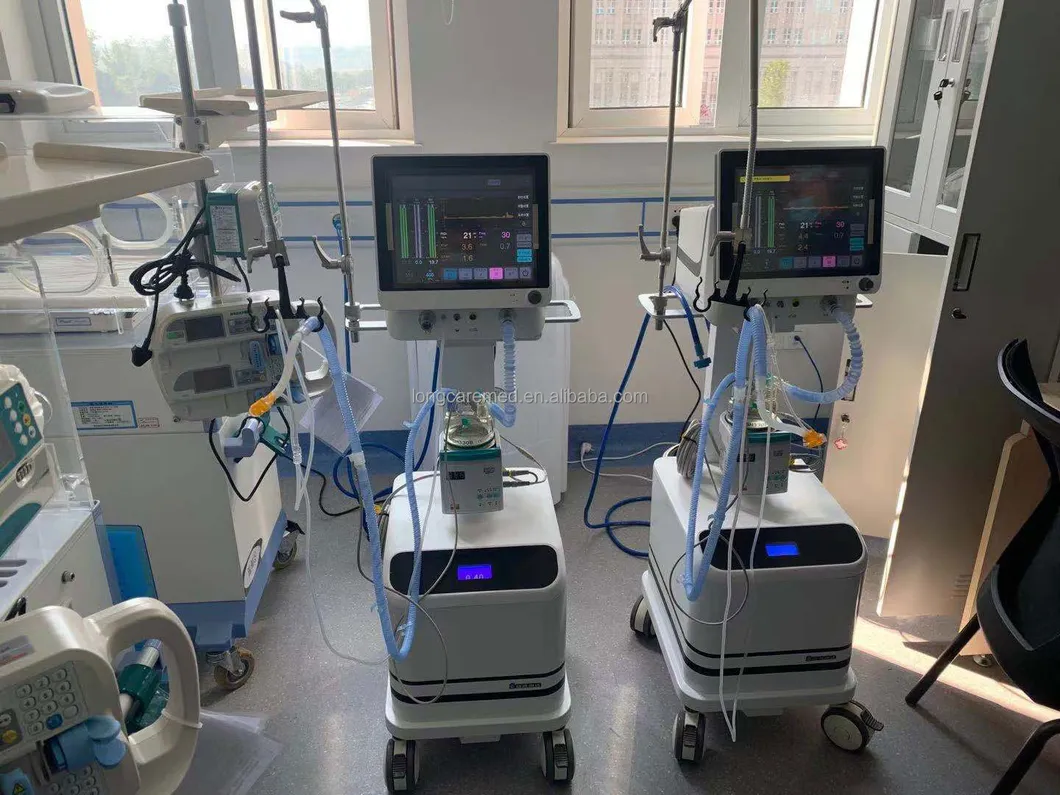

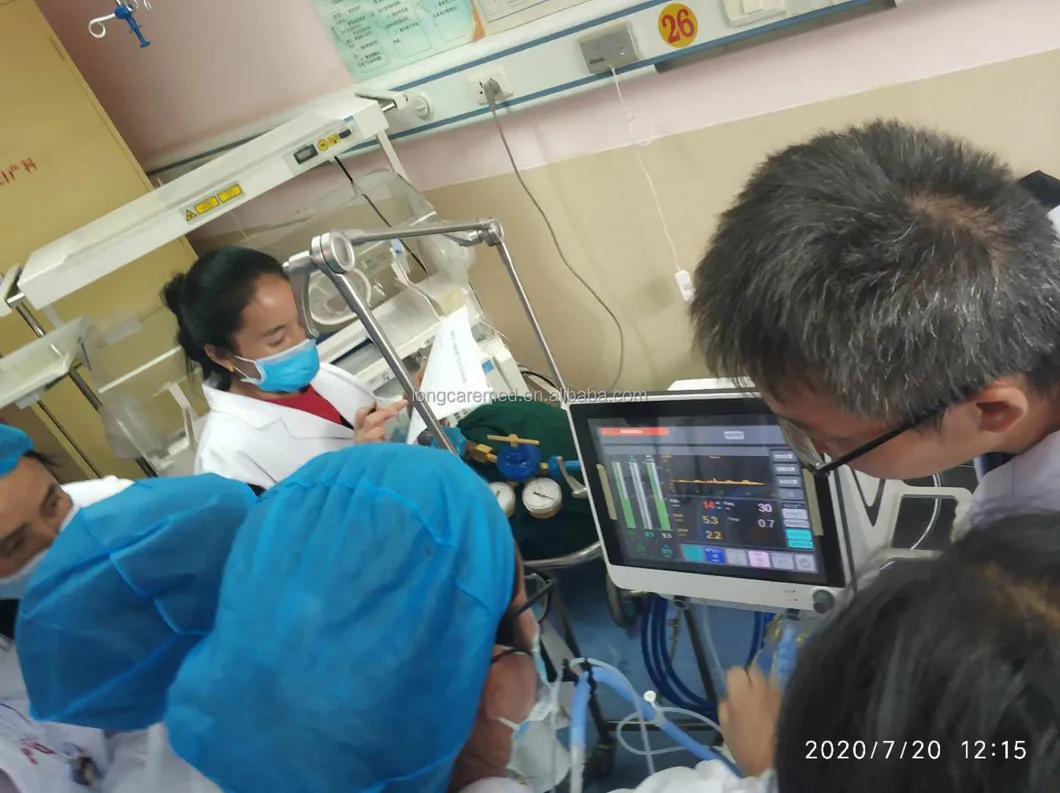

Product Display

Frequently Asked Questions

Q1: What is the primary application of this CPAP system?
It is specifically designed for the Neonatal Intensive Care Unit (NICU) to provide respiratory support for newborns and infants requiring oxygen therapy.
Q2: What ventilation modes are available on the YHH-200B?
The system supports multiple modes including CPAP, NIPPV, HFNC, MANUAL, and BIPAP to adapt to various clinical needs.
Q3: How does the system ensure stable oxygen concentration?
The unit features a built-in air and oxygen blender and high-precision O2 concentration detection to ensure constant and accurate delivery.
Q4: What safety features are integrated into the device?
It includes a three-level visual and audible alarm system, advanced power management, and a built-in backup battery that activates automatically during power failures.
Q5: Is the air compressor suitable for a quiet hospital environment?
Yes, the air compressor is designed for low noise operation to maintain a quiet work environment for medical staff and a peaceful setting for patients.
Q6: What kind of display screen does it use?
It is equipped with a 10.4" TFT Touch LCD screen that clearly displays ventilation parameters, waveforms, and alarming information.
