Basic Specifications
Temperature
31 ℃-37℃ (Adjustable)
Interfaces
Nasal Cannula, Tracheostomy, Mask
Monitoring
Flow, Temp, O2, Treatment Time
Departments
ICU, Emergency, Respiratory, Neurology
Product Description

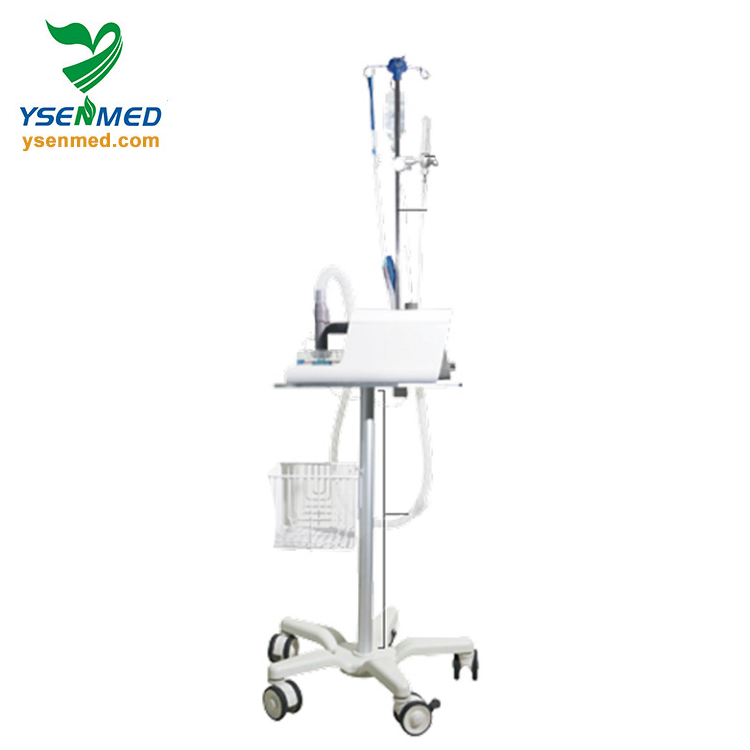

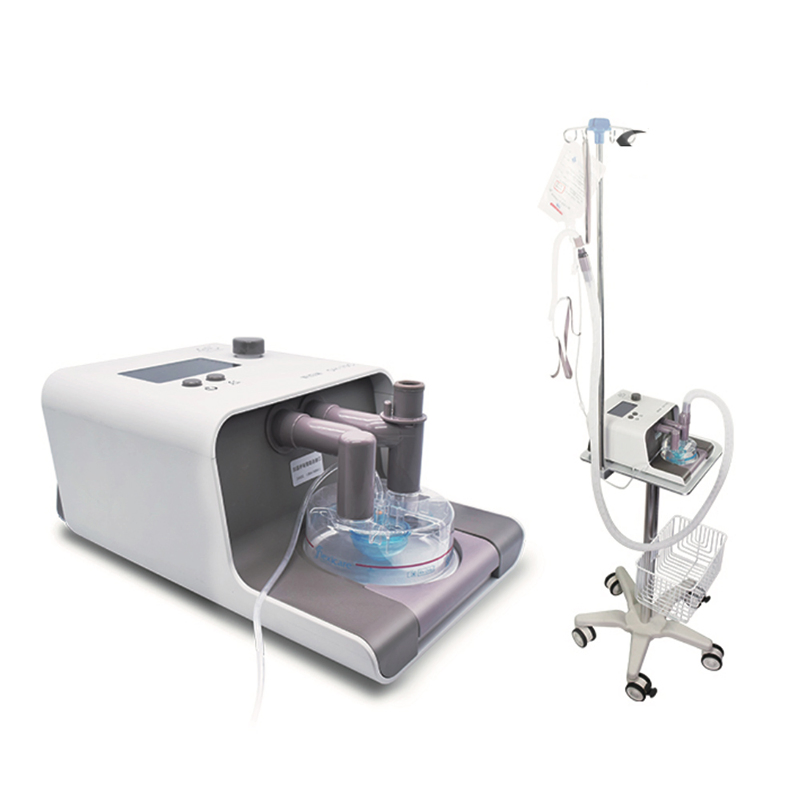

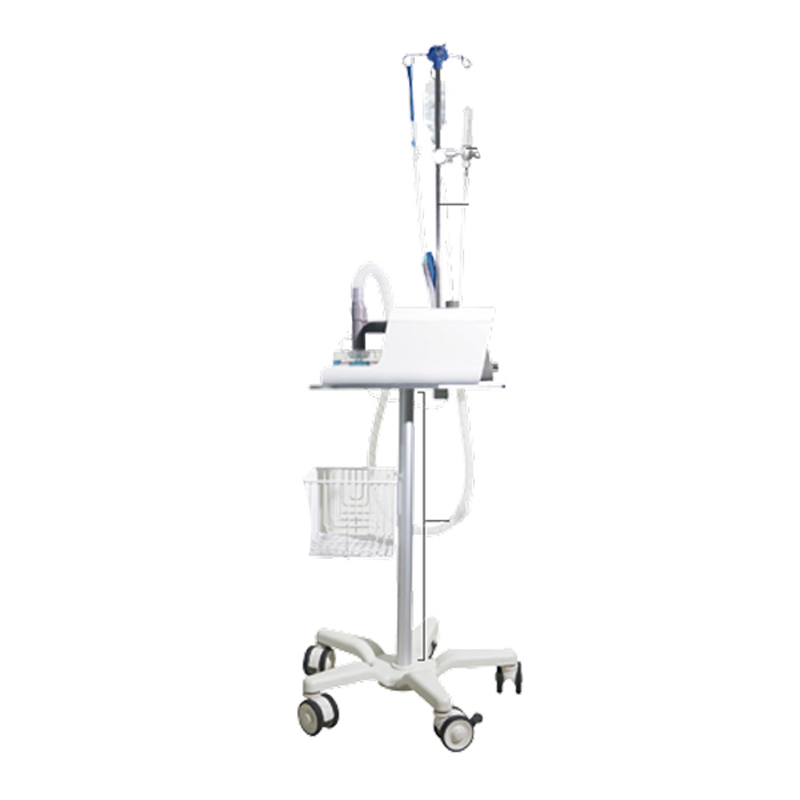

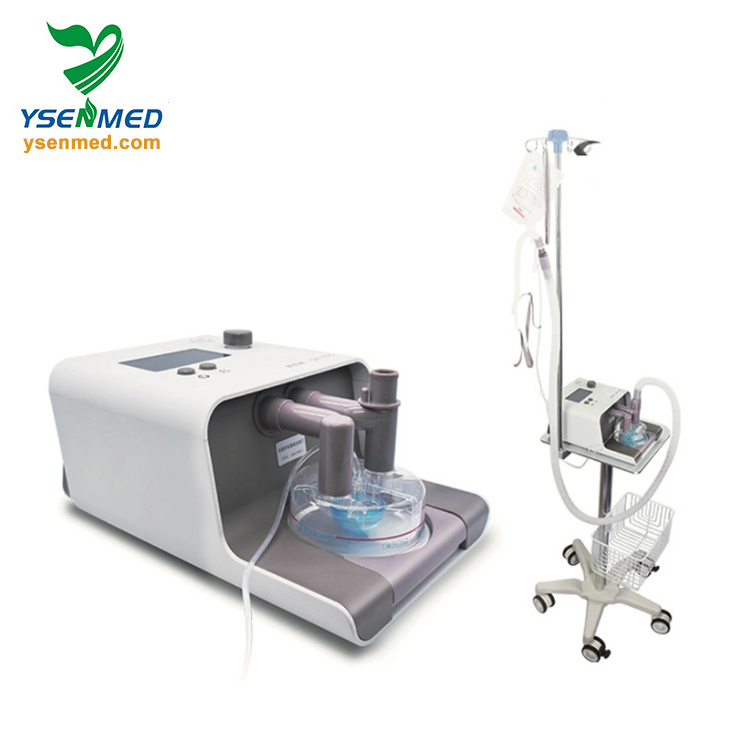

YSAV-OH70C Non-Invasive High Flow Oxygen Ventilator
The YSAV-OH70C non-invasive ventilator is the perfect option for severe respiratory patients, providing a critical respiratory assist segment for various medical conditions.
Main Features
- Precision Control: High-precision proportional valve for oxygen concentration (21%-100%).
- Intelligent Humidification: Provides gas at 37ºC and 100% relative humidity.
- High Flow Range: Adult mode up to 70L/min; Children mode up to 25L/min.
- Safety Design: Innovative safe-airway prevents patient gas return to the host.
- Real-time Monitoring: 4.3-inch color screen for flow, temperature, and O2 concentration.
| Parameters | Description |
|---|
| Flow Settings | Adult: 10-70L/min | Children: 2-25L/min |
| Oxygen Concentration | 21%-100% (adjustable by 1%) |
| Temperature | 31ºC-37ºC (adjustable by 1ºC) |
| Trend Review | 1 day, 3 days, 7 days |
| Dimensions/Weight | 340×228×162mm | 3.3kg |

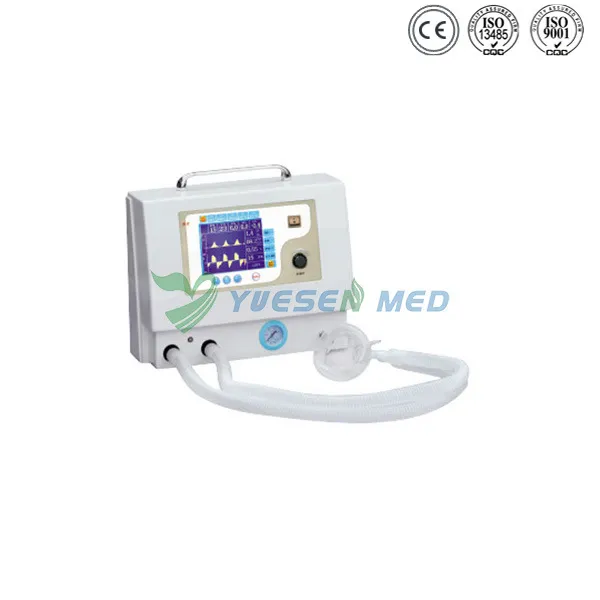

Medical Veterinary Ventilator Machine
YSAV201PV Specification
| Display Mode | High-definition 5.7" LCD screen |
| Ventilation Modes | IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH |
| Tidal Volume | 50~1500ml |
| Respiratory Rate | 2~99bpm |
| I:E Ratio | 2:1~1:8 |
| Alarms | Airway pressure, Per-minute ventilation, Suffocation, Power |
One-Stop Medical Equipment Solutions
| Imaging Room |
X-ray Machine, Processor, X-ray Film, Lead Clothing (Glove, Glasses, Apron) |
| Ultrasound |
B/W 2D Ultrasound, 2D/3D/4D Color Ultrasound |
| Laboratory |
Chemistry Analyzer, Hematology Analyzer, ELISA Reader, Centrifuge, Urine Analyzer |
| Operation Room |
Patient Monitor, Operating Lamp, Table, Anesthesia Machine, Infusion Pump, Autoclave |
Frequently Asked Questions
Q1: What is the maximum flow rate for the YSAV-OH70C ventilator?
A1: In Adult Mode, the flow rate can be adjusted from 10L/min to 70L/min. In Children Mode, it ranges from 2L/min to 25L/min.
Q2: Does the device require manual adjustment for oxygen concentration?
A2: No, the system utilizes a high-precision proportional valve to control oxygen concentration automatically between 21% and 100%.
Q3: How does the system handle cross-infection risks?
A3: The device features an innovative safe-airway design where patient gas does not return to the host, eliminating the need for internal disinfection.
Q4: What are the available treatment interfaces?
A4: The system supports children's nasal cannula, standard nasal cannula, tracheostomy, and face masks to suit various clinical needs.
Q5: Can I review patient treatment history on the device?
A5: Yes, the system includes a trend review function allowing you to monitor temperature, humidity, flow, and O2 concentration for the previous 1, 3, or 7 days.
Q6: What ventilation modes are available for the veterinary model YSAV201PV?
A6: It supports multiple modes including IPPV, SIPPV, SIMV, PEEP, MANUAL, and SIGH to accommodate different animal care requirements.
