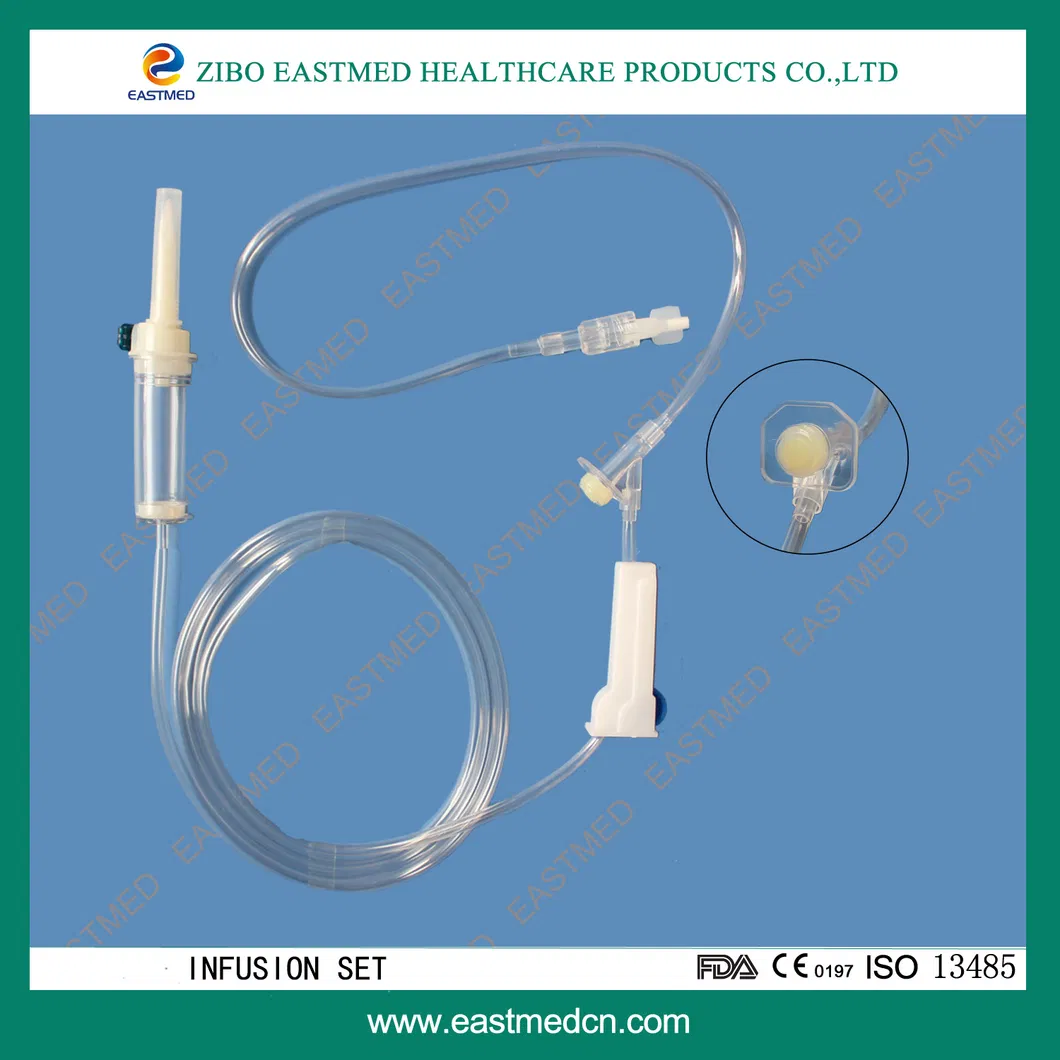

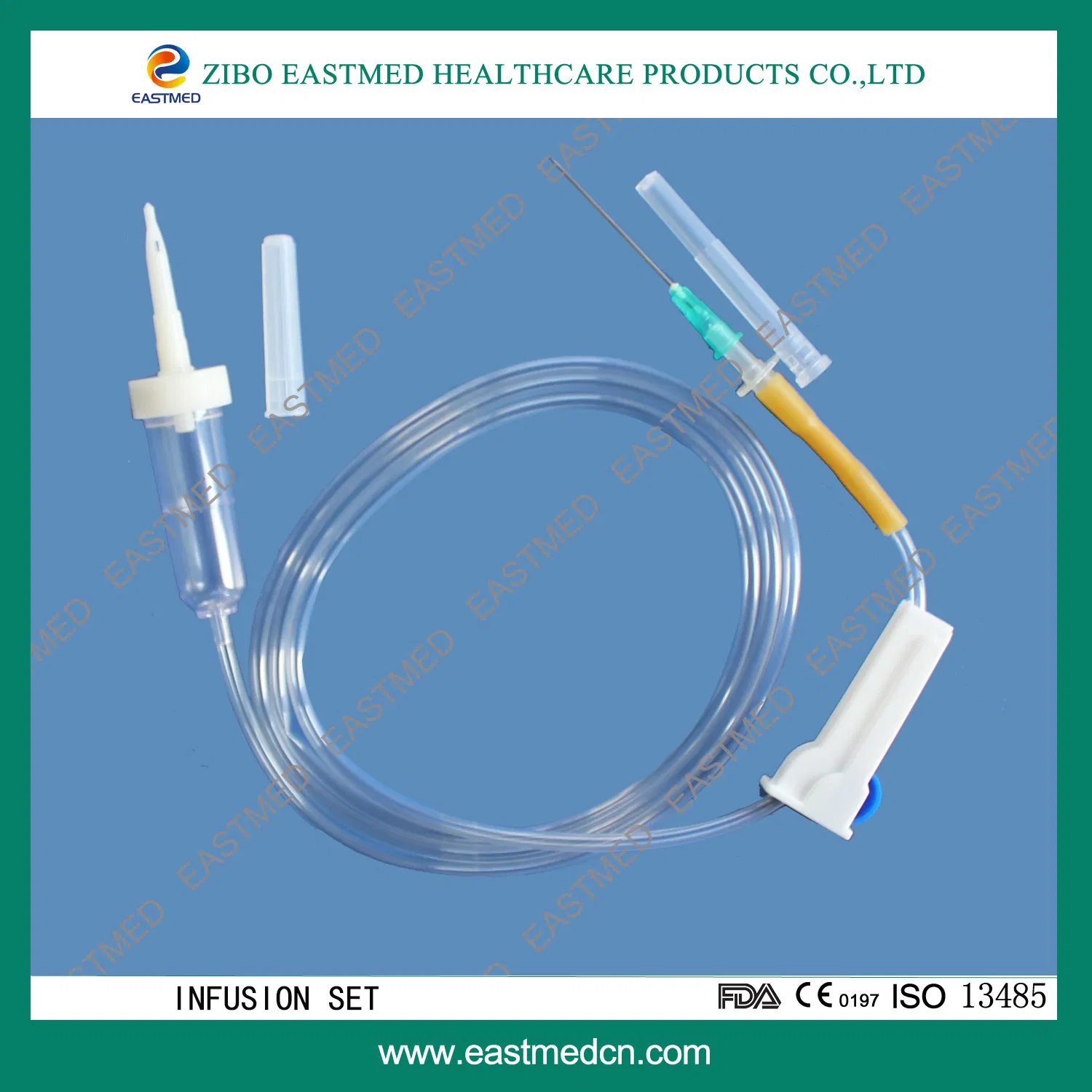

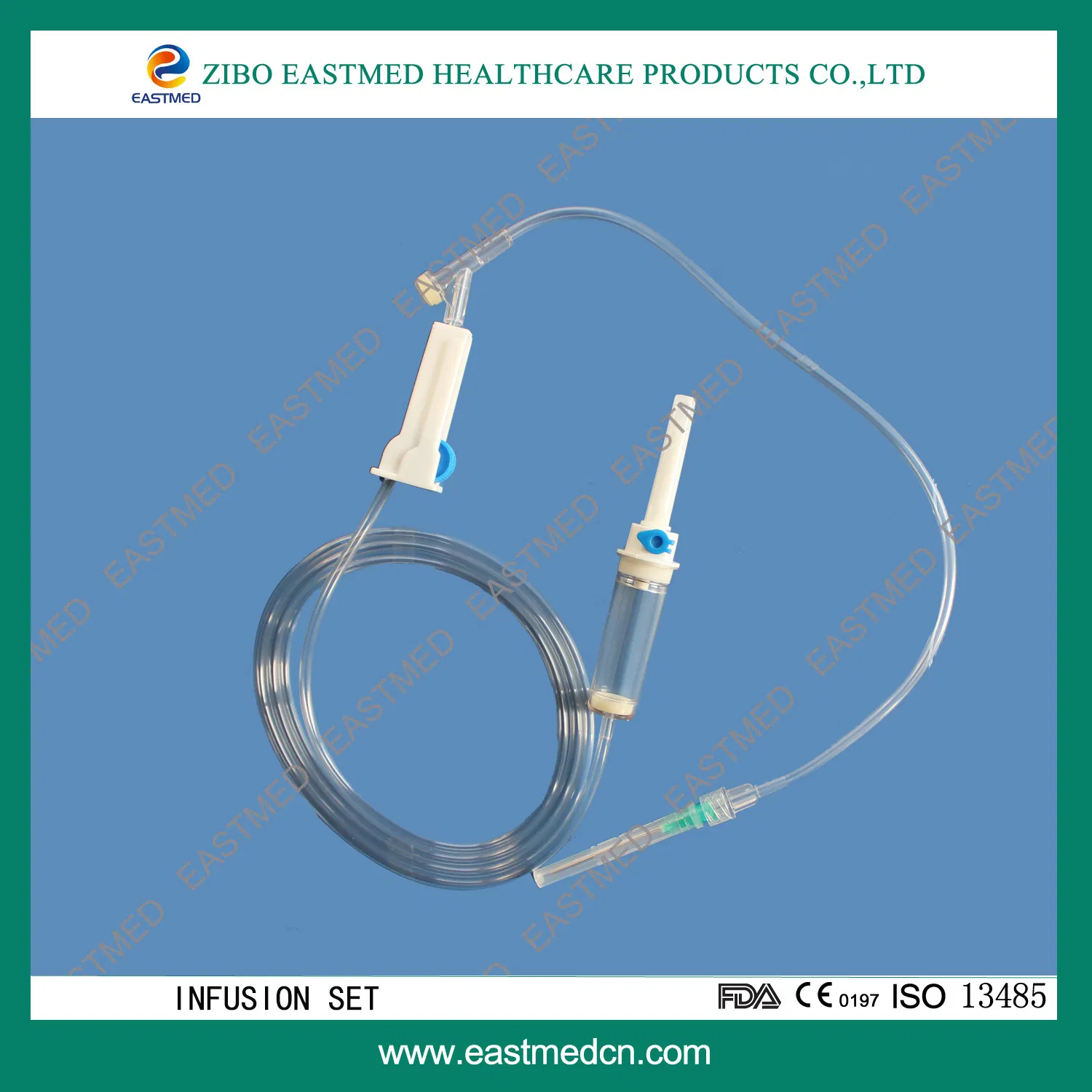

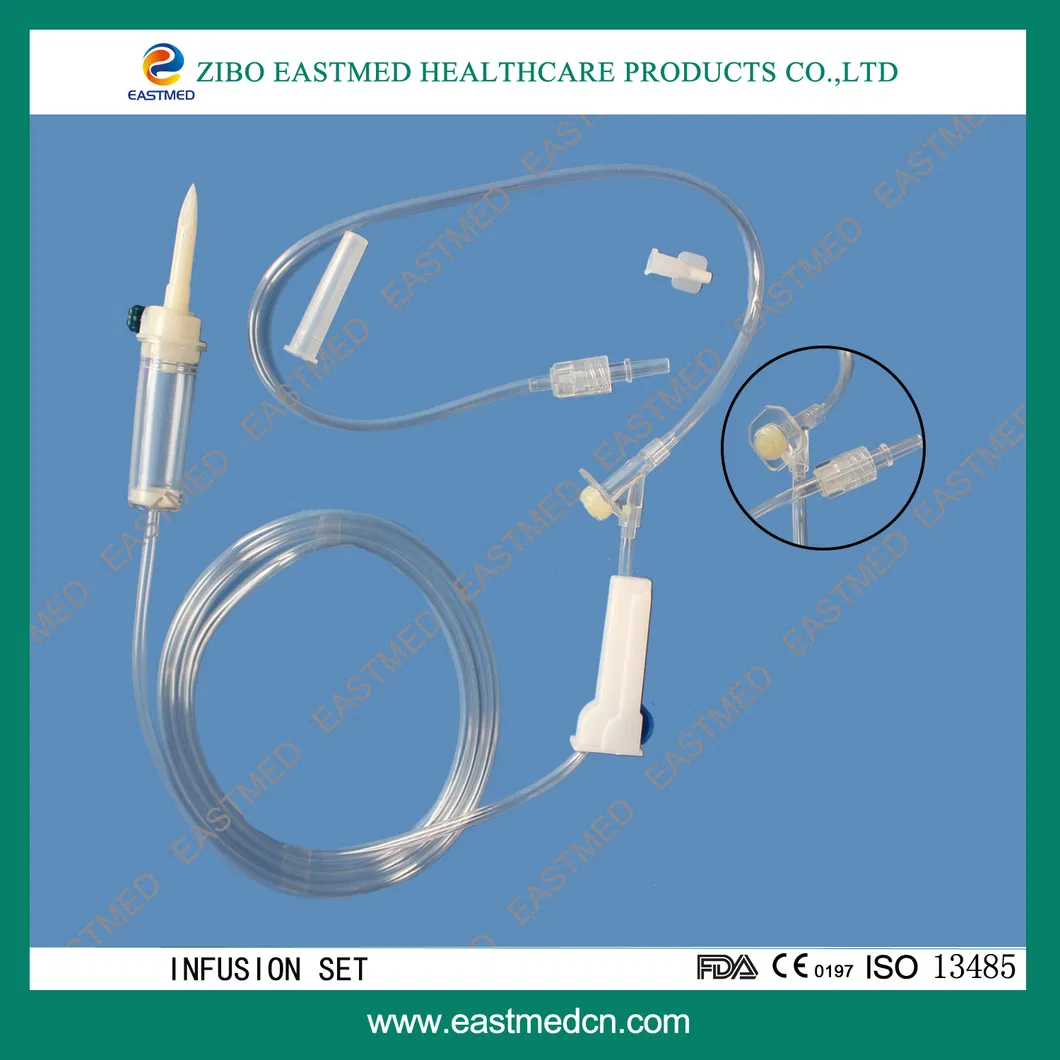

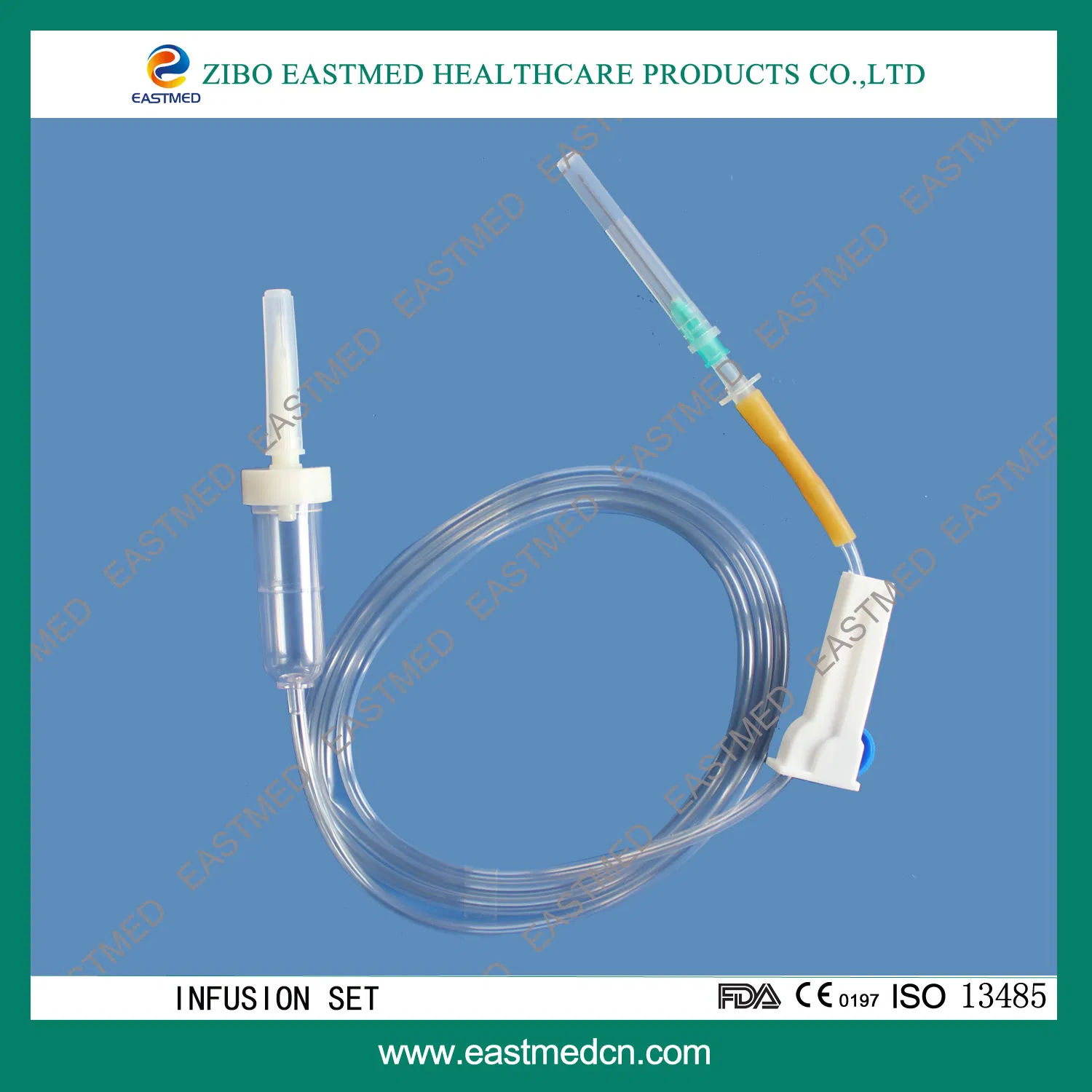

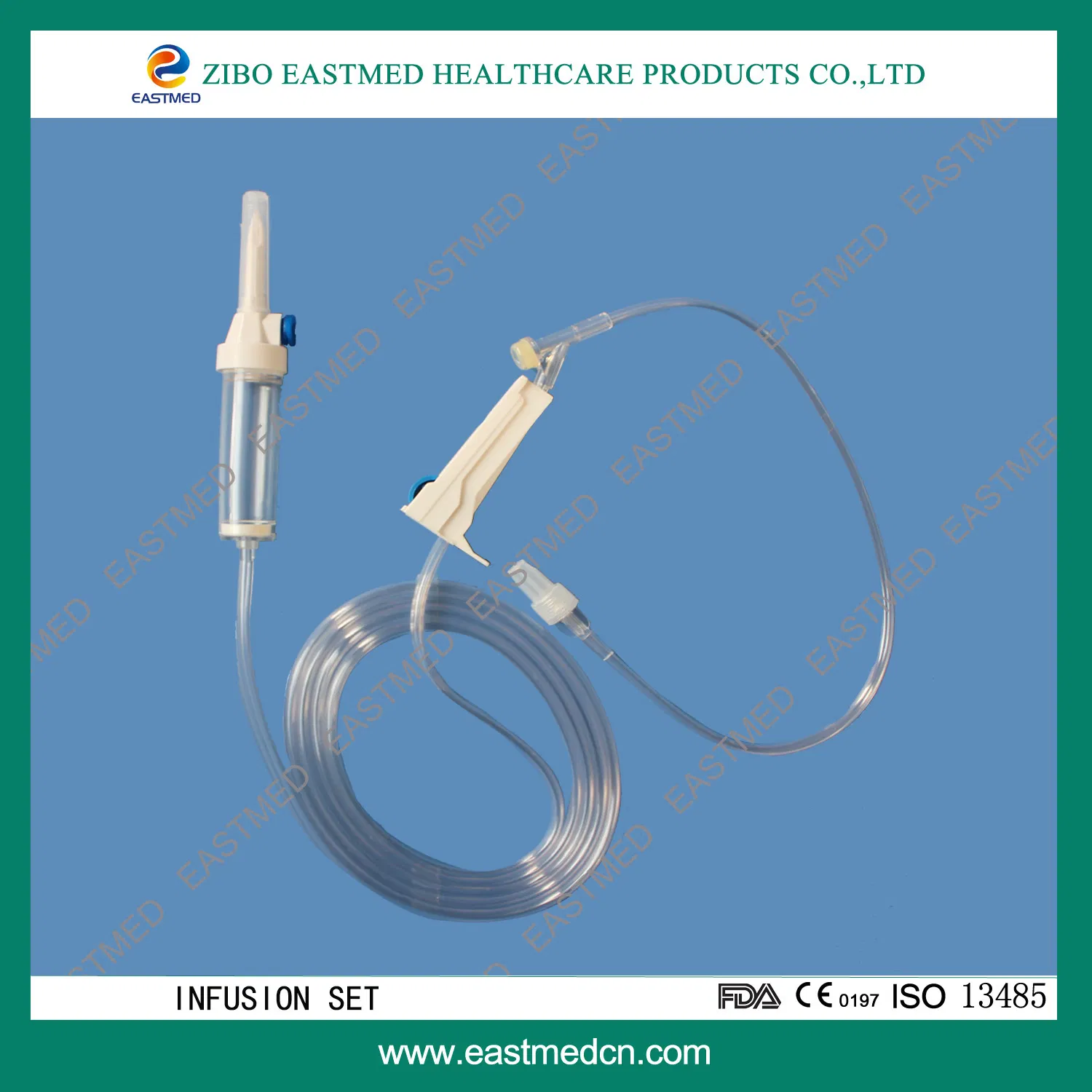

Product Description & Components
- Piercing device: Made of medical grade white ABS, compliant with ISO8536-4 standard.
- Protective cap: High-quality PP or PE material.
- Drip chamber: Soft PVC material, length 4.5cm--7cm.
- Fluid filter: ABS or PE support with 15-micron nylon net.
- Air inlet: Color-coded PP cap (Red, White, or Blue).
- Water-repellent filter: Hydrophobic filtering paper with acrylic resin and nylon.
- Flow regulator: Ergonomic PP or ABS design in various sizes.
- Injection site: Available in Latex, rubber, or synthetic rubber cone, including Y-site options.
- Soft tubing: Medical grade PVC, standard diameter 3X4mm, 150cm to 180cm length.
- Terminal connector: PE/PVC Luer lock or luer slip.
- Assembly: Precision bonding using cyclohexanone solvent.
Technical Specifications
Suitable for both hard containers and soft bags (non-vented type). Guaranteed sterile, non-toxic, and pyrogen-free via EOG sterilization process.
📦
Packing Details
1PC per individual package; 25PCS per Middle Paper box; 20 bags per Carton. Carton dimensions are adjusted according to the specific component volume and tube length.
Frequently Asked Questions
What is the sterilization method for these infusion sets?
All sets are sterilized using Ethylene Oxide Gas (EOG), ensuring they are sterile, non-toxic, and pyrogen-free.
Can the tube length be customized?
Yes, while the standard lengths are 150cm and 180cm, we can adjust the tubing length and elasticity according to your specific requirements.
Is the drip chamber compatible with international standards?
Yes, the drip chamber is made of soft PVC and sized according to ISO8536-4 standards.
What types of containers can this set be used with?
They are designed to be suited for both hard containers and soft bags (specifically the non-vented types).
What is the shelf life and quality guarantee?
The product comes with a 5-year quality guarantee period from the date of manufacture.
What is the filtration efficiency?
The fluid filter features a nylon net with a mesh size of 15 microns to ensure safety during administration.
