Basic Information
| Model NO. | KYRO-1000 | Application | Water Treatment/Water Filter |
|---|
| Capacity | 1000L/H | RO Membrane | USA Filmtec Dow |
|---|
| Type | Reverse Osmosis | Power Supply | AC380 50Hz 3phase or 220V 50Hz Single Phase |
|---|
| Sterilizer | UV, Ozone | Feed Water TDS | <=10000mg/L |
|---|
| Water Application | Drinking Water, Bottled Water | Salt Rejection Rate | >=97% |
|---|
| Recovery Rate | >=60% | Pumps | Cnp or Famous Brand |
|---|
| Warranty | 1 Year | Transport Package | Wooden Case |
|---|
| Specification | CE, SGS, ISO Certification | HS Code | 8421299090 |
|---|
Product Description

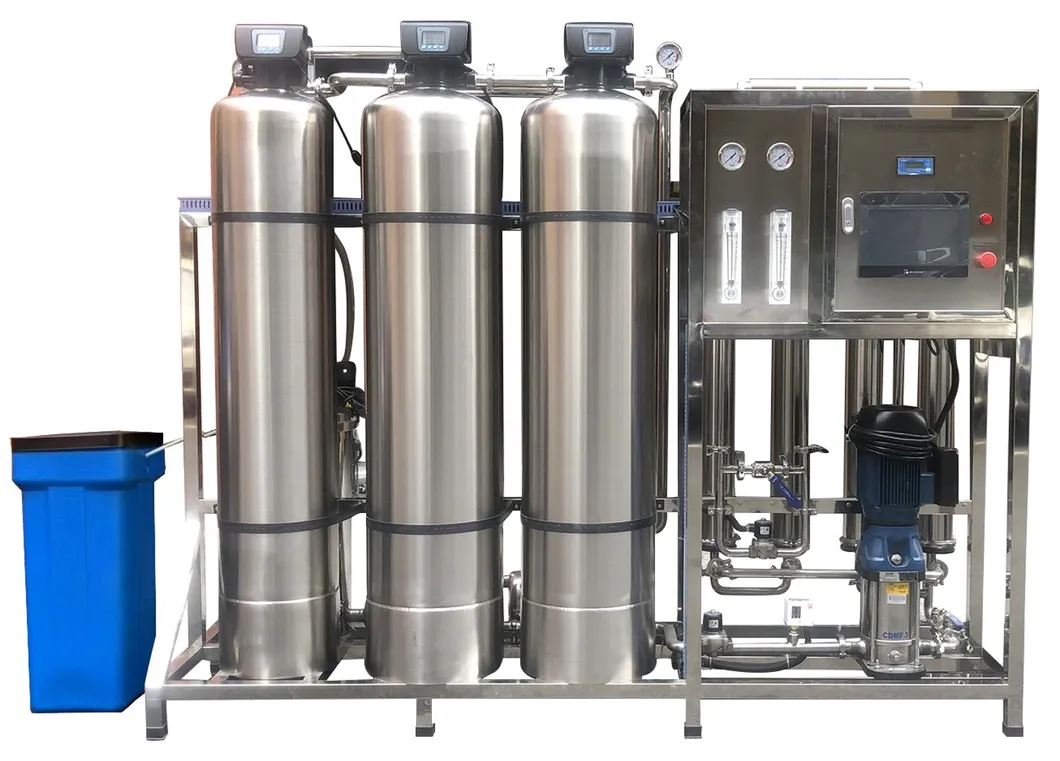

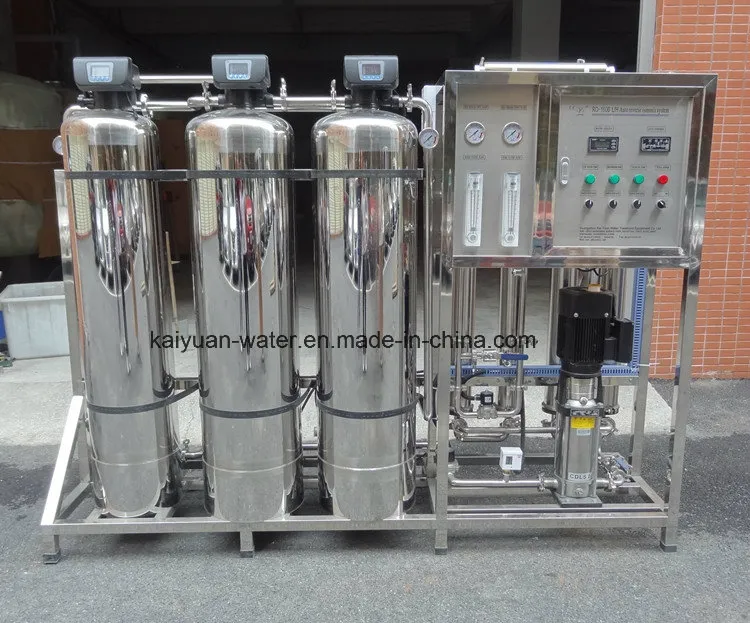

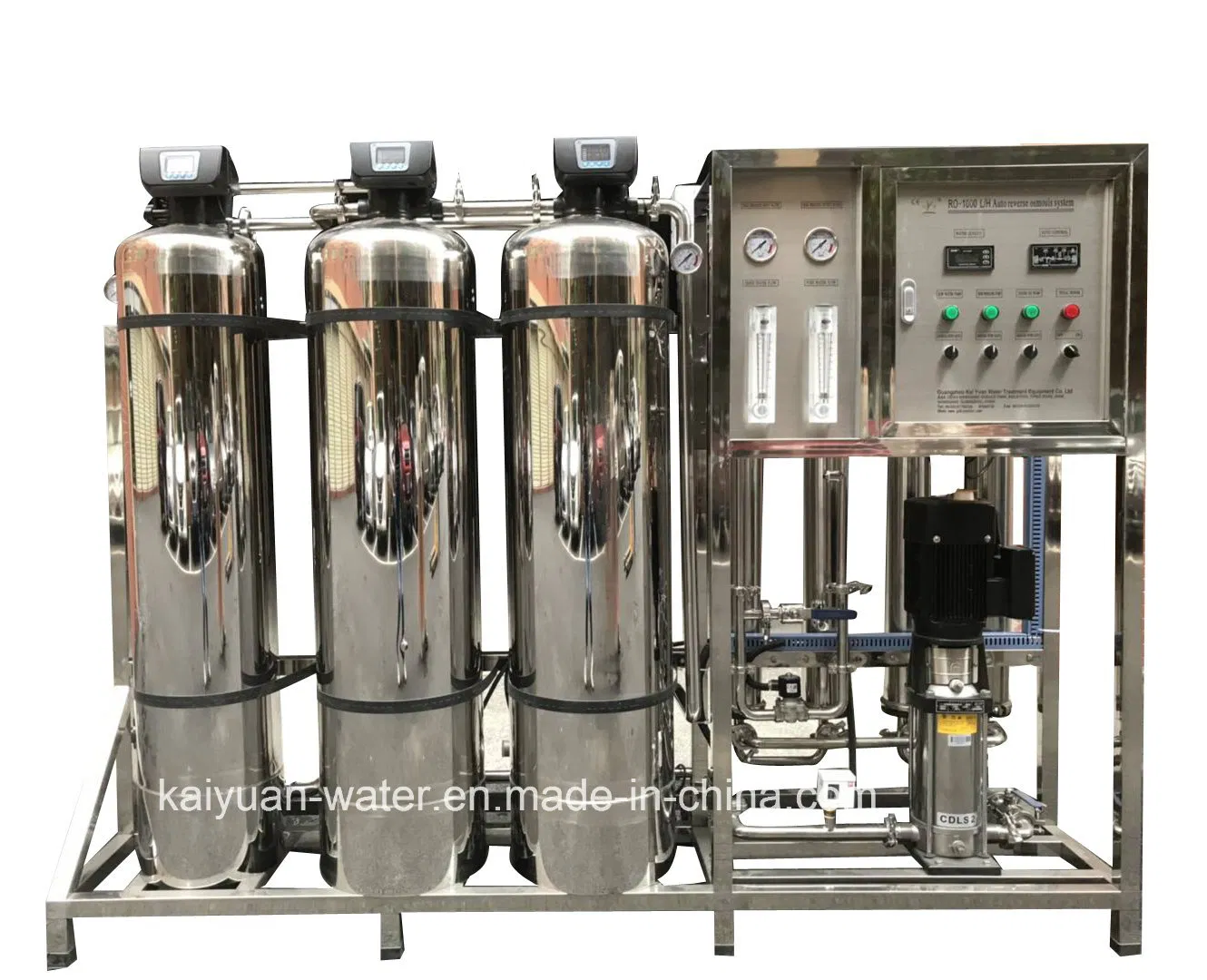

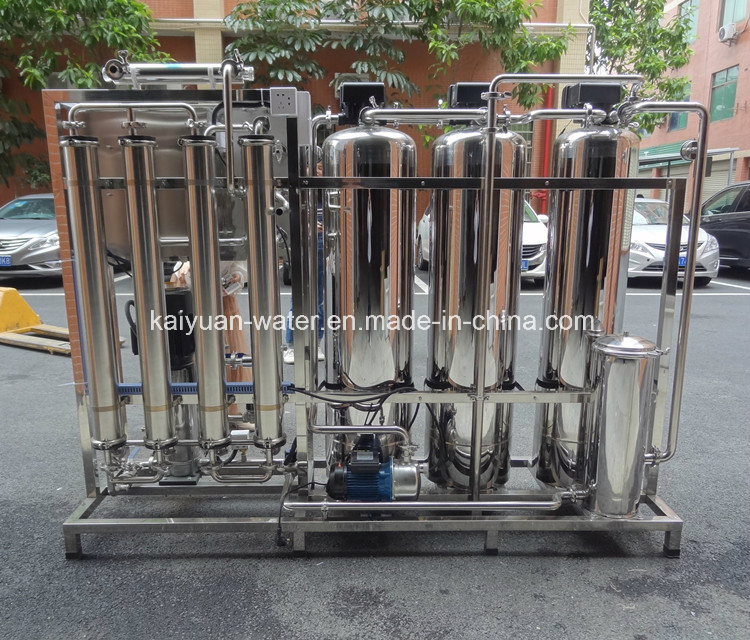

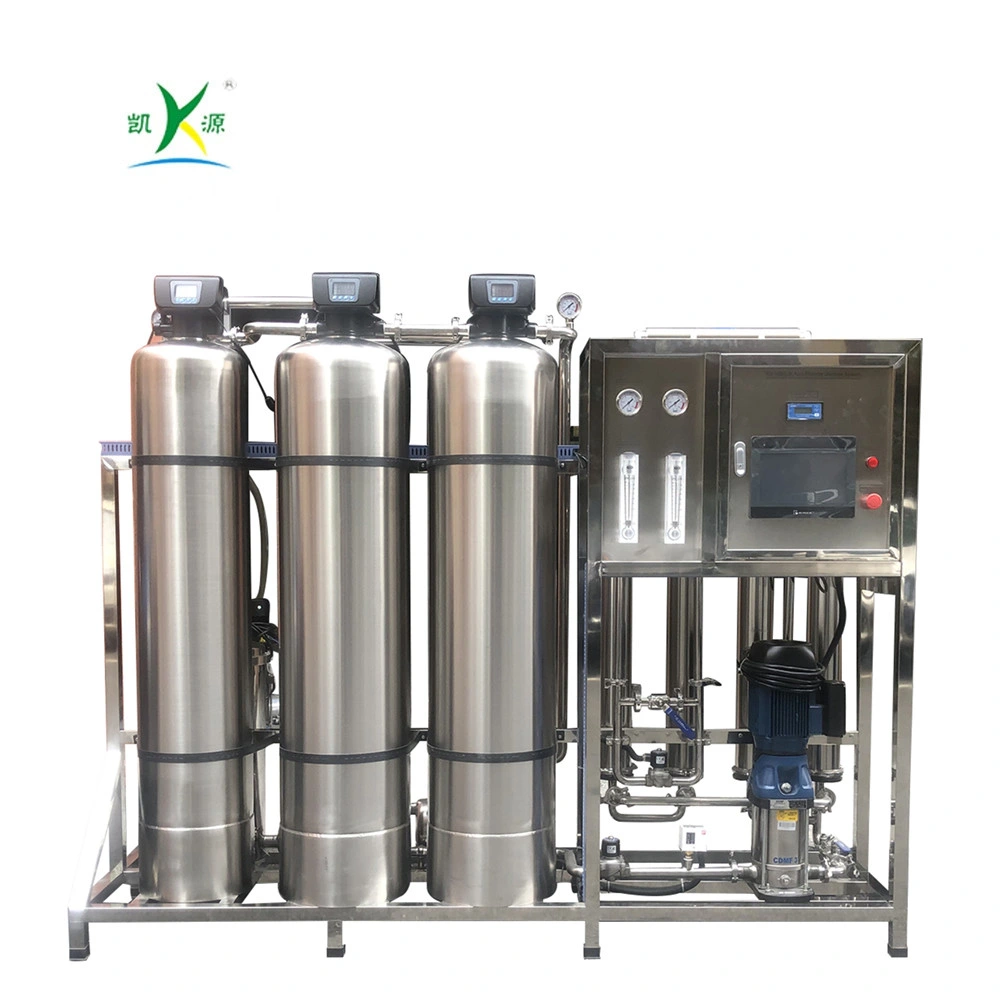

Stainless Steel 1000LPH Automatic Water Desalination Reverse Osmosis Plant
Note: 1 gallon = 3.785 liters | 1m³ = 1000 liters = 1 ton
The reverse osmosis (RO) water treatment plant is designed to purify water using the pressure difference across a semi-permeable membrane. RO membranes effectively remove organics, harmful substances, bacteria, and particulates. This system is widely used for tap water, well water, borehole water, brackish water, and seawater treatment.
Water TDS Usage Reference
| Raw Water / Application |
Bottled/Bag Water |
City Tap Water |
Brackish Water |
Seawater |
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| Human Consumption | Yes | Yes | No | No |
| Industrial/Animal Use | Yes | Yes | No | No |

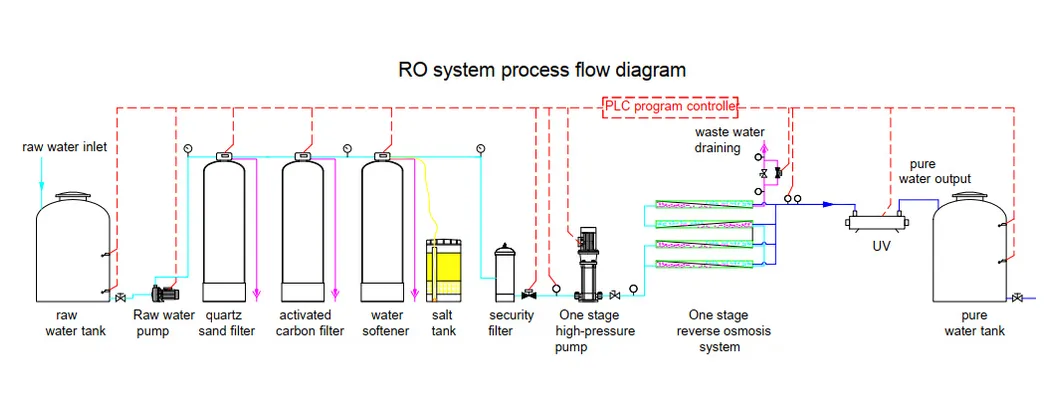

System Treatment Process
🔹 Raw Water Pump → 🔹 Mechanical Filter (Quartz Sand) → 🔹 Activated Carbon Filter → 🔹 Sodium-ion Exchanger (Softener) → 🔹 Security Filter → 🔹 High Pressure Pump → 🔹 Reverse Osmosis → 🔹 Ozone/UV Sterilizer
Main Parameters (1000LPH System)
| Model | KYRO-1000 |
|---|
| Production Capacity | 1000 L/Hr |
|---|
| Power | 2.5KW |
|---|
| RO Membrane | LCLE-4040 4pcs USA DOW |
|---|
| Membrane Housing | FRP 4040 4pcs |
|---|
| Raw Water Pump | Nanfang (CNP) |
|---|
| Pre-treatment Filters | SUS-304 Stainless Steel (Sand & Carbon) |
|---|
| Water Softener | SUS-304 Stainless Steel (Resin 75L) |
|---|
| Size (mm) | 2310 x 630 x 1840 |
|---|

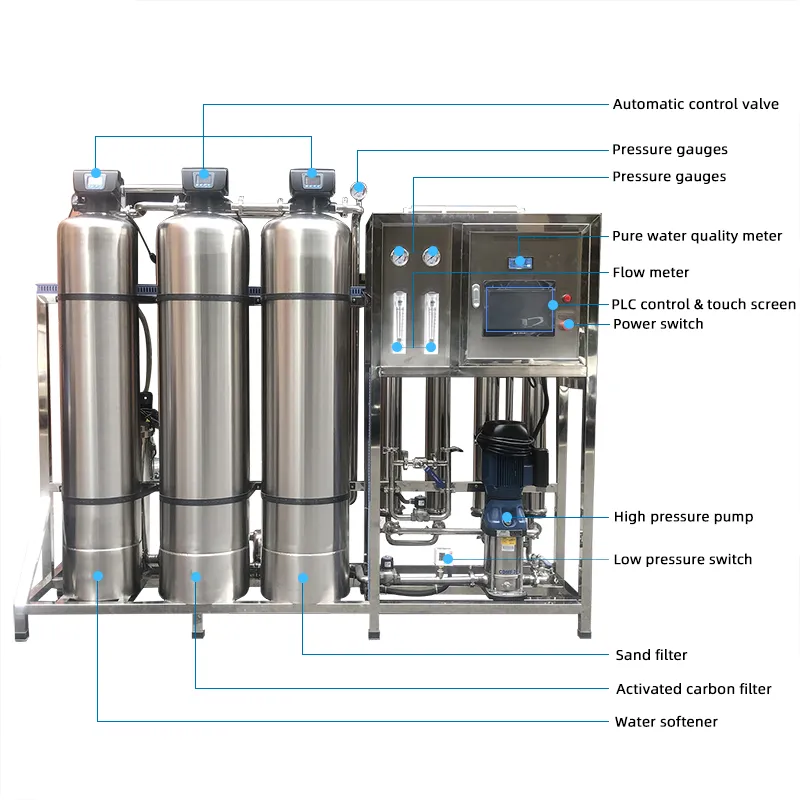

Component Functions
| Part Name | Application | Remark |
|---|
| Raw Water Pump | Provides pressure for pretreatment filters | CNP Pump |
| Mechanical Filter | Filters large particles, suspended substances, and colloids | SUS or FRP vessel |
| Carbon Filter | Removes color, odor, residual chlorine, and organics | High-grade carbon |
| Water Softener | Reduces hardness by removing Ca2+ and Mg2+ | Cation resin exchange |
| Security Filter | Prevents particles (>5µm) from entering RO membrane | PP sediment filter |
| RO System | Removes 99% dissolved salts, heavy metals, and bacteria | USA Filmtec DOW membranes |
Key Features & Advantages
✓Continuous water production with high automation.
✓No chemicals needed for regeneration; easy maintenance.
✓Core components utilize imported USA DOW membranes.
✓Automatic level control (switch on/off based on water levels).
✓Automatic membrane flushing to prevent pollution.
✓Online water quality monitoring via conductivity meter.
✓Low operating costs and long equipment lifespan.
Available Production Capacities
| Model | Flow Rate (L/h) | Power (KW) | Efficiency | Membrane |
|---|
| KYRO-250 | 250 | 1.5 | ≥ 15% | 4040 |
| KYRO-500 | 500 | 1.5 | ≥ 50% | 4040 |
| KYRO-1000 | 1000 | 2.5 | ≥ 50% | 4040 |
| KYRO-2000 | 2000 | 3.5 | ≥ 50% | 4040 |
| KYRO-5000 | 5000 | 7.5 | ≥ 50% | 8040 |
| KYRO-10T | 10000 | 19 | ≥ 60% | 8040 |
Frequently Asked Questions
Q: What is Reverse Osmosis (RO)?
A: Reverse osmosis (RO) is a water treatment process where water is forced through a semi-permeable membrane with microscopic pores. Clean water passes through while impurities too large for the membrane are flushed away.
Q: How do I know which capacity to buy?
A: RO units are rated by the amount of treated water produced per hour. We offer capacities from 250L/h to 100,000L/h. Choose based on your daily volume requirements (1 ton = 1000 liters).
Q: What materials are available for the system?

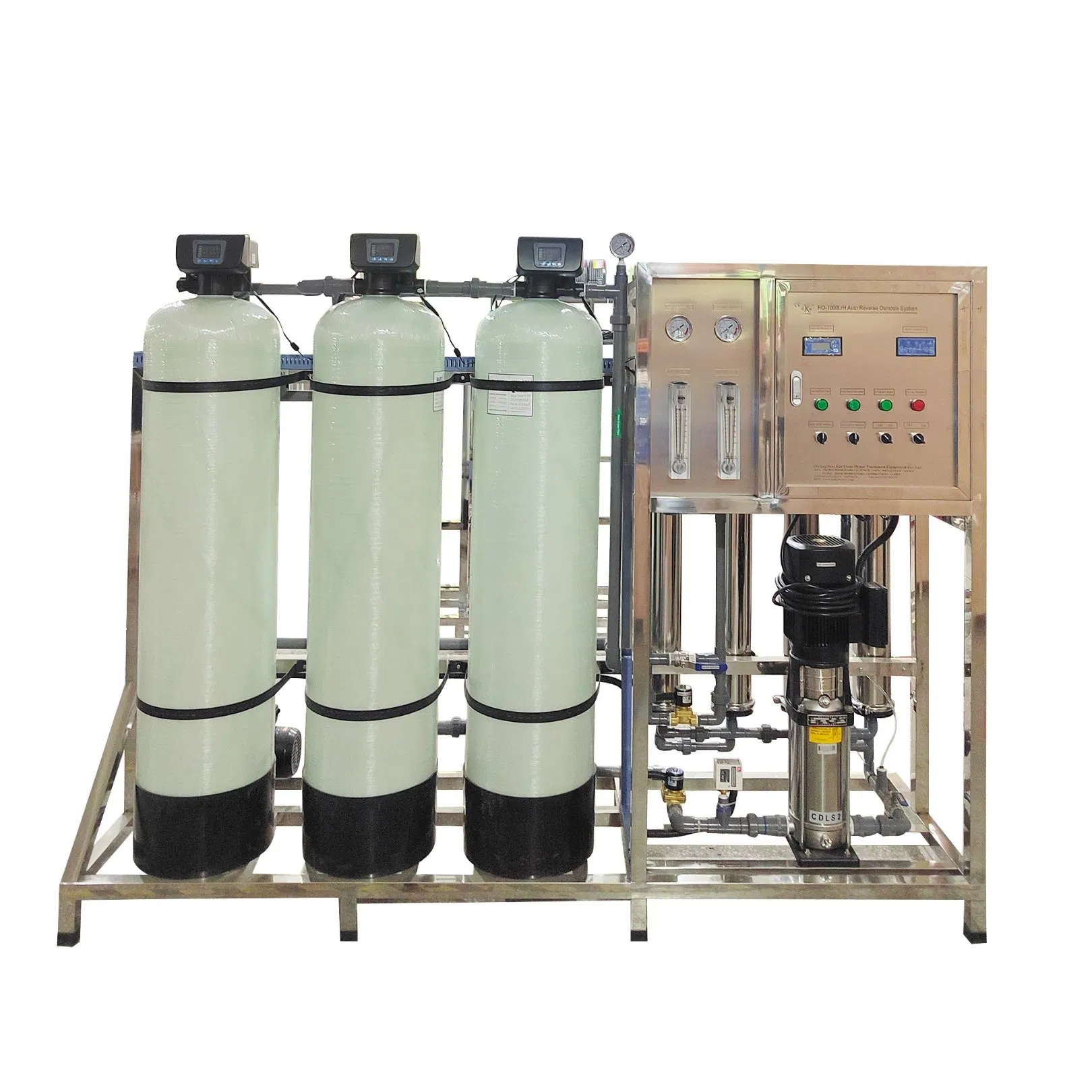

A: You can choose between FRP (fiberglass) filters with U-PVC piping, stainless steel filters with U-PVC piping, or a full stainless steel configuration.
Q: Is the machine easy to install?
A: Yes, the machine is shipped mostly assembled. You simply need to load the filter media, connect power and water sources, and follow the provided English manual and video instructions for initial flushing.
Q: What is the packaging for shipment?
A: The machine is packed in a standard professional wooden case, ensuring safety during international transit. You only need to open the case to access the machine.
Q: What if the machine has problems?
A: Most systems include a 1-year warranty. During this period, spare parts are provided for free if issues arise. Lifetime technical support is available to help diagnose and resolve any operational problems.
