GreenPlus Medical
GreenPlus Medical

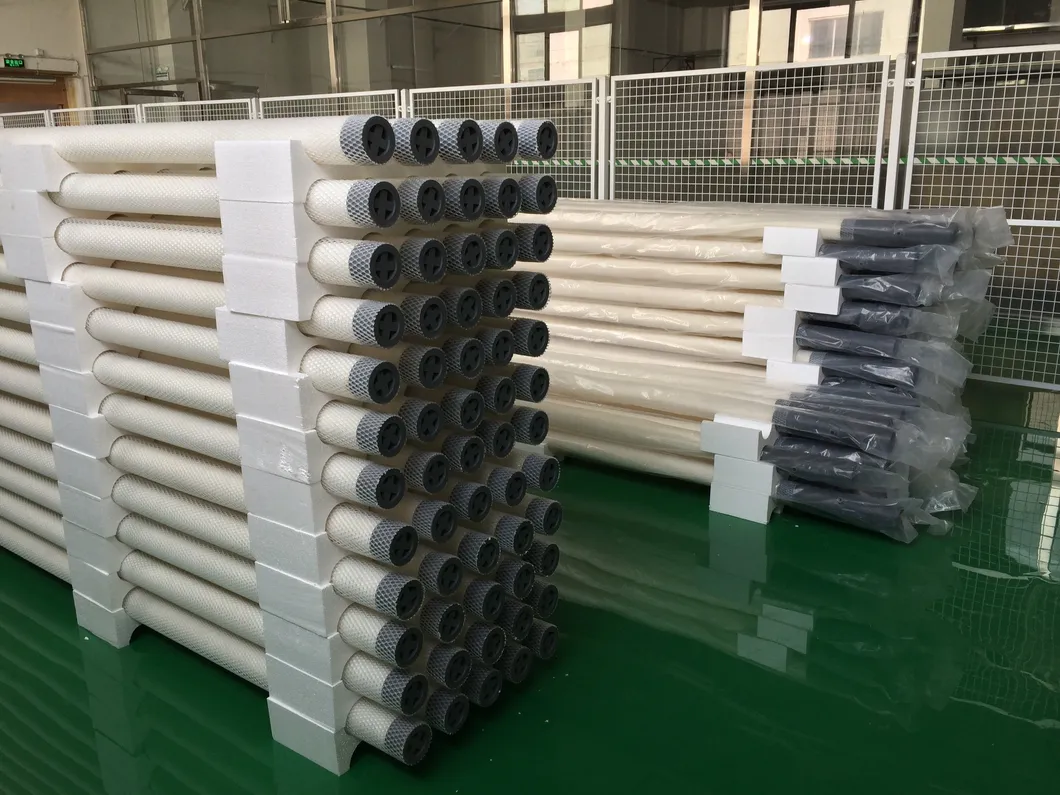

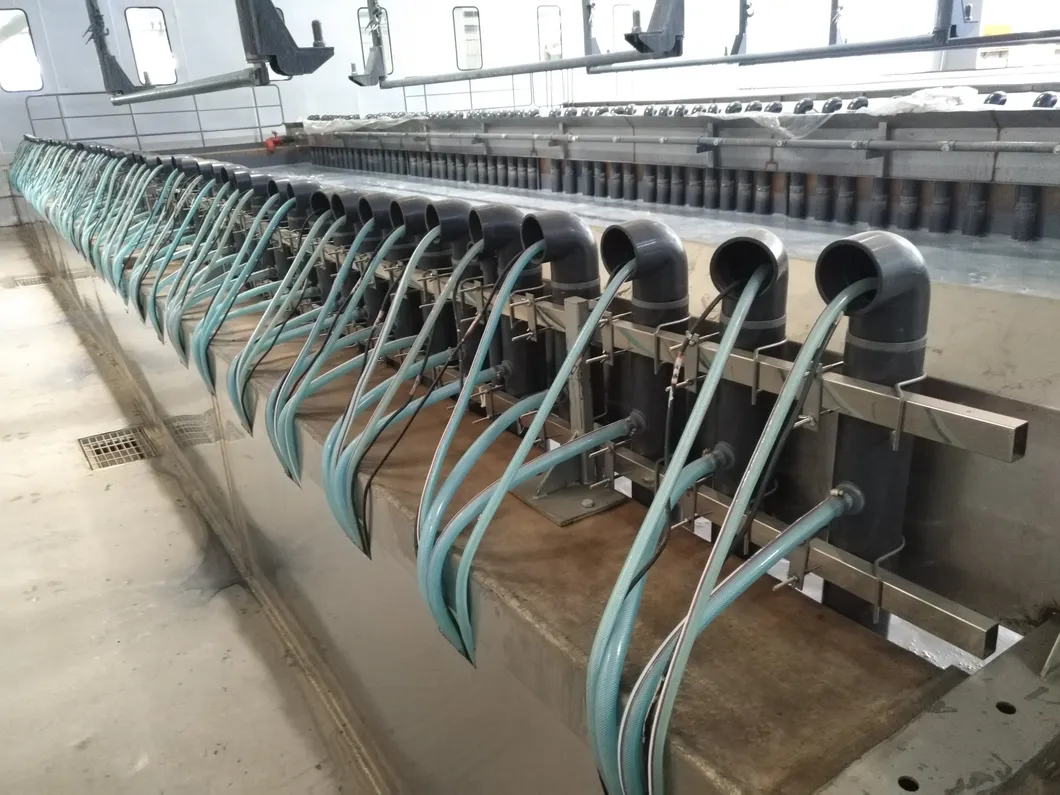

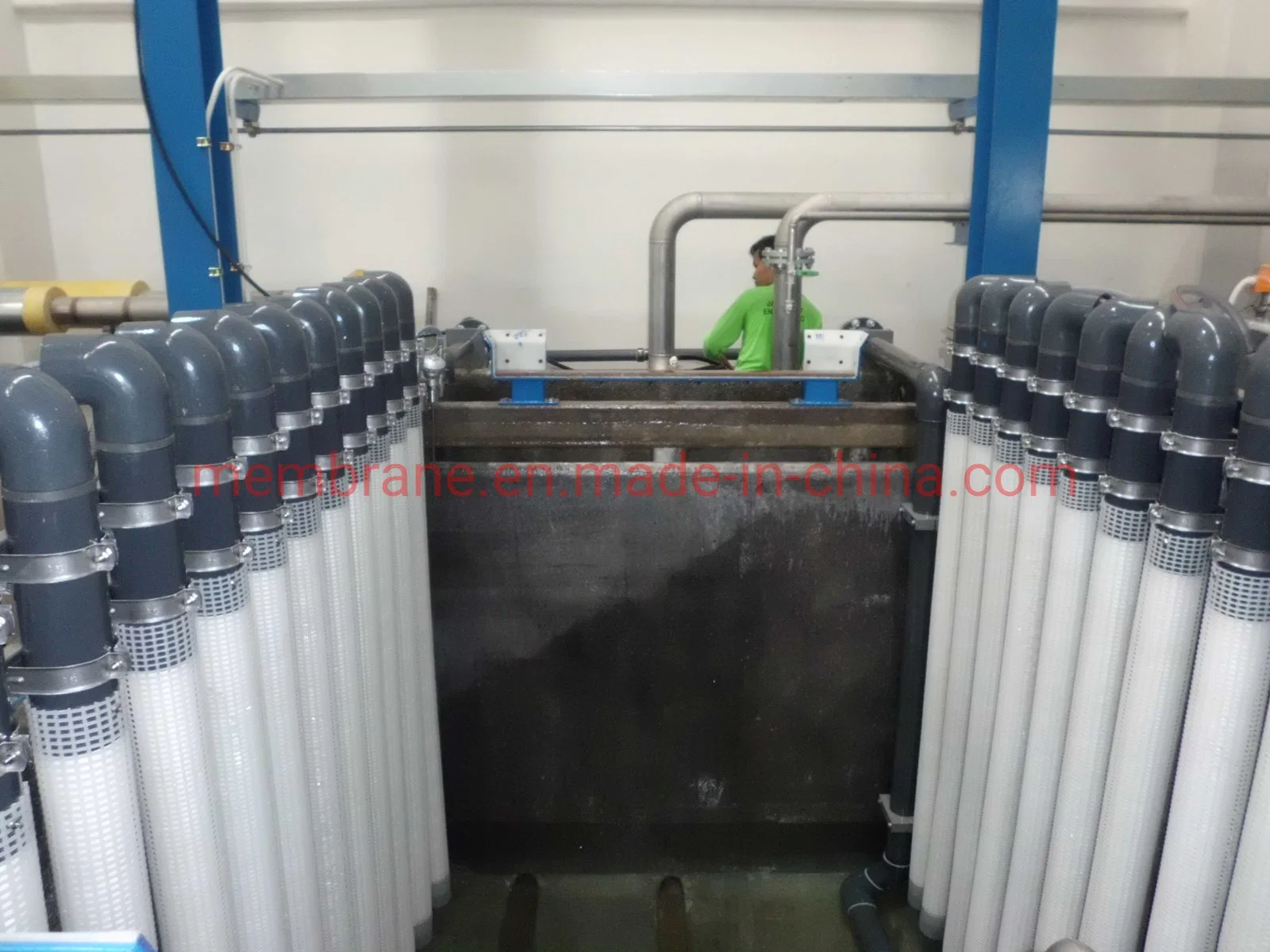

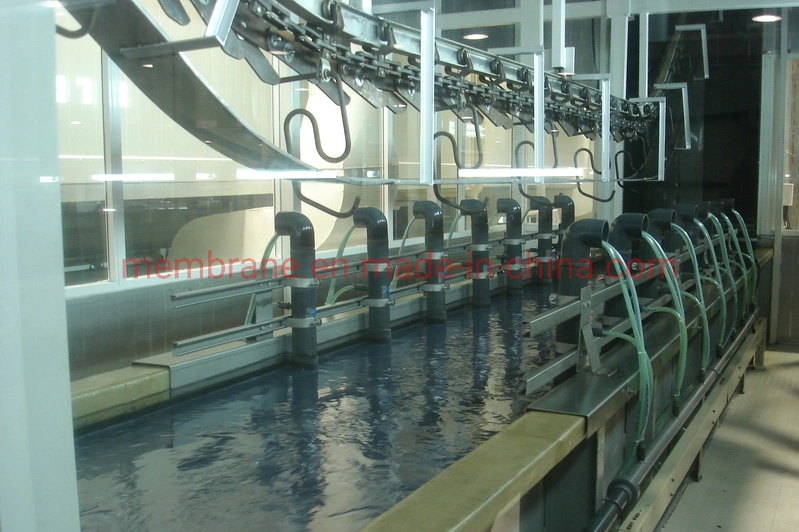

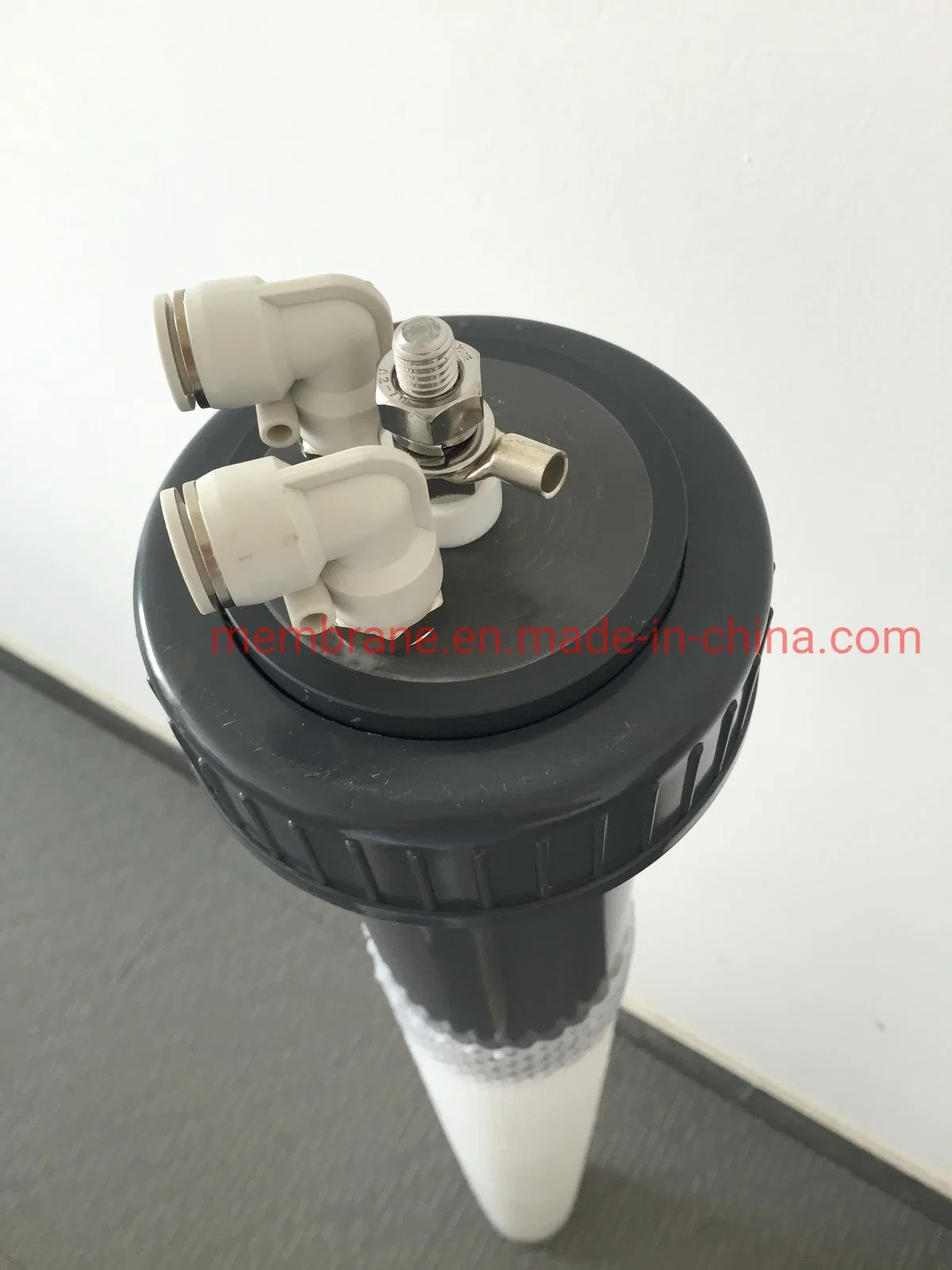

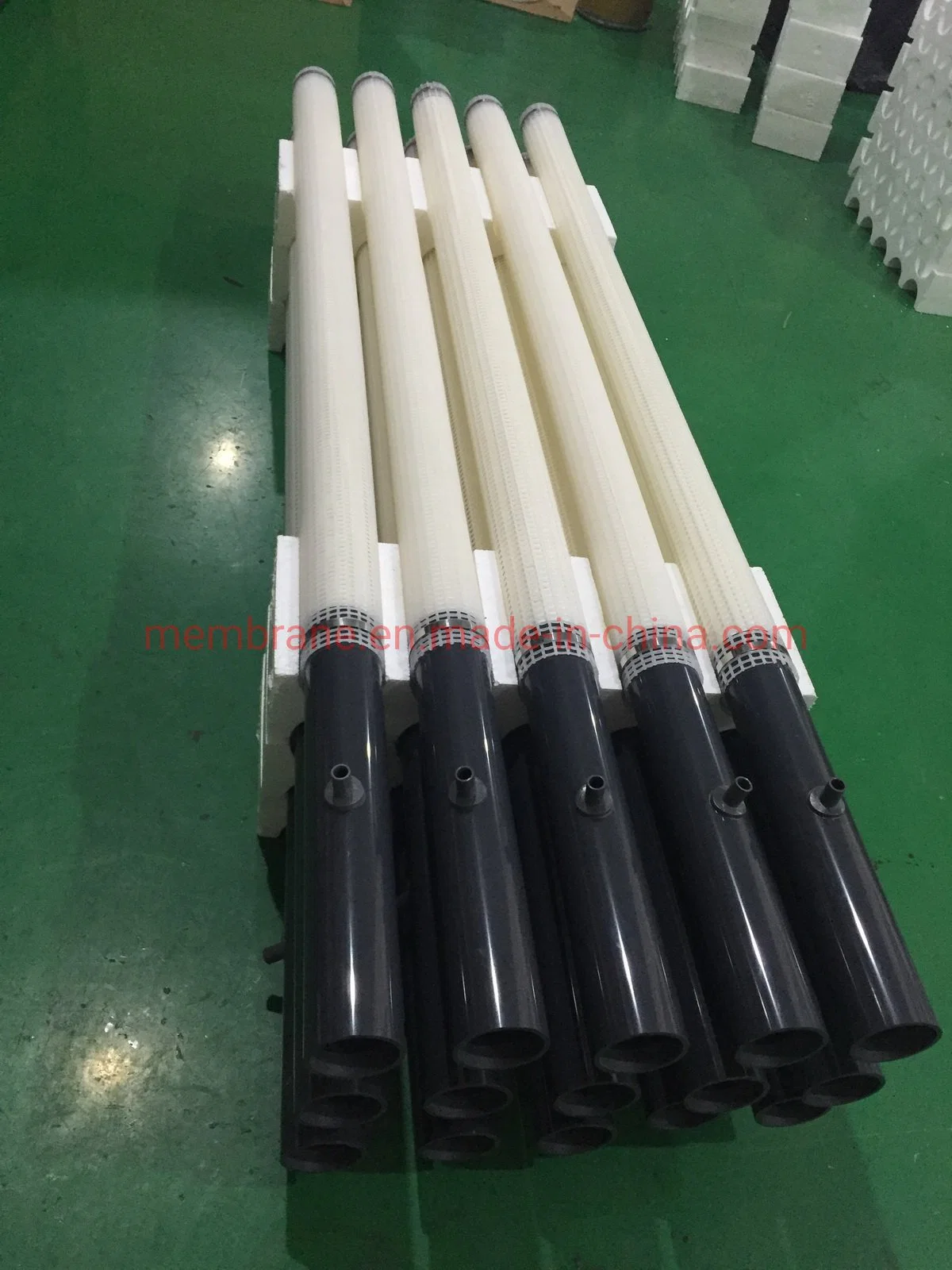

Professional producer of tubular anode cells for electrocoating process in automobile industry, jewelry industry, appliance industry, etc. Our open anode cells (gravity, by overflow) is the most commonly used for variety e-coat/CED line.
We offer both Anode cells and Cathode cells for different paint lines. We use high quality ion exchange membrane sheet from America. Our Anode cells provide the best performance, quality and value for electrocoating applications.
| Configuration | Cell Type | Effective Length (mm) | Membrane O.D. (mm) | Electrode O.D. (mm) |
|---|---|---|---|---|
| Tubular Anode | Union / Flange / Bare | 1000 | 1 = 76 2 = 67 |
A = 48 B = 60 N = No electrode |
| 1500 | ||||
| 2000 | ||||
| ... | ||||
| * As per customer's request, the effective membrane length can reach 6000 mm | ||||

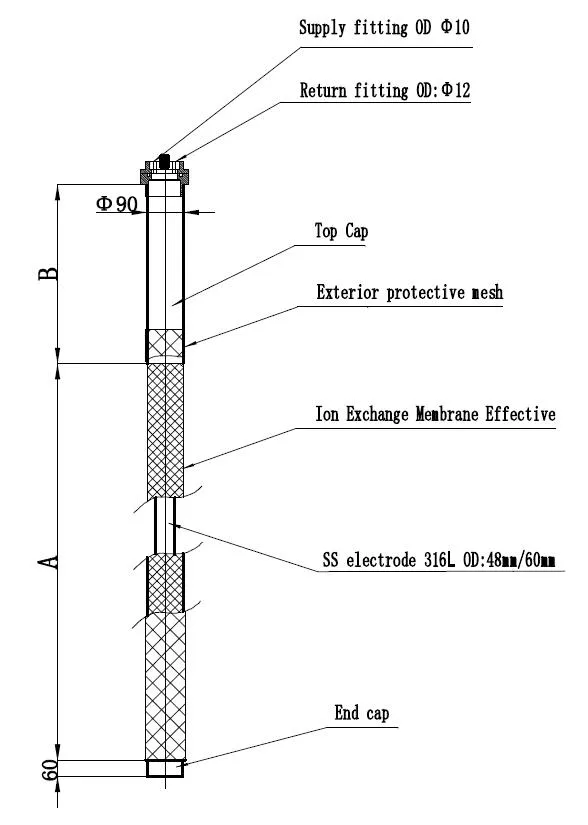

A = Effective membrane length | B = Top cap length. (Customized based on request)
