Ultrasound B Scanner Ultrasound Accessory (3D imaging, ultrasond, black white, scanner)

1 / 3

Ultrasound B Scanner Ultrasound Accessory (3D imaging, ultrasond, black white, scanner)

Customization:	Available
Classification:	Ultrasound Scanner Box
Type:	Ultrasound Scanner Box

Send Inquiry

Product Description

Basic Specifications

Model NO.

MY-A010

Operation System

Windows XP or Windows 7

Scanning Depth

Max. 250mm

Multi-Frequency

5 Segment Frequencies

Image Gray Scale

256 Level

Dimension

230mm×200mm×64mm

Weight

Approx. 1.2kg (with probe)

Battery Life

About 3 Hours (Optional)

Probe Connector

Production Capacity

50/Month

Product Overview

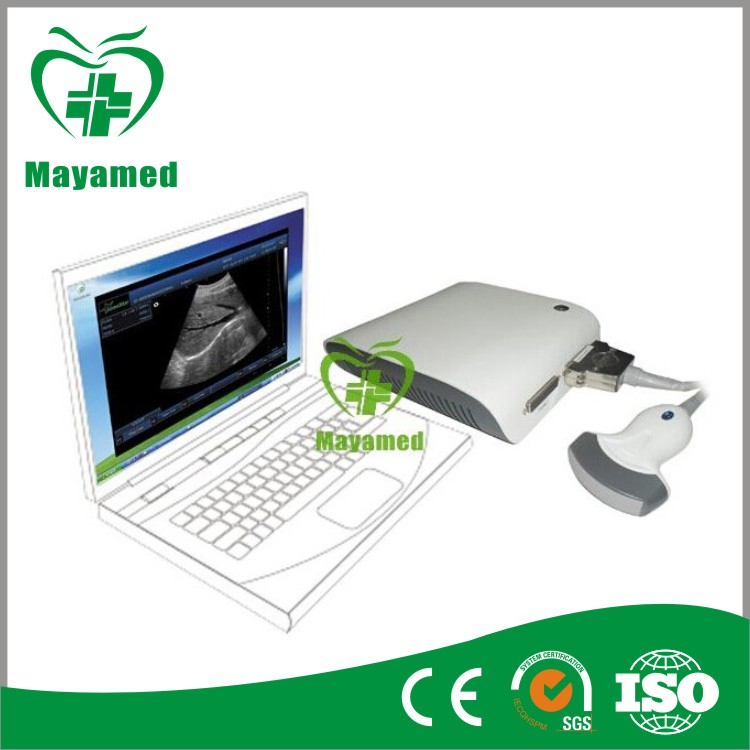

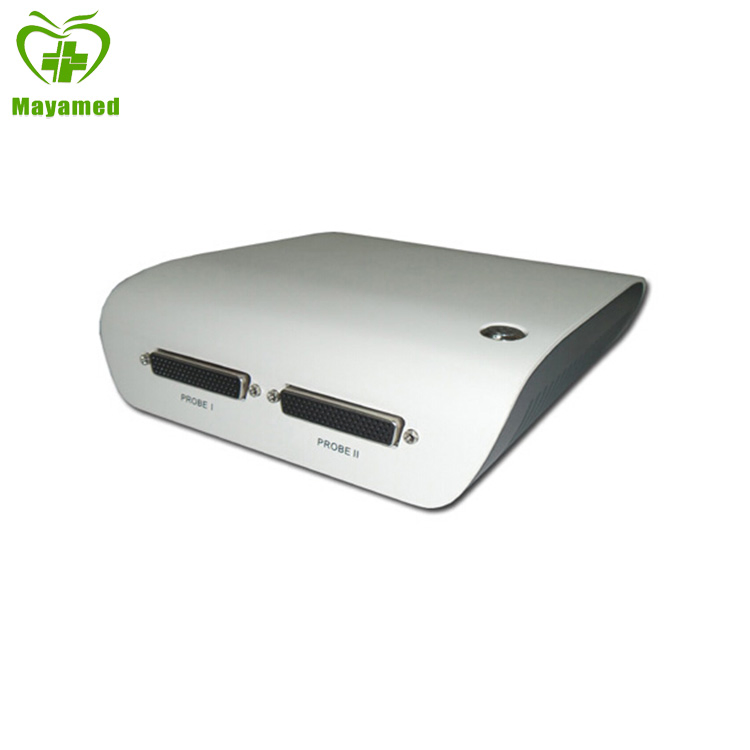

MYA010 Ultrasound B Scanner Box with 3D imaging capabilities. This compact ultrasound box is designed for ease of use: simply connect it to a computer via USB cable and install the software to transform your PC into a computer-based ultrasound B Scanner.

The system utilizes the computer keyboard for operation. Through the software, users can define specific keys for certain functions. For example, the "Space" key can be set as "Freeze," and "+" or "-" keys can be used for value adjustment.

Key Features

PC-based system with powerful storage
Small, lightweight, and highly portable
Full digital technology for clear imaging
Optional 3D image reconstruction
Compatible with USB laser/inkjet printers
Supports external battery for mobile use
Optional silica gel waterproof keyboard

Technical Specifications

Imaging Modes & Processing

B, 2B, B/M, M, 4B, 9B, ZOOM (Real-time zoom on B mode). Includes Pre-processing, after-processing, dynamic range, frame rate, line average, edge enhancement, and Gray scale adjustment.

Measurement (Human)

Distance, area, volume, angle, ratio, heart rate, time. Includes specialized packages for Gynecology (Uterus, ovary), Obstetrics (GA, fetal weight, AFI), Cardiology (LV function), and Urology.

Measurement (Veterinary)

Cattle (BPD, CRL), Horse (GA), Dog (GS), Cat (HD, BD), Sheep (BPD, CRL, TD).

Connectivity

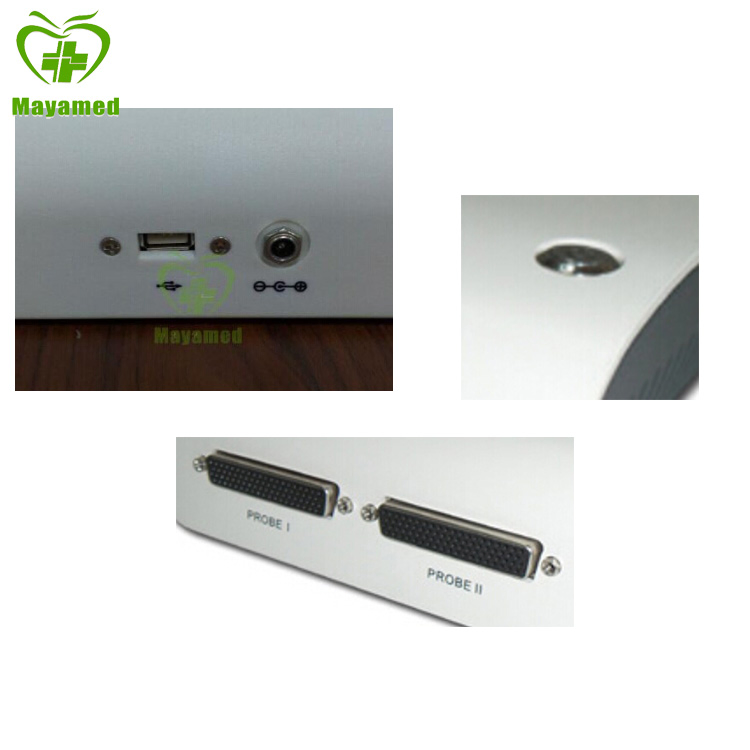

DICOM 3.0 support, USB connect cable, 2 Probe connectors.

Configuration

Standard Configuration: Ultrasound Box, USB connect cable, Convex probe (R60, 3.5MHz), Power adapter, CD with software, Manual.

Optional Accessories: Linear, Trans-vaginal, Micro-convex, Rectal Probes; Specialized ultrasound keyboard; External Battery; Carrying Bag.

Frequently Asked Questions

What operating systems are supported by the ultrasound box?

The system is best compatible with Windows XP, but it also supports Windows 7.

How does the device connect to a computer?

It connects via a standard USB cable. Once the software provided on the CD is installed, the computer functions as the scanner's display and processing unit.

What is the maximum scanning depth of the MY-A010?

The device offers a maximum scanning depth of 250mm.

Can this ultrasound scanner be used for veterinary purposes?

Yes, the software includes specialized measurement and calculation packages for cattle, horses, dogs, cats, and sheep.

Is the device portable for field use?

Absolutely. It weighs only 1.2kg with one probe and can be used with an optional external battery that provides approximately 3 hours of working time.
