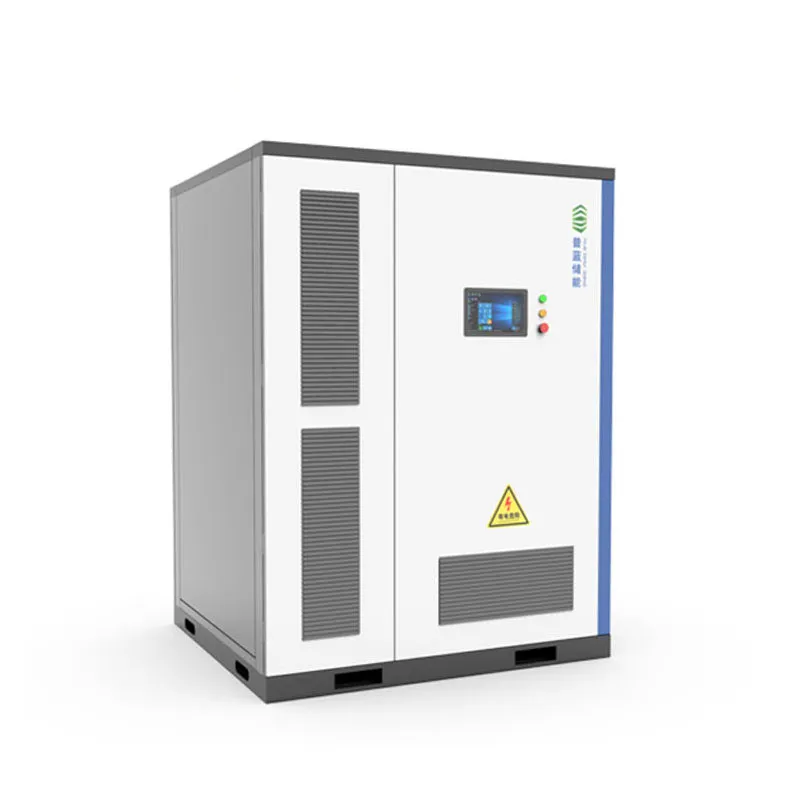

215kwh 768V Industrial and Commercial Energy Storage Battery Cabinet Emergency Power Supply System for Office Buildings

1 / 5

215kwh 768V Industrial and Commercial Energy Storage Battery Cabinet Emergency Power Supply System for Office Buildings

Customization:	Available
Nominal Voltage:	768
Warranty:	Yes

Send Inquiry

Product Description

📊

Basic Information

Model NO.

PLPF0280C0-0768R0A

Nominal Capacity

215 Ah

Cycle Life

20,000

Battery Type

110kVA

Rated Power

110kVA

Rated Grid Voltage

768V

Cooling Methods

Liquid-Cooled

Specification

1500*2050*1455mm

📦

Packaging & Delivery

Package Size

155.00cm * 210.00cm * 140.00cm

Gross Weight

3000.000kg

🖼️

Product Gallery

📝

Technical Parameters

Model	100K/215A-L	100K/215A-H	100K/215L-L	100~125K/232~261L-H
Battery Parameters
Nominal Capacity(Ah)	280	280	280	280/314
Combination Mode	1P24S	1P16S	1P48S	1P52S
Rated Capacity(KWh)	215.04	215.04	215.04	232.96/261.248
Rated Voltage(V)	768	768	768	832
Grid-connected / Off-line Parameters

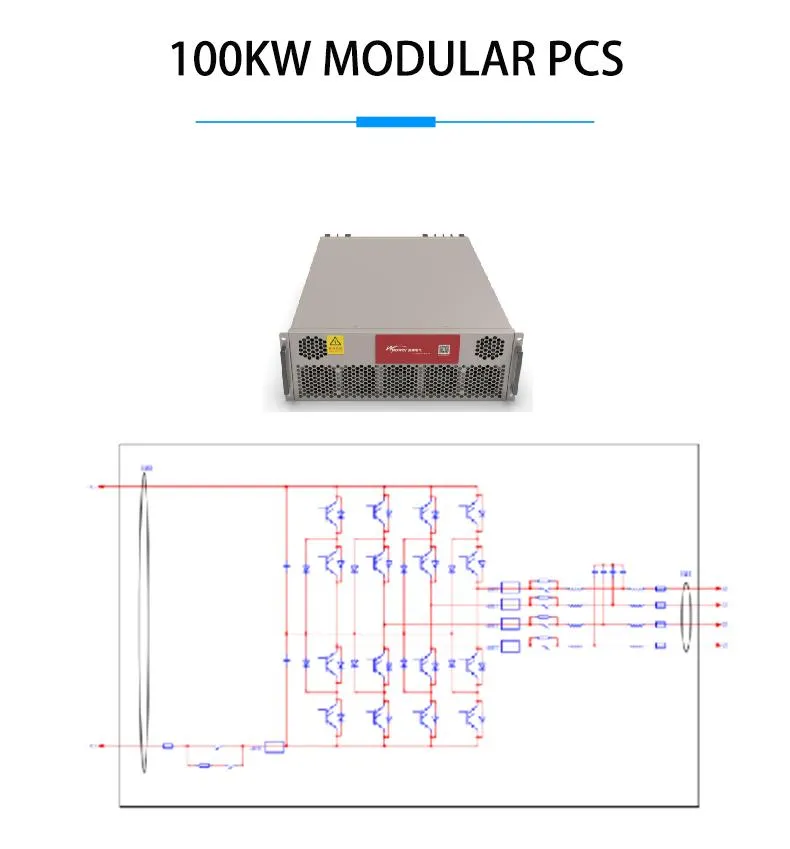

Rated Power(KW)	100	100	100	100/125
Max Power(KVA)	110	110	110	110/137.5
Rated Frequency(Hz)	50	50	50	50
System Parameters
Fire Fighting Methods	Aerosol/Perfluorohexanone		Perfluorohexanone
Cooling Method	Air-cooled		Liquid-cooled
Protection Rating	IP54

🏢

Technical Expertise

Focusing on the research and development, manufacturing, and technical service of graphene-based materials and their applications in clean energy. Aimed to supply a complete solution to green-energy storage and products in power systems for clients.

With high-standard test instruments and a top-class technical team, more than 50 patents have been developed in graphene-based material application. Production lines successfully mass-produce graphene, LTO, Si/C material, and supercapacitor cells ranging from 0.1F to 3000F.

The main products are widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, and industrial energy-saving fields. Aimed to manufacture the most advanced clean-energy products with high quality and supply reliable solutions to energy-related systems.

❓

Frequently Asked Questions

🔹 What is the typical cycle life for this battery system?

The system offers an impressive cycle life of up to 20,000 cycles, ensuring long-term reliability for industrial use.

🔹 What cooling methods are available?

Depending on the model chosen, the system supports both Air-cooled and Liquid-cooled thermal management solutions.

🔹 What is the fire protection rating and safety system?

The unit is rated IP54 for ingress protection and utilizes advanced fire fighting methods including Aerosol and Perfluorohexanone systems.

🔹 What are the primary applications for this energy storage cabinet?

It is designed for new-energy vehicles, rail transportation, smart grids, micro-grids, and industrial energy-saving applications.

🔹 What communication protocols are supported?

The system supports standard industrial communication methods including CAN, RS485, and LAN for seamless integration.
