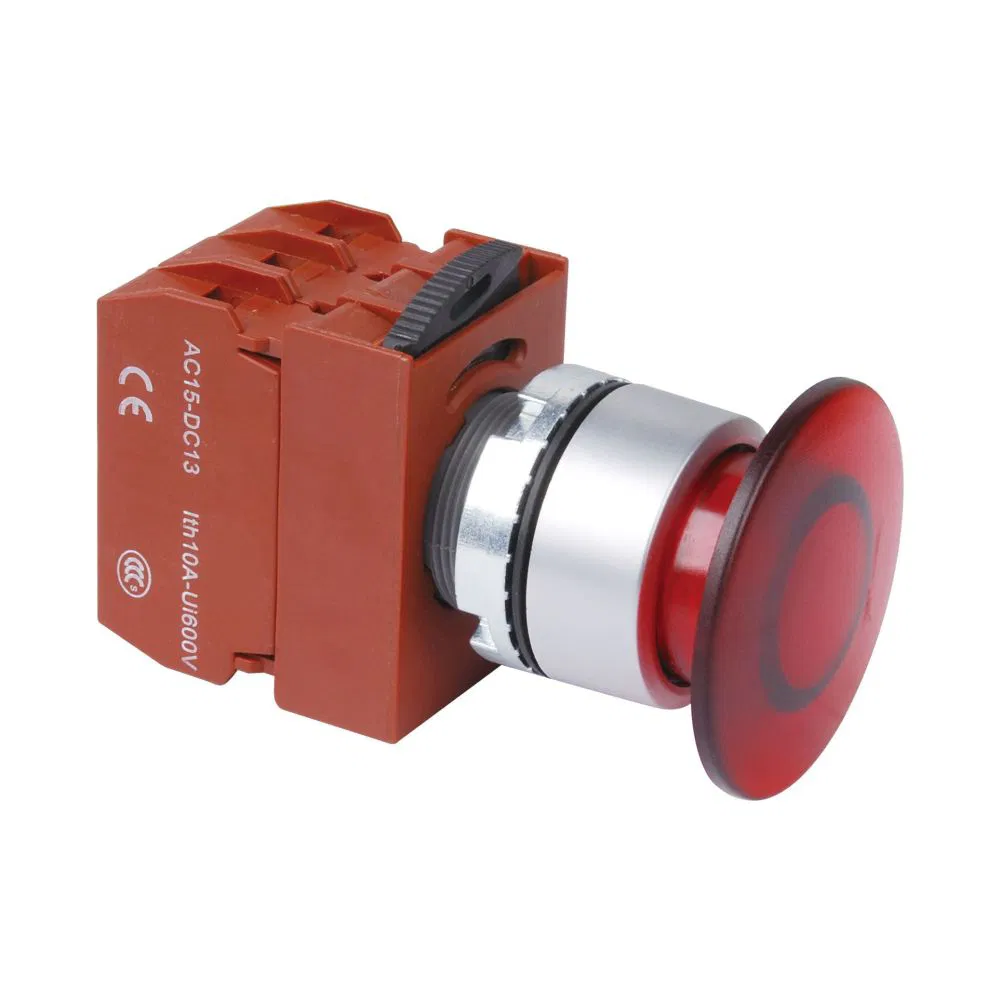

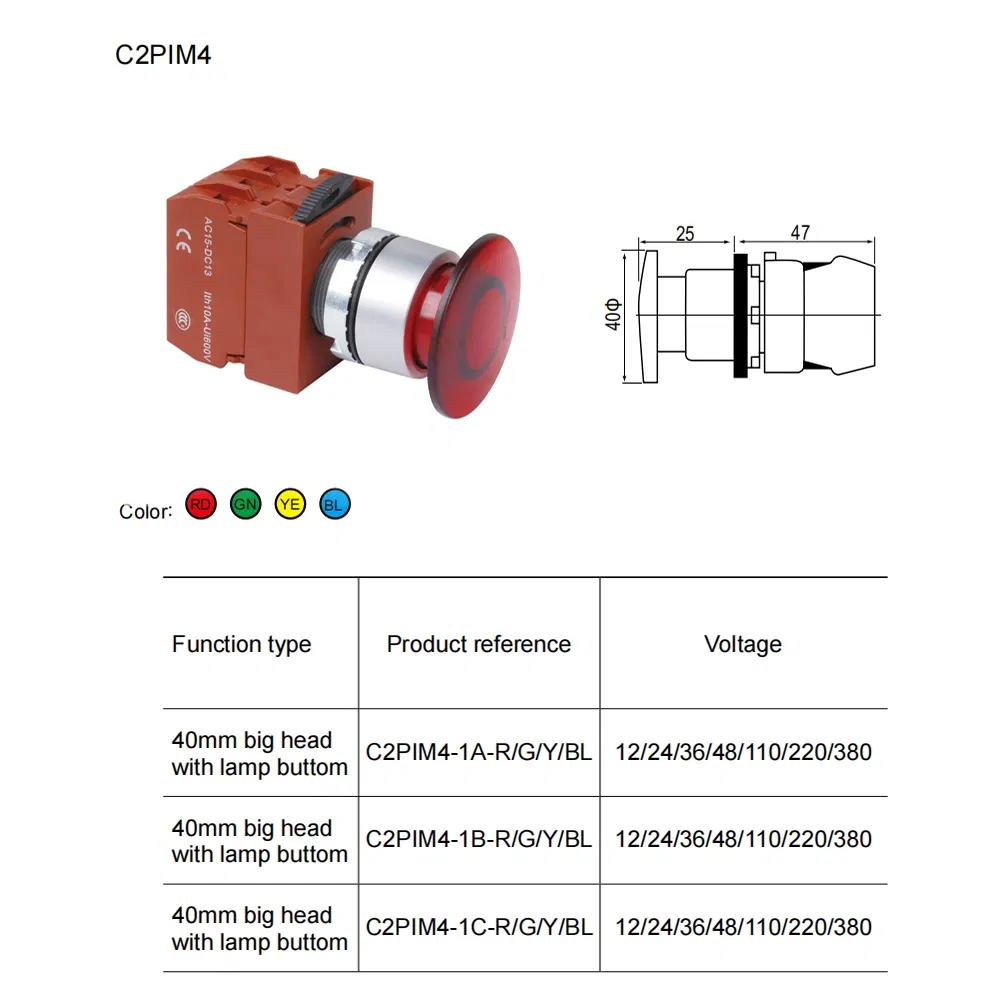

22mm Illuminated Emergency Illuminated Mushroom Push Button Switch

1 / 5

22mm Illuminated Emergency Illuminated Mushroom Push Button Switch

Customization:	Available
Protection:	Durable, Waterproof
Feature:	Mechanical

Send Inquiry

Product Description

Basic Information

Model NO.

C2PIM4

Wiring

Null Line and Live Line

Principle

Resistive

Application

Industrial

Switch Type

Single Control Switch

Specification

22mm

Certification

HS Code

8536500090

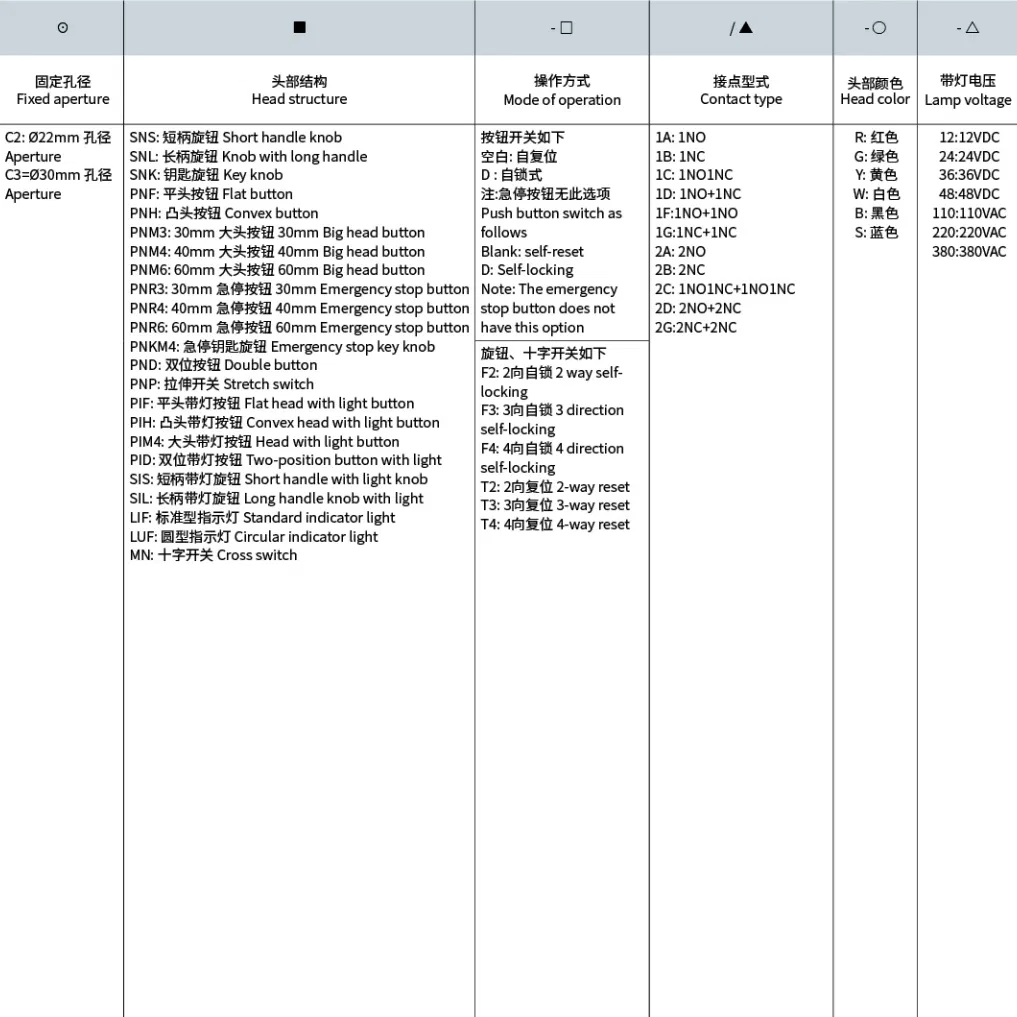

Model Number Structure

Fixed Aperture	Head Structure	Operation Mode	Contact Type	Color / Voltage

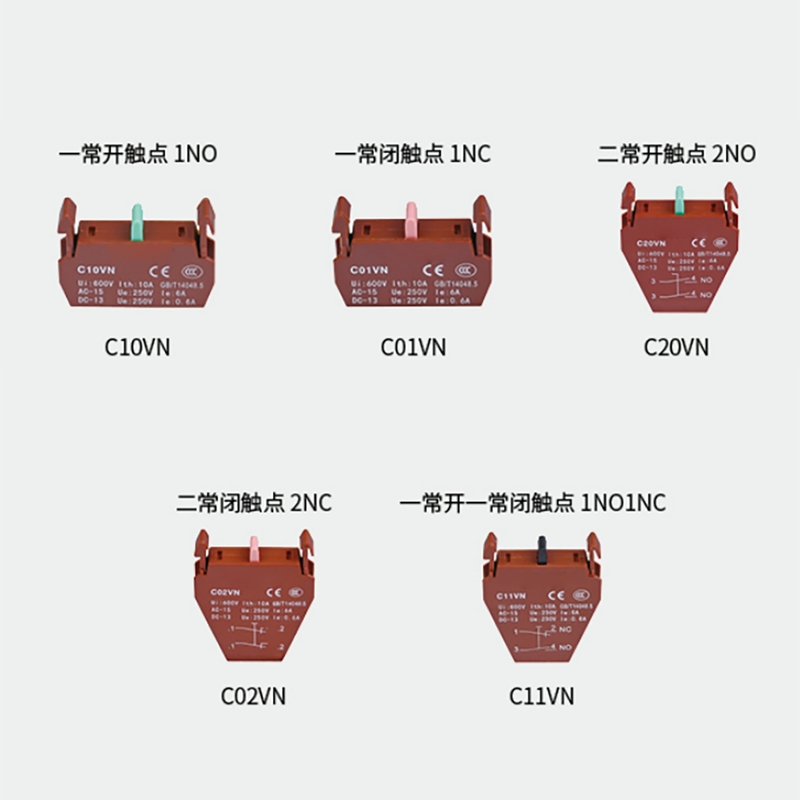

C2: Φ22mm C3: Φ30mm	SNS: Short handle knob SNL: Long handle knob PNF: Flat button PNR4: 40mm Emergency stop	Blank: Self-reset D: Self-locking F2/F3/F4: Directional locking	1A: 1NO 1B: 1NC 1C: 1NO1NC 2D: 2NO+2NC	R: Red / G: Green 12V, 24V, 110V, 220V, 380V
Example: Model C2-SNS-D/1A-R-12 represents Φ22mm aperture, short handle knob, self-locking, 1NO contact, red color, 12V voltage.

Product Gallery & Specifications

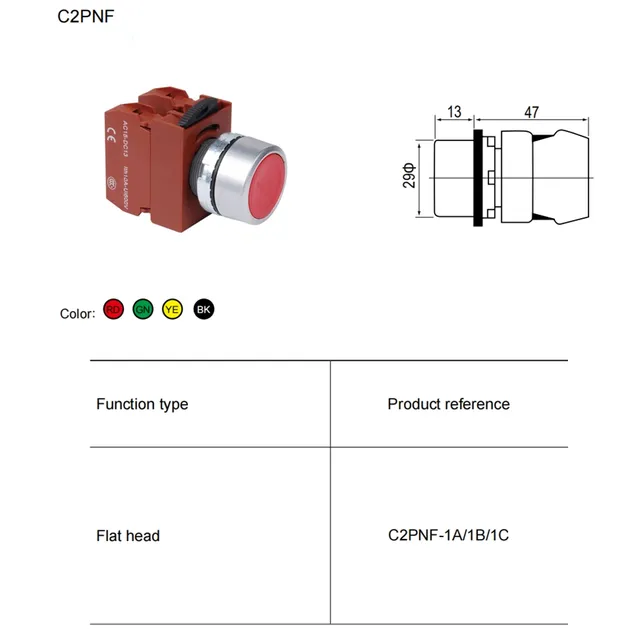

Flat head self-reset button

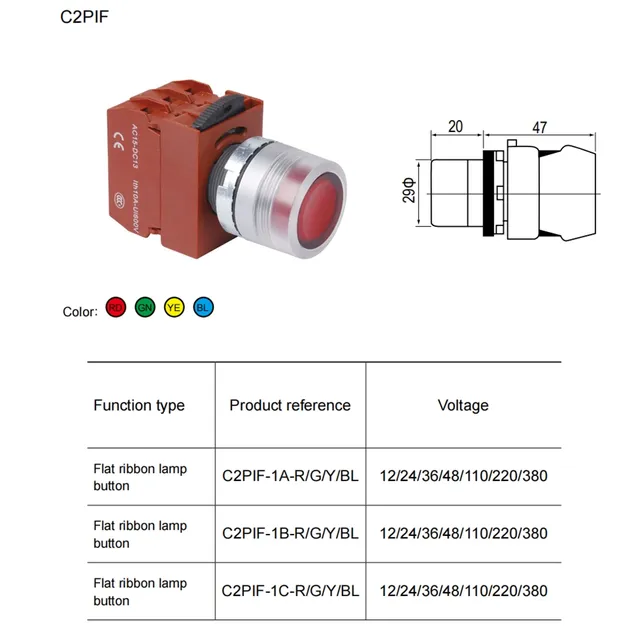

Flat head with light self-reset button

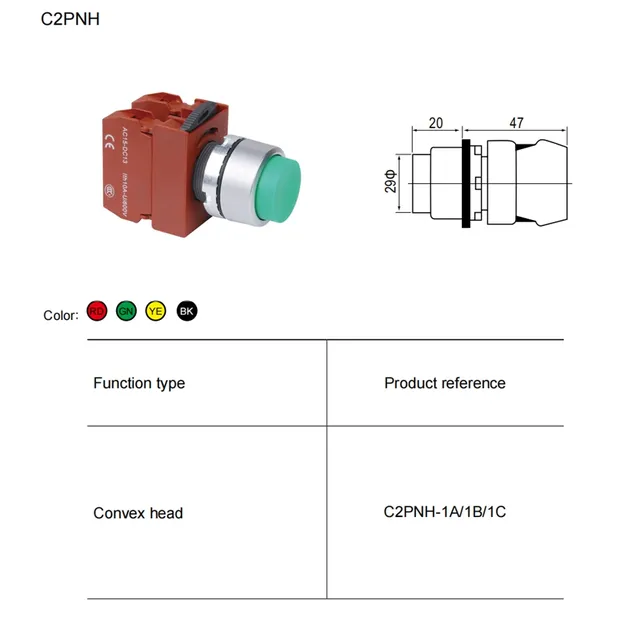

Convex head self-reset button

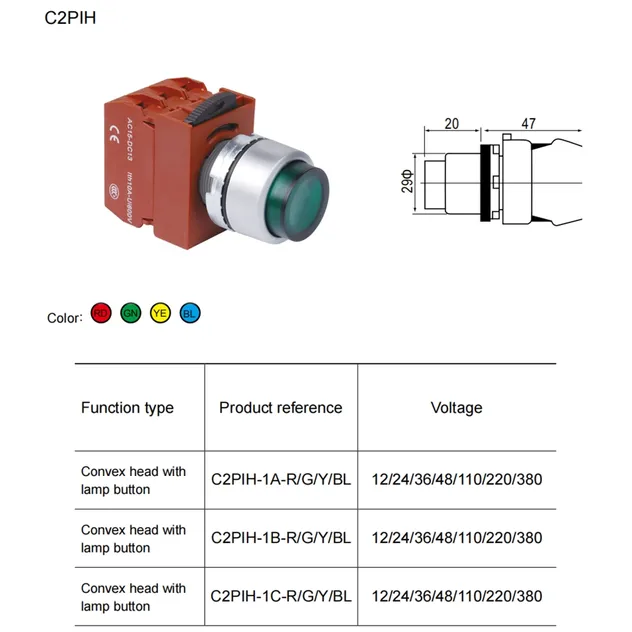

Convex head with light self-reset

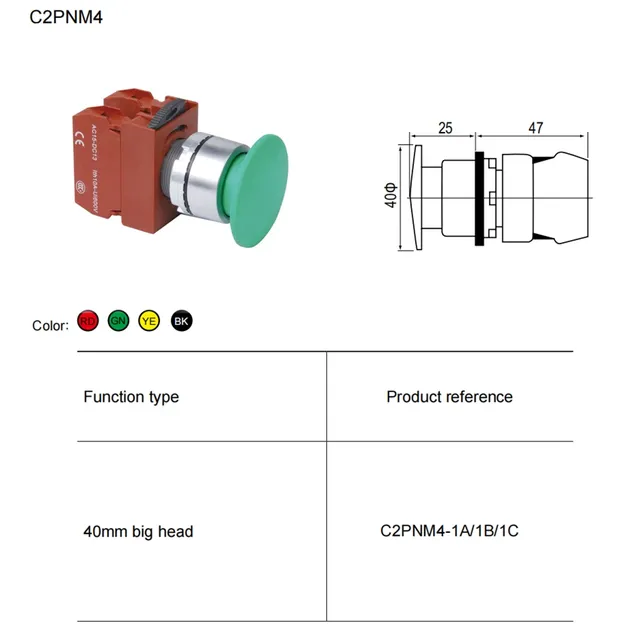

40 Mushroom Self-reset button

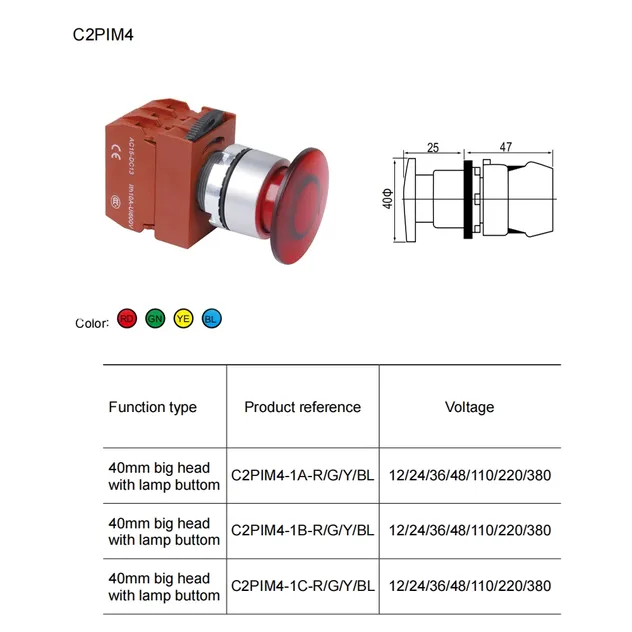

40 Mushroom with light

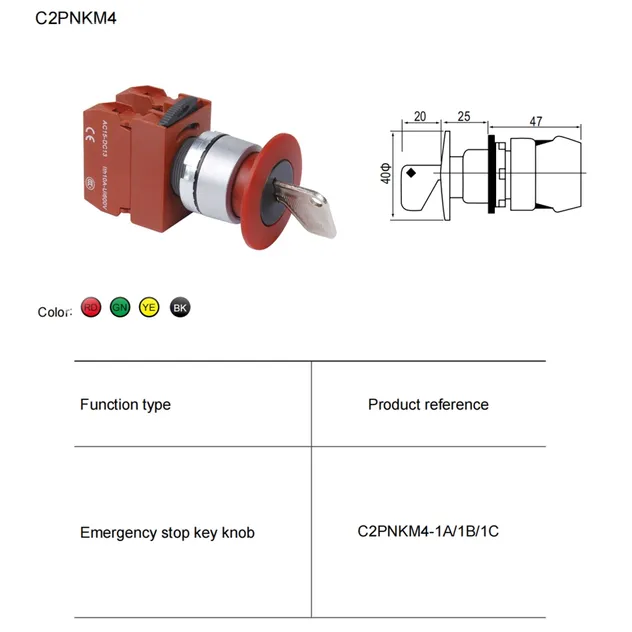

Emergency stop key knob

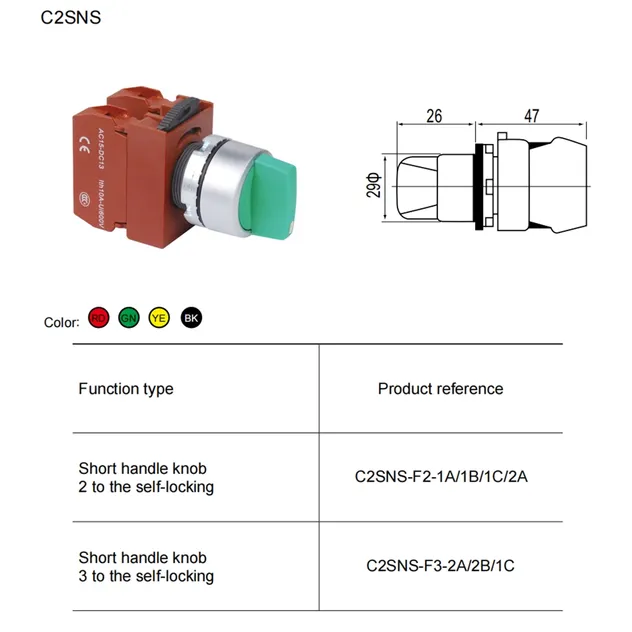

Short handle knob

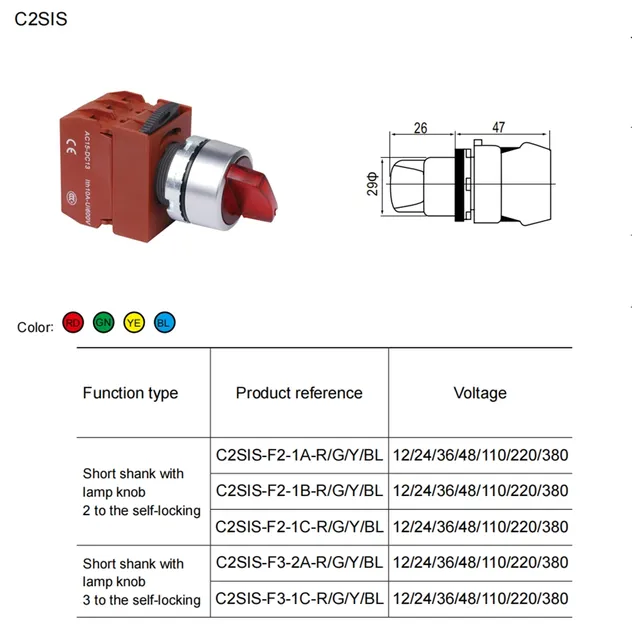

Short handle knob with light

Frequently Asked Questions

Can I print my own logo on the products?

Yes, we can apply your logo via silk-screen printing, UV printing, or embossing depending on the specific product requirements.

Is it possible to order samples first?

Certainly. We accept sample requests and small trial orders, which is ideal for new customers to evaluate our quality.

Are my design drawings safe with you?

Yes, your designs are kept confidential. We will not publish or share your drawings with any third party without your explicit permission.

What is the typical lead time for an order?

The lead time generally ranges from 7 to 30 days, depending on the product type and the total order quantity.

What are the accepted terms of payment?

Our standard terms are T/T 30% as a deposit and the remaining 70% before delivery. We provide photos of products and packaging before final payment.

What delivery terms do you offer?

We support multiple delivery terms including EXW, FOB, CFR, CIF, and DDU to suit your logistics needs.
