| Model NO. | HZ-B300MC | Warranty | 1 Year |
|---|---|---|---|
| Laser Source | Fiber | Voltage | 220V/110V, 50/60Hz |
| Temperature | 5-40℃ | Gross Weight | 56kg (After Wooden Pack) |
| Customization | Logo / OEM / ODM Support | Lead Time | 5-7 days |
| Cooling Mode | Air Cooling | Origin | China |

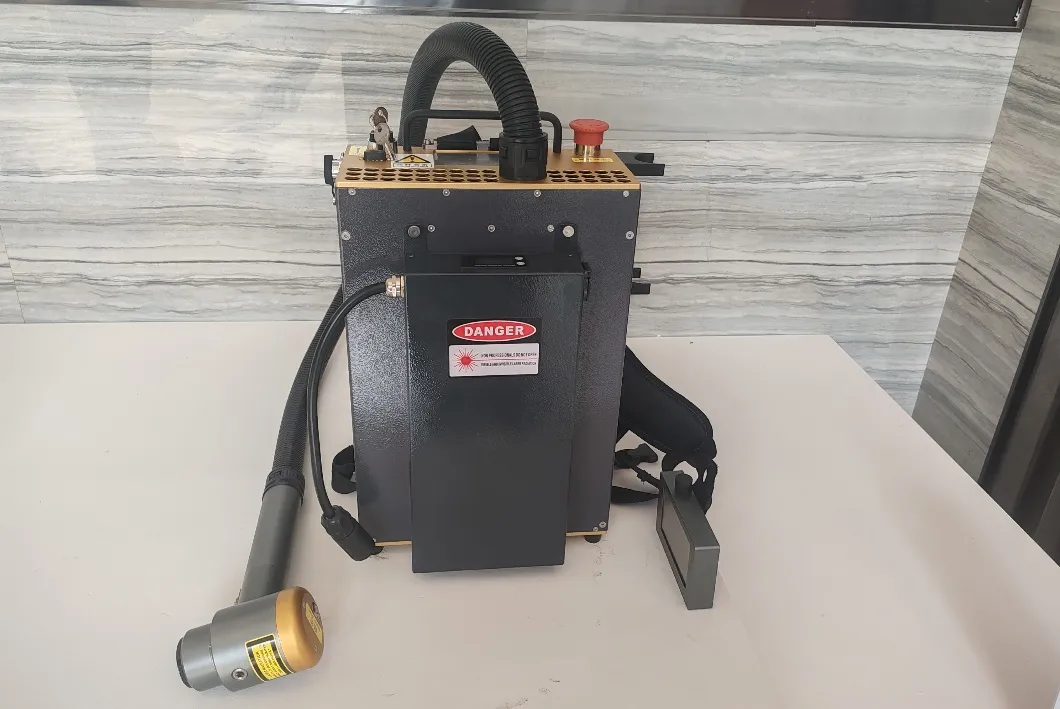

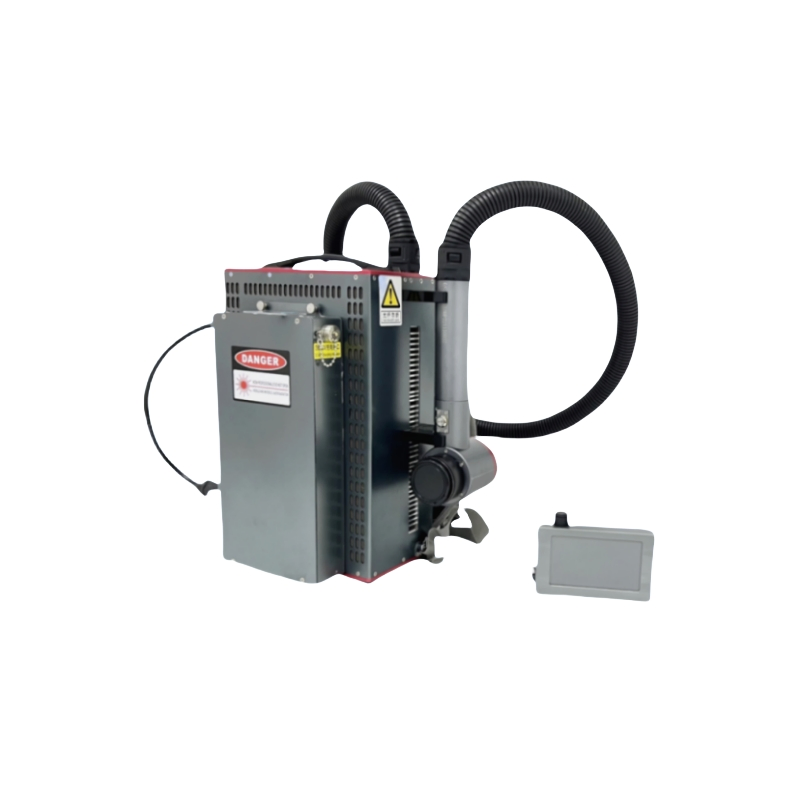

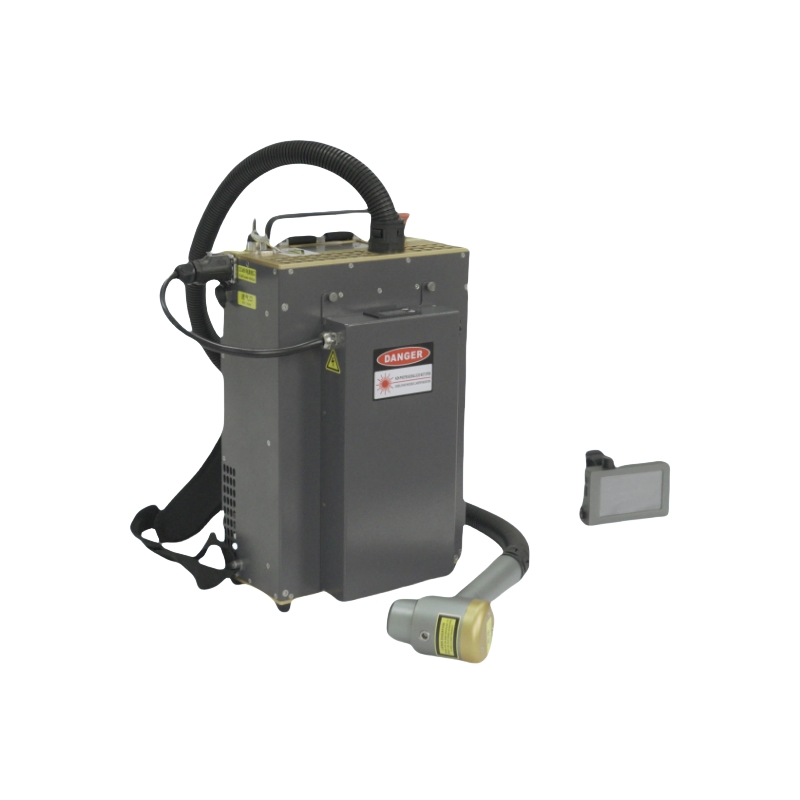

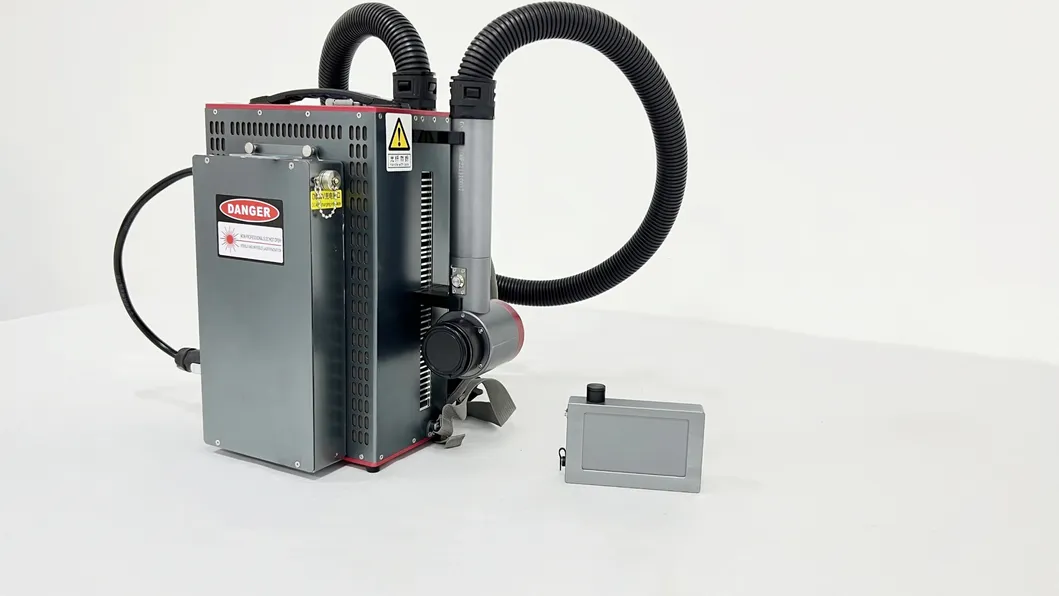

The Backpack Hand-held Laser Cleaning Machine (300W) is a new generation of high-tech surface cleaning equipment. It utilizes an environmentally friendly laser ablation method to replace chemical and mechanical cleaning methods. It is easy to install, manipulate, and automate. It effectively removes rust, resin, stains, oil, dirt, coatings, and paint.

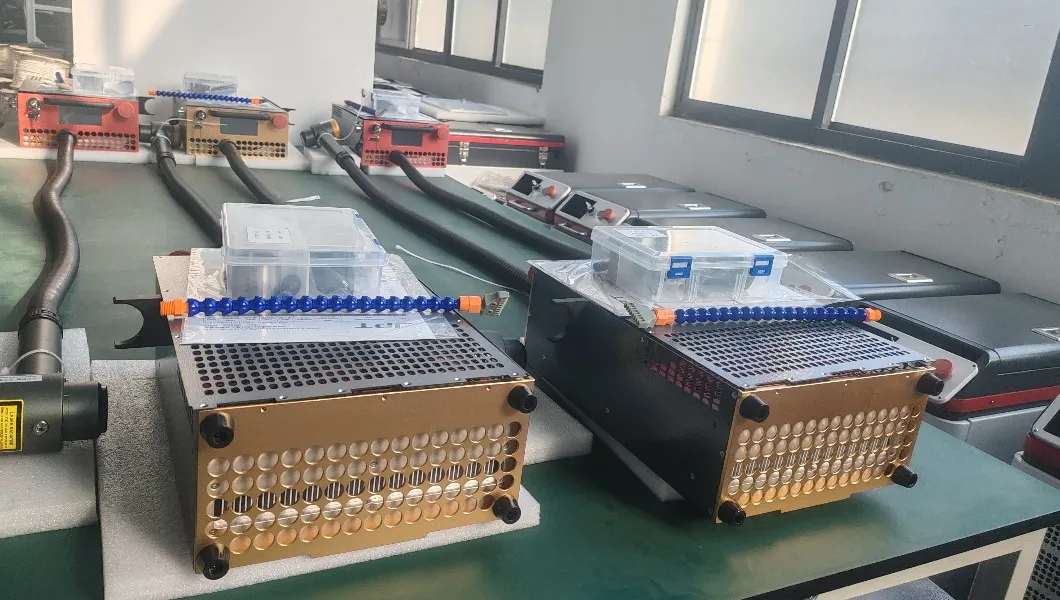

1. Pulsed Laser Cleaning: Uses a pulse laser source and galvo head. Ideal for high-value products where base material damage must be avoided (e.g., molds, oil fouling, dirt).
2. CW Fiber Laser Cleaning: Continuous wave laser, cost-effective for heavy rust or thin paint removal on stainless steel, mild steel, and iron. Available in 1000W-2000W.

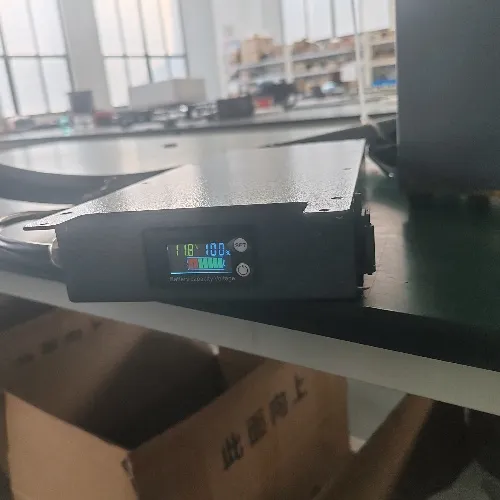

| Supply Voltage | AC220V±10% (Standard) / Battery (Optional, 80min work) |
| Power Consumption | ≤1100W |
| Working Temperature | 5ºC ~ 40ºC |
| Humidity | ≤80% |
| Average Laser Power | ≥300W | Laser Working Mode | Pulse |
| Pulse Width | 13-500ns | Max Monopulse Energy | 5mJ-15mJ |
| Repeat Frequency | 1-3000 kHz | Fiber Length | 1.5m |
| Machine Size (No battery) | 268*135*445mm | Machine Weight (No battery) | 13.47kg |
| Machine Size (With battery) | 268*191.5*445mm | Machine Weight (With battery) | 18.08kg |
| Cleaning Head Weight | <0.75kg | Operation Mode | Wireless control screen |
| Item | Dry Ice Cleaning | Mechanical Polishing | Laser Cleaning |
|---|---|---|---|
| Workpiece Damage | Damaged | Damaged | No Damage |
| Side Effect | No Pollution | Polluted | No Pollution |
| Contact | No Contact | Touch and Grind | Non-Contact |
| Efficiency | Slow | Generally | Fast (6x higher) |
| Running Cost | High (Later) | High (Later) | Low (Later) |
Widely used in construction, machinery repair, auto parts, shipbuilding, rubber molds, and environmental protection industries.
It can effectively remove rust, resin, stains, oil, dirt, coatings, paint, and graffiti from various metal and non-metal surfaces.

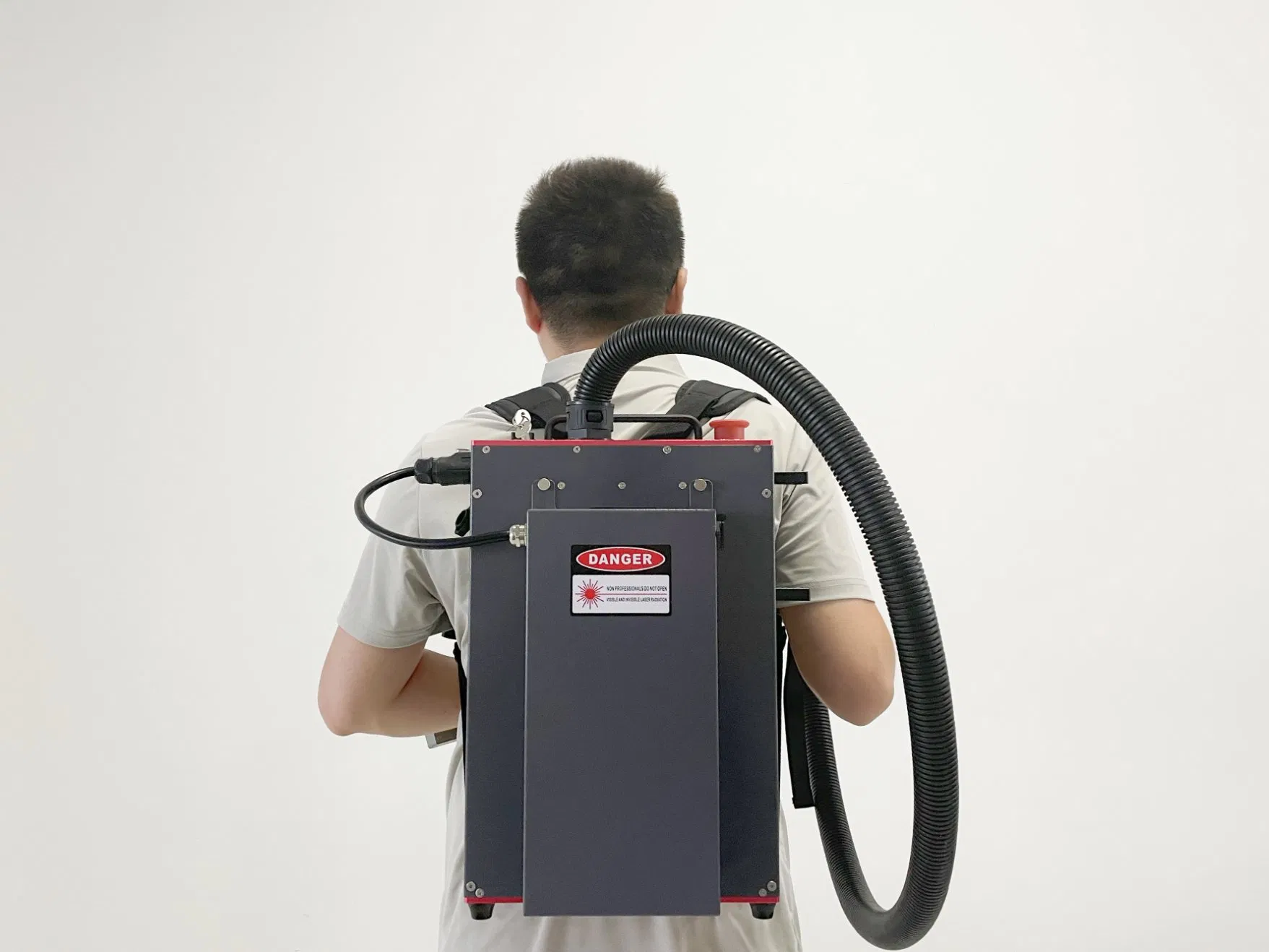

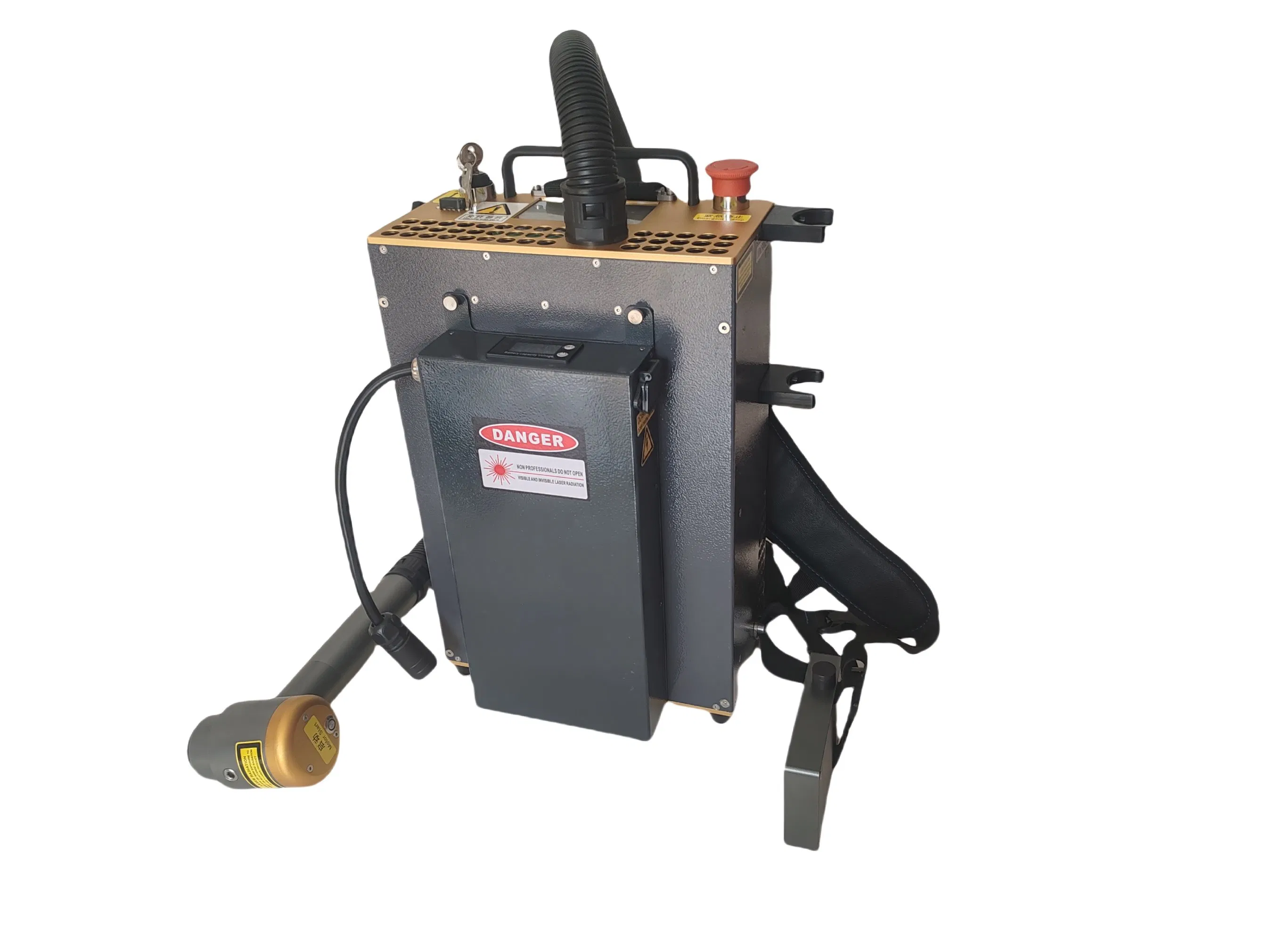

Yes, the machine features a backpack design and weighs only about 13-18kg, making it ideal for high-altitude work and hard-to-reach corners.
Pulsed laser cleaning is non-abrasive and non-thermal, ensuring that high-value base materials are not damaged during the cleaning process.
The system supports 16 world languages, including English, Chinese, Russian, Spanish, and more.
For samples, the lead time is 5-7 days. For batch quantities, it typically takes 7-15 days.
We offer a one-year warranty for the equipment (excluding human damage and fiber breakage) along with lifetime maintenance services.
