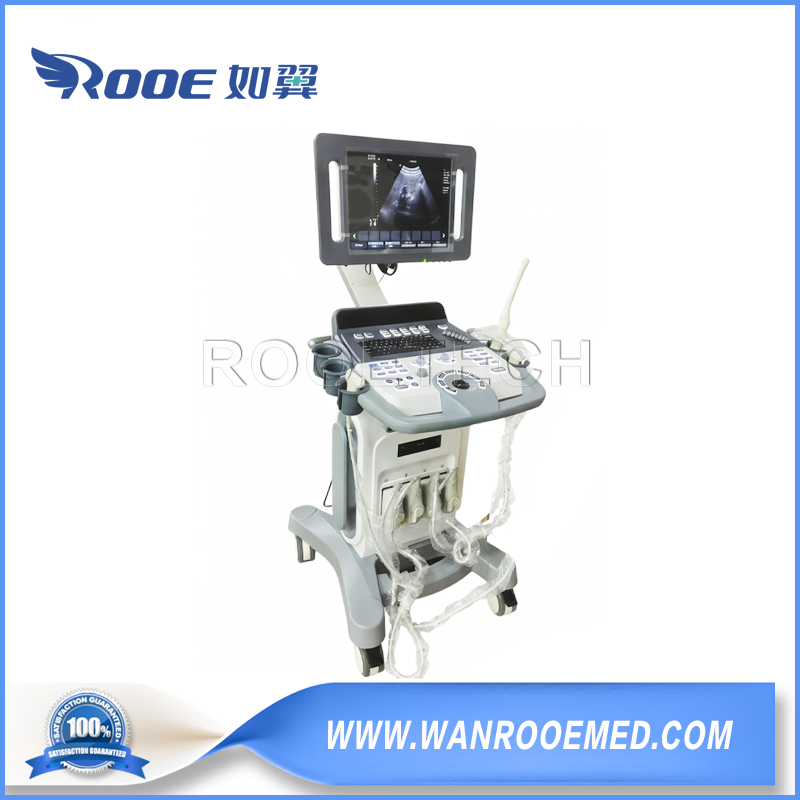

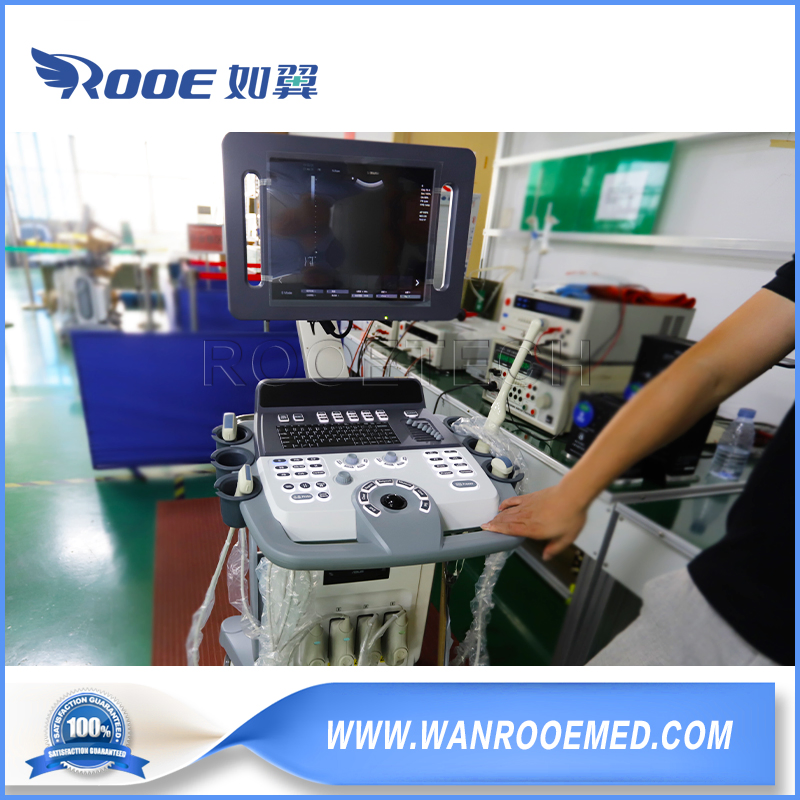

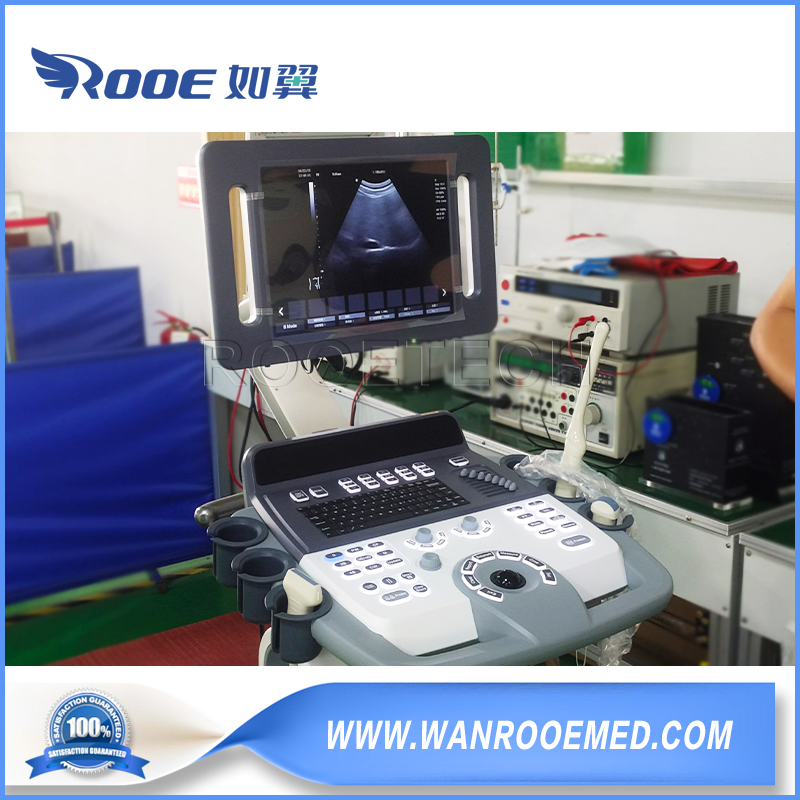

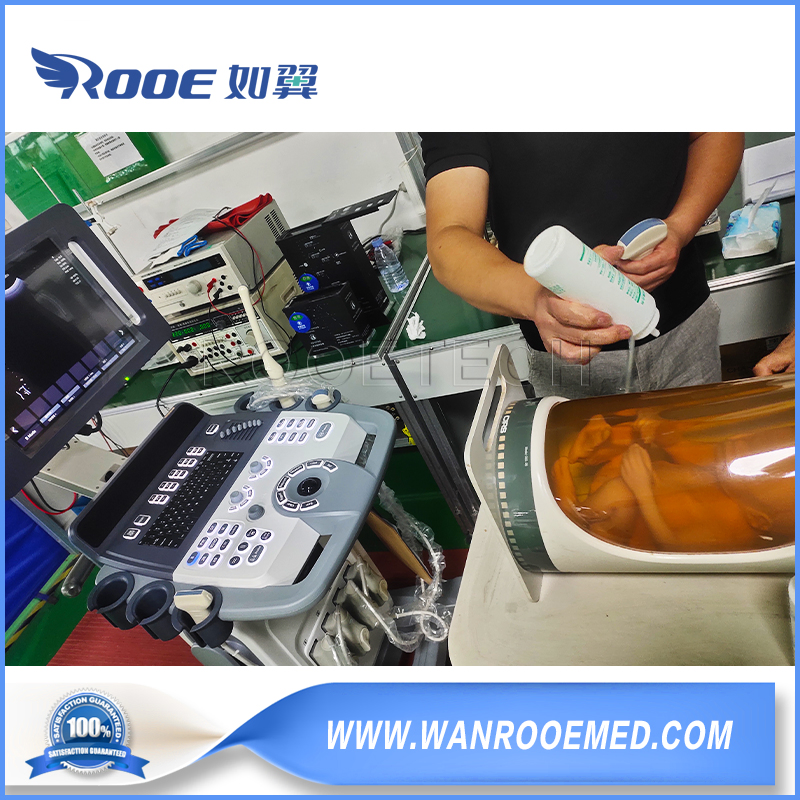

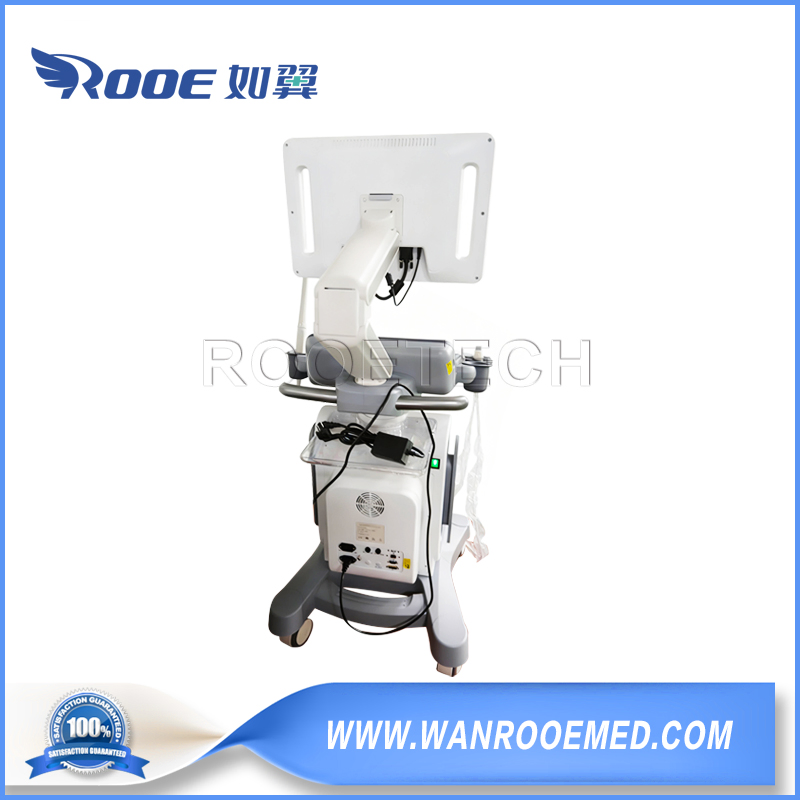

Gynaecology and Obstetrics Digital Color Doppler Ultrasound Machine Scanner Trolley Optional 4D Probe

1 / 5

Gynaecology and Obstetrics Digital Color Doppler Ultrasound Machine Scanner Trolley Optional 4D Probe

Customization:	Available
Customized:	Customized
Certification:	CE

Send Inquiry

Product Description

📋

Basic Information

Model NO.

US-K10

Scale

Medium

Monitor

15 Inch

Scanning Depth

≥300mm

Probe Elements

128

Capacity

1000 Set/Sets / Month

Specification

ISO, CE

HS Code

94029000

🩺

Product Overview

Gynaecology and Obstetrics Digital Color Doppler Ultrasound Machine Scanner Trolley Optional 4D Probe

1. Optional Probe and Function Upgrades Compatible with multiple probes—abdominal, linear, transvaginal, cardiac, convex, and 4D types—with upgrade options for continuous Doppler, trapezoidal imaging, and 4D functionality.

2. High-Resolution Display and Flexible Arm Equipped with a high-brightness medical LCD monitor and a wide-angle adjustable arm, offering optimal viewing from any position.

3. Ergonomic Control Panel and Backlit Keyboard Rotatable backlit keyboard and floating control panel design ensure smooth, comfortable operation in all lighting environments.

4. Four Probe Ports and Rich Connectivity Supports up to four probes for quick mode switching; built-in USB ports and external device interfaces allow easy data transfer and printer connection.

5. Powerful Imaging and Doppler Functions Provides clear 2D images and sensitive Color Doppler Ultrasound performance, supporting precise blood flow visualization and diagnostic accuracy.

6. PC-Based Open System with Large Storage Integrated PC platform with 1TB hard disk, compatible with various peripherals and printers, supporting long-term data storage and management.

7. Lightweight and User-Friendly Design Compact structure with a net weight of about 65 kg, easy to move between departments; intuitive multi-language interface (Chinese, English, Spanish, Russian, Persian, French).

📊

Product Parameters

Configuration	Probes	5 Steps Multi-frequency
Standard	3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
Standard	7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
Options	6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz
	3.5MHz micro-convex probe	2.0, 2.5, 3.5, 4.5, 5.0Mhz
	3.5Mhz phased array probe	2.1, 3.0, 3.5, 4.0, 5.5Mhz
	3.5Mhz 4D volume probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz

Technical Parameters
Displaying mode	B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, duplex, triplex, CFM, PW, CW(optional), 4D(optional)
Signal processing	Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing	THI, HPRF, Speckle-reduction, Power adjustable, Smoothing function, Image optimization, Tissue Harmonic imaging, Dynamic apodization, Dynamic aperture, Edit the exam type and save the user‐defined items, Pulse Wave Doppler, Edge enhancement, One-key optimization, Image conversion, Doppler Sound output volume adjustable, Wall filter adjustable, Base line adjustable, Sampling frame adjustable, Continuous Wave Doppler (Option), Trapezoid Image (Option)
Scanning depth	≥300mm
Probe elements	128

🏢

Display & Environment

❓

Frequently Asked Questions

Q1: Which clinical applications is this ultrasound machine suitable for? A1: This digital color Doppler scanner is primarily designed for Gynaecology and Obstetrics, but also supports abdominal, cardiac, and small parts examinations with various probe options.

Q2: Does the system support 4D imaging? A2: Yes, 4D functionality is available as an optional upgrade, including a dedicated 3.5Mhz 4D volume probe.

Q3: How many probes can be connected simultaneously? A3: The machine is equipped with four probe ports, allowing for quick switching between different imaging modes without manual replacement.

Q4: What are the storage capabilities for patient data? A4: It features an integrated PC-based system with a 1TB hard disk, providing ample space for long-term storage of images and diagnostic reports.

Q5: Is the display adjustable for different viewing angles? A5: Yes, the 15-inch high-resolution medical LCD monitor is mounted on a wide-angle adjustable flexible arm for ergonomic use.

Q6: What languages are supported by the user interface? A6: The intuitive interface supports multiple languages, including English, Spanish, Russian, French, Persian, and Chinese.
