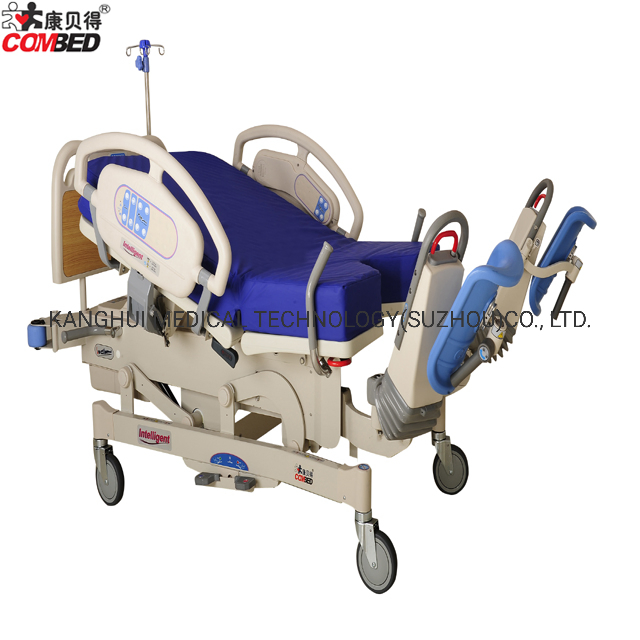

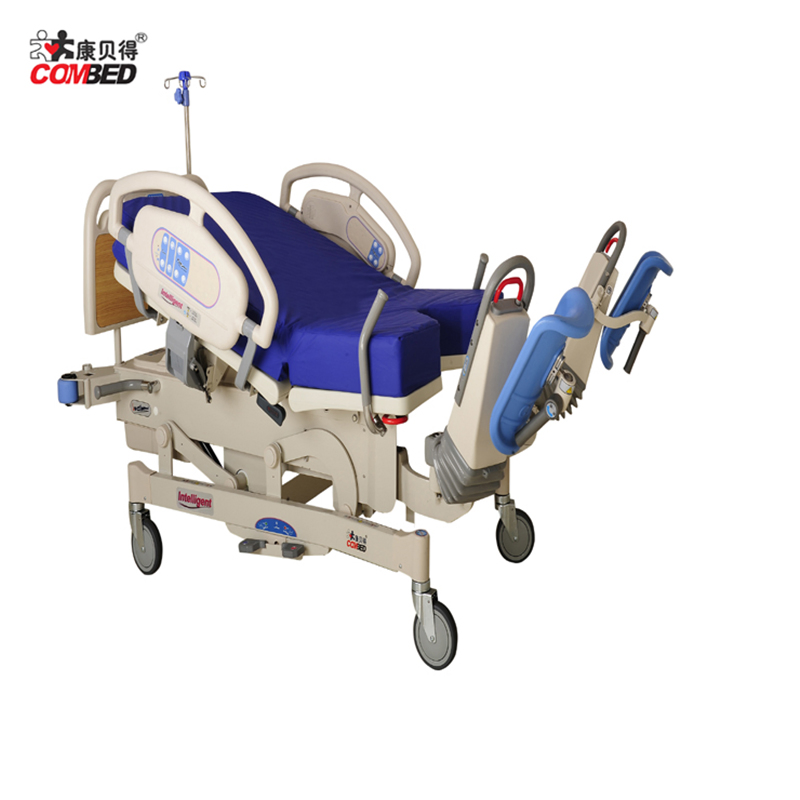

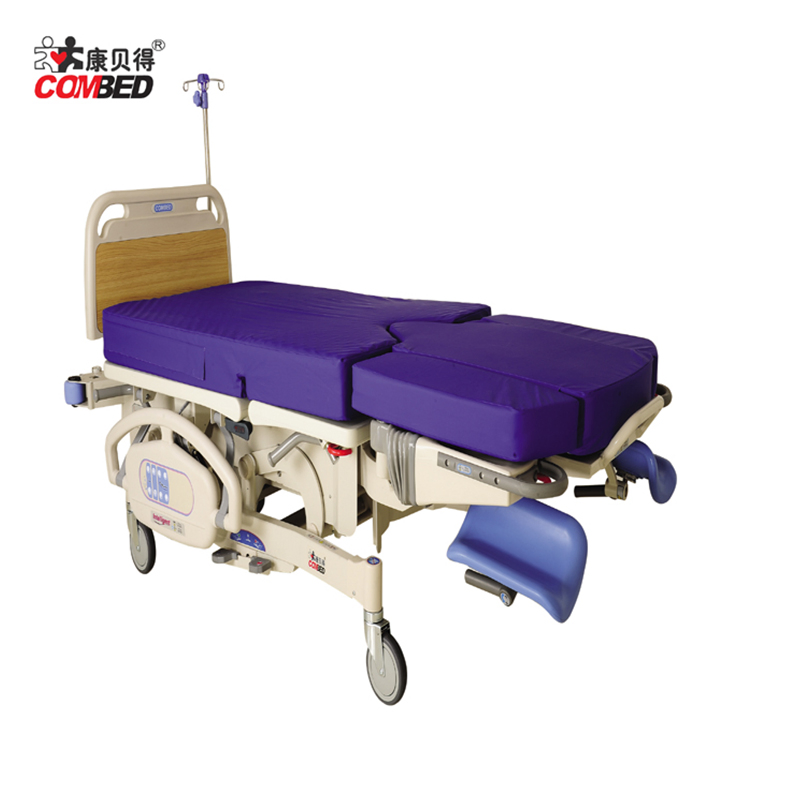

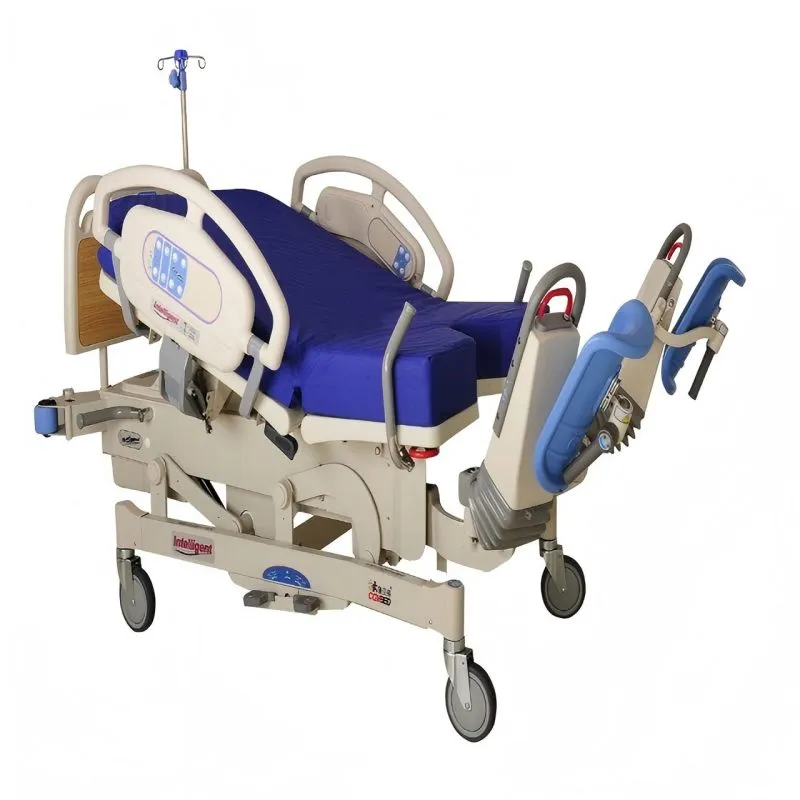

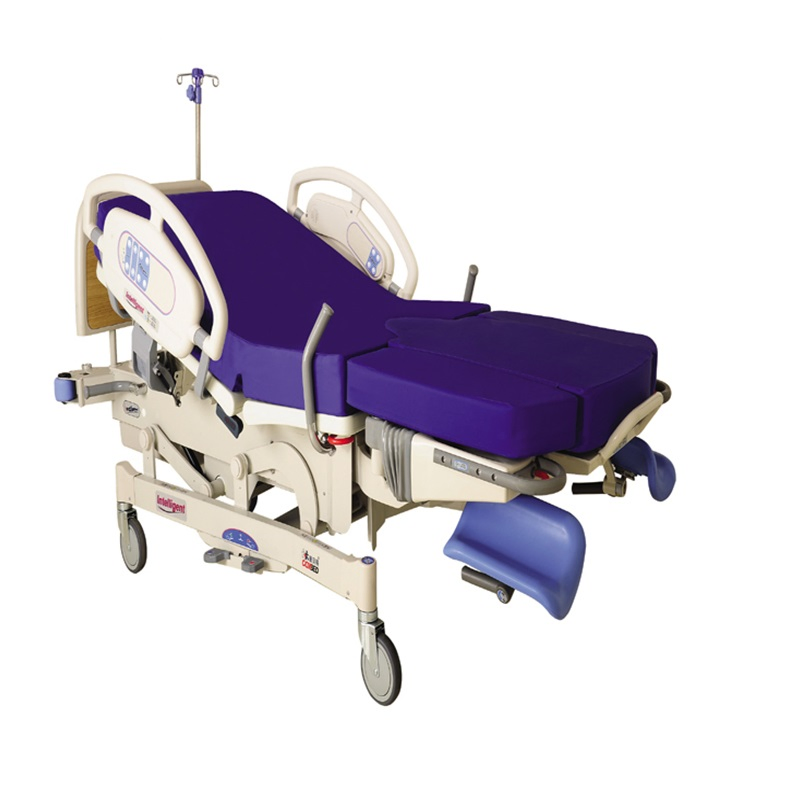

| Model NO. | DH-C101A06 |
| Functionality | Five-function Electric Bed |
| Using Ambient | Hospital / Maternity Ward |
| Certification | CE, FDA, ISO13485 |
| Motor System | Linak |
| Color | Blue |
| Mattress Material | High-density Sponge |
| Warranty | 1 Year |
The operation is simple, flexible, and convenient. Clear marked control panels are situated on the guardrails on both sides, allowing both nurses and patients to operate the bed easily.
The central brake system ensures maximum stability during critical procedures. Injection molding plastic side rails provide a warm and comfortable touch for both staff and patients.
Equipped with a night light that illuminates the ground automatically for safety. A built-in battery backup ensures the bed remains fully functional even during power outages.

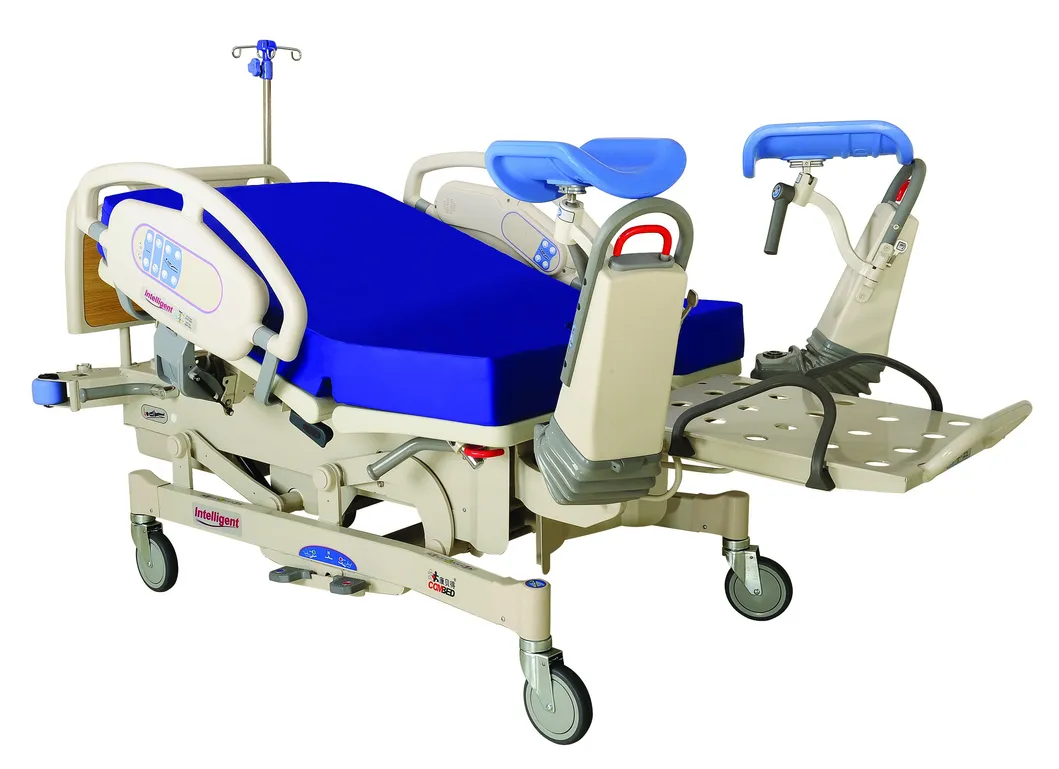

The bed supports multiple labor positions including supine, sitting, lateral, and kneeling-squatting positions to accommodate different clinical needs.
| Parameter Item | Specifications |
|---|---|
| Bed Dimension (mm) | 1950±20 × 860±15 |
| Bed Height Range (mm) | 485±20 to 900±20 (excludes mattress) |
| Back Section Turning | ≥63° |
| Seat Section Turning | ≥15° |
| Trendelenburg / Reverse Trend | Trend ≥8° |
| Foot Rest Rotate Out | ≥90° |
| Side Rail Lifting (mm) | 400±20 |
Flexible transportation modes are available including air freight, sea freight, or courier services to suit your convenience.
Technical Support: Online assistance via operating manuals, installation guides, and instructional videos.
Training: Hands-on training sessions available at the factory for detailed guidance.
Warranty: Free spare parts for non-human-induced failures during the warranty period.
Post-Warranty: Continued technical assistance and competitively priced spare parts.
