| Project | Parameter | |
| Rated voltage | 220V/50Hz | |
| IP rating | IP65 | |
| Municipal power input | Can connect to AC220V | |
| Working hours | 13H | |
| Light source parameters | Working voltage | AC220V |
| Light source | LED | |
| Lamp head power | 4*100W/4*200W | |
| Luminous flux | 4*12000Lm/4*24000Lm | |
| Average service life | 80000H | |
| Color temperature | 5700K | |
| Generator Set | Output voltage | AC220V/380V |
| Rated power | 5KW | |
| Fuel Type | Gasoline | |
| Fuel tank capacity | 25L | |
| Number of phases | Single phase | |
| Engine type | Single cylinder, four stroke, air-cooled | |
| Start mode | Electric start | |
| Rotational speed | 3000rpm | |
| Telescopic rod | Raise the height | 4500mm/6000mm |
| Lifting method | Hydraulic lifting | |
| Material | Q235 steel | |
| Sections | Four sections | |
| Wind loading | Level 8 | |
| Tire | Inflatable 12 inch tire | |
| Brake | Equipped | |

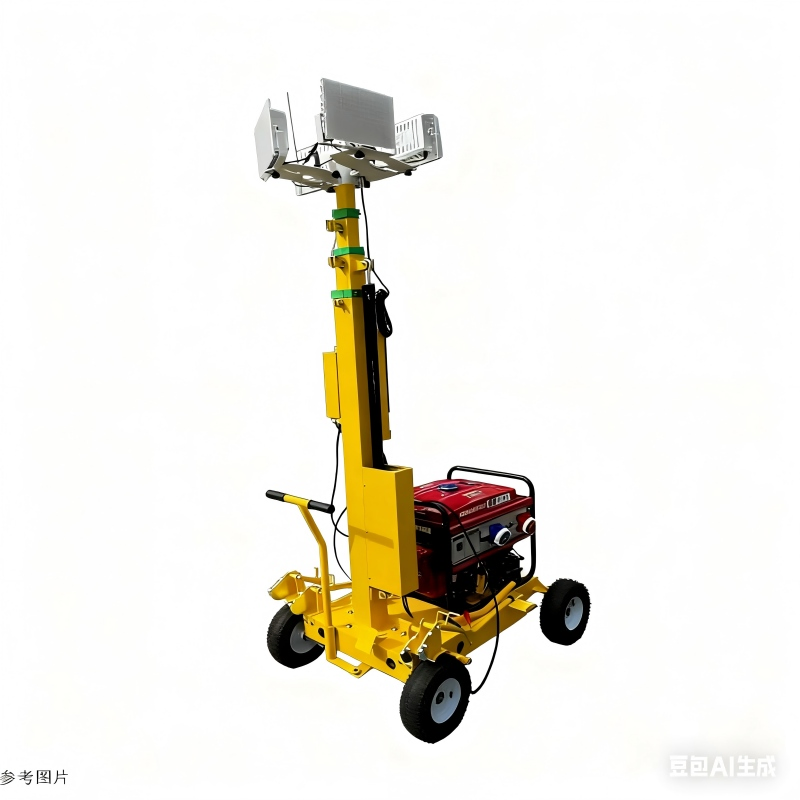

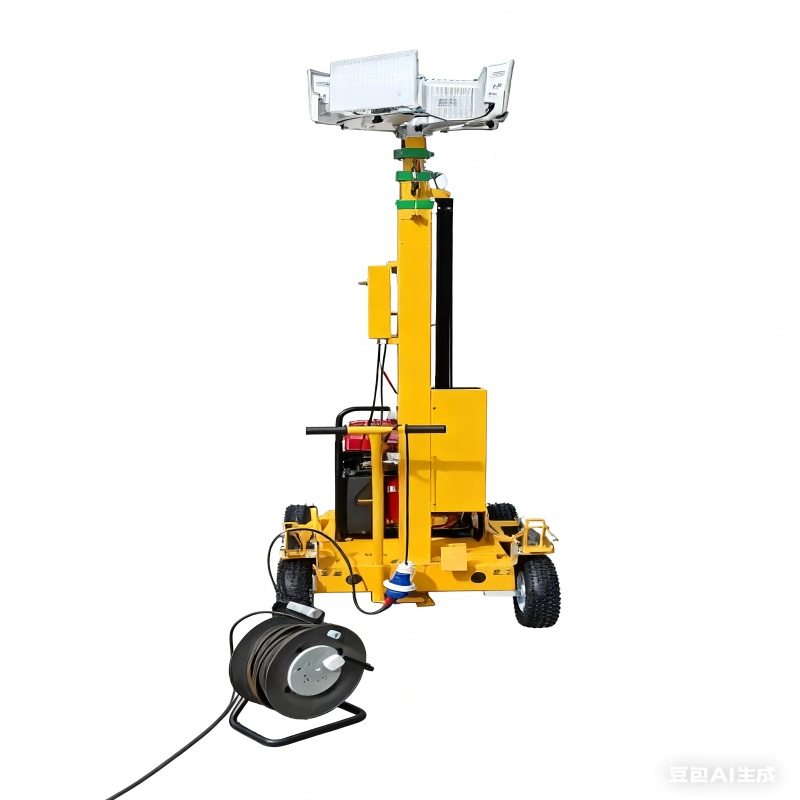

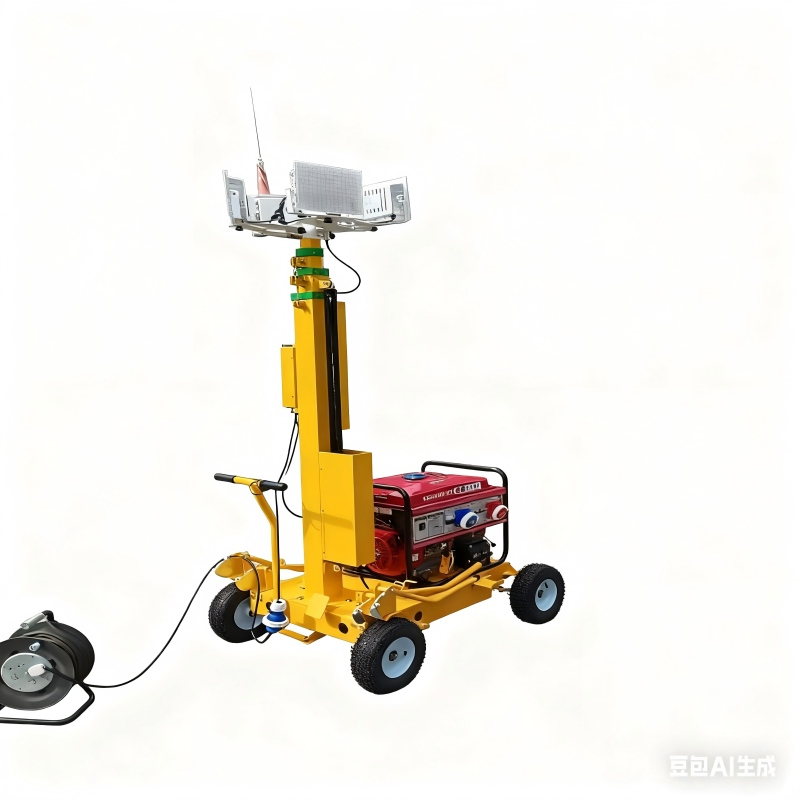

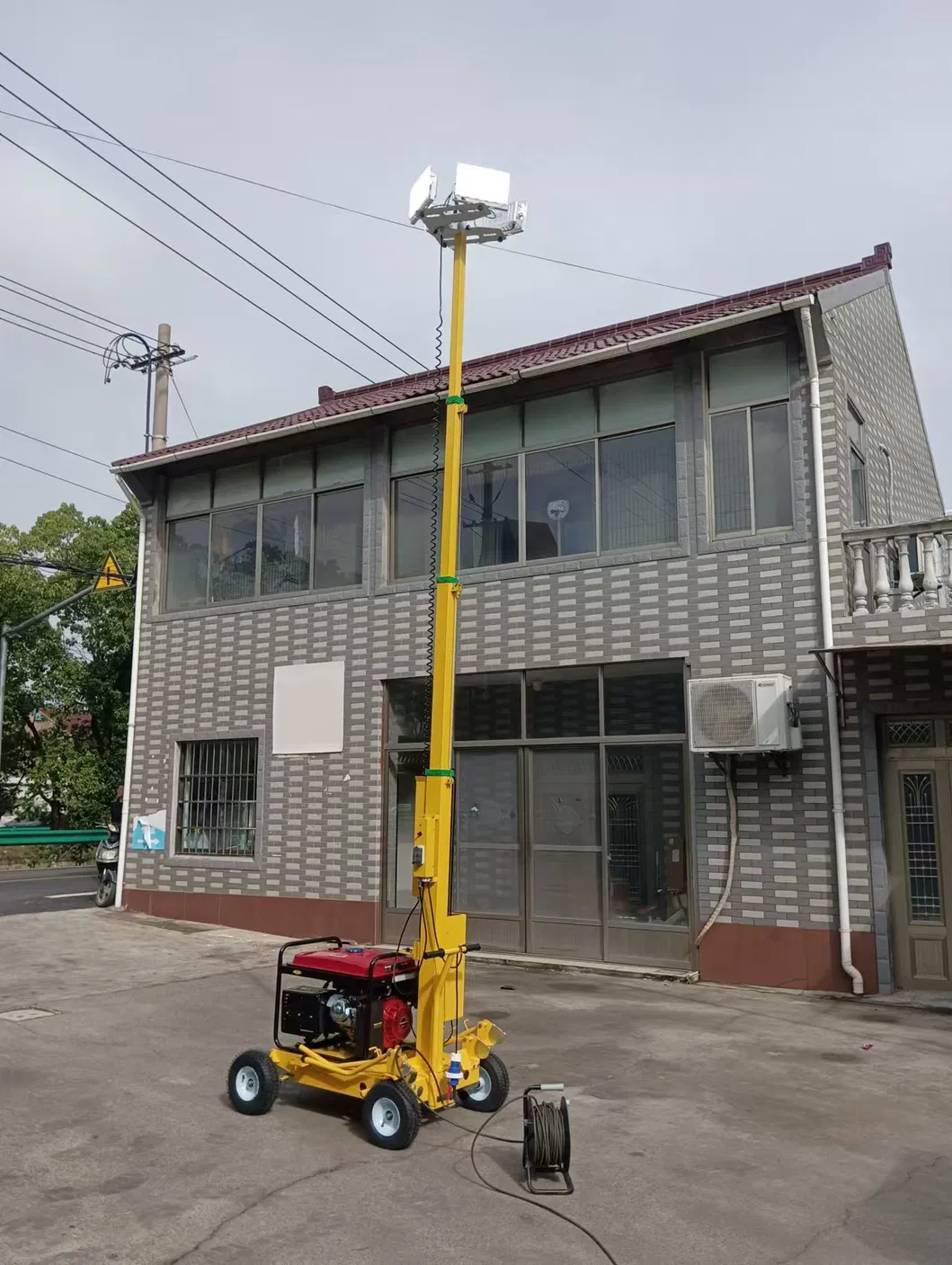

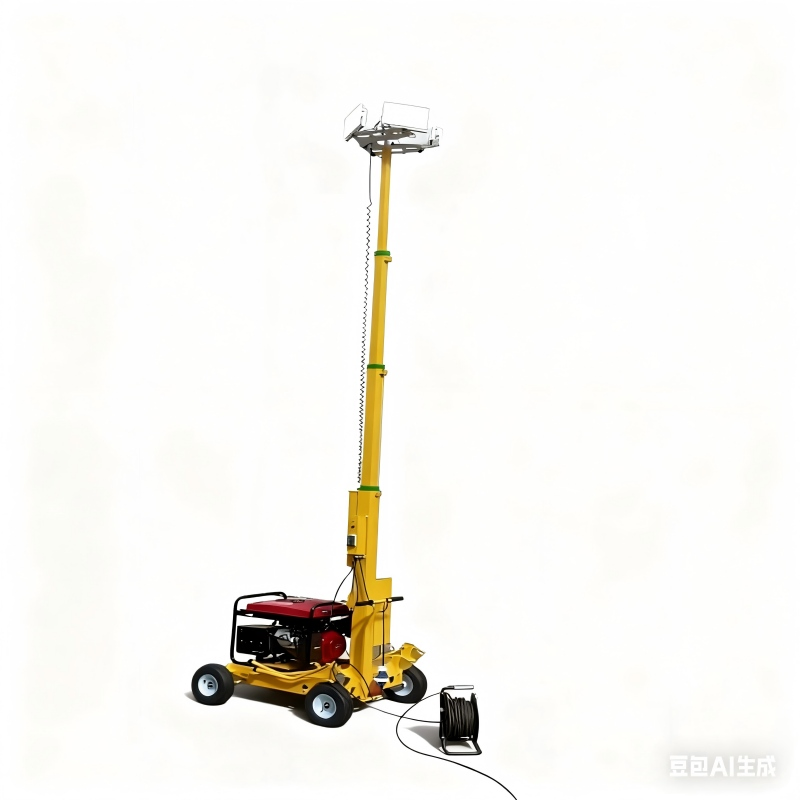

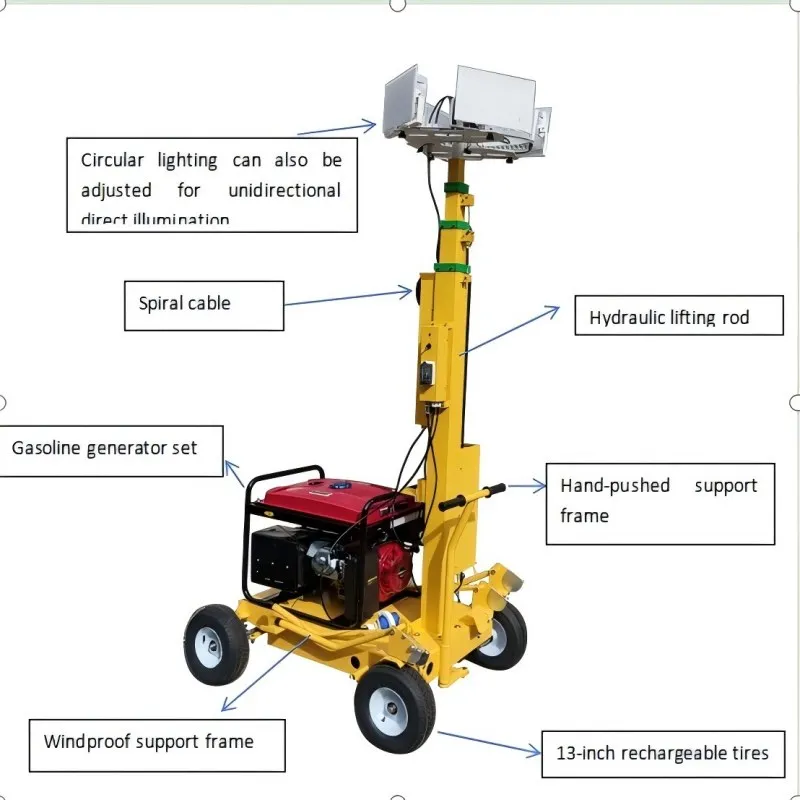

The lifting rod adopts four telescopic hand rocker as the lifting adjustment mode, the lifting height is 4.5/6 meters optional; Turning the lamp head up and down can adjust the beam irradiation Angle, and the light coverage radius can reach 200 meters.

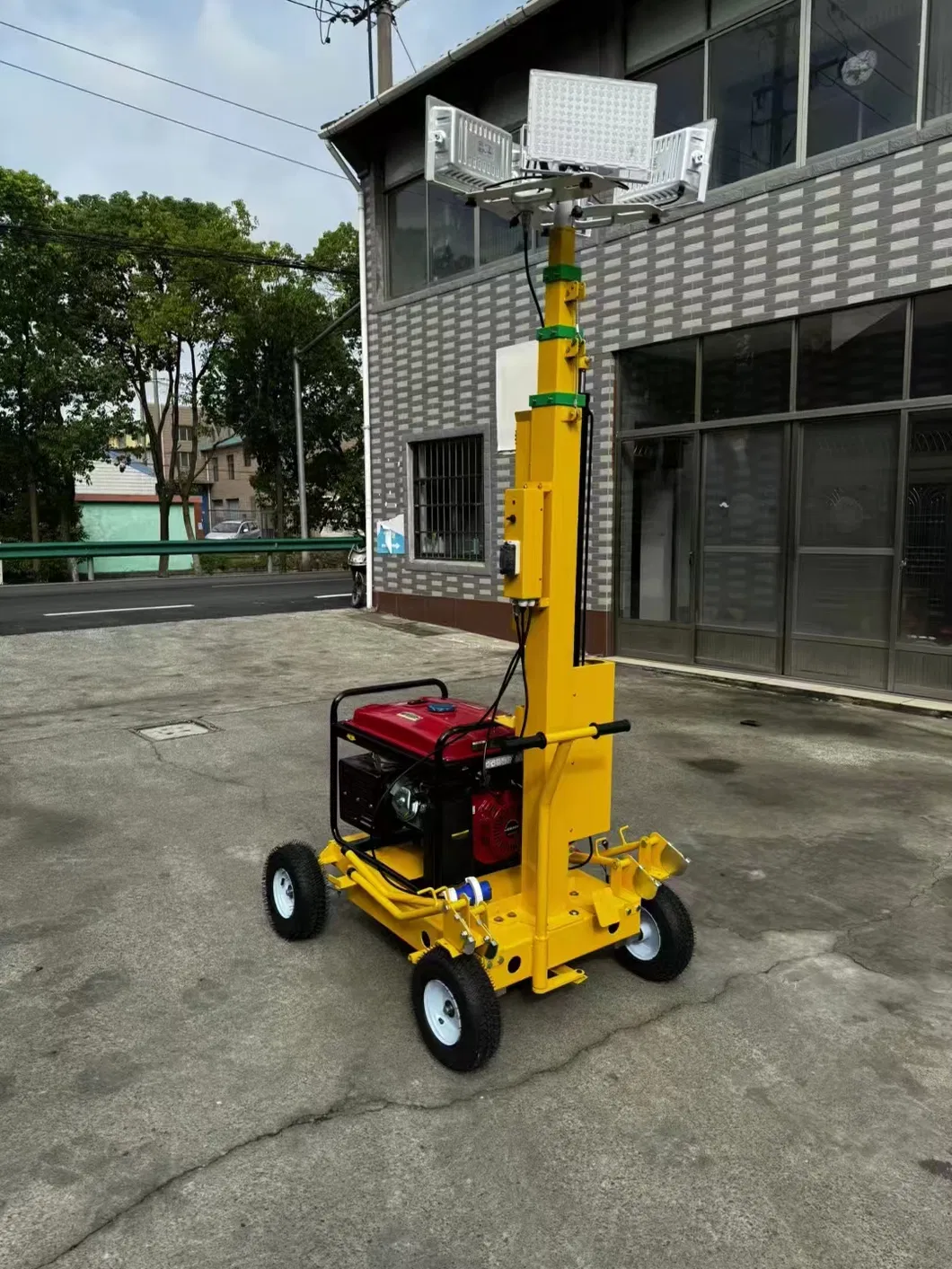

Inflatable 12-inch tires can walk on uneven ground, handle can adjust the direction of the front wheel, and the rear wheel has brakes; Four anti-fall brackets are safer when in use or in windy weather.
