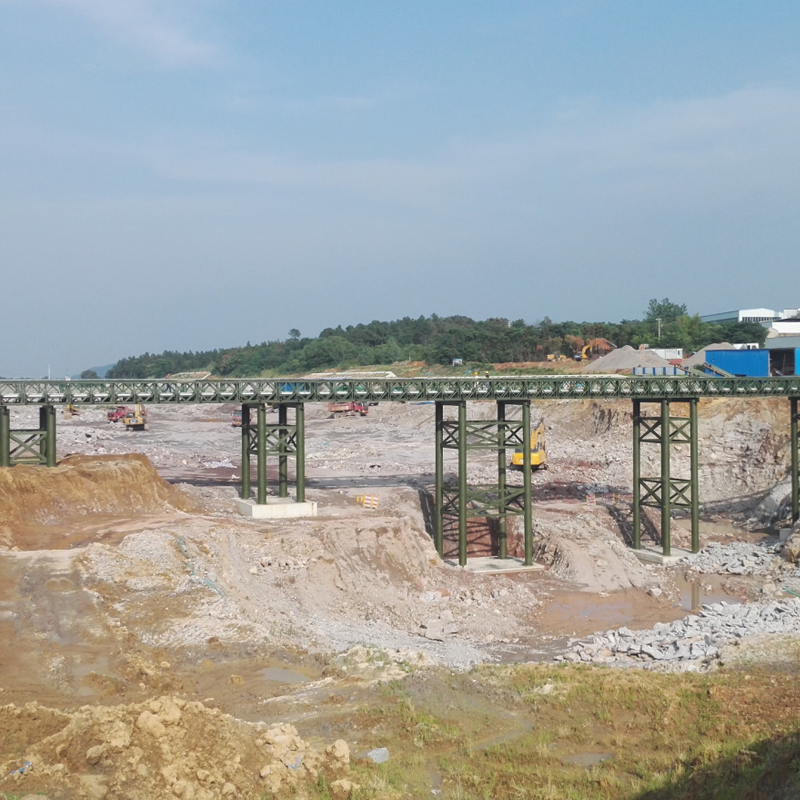

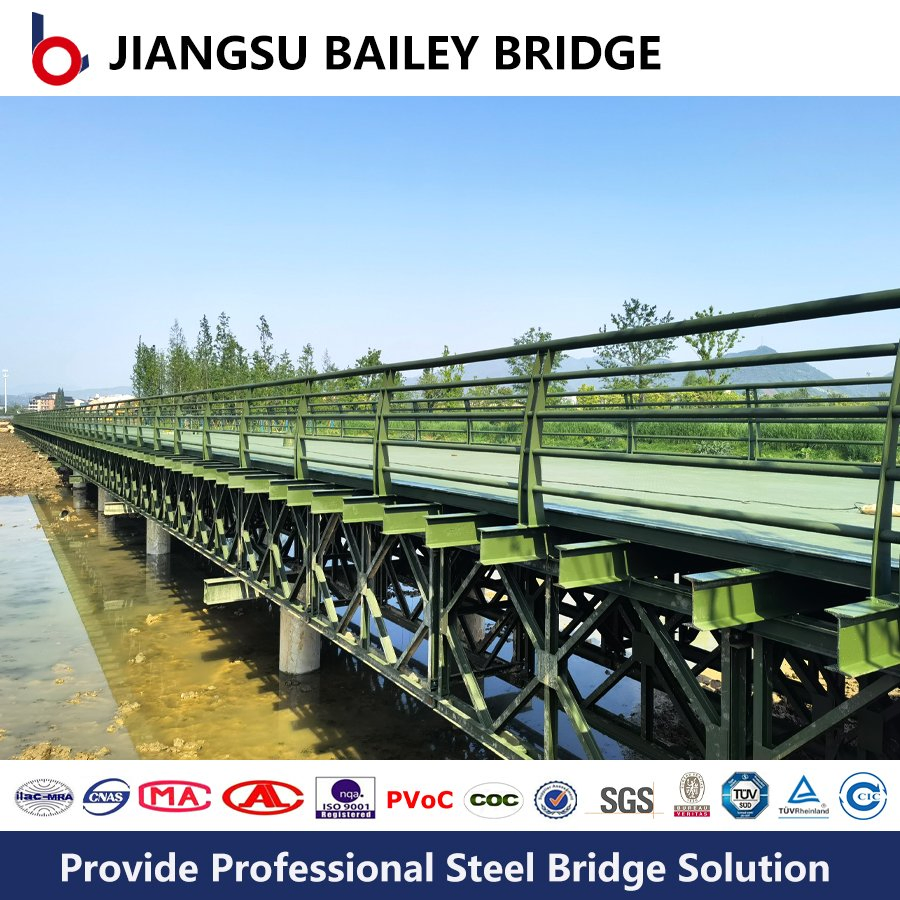

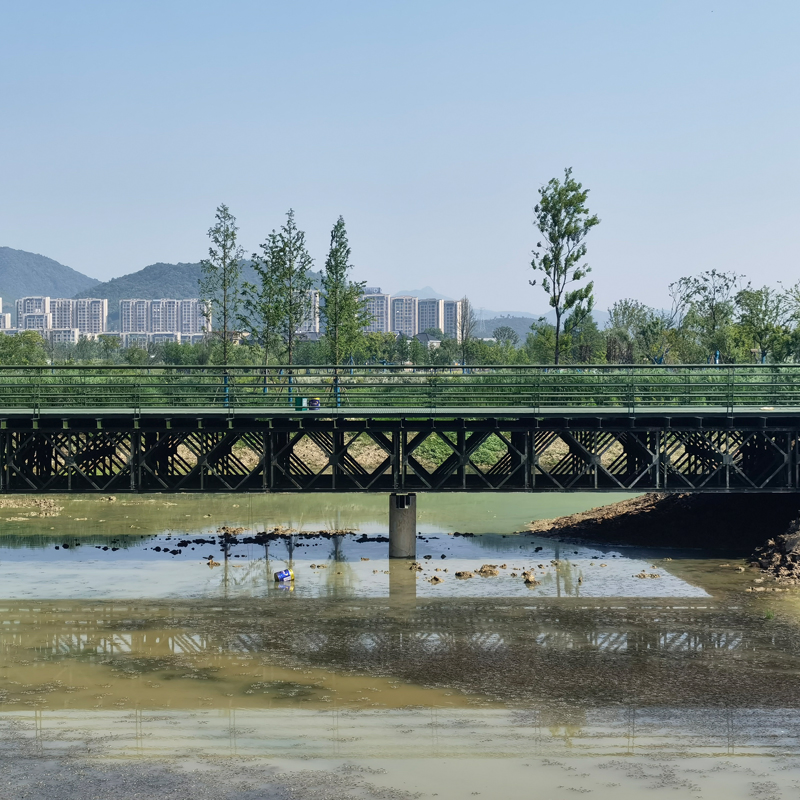

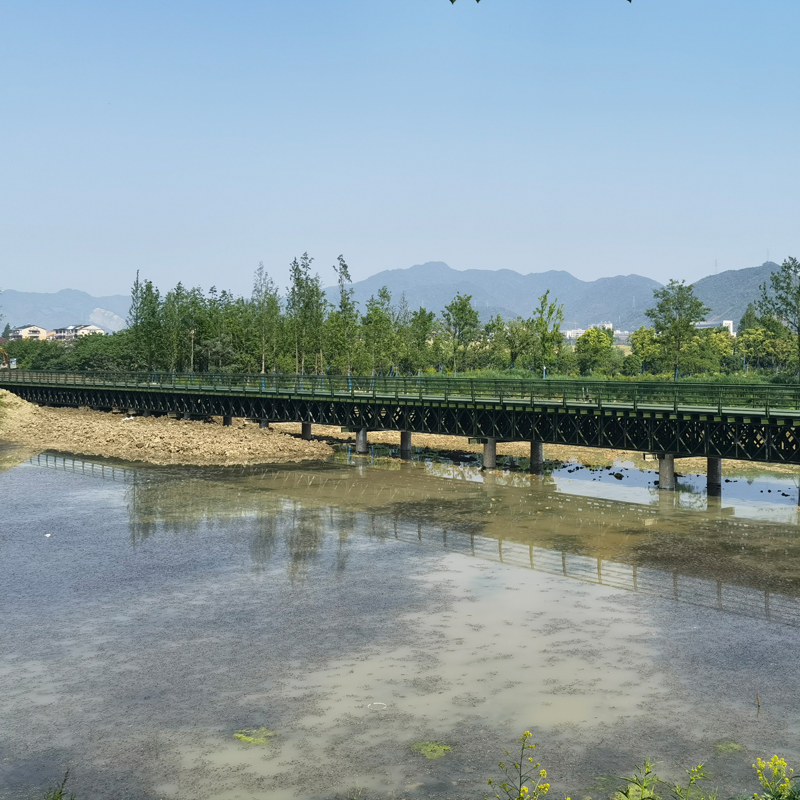

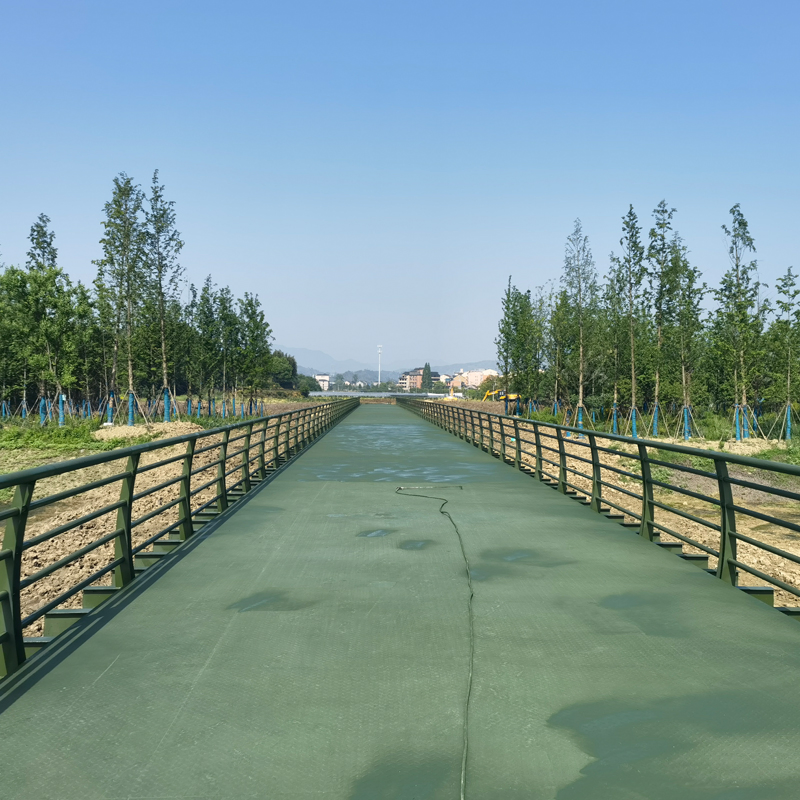

Pedestrian Bailey Steel Structure Bridge for Emergency Purpose Prefabricated Modern Design

Customization: Available
After-sales Service: Installation Instructions
Warranty: Life Time

Product Description

Basic Information
Model NO.
ZB200
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Lane Position
Half Through Bridge
Material
Steel Bridge
Scale
Middle Bridge
MOQ
1 PC
Supply Ability
10000 Ton/Tons Per Year
Packaging & Delivery
Package Size
3042.00cm * 2134.00cm * 176.00cm
Gross Weight
308.000kg
Packing
40' Standard Hq Containers
Product Description
Bailey Steel Structure Bridge 1

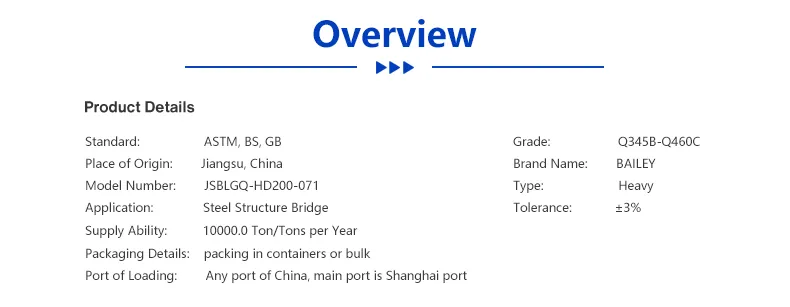

Bailey Steel Structure Bridge 2
ZB200 Truss Press Limited Table
Internal Force Not Reinforced Model Reinforced Model
SSDSTSQS SSRDSRTSRQSR
Truss Moment (kN.m) 1034.32027.22978.83930.3 2165.44244.26236.48228.6
Truss Shear (kN) 222.1435.3639.6843.9 222.1435.3639.6843.9

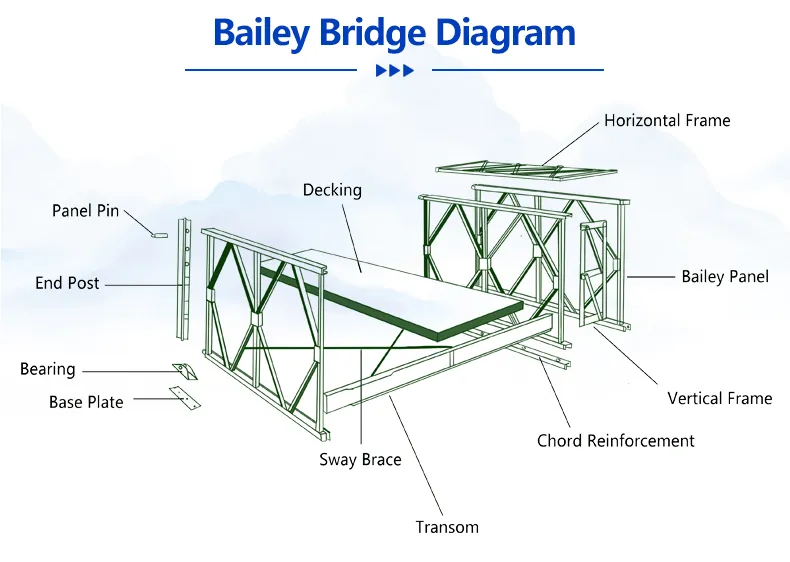

Bridge Design

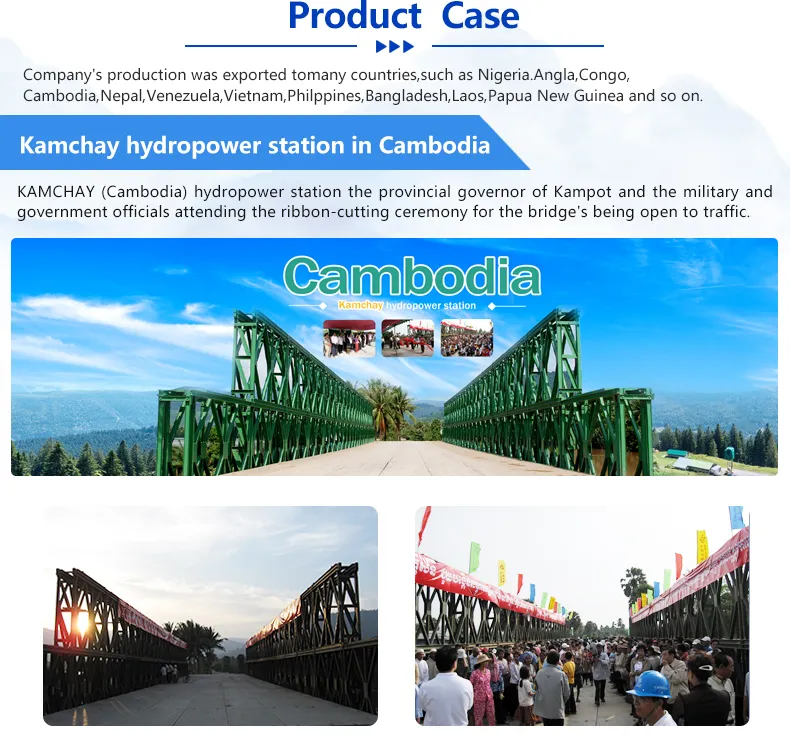

Bridge Construction
Bridge Details
ZB200 Geometric Characteristics (Half Bridge)
Structure Model Chord Area (cm2) Section Properties (cm3) Inertia (cm4)
SSSS25.485437580174
SSR50.96108751160348
DSDS50.96108751160348
DSR176.44163121740522
DSR2101.92217502320696
Technical Drawing 1

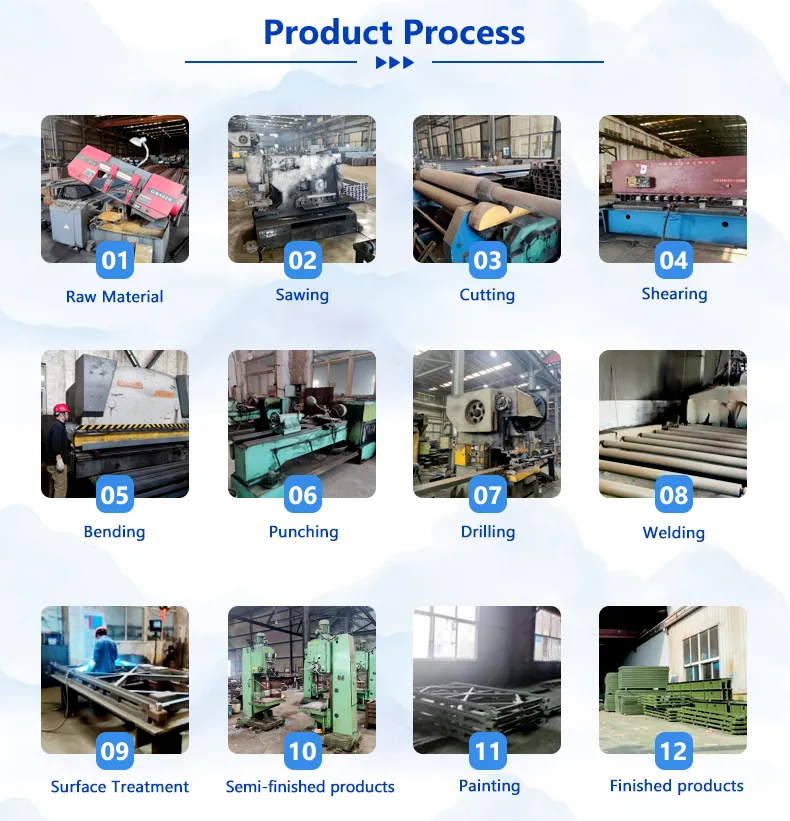

Technical Drawing 2
Installation
Service Flow
1
Professional advice and explicit explanation from our service representatives.
2
Close coordination with excellent engineers to meet your exact requirements.
3
Detailed guidance on product usage and necessary technical services.
4
Thorough inspection of bridge products to solve any process issues.
5
Continuous follow-up through our online service platform to ensure total satisfaction.
Frequently Asked Questions
What kind of manufacturing expertise do you have?
We are a specialized steel bailey bridge manufacturer with leading manufacturing processes in China, engaging in this field for over 20 years with ISO9001:2015 certification.
Are you a factory or a trade company?
We are a factory with six production lines and various machines specialized in fabricating steel bridge parts and other steel structures, holding a full exporting license.
How do you ensure product quality?
We adhere to standards including CMA, CNAS, ISO9001, Grade I road, and international loading standards like HS25 (US) and HA (British).
Which ports do you use for shipping?
While we can use any port in China, our main loading port is Shanghai port for international shipments.
What is your annual production capacity?
Our current production capacity is approximately 10,000 pieces/tons per year, ensuring timely delivery for large-scale projects.
What specific standards does the ZB200 model follow?
The ZB200 model is manufactured in accordance with GB and ASTM certifications, suitable for diverse bridge scales and stress characteristics.
