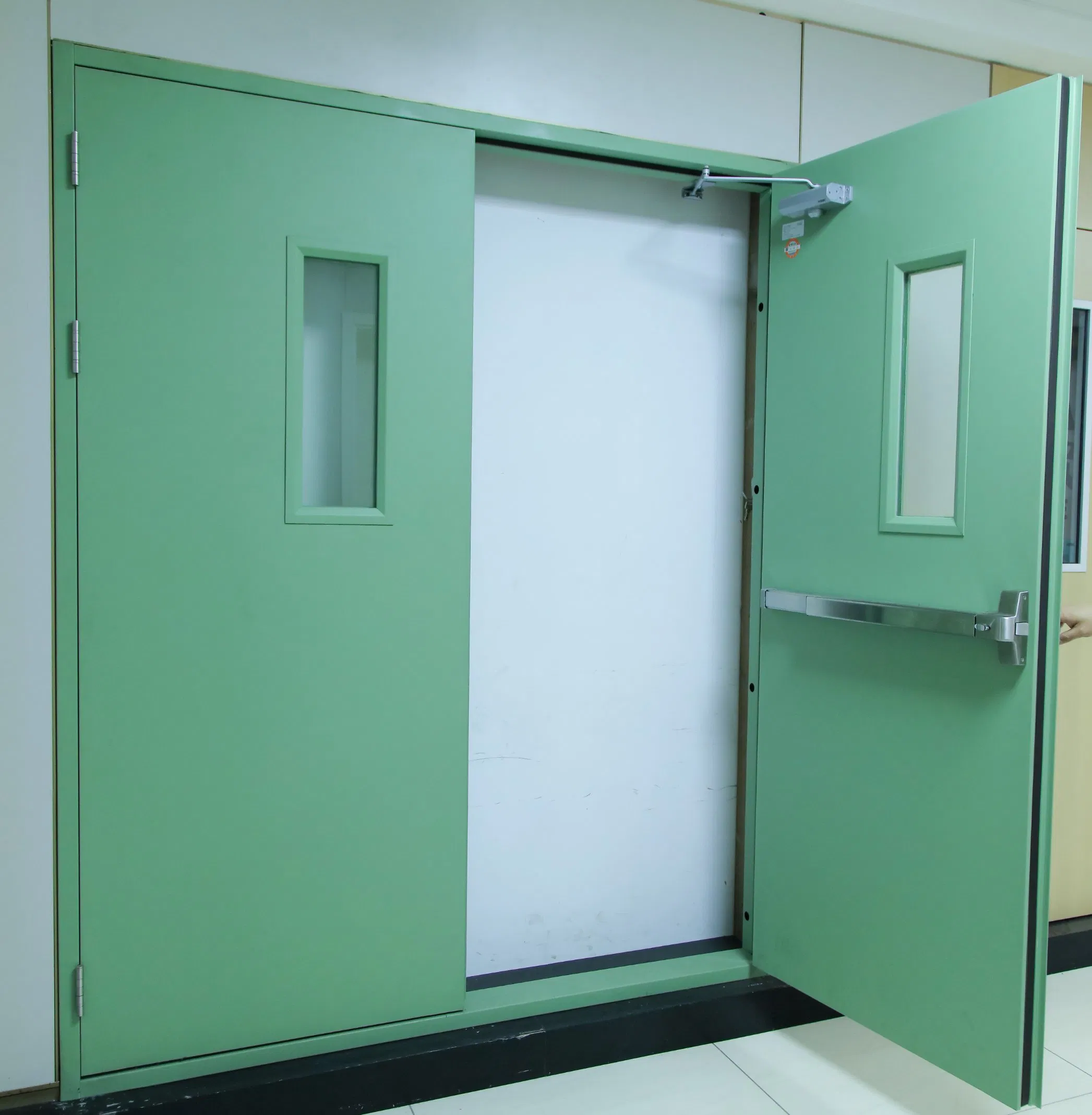

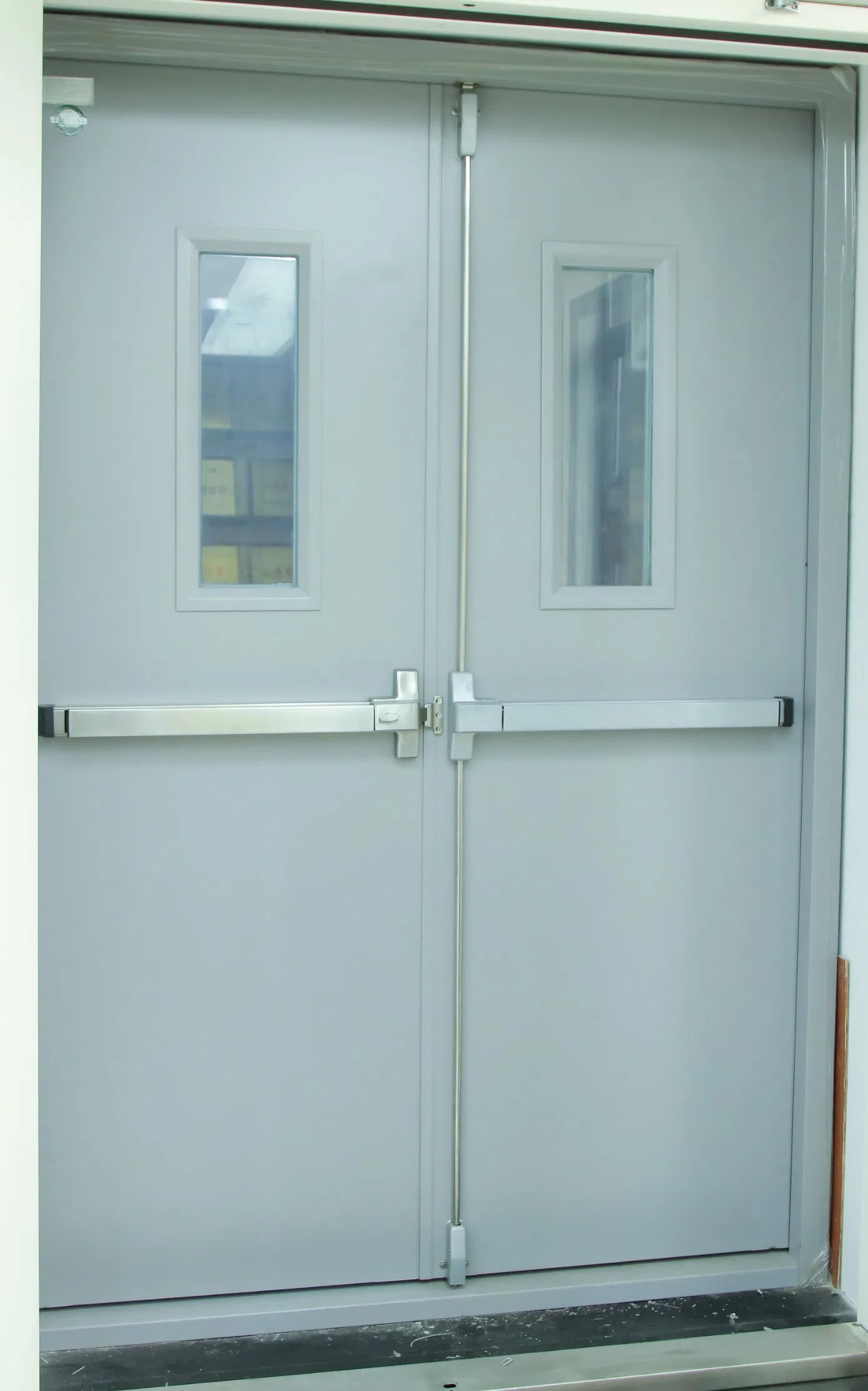

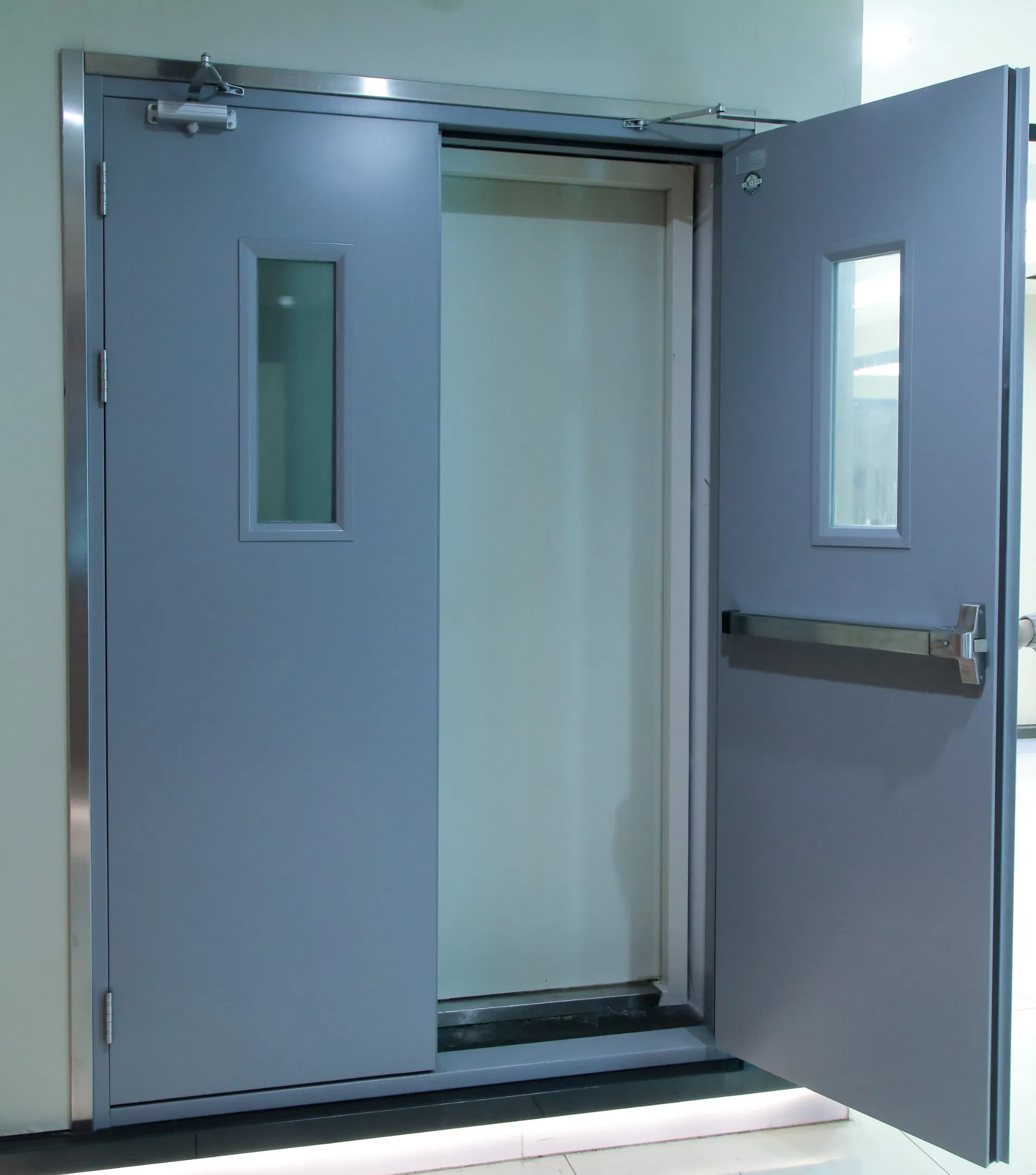

UL 120 Minutes Emergency Exit Fire Rated Steel Door with Push Bar

Customization: Available
After-sales Service: Online Technical Support
Warranty: 2 Years

Product Description

Basic Information
Model NO.
FD-2023036
Material
Steel
Style
Classic
Open Style
Swing
Sound Insulation
30 dB
Function
Security, UL 2 Hours Fire Rated
Fire Rated Time
120 Minutes
Certificated
UL
Surface Finishing
Finished
Production Capacity
30,000 / Month
Product Description

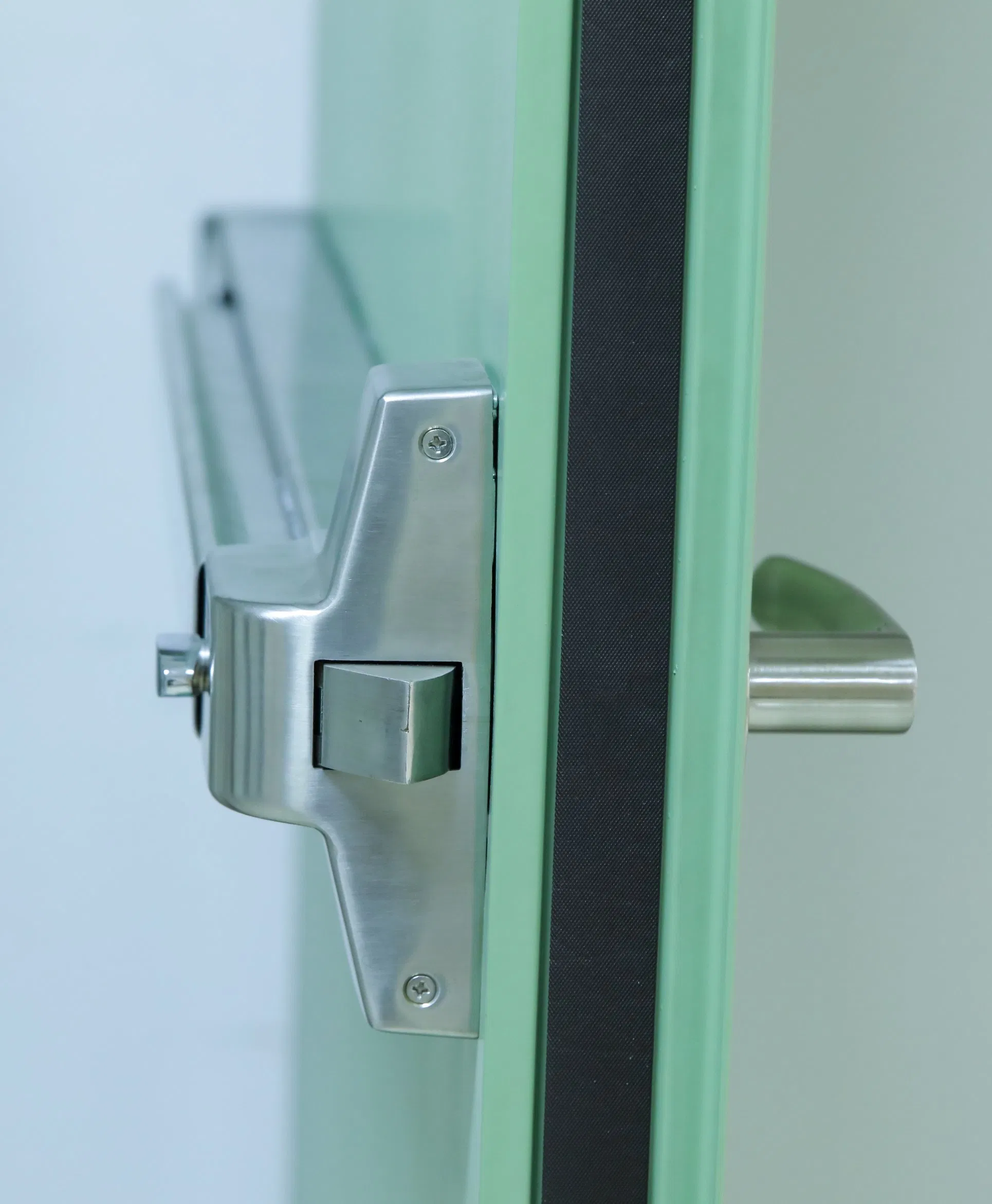

Our UL Listed Fire Rated Steel Doors are designed and manufactured to provide the highest level of safety and protection for commercial, industrial, and institutional buildings. These doors are constructed with high-quality materials and are engineered to withstand the most severe fire conditions. Equipped with a panic bar and trim, they ensure easy and quick egress during emergency situations.

  • UL Listed and Fire Rated: Tested and certified by Underwriters Laboratories (UL) with ratings available for 20, 45, 60, 90, and 180 minutes.
  • Robust Construction: Made from heavy-duty, galvanized steel. The core is filled with fire-resistant insulation to prevent the spread of fire and smoke.
  • High-Quality Finish: Factory-applied powder-coated paint provides a durable, corrosion-resistant surface available in various colors.
  • Global Standards: Fully compliant with applicable building codes ensuring life safety performance.
Fire Rated Steel Door

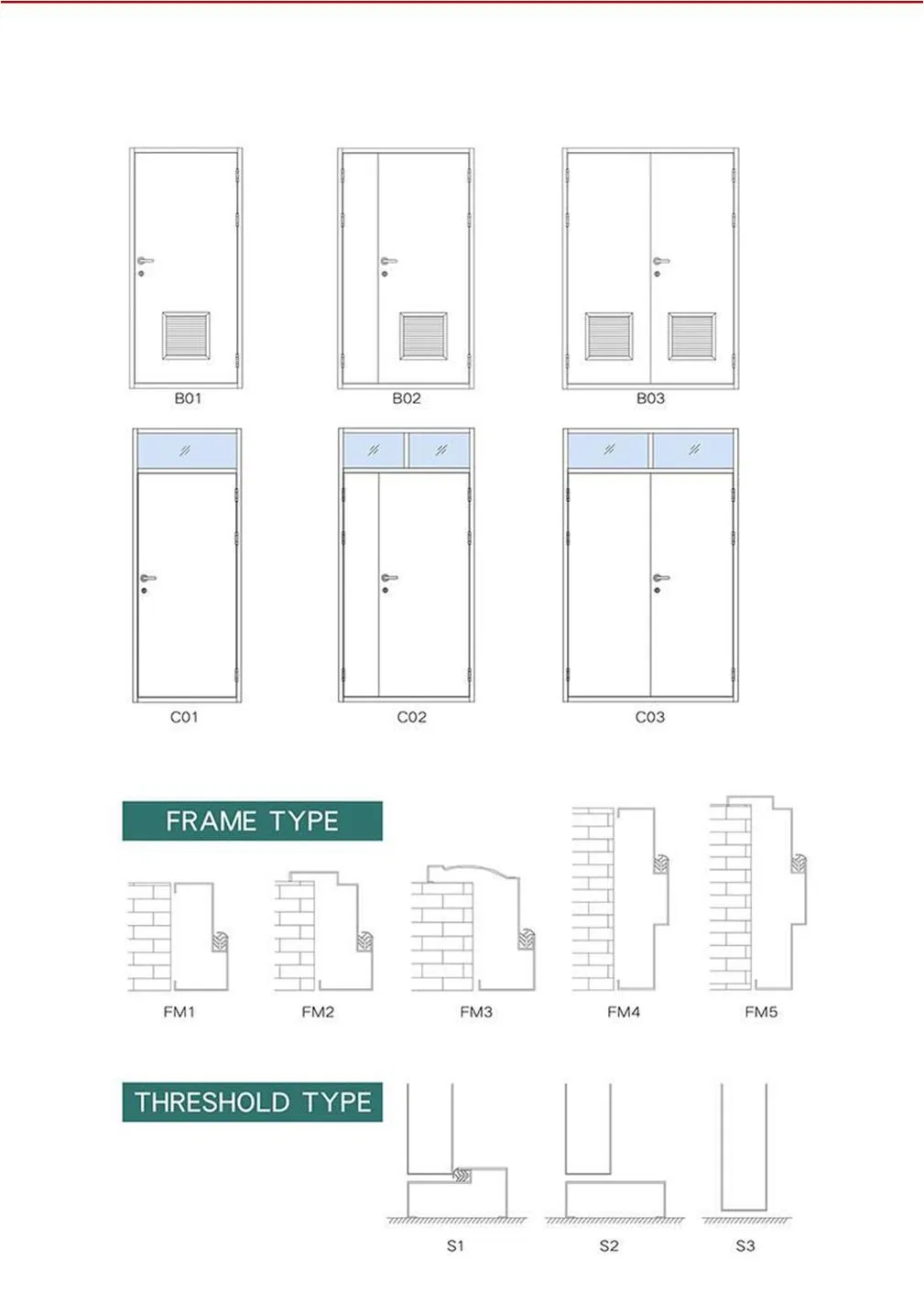

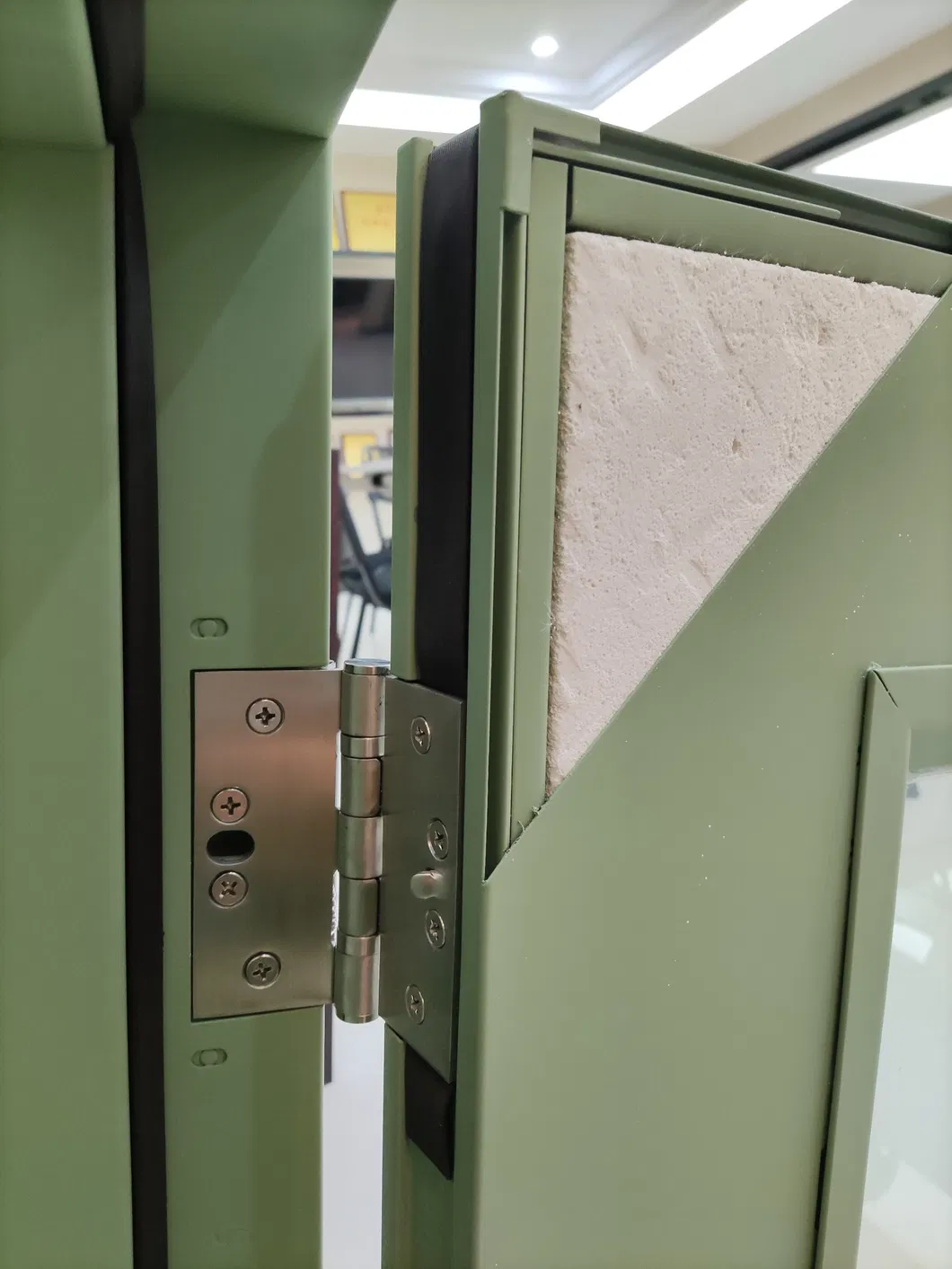

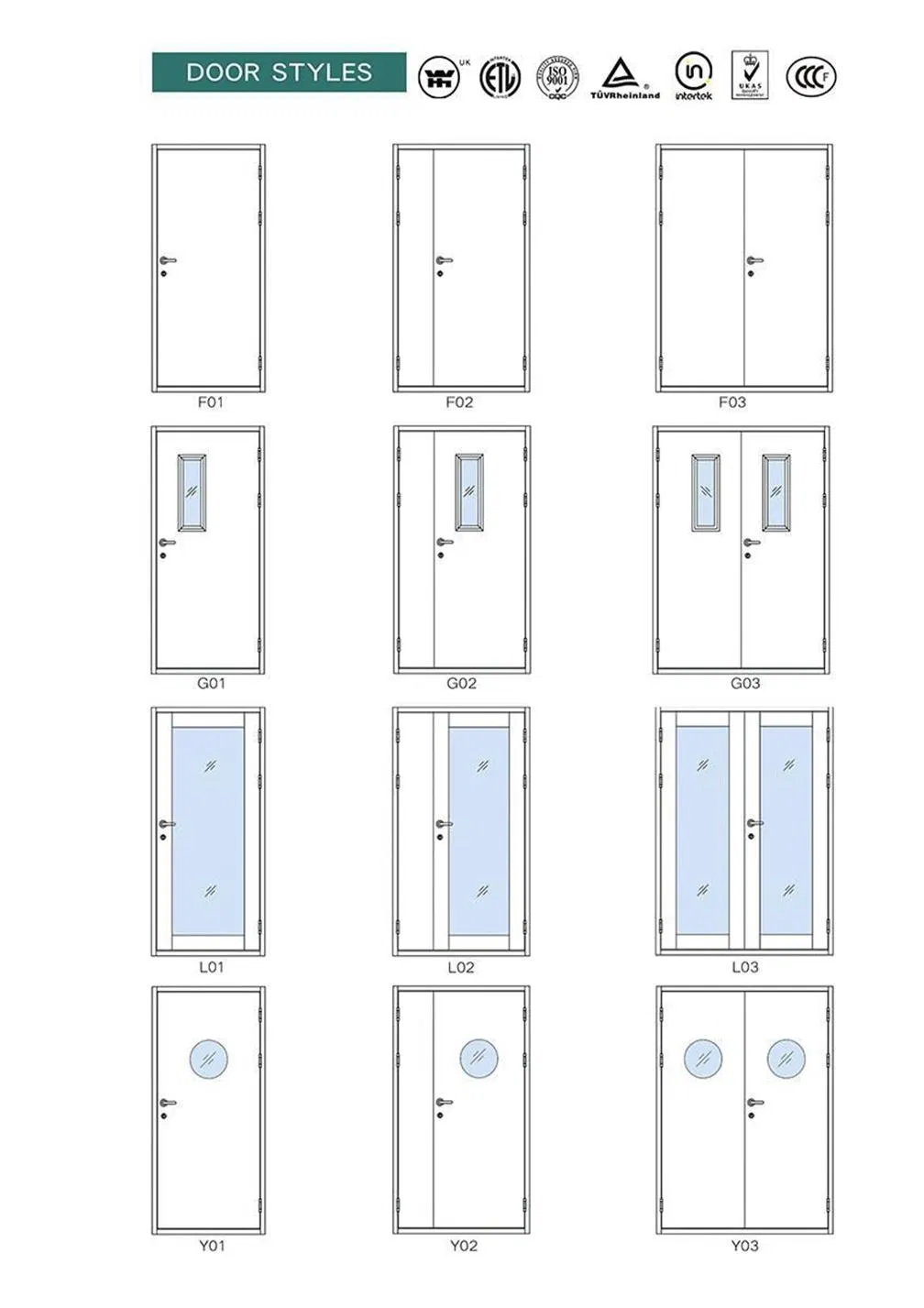

Detailed Product Photos

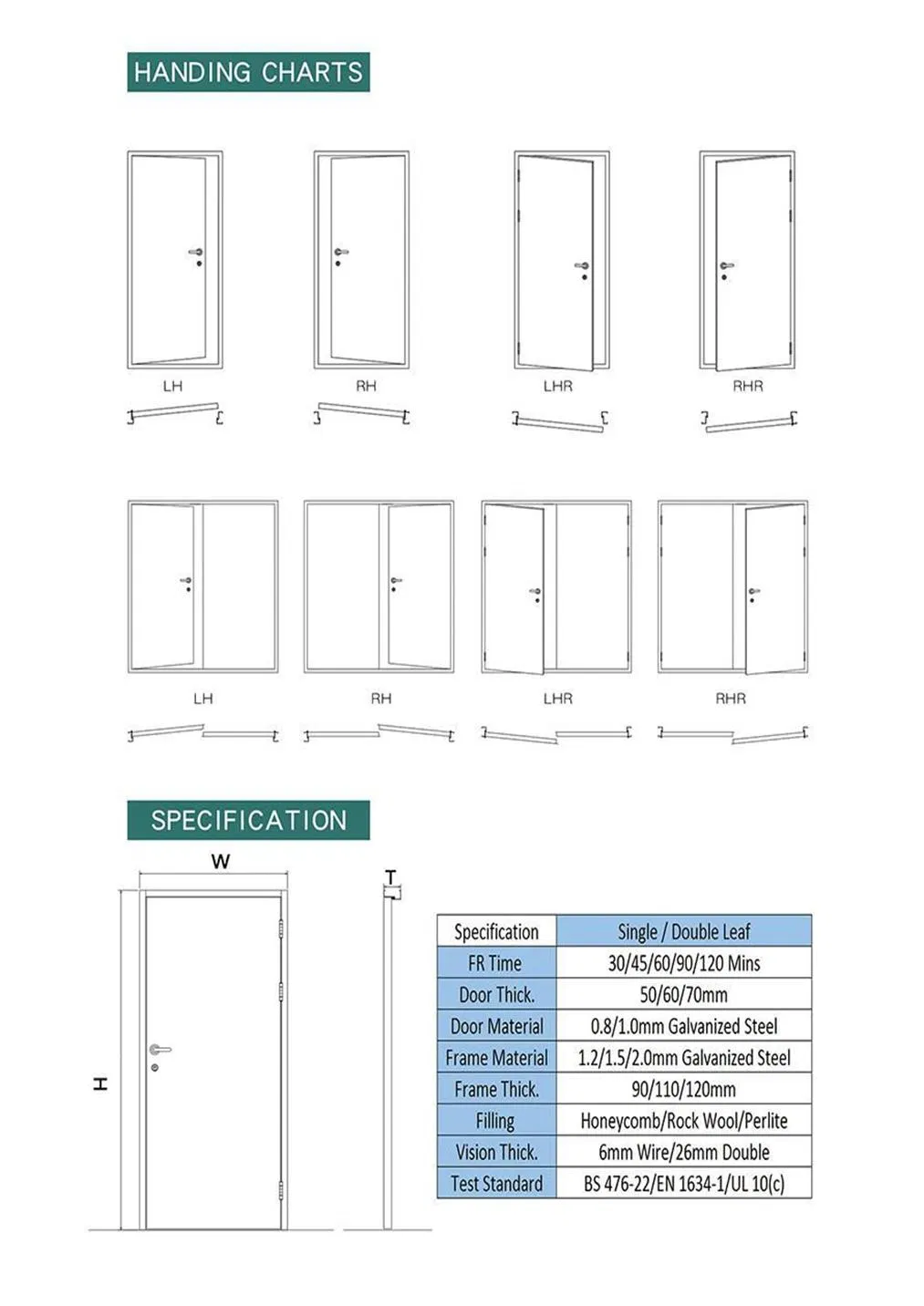

Technical Specifications
Door MaterialGalvanized Steel
SizeCustomized per drawing
Door Panel Thickness50mm or 2" inches
Frame DepthStandard 110mm or 4 1/4" inches, or customized
Door Leaf Sheet22 Ga.-18 Ga. (1.0/1.2 mm)
Door Frame Sheet16 Ga.-14 Ga. (1.5mm-2.0mm)

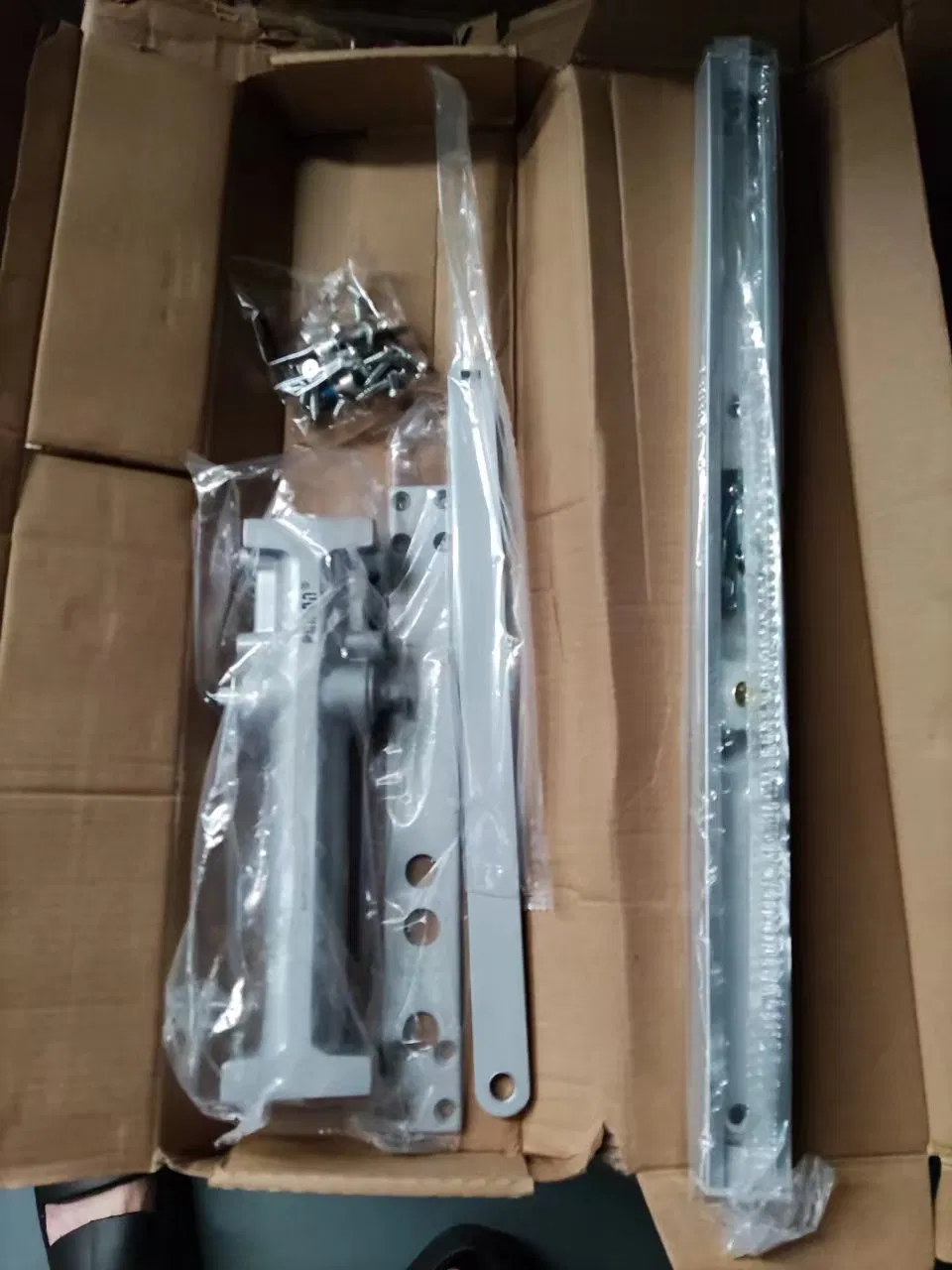

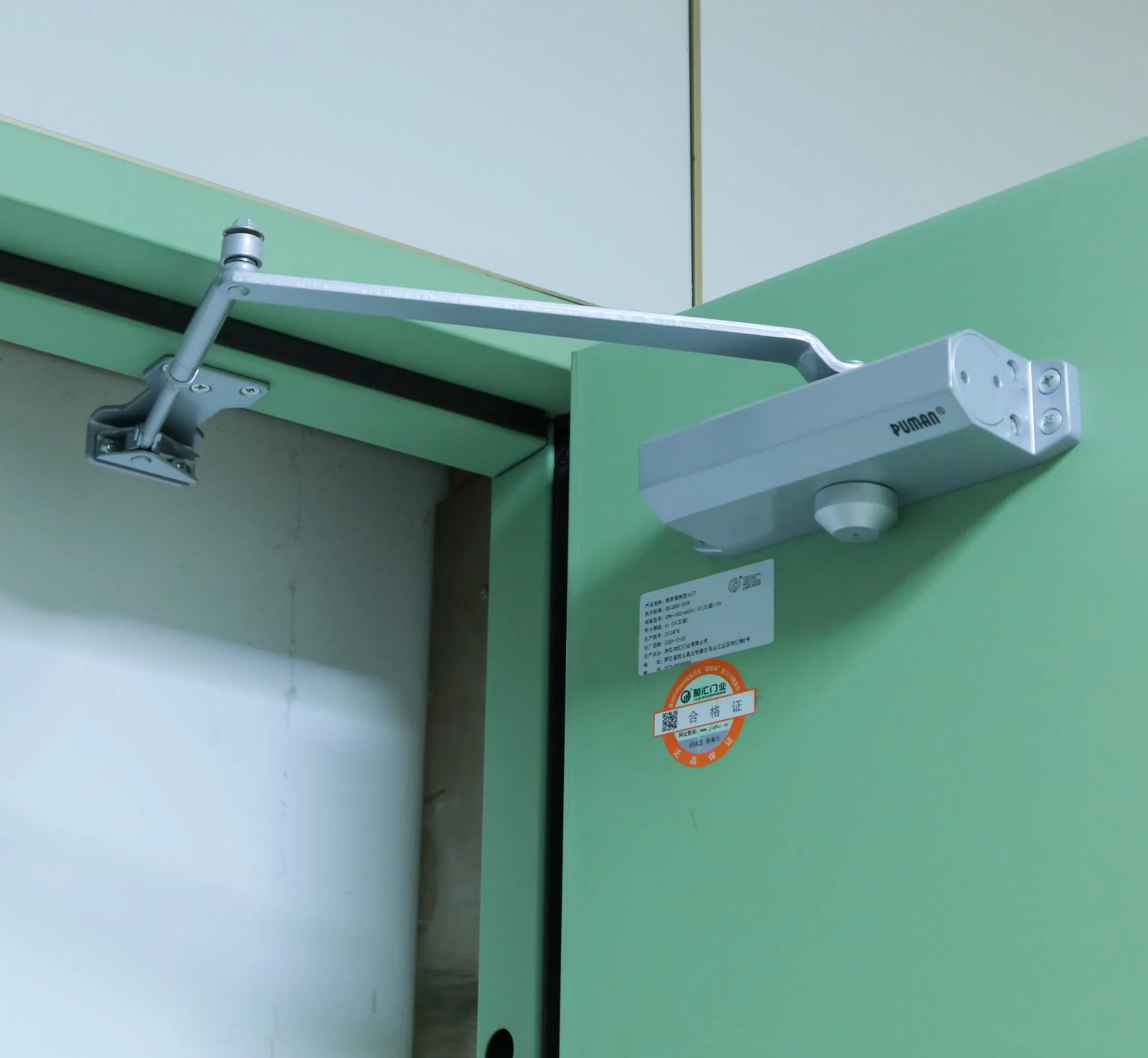

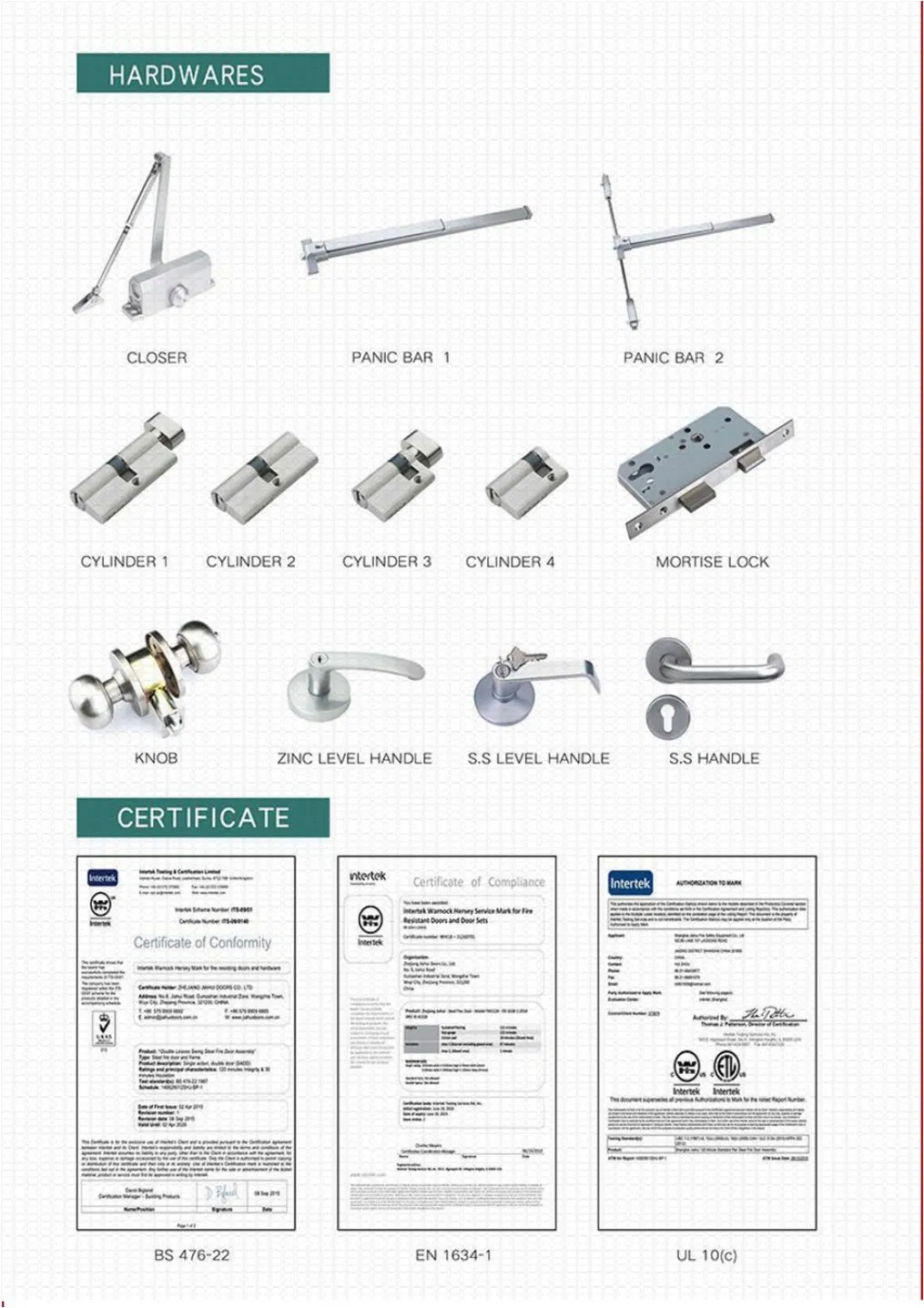

AccessoriesLock, handle, hinges, door closer, panic bar, etc.
Vision PanelAvailable upon request
Surface TreatmentPowder coated or heat transfer printing
Inner FillingPerlite or Insulated rockwool
Certification ComplianceUL 10C, UL 10B, NFPA 252, CAN/ULC S104

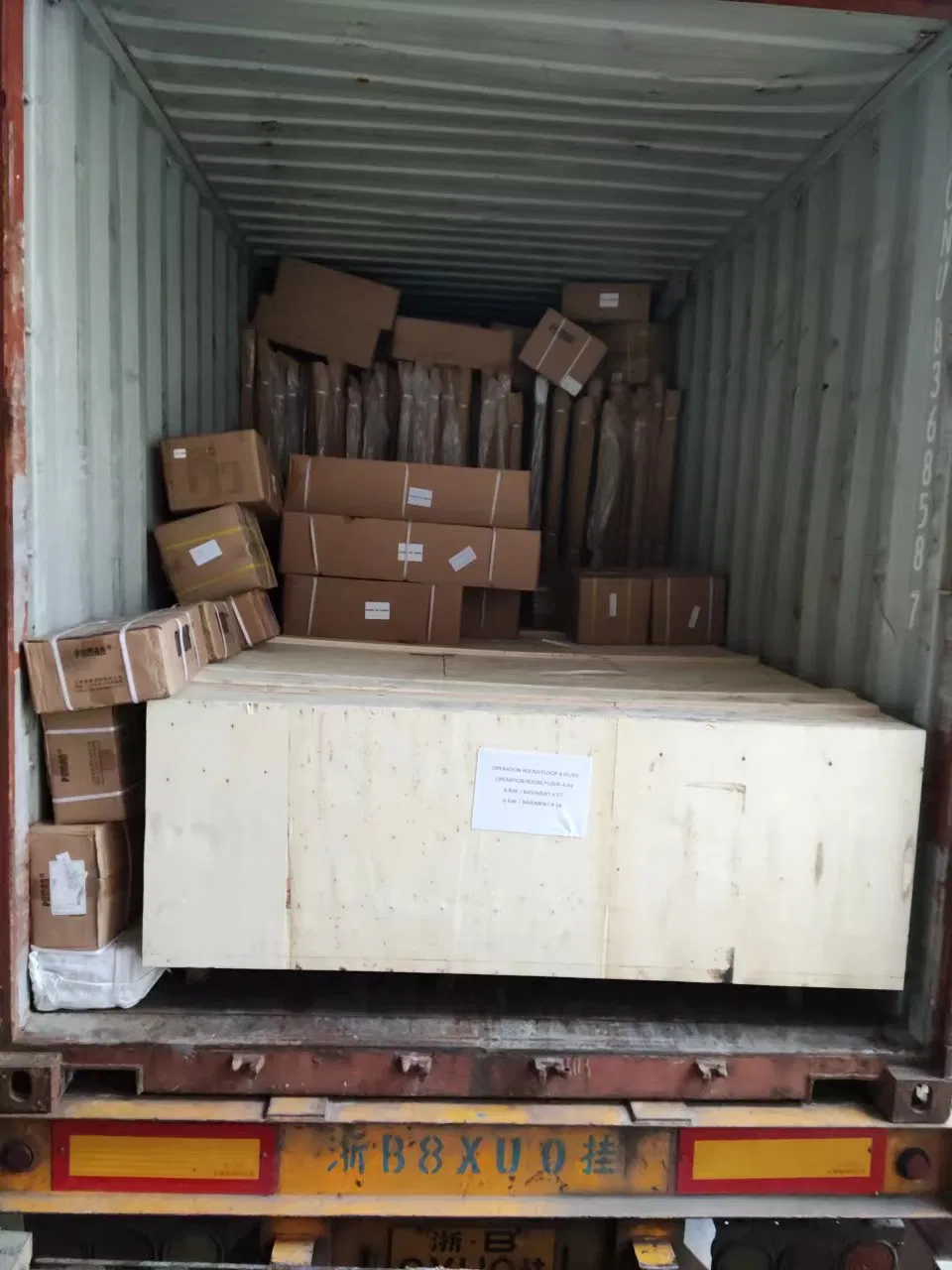

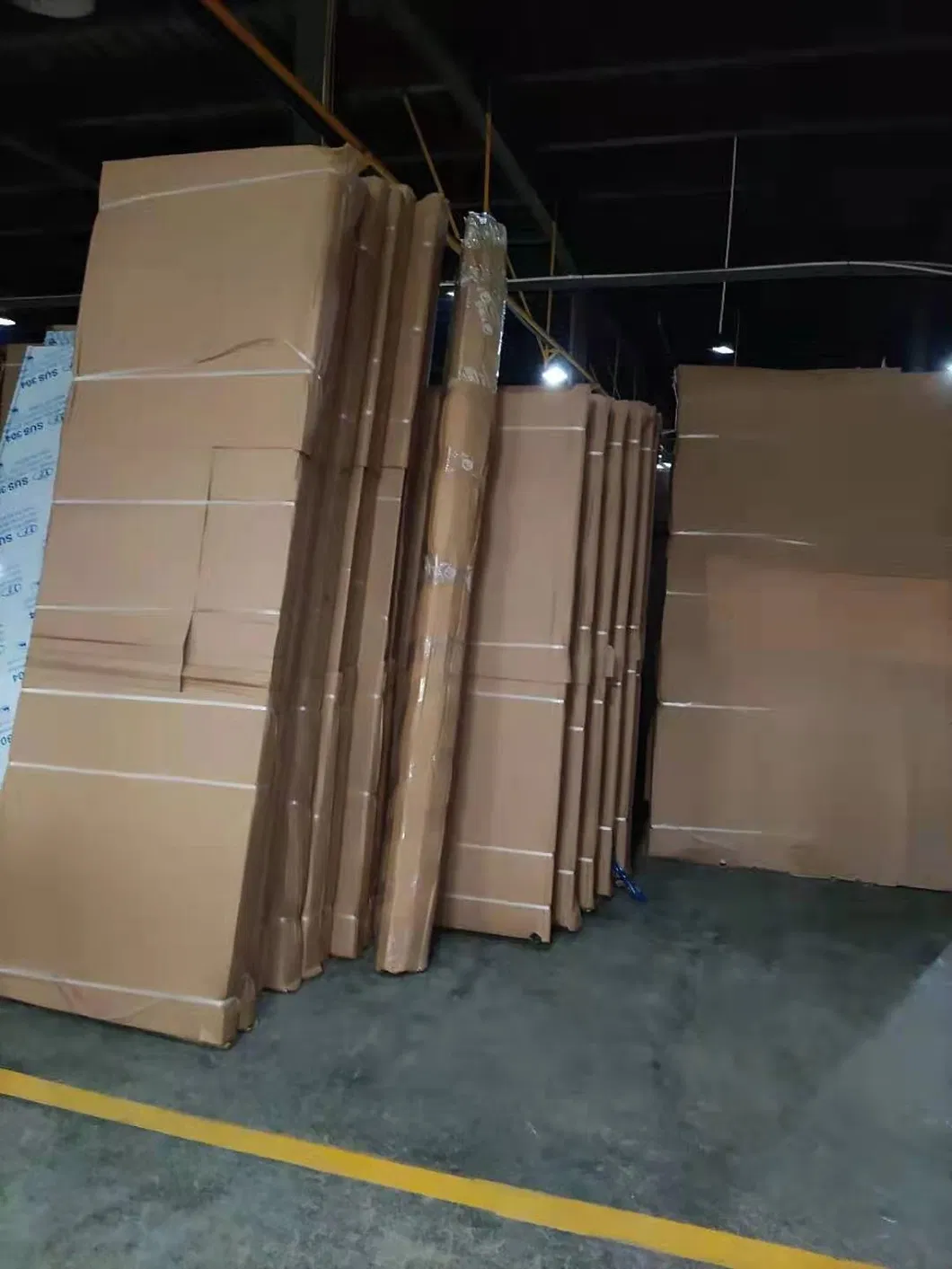

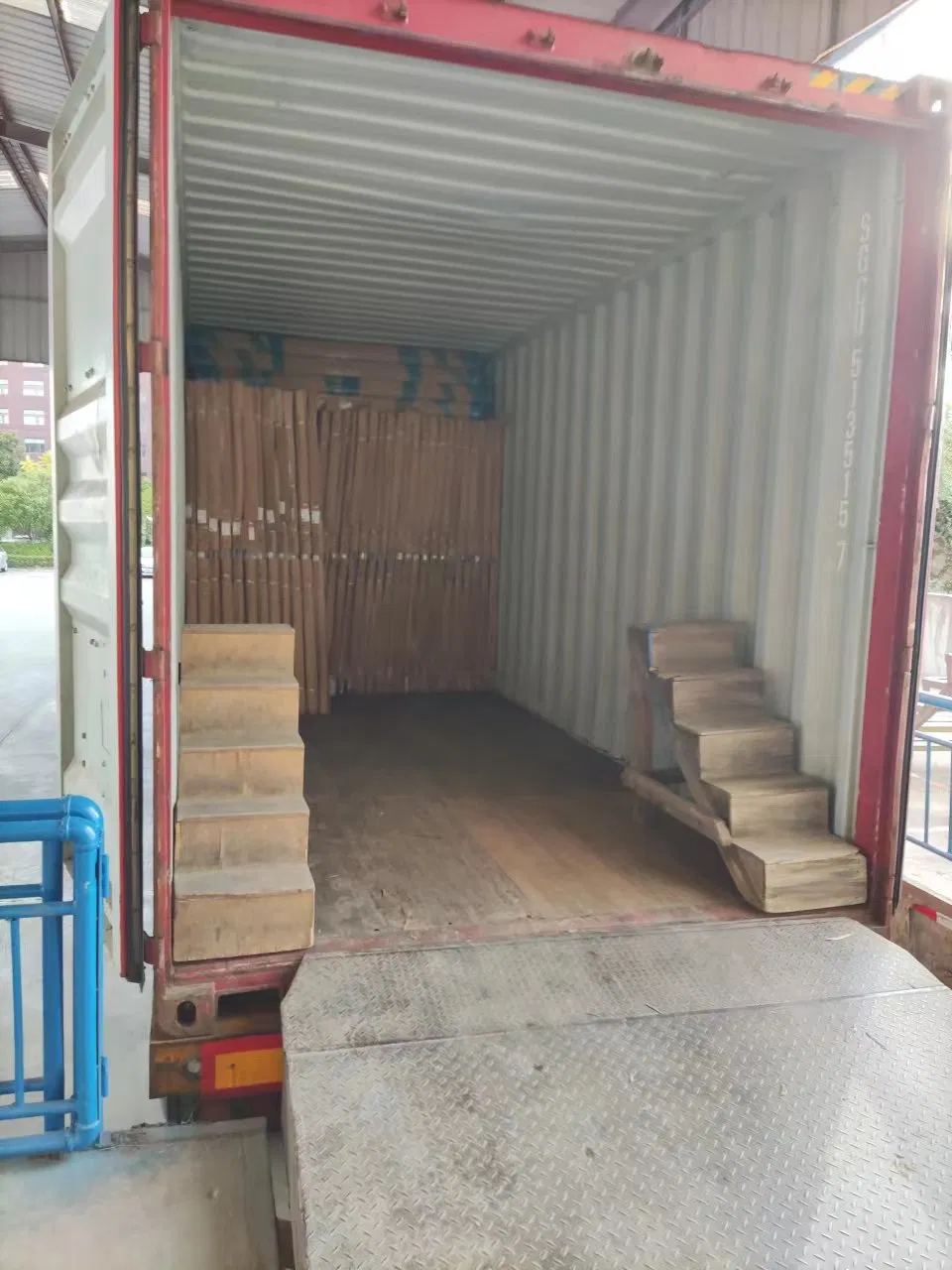

Packaging & Shipping
Manufacturing Excellence

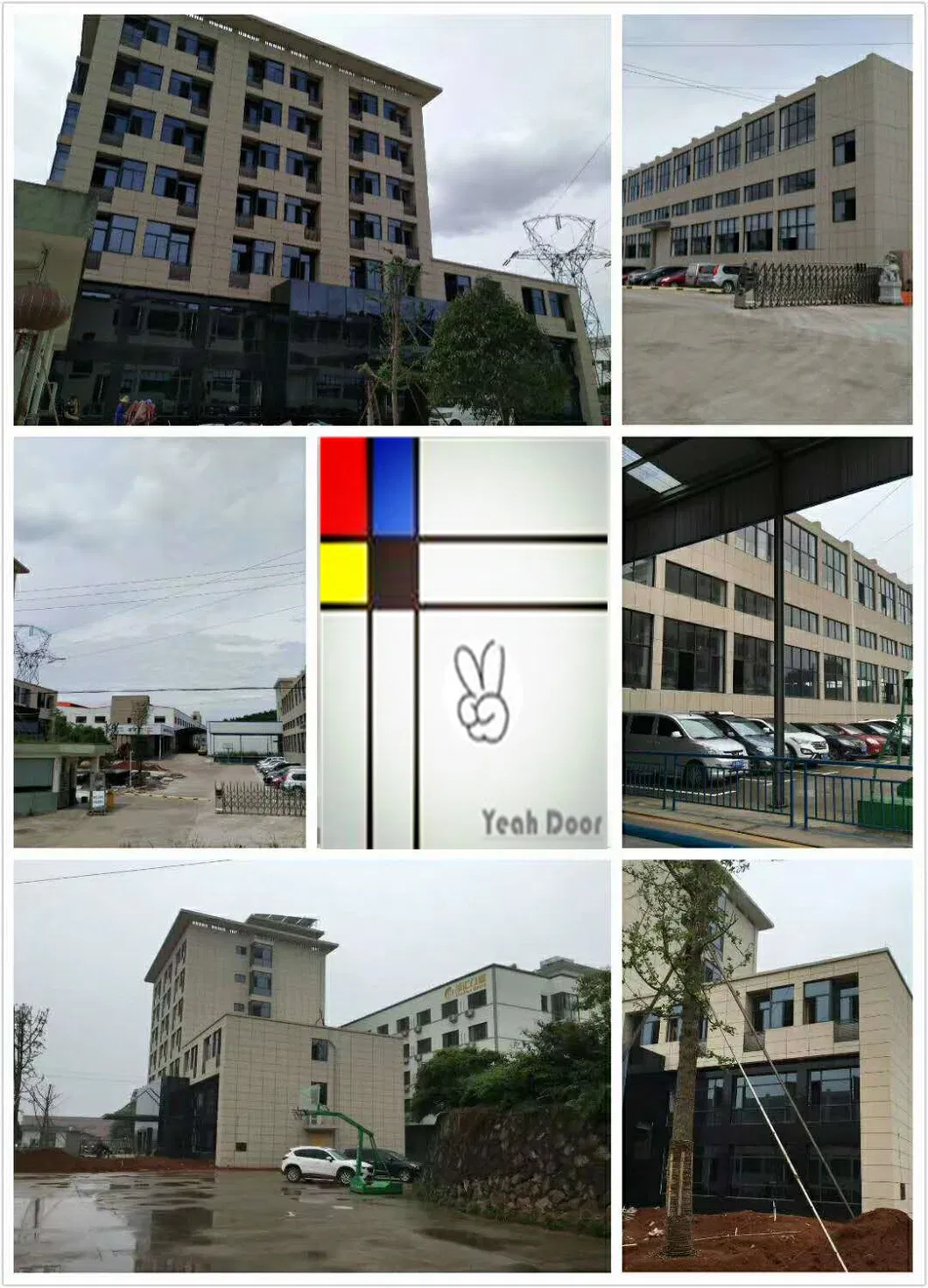

Manufacturing Process

We are a leading supplier of specialized doors, including steel, wooden, and hospital doors. With over 10 years of exporting experience, we prioritize high-quality materials and advanced manufacturing techniques.

Before production begins, we provide customers with detailed CAD drawings to ensure every specification is met. Our fire-rated steel doors are UL listed, ensuring they meet rigorous safety standards for performance and durability.

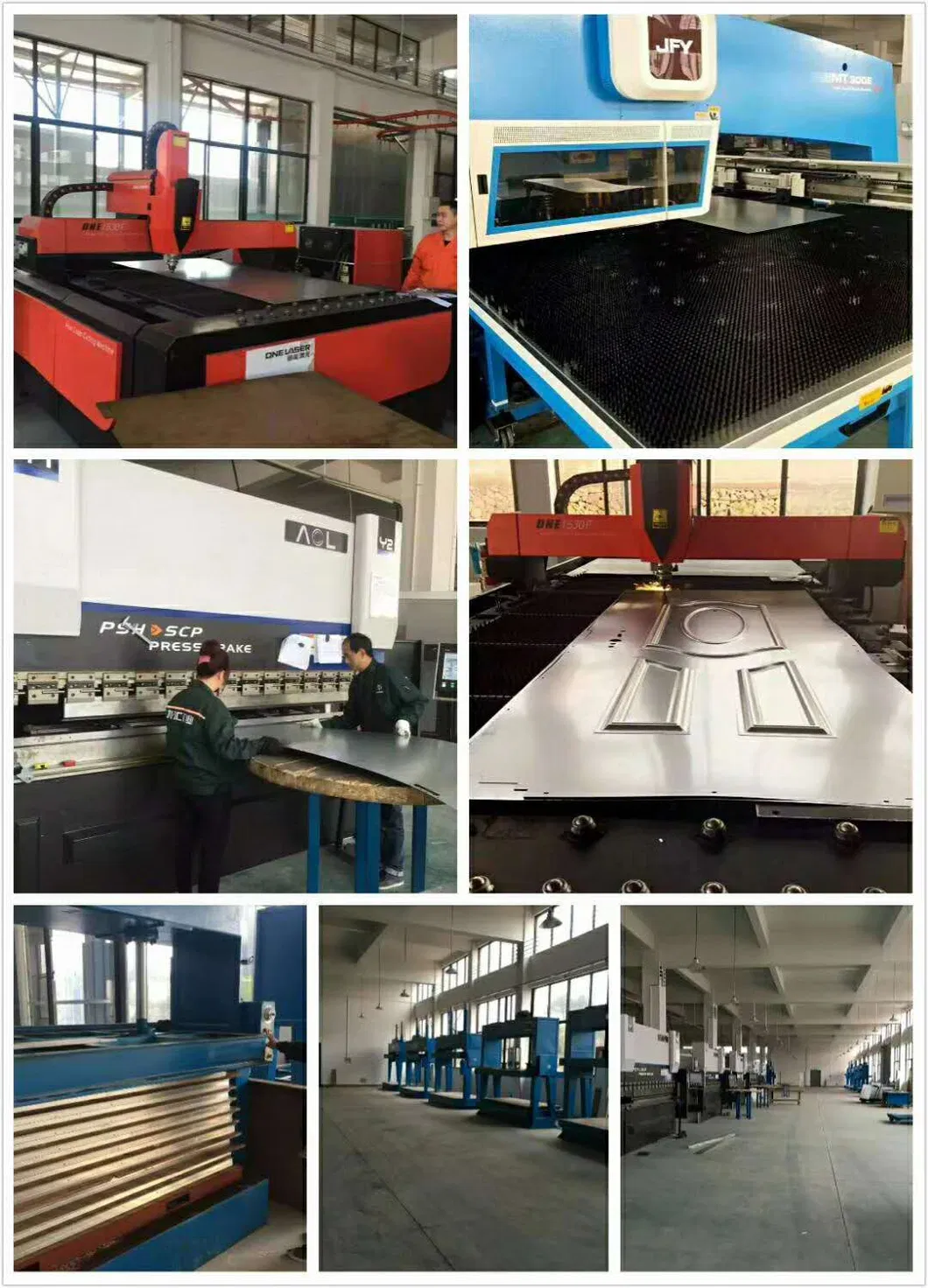

Our facility is equipped with state-of-the-art machinery. Our skilled workers craft each door with precision, followed by strict quality control procedures. Whether for a single installation or a large-scale project, we focus on providing superior protection and life safety features.

Door Stock
Frequently Asked Questions
Q1: What fire ratings are available for these steel doors?
A: Our fire-rated steel doors come in various ratings, including 20, 45, 60, 90, and 180-minute options to meet different building code requirements.
Q2: Are the doors certified by international safety bodies?
A: Yes, our doors are UL Listed and comply with standards such as UL 10C, UL 10B, and NFPA 252, ensuring high performance in fire conditions.
Q3: Can I request a custom size or vision panel?
A: Absolutely. We manufacture doors according to your specific CAD drawings, and vision panels can be added or omitted as per your request.
Q4: What material is used for the door core?
A: The door core is filled with high-grade perlite or insulated rockwool, providing excellent thermal protection and preventing smoke spread.
Q5: What kind of finish do the doors have?
A: The doors feature a factory-applied powder-coated finish or heat transfer printing for a wood-grain look, making them resistant to scratches and corrosion.

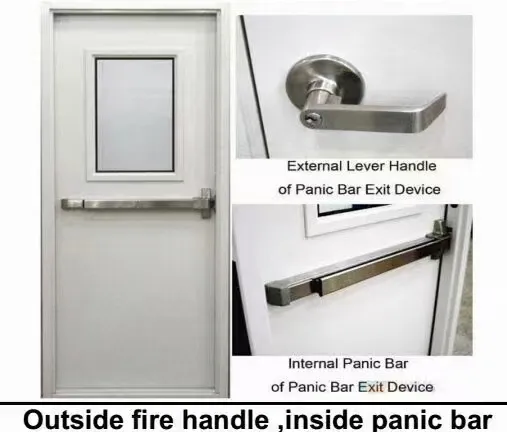

Q6: What accessories are included with the emergency exit doors?
A: Standard accessories include a panic bar (push bar), door closer, heavy-duty hinges, and handles, all designed for emergency egress.
